Subwoofer in box Hifonics ZXS12S

Subwoofer in Box Hifonics ZXS12S

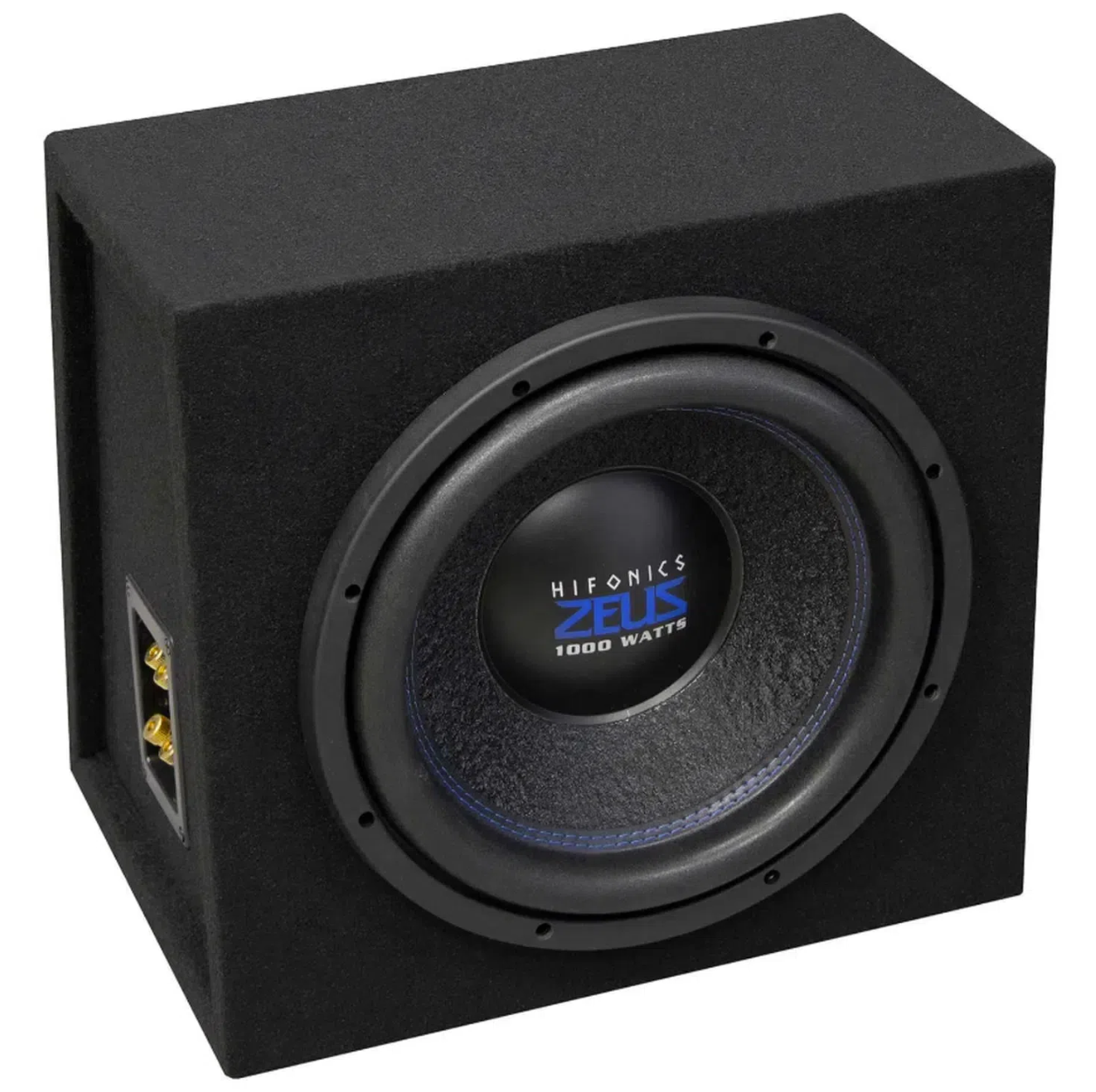

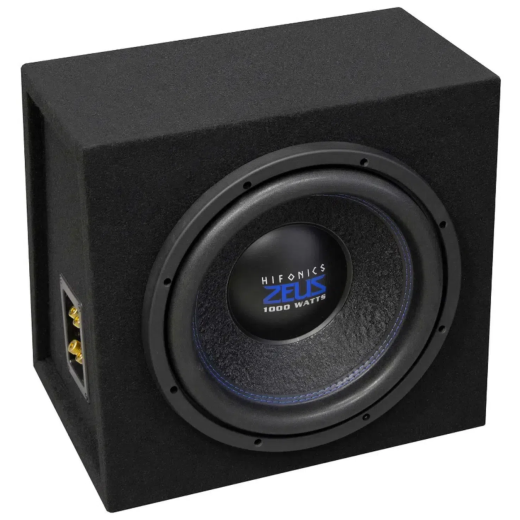

The Zeus ZXS12S by Hifonics is a 12" (30 cm) enclosed subwoofer that impresses with a powerful 500 W RMS output and a maximum output of 1000 W. With an impedance of 2 + 2 Ω, it offers flexible connection options. The compact enclosure of the subwoofer measures 315/240 x 385 x 400 mm and is built as a sealed box. Zeus ZXS12S combines power and compactness, making it ideal for anyone looking for strong bass in their audio system.

Key Features

• 12" (30 cm) enclosed subwoofer.
• RMS power 500 W, max. power 1000 W.
• Impedance 2 + 2 Ω for flexible connection.
• Includes subwoofer Zeus ZXS12D2.
• Strong and deep bass sound.

About the Brand

Hifonics is among the world legends in car audio. Since its inception in the 80s, it has defined standards in automotive sound systems and is a strong player in the amplifier, speaker, and subwoofer segments. The brand is known for its uncompromising philosophy—combining top performance with precise craftsmanship and distinctive design. Hifonics products appeal to all customers, from demanding audiophiles to enthusiasts who want to experience rich bass and maximum dynamics in their car. Hifonics amplifiers are renowned for their high stability, clear sound, and immense power potential. The speakers and subwoofers also excel in precise craftsmanship and long lifespan even under extreme load. Hifonics continuously innovates its products. Modern technologies, such as hybrid puffer capacitors, extremely rigid carbon membranes, MICA composite membranes, or advanced cooling, push the sound boundaries further. Alongside top amplifiers, you'll find practical accessories in the portfolio, from remote bass controls to mounting accessories and design protective grills. If you're looking for a proven brand that combines a legendary name with modern technologies and top sound, Hifonics is the right choice for your car. Enjoy superior performance that you can feel—Hifonics keeps you one step ahead!

Catalog number	ZXS12S
Brand	Hifonics
RMS powerThe RMS power of the subwoofer is constant power. This is also the performance of continuous use of the subwoofer. If you exceed the power for a longer period of time, irreversible damage or subwoofer voice coil burning! You can tell if the subwoofer is overloaded by the vibration of the subwoofer membrane.	500 W
Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur or subwoofer voice coil burning!	1000 W
The diameter of the subwoofer in the box	300 mm (12\")
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance is compatible with the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used with an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm. Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm subwoofer can easily be used with an amplifier that is stable up to 2 Ohms. The most common impedance of subwoofers is 1 x 4 Ohm.	2 + 2 Ω
Loudspeaker typeThe closed enclosure is characterized by a simple construction. Closed enclosures are usually smaller than bass-reflex enclosures, and a special damping fleece is used for their damping. A closed baffle has the advantage of preventing an acoustic short between the front and back radiation of the subwoofer diaphragm. The disadvantage is that the closed enclosure raises the natural resonance frequency of the used subwoofer and thereby also increases the lower limit frequency. This is because the back side of the diaphragm is forced to compress and dilute the air inside the enclosure when the subwoofer is radiating in a closed enclosure. This adds to the inherent stiffness of the subwoofer's oscillation system the stiffness of the air in the closed enclosure. This causes an increase in the stiffness of the oscillating system and thus an increase in the resonant frequency of the entire system: subwoofer -> loudspeaker. The increase in resonant frequency for a given subwoofer is greater, the smaller the volume of air in the closed enclosure. The relatively small volume of air in the closed enclosure acts on the subwoofer as an acoustic spring when radiating the back side of the membrane into the enclosed enclosure. USE: Mainly for quality bass listening in the entire band with an emphasis on detail and accurate reproduction in the lower band. Pros and cons: + pure reproduction + small closets + easier tuning - low level of efficiency in deep bass - loudness only at the cost of enormous deflection of the diaphragm - a significant acoustic pressure cannot be expected The bass reflex enclosure is designed in the same way as a closed enclosure, but it also has a so-called bass reflex mouthpiece, or "bass reflex". Needle foam is used to dampen bass reflex enclosures. USE: The ideal use is in cases where the listener wants to achieve a high volume and a good sound pressure level. It is the best compromise between sound quality and performance and is also the most commonly used Pros and cons: + good efficiency in deep bass + a small deflection of the membrane is enough for a large volume - reproduction less accurate than with closed enclosures	Sealed box
What is the baffle made of?Subwoofer enclosures are usually made of 18-22 mm MDF board or pressed chipboard. Due to its higher strength, MDF board is a better material than ordinary chipboard.	MDF
Box weight incl. subwoofer	18 kg
Beveling of the back wallThe bevel of the back wall is a crucial parameter if you intend to place the subwoofer in the luggage compartment, instead of the back wall of the rear seat. This will save you a few centimeters of space in the trunk of your car.	Yes
