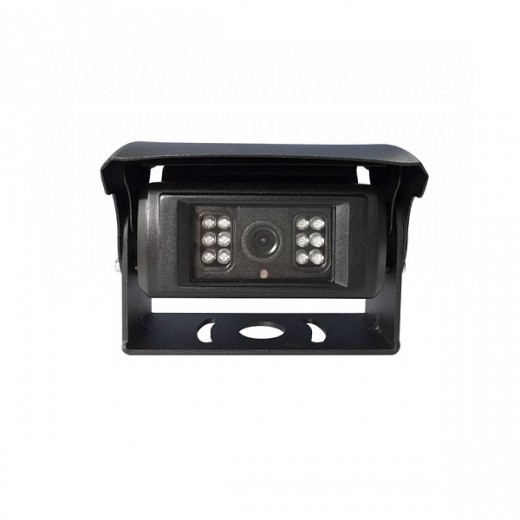

Kamera CAM4HD

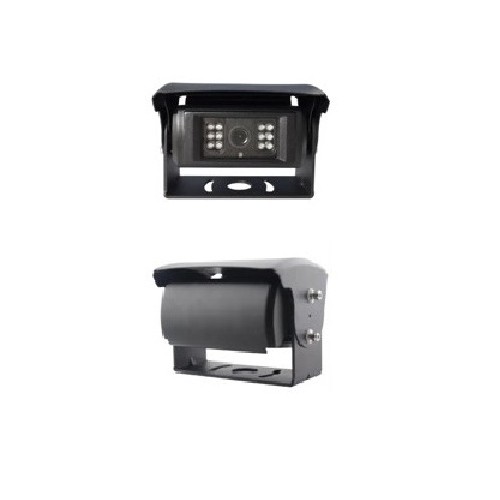

Vehicle camera CAM4HD

Vehicle AHD camera with 720p resolution and automatic IR illumination is intended for display on an AHD monitor. It is powered from the monitor via screw M12 4PIN connectors. Ideal for use on trucks or work machines as a front or rear camera. The metal housing, automatic lens heater and vibration resistance make it suitable for use even in the most demanding conditions. An automatic metal shield protects the lens when the camera is switched off. Image orientation is set on the monitor; it is homologated.

Technical specifications

• CMOS 1/3" image sensor.
• HD resolution 720p.
• Automatic illumination, 12 x IR LED.
• Viewing angle: 120°.
• TV system: PAL.
• Water resistance: IP69K.
• Shock resistance: min. 4G.
• Image orientation: mirrored.
• Camera can be tilted during installation.
• 0.5 m cable terminated with 4PIN M12 screw connector.
• Camera power-on and automatic shield flip (apply +12V to the green wire).
• Automatic lens heater at low temperatures.
• Power supply: DC 12V (from monitor).
• Metal camera body.
• Microphone: no.
• Power consumption: <3W.
• Operating temperature: from -20 to +70 °C.
• Dimensions: 102 x 50 x 75 mm (without shield and bracket).
• Homologated.
• Note: The AHD camera is intended for display on an AHD monitor; analog monitors do not support AHD cameras.

Package contents

• Camera with U bracket
• Allen key
