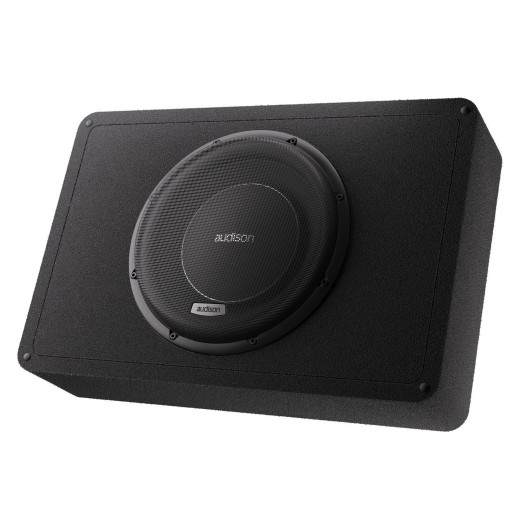

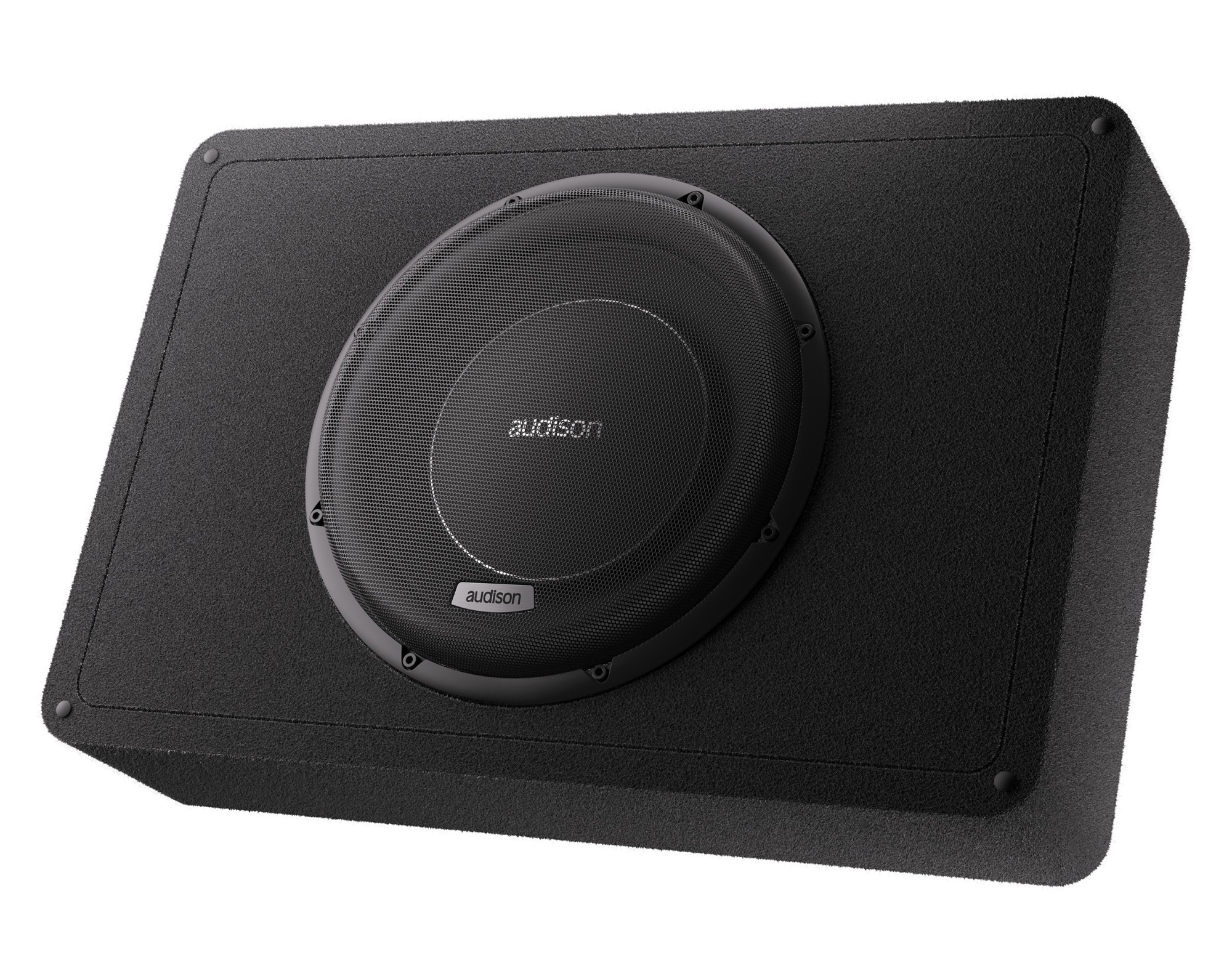

Subwoofer in box Audison AVBX 12 D4 II

Be the first to rate the product

Add to FavoritesRemove from favourites

subwoofer in a sealed enclosure, Ø 12\" (300 mm), 550 W RMS, 84.5 dB (2.83V/1m), 4 + 4 Ω
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

New

Description and parameters
Evaluation0
Category

Subwoofer in the Audison AVBX 12 D4 II box

The AVBX 12 D4 II is a compact subwoofer enclosure from the Audison VOCE II range, designed for space-limited applications where bass quality remains a high priority. Its sealed ultra-flat construction delivers precise, fast and controlled bass without compromising dynamics, while preserving maximum usability of the boot space. The enclosure is acoustically optimized for the AV 12 D4 II subwoofer and ensures its natural integration into both OEM and custom installations.

The enclosure is built from 15 mm MDF with internal bracing that provides high rigidity and effective suppression of unwanted resonances. The internal volume and damping are precisely tuned to the VOCE II driver, which features dual 4 Ohm voice coils for flexible wiring in high-performance systems. Thanks to the 2S² architecture it is possible to install the enclosure in either Down-Firing or Up-Firing configuration depending on available space and acoustic requirements. The Sub Smart Plug connector combines quick Plug-&-Play connection with classic terminals, allowing a secure, current-unloaded connection even at higher power levels. The overall finish follows the VOCE II design language, marrying technical functionality with an elegant appearance.

Key features

Compact sealed subwoofer enclosure from the Audison VOCE II series.
Ultra-flat design optimized for installations with limited space.
Precisely acoustically matched to the AV 12 D4 II driver (300 mm cone).
15 mm MDF construction with internal bracing for maximum rigidity.
2S² architecture enabling both Down-Firing and Up-Firing installation.

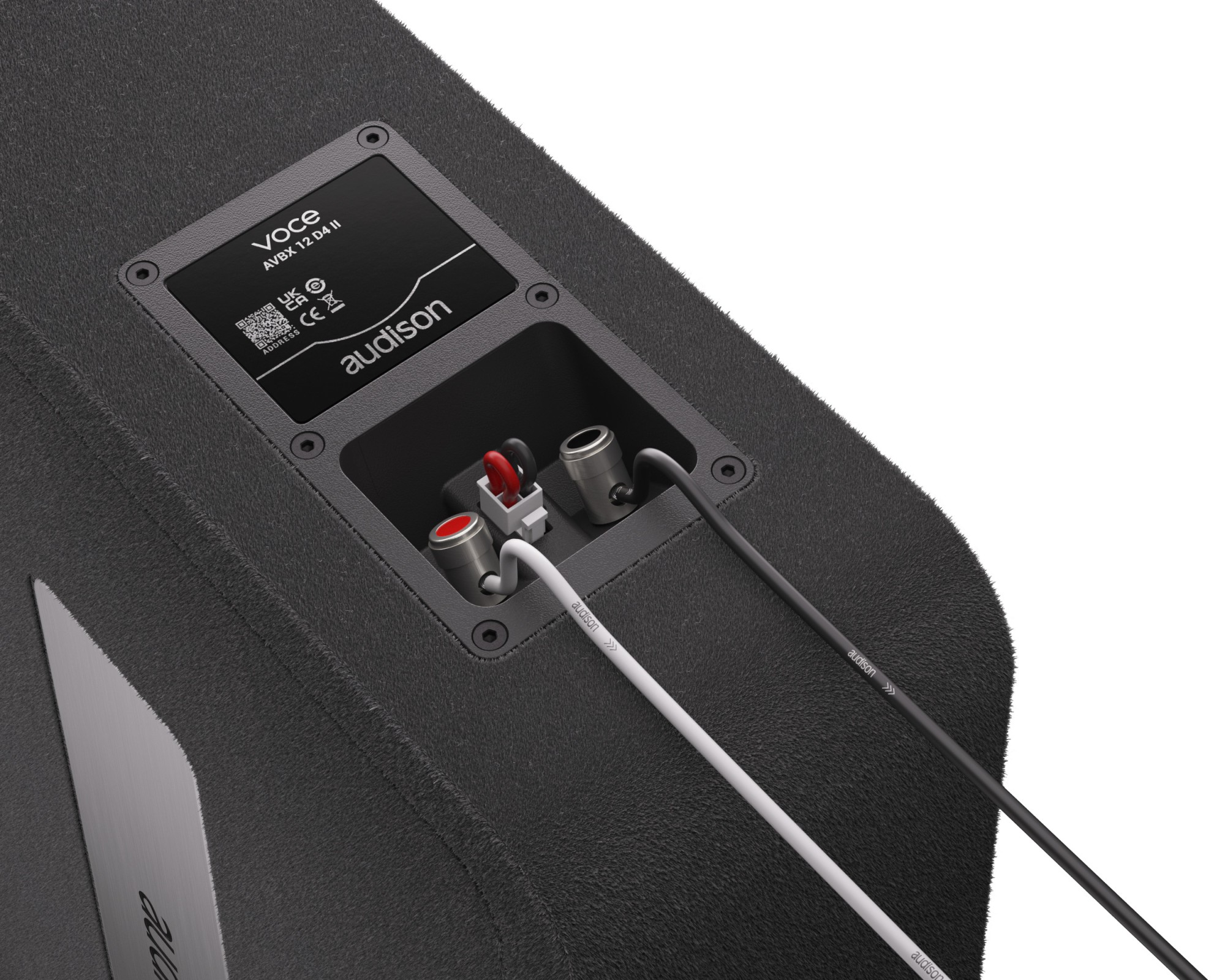

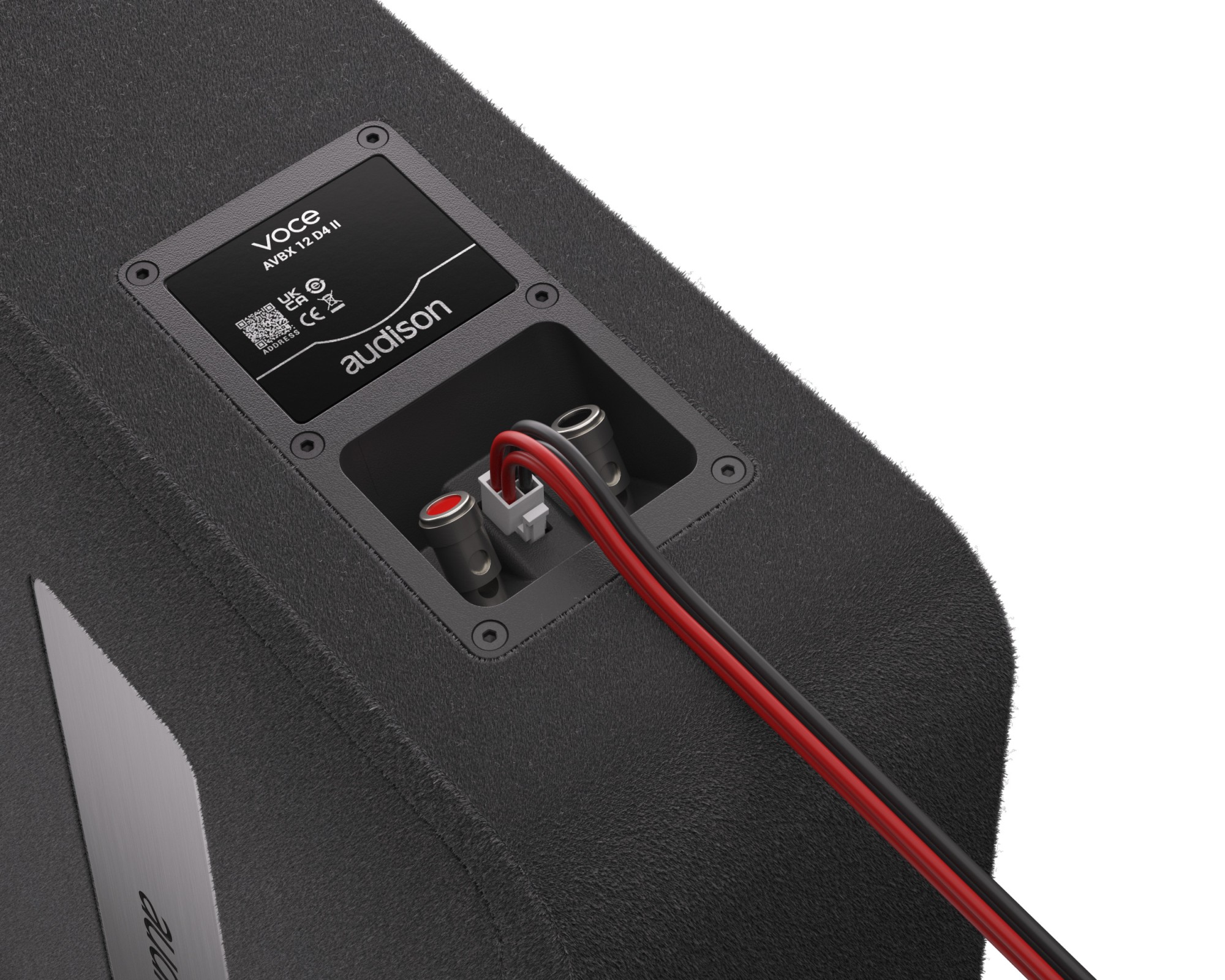

Sub Smart Plug connector with Plug-&-Play and classic terminals.
Support for power cables for high-current applications.
Resonance minimization for clean and accurate bass reproduction.
OEM-friendly dimensions suitable for discreet installations.
Design matched to the VOCE II speaker range.
Integrated eID technology for product registration and extended warranty.

About the brand

Audison is an Italian brand with a heritage dating back to 1987. Its goal is to produce the best mobile electronics in the world and to continue innovating. Sound reproduction has always been a fascinating world where emotion and technology meet. The best results are achieved when these two values are at their peak. Thanks to this combination, every project Audison develops—born from a natural stance fueled by love of music and an inner need—challenges existing standards. Since the introduction of the first HR 100 amplifier, Audison has created products that truly marked the history of car hi‑fi. Audison is unwaveringly dedicated to research that leads to perfection in in‑vehicle sound reproduction. Audison is a pioneer of innovation and settles for nothing less than perfection in every product it brings to life. Innovation disrupts standard processes and requires a demanding approach that goes beyond common solutions adopted by others. This is where the essence of the Audison brand is revealed. Innovation shapes the entire design process, starting with the conception of car audio products that provide unique value and enhance the in‑car listening experience. Audison continuously pushes technological boundaries and files dozens of patents. Acoustic quality cannot accept compromises!

Catalog number	AVBX 12 D4 II
Brand	Audison
Links	Official web presentation
RMS powerThe RMS power of the subwoofer is constant power. This is also the performance of continuous use of the subwoofer. If you exceed the power for a longer period of time, irreversible damage or subwoofer voice coil burning! You can tell if the subwoofer is overloaded by the vibration of the subwoofer membrane.	550 W
Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur or subwoofer voice coil burning!	1100 W
The diameter of the subwoofer in the box	300 mm (12\")
Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a defacto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with a sensitivity of 91dB needs only 150 Watts to reach the same volume.	84.5 dB
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance is compatible with the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used with an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm. Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm subwoofer can easily be used with an amplifier that is stable up to 2 Ohms. The most common impedance of subwoofers is 1 x 4 Ohm.	4 + 4 Ω
Frequency rangeThe ability of the subwoofer to play a signal from the lowest frequency to the highest, or the ability of a subwoofer to faithfully reproduce sound in a specific frequency band. Subwoofers ideally play from 20 - 150 Hz. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	25 - 400 Hz
Loudspeaker typeThe closed enclosure is characterized by a simple construction. Closed enclosures are usually smaller than bass-reflex enclosures, and a special damping fleece is used for their damping. A closed baffle has the advantage of preventing an acoustic short between the front and back radiation of the subwoofer diaphragm. The disadvantage is that the closed enclosure raises the natural resonance frequency of the used subwoofer and thereby also increases the lower limit frequency. This is because the back side of the diaphragm is forced to compress and dilute the air inside the enclosure when the subwoofer is radiating in a closed enclosure. This adds to the inherent stiffness of the subwoofer's oscillation system the stiffness of the air in the closed enclosure. This causes an increase in the stiffness of the oscillating system and thus an increase in the resonant frequency of the entire system: subwoofer -> loudspeaker. The increase in resonant frequency for a given subwoofer is greater, the smaller the volume of air in the closed enclosure. The relatively small volume of air in the closed enclosure acts on the subwoofer as an acoustic spring when radiating the back side of the membrane into the enclosed enclosure. USE: Mainly for quality bass listening in the entire band with an emphasis on detail and accurate reproduction in the lower band. Pros and cons: + pure reproduction + small closets + easier tuning - low level of efficiency in deep bass - loudness only at the cost of enormous deflection of the diaphragm - a significant acoustic pressure cannot be expected The bass reflex enclosure is designed in the same way as a closed enclosure, but it also has a so-called bass reflex mouthpiece, or "bass reflex". Needle foam is used to dampen bass reflex enclosures. USE: The ideal use is in cases where the listener wants to achieve a high volume and a good sound pressure level. It is the best compromise between sound quality and performance and is also the most commonly used Pros and cons: + good efficiency in deep bass + a small deflection of the membrane is enough for a large volume - reproduction less accurate than with closed enclosures	Sealed
What is the baffle made of?Subwoofer enclosures are usually made of 18-22 mm MDF board or pressed chipboard. Due to its higher strength, MDF board is a better material than ordinary chipboard.	MDF
Dimensions of the boxEnclosure dimensions are given as height, width and depth, which is often longer at the bottom edge than at the top, due to the bevel of the rear wall.	607 x 401 x 75 mm
