Subwoofer in box Audison AVBX 10 D4 II

Be the first to rate the product

Add to FavoritesRemove from favourites

subwoofer in a sealed enclosure, Ø 10\" (250 mm), 550 W RMS, 83.5 dB (2.83V/1m), 4 + 4 Ω
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

NewTip

Description and parameters
Evaluation0
Category

Subwoofer in the Audison AVBX 10 D4 II box

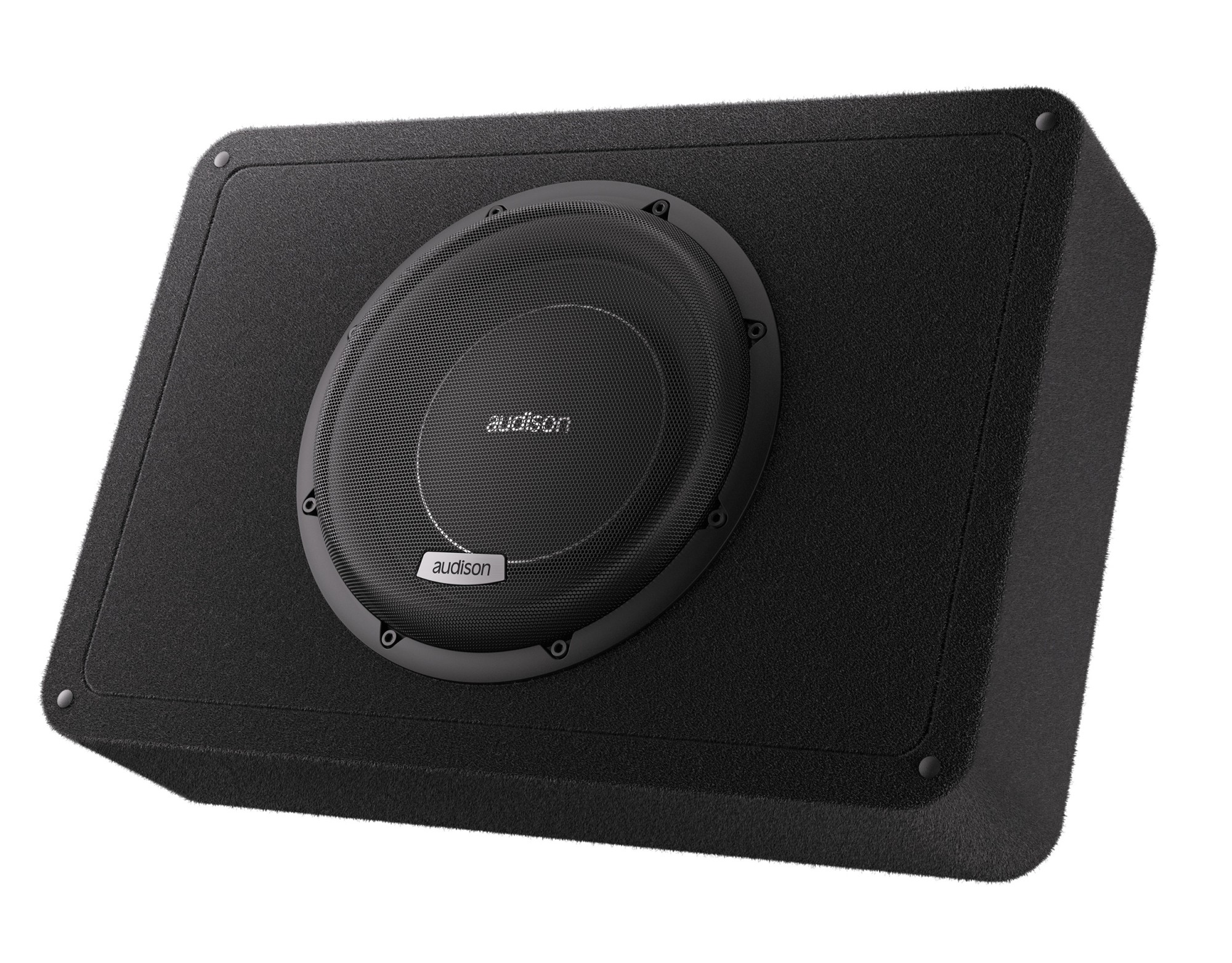

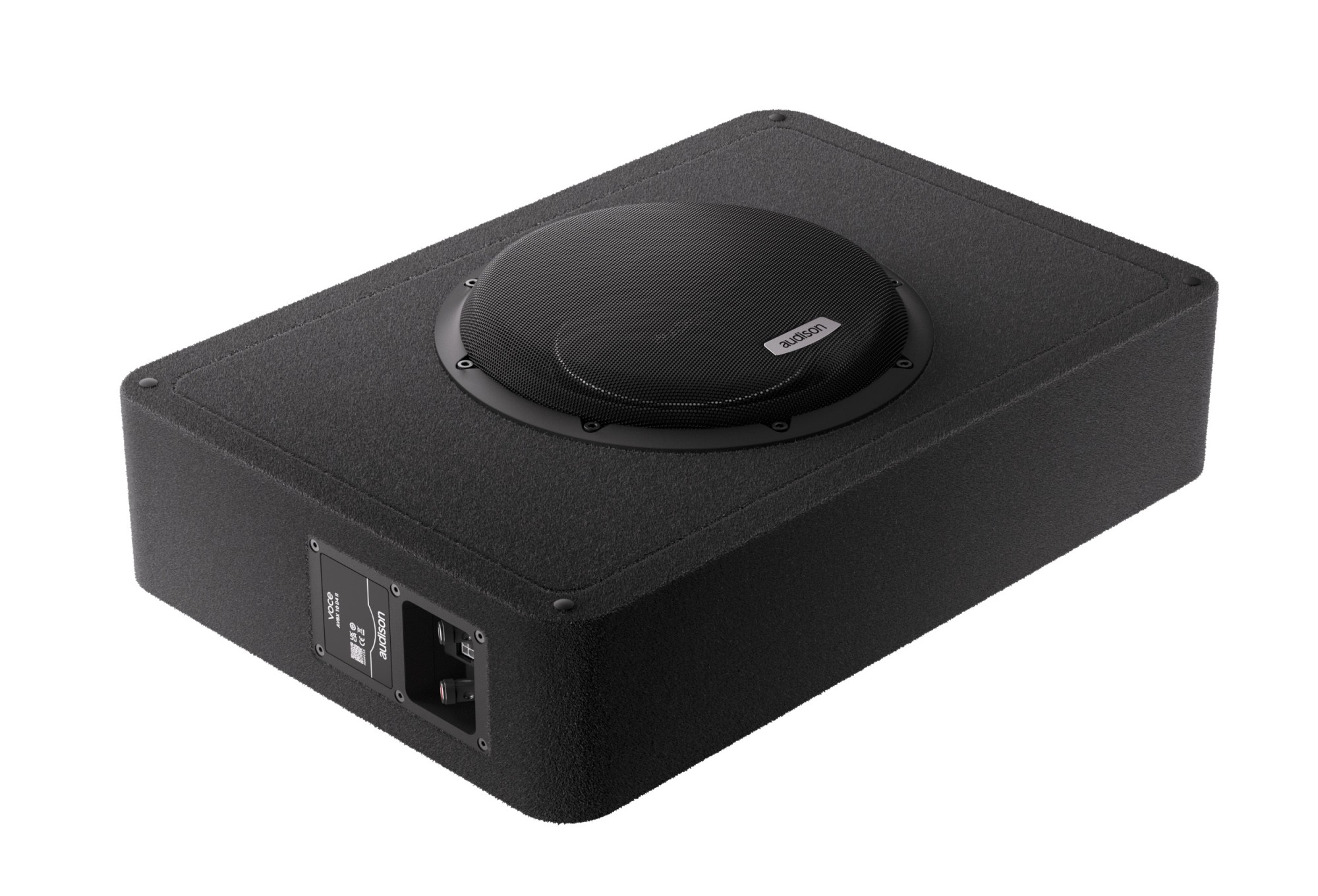

The AVBX 10 D4 II is a compact subwoofer enclosure from the Audison VOCE II range, designed for space-limited applications where bass quality is still a top priority. Its sealed ultra-flat construction delivers precise, fast and controlled bass without compromising dynamics, while preserving maximum usability of the boot space. The enclosure is acoustically optimized for the AV 10 D4 II subwoofer and ensures its natural integration into both OEM and custom installations.

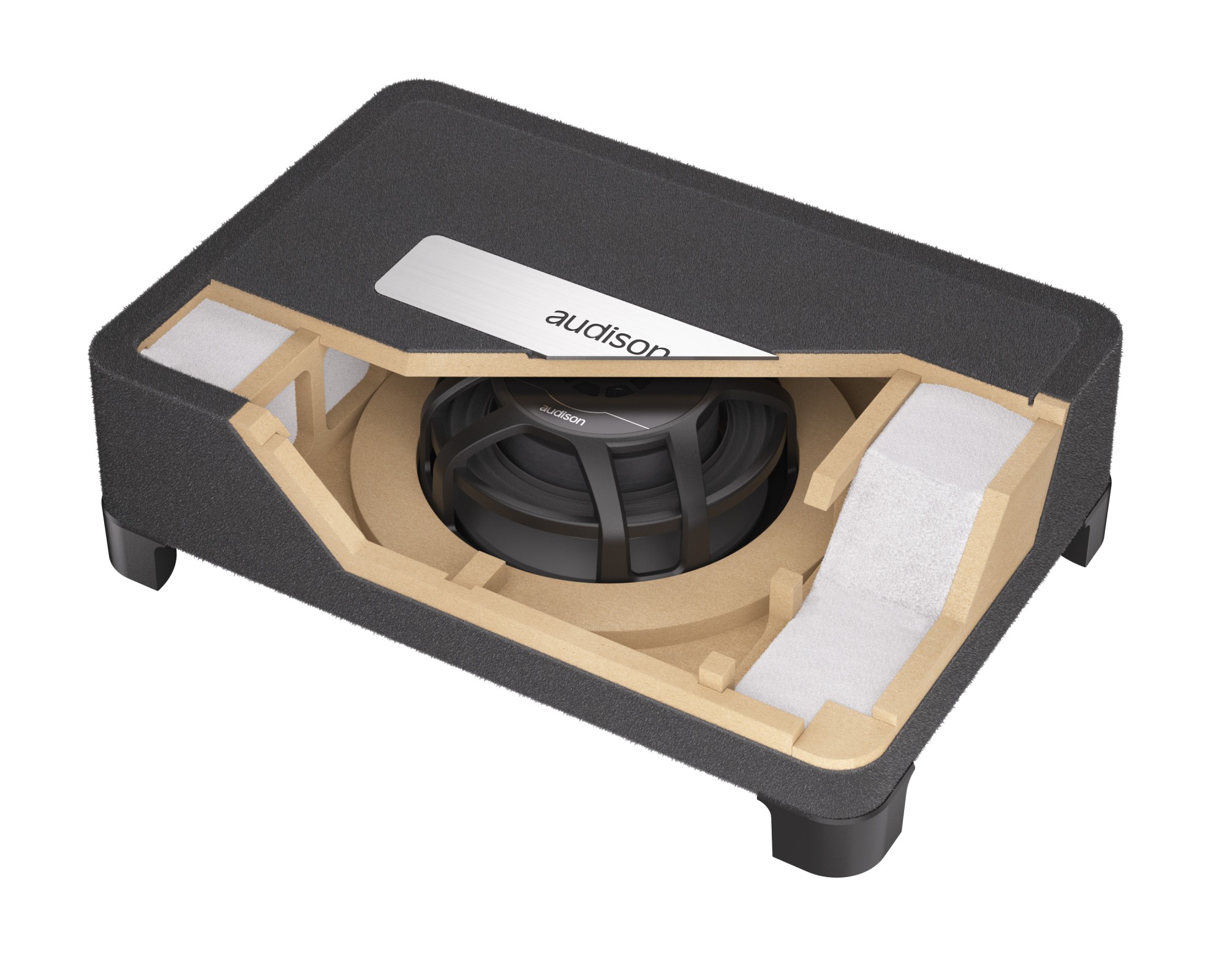

The enclosure is built from 15 mm MDF with internal bracing that provides high rigidity and effective suppression of unwanted resonances. The internal volume and damping are precisely tuned to the VOCE II driver, which features dual 4 Ohm voice coils for flexible wiring in high-performance systems. Thanks to the 2S² architecture it is possible to install the enclosure in either Down-Firing or Up-Firing configuration depending on available space and acoustic requirements. The Sub Smart Plug connector combines quick Plug-&-Play connection with classic terminals, allowing a secure, current-unloaded connection even at higher power levels. The overall finish follows the VOCE II design language, marrying technical functionality with an elegant appearance.

Key features

Compact sealed subwoofer enclosure from the Audison VOCE II series.
Ultra-flat design optimized for installations with limited space.
Precisely acoustically matched to the AV 10 D4 II driver (250 mm cone).
15 mm MDF construction with internal bracing for maximum rigidity.
2S² architecture enabling both Down-Firing and Up-Firing installation.

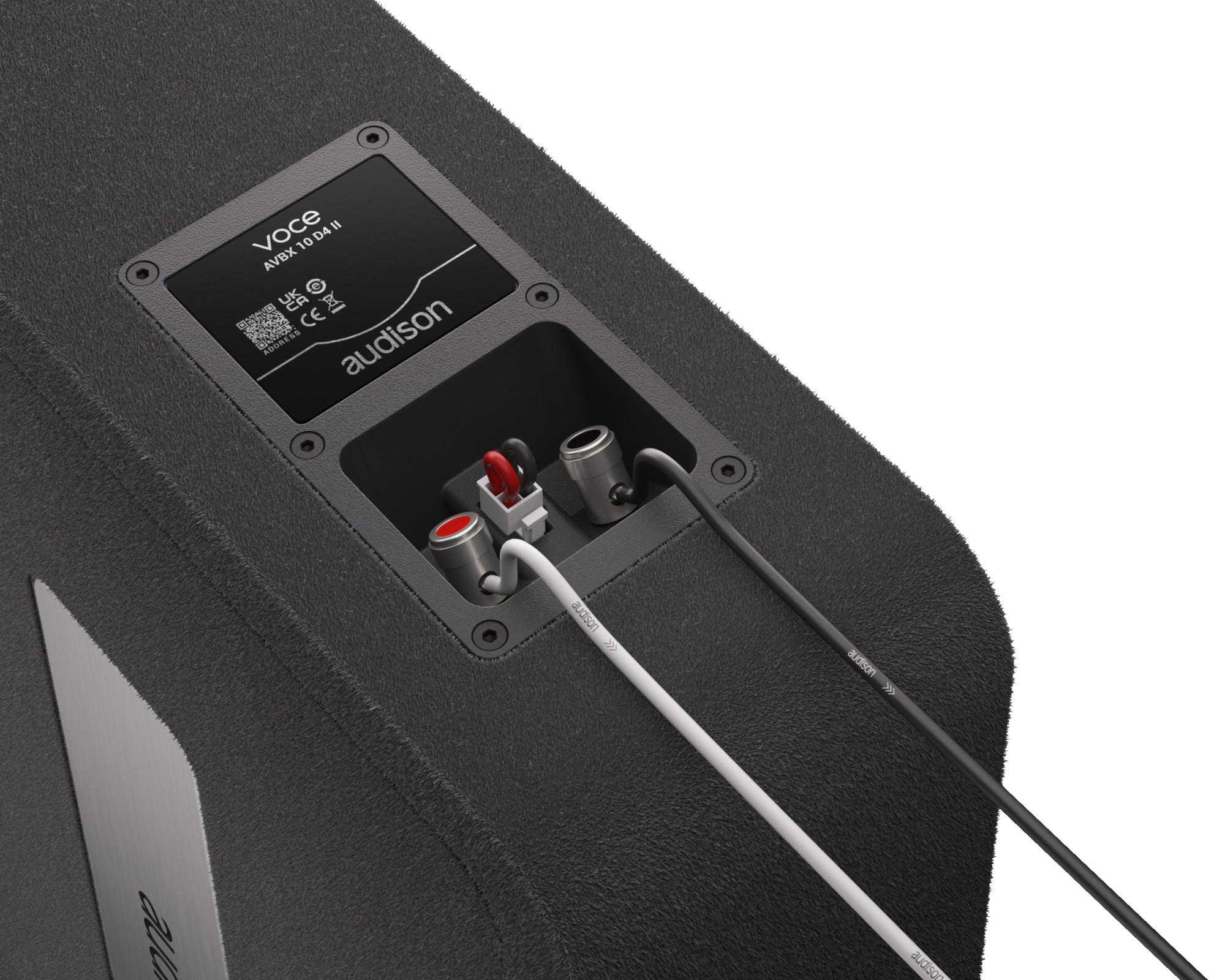

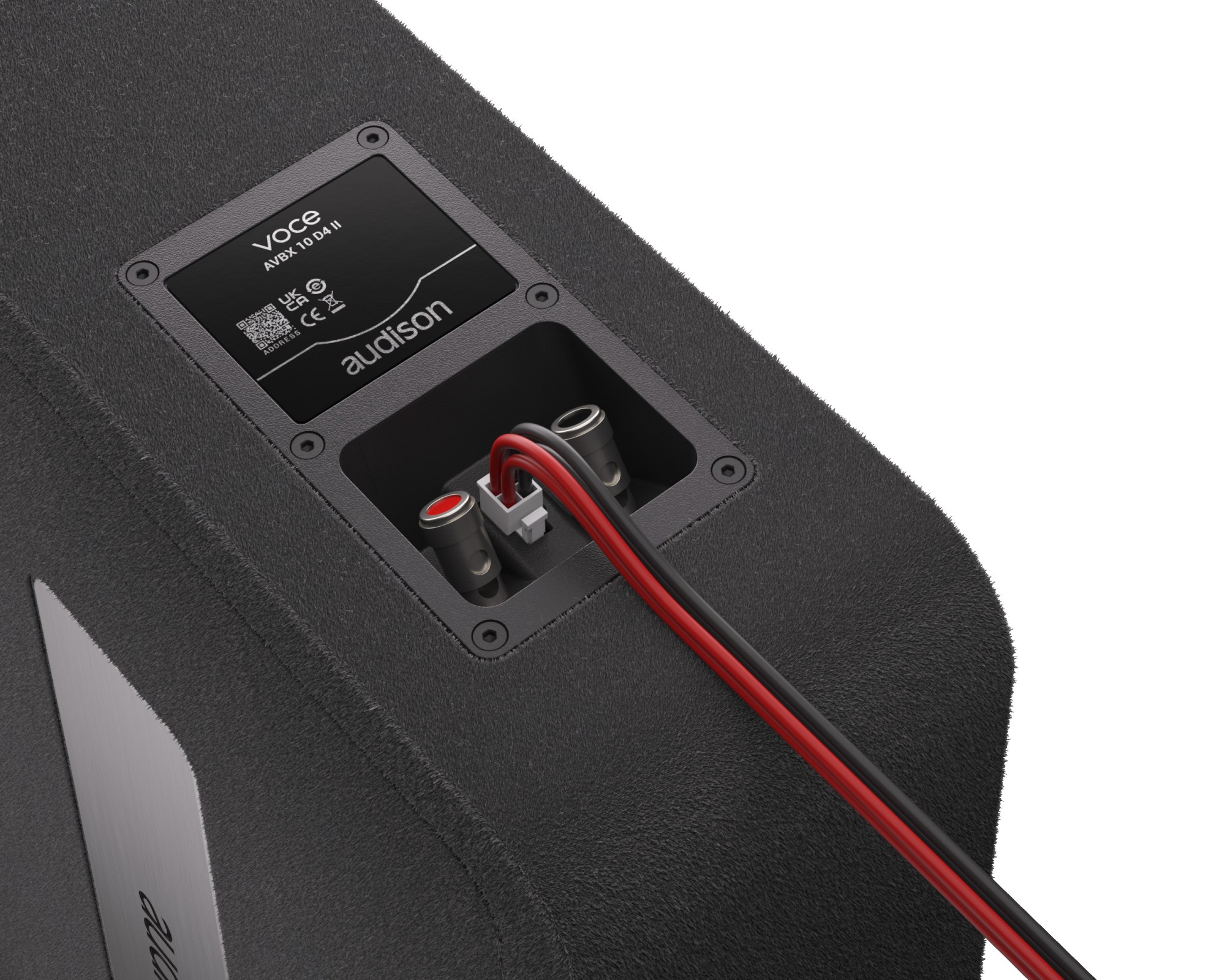

Sub Smart Plug connector with Plug-&-Play and classic terminals.
Support for power cables for high-current applications.
Resonance minimization for clean and accurate bass reproduction.
OEM-friendly dimensions suitable for discreet installations.
Design matched to the VOCE II speaker range.
Integrated eID technology for product registration and extended warranty.
