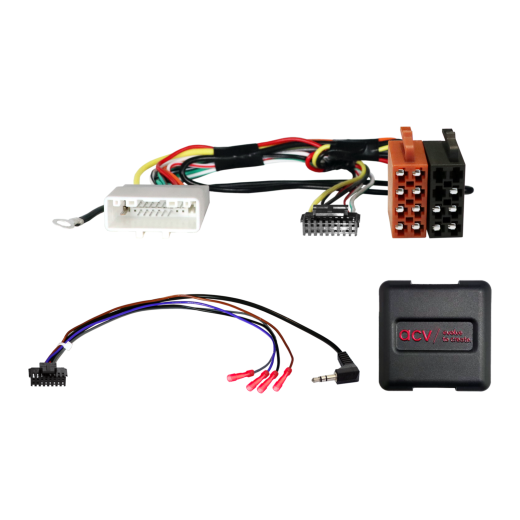

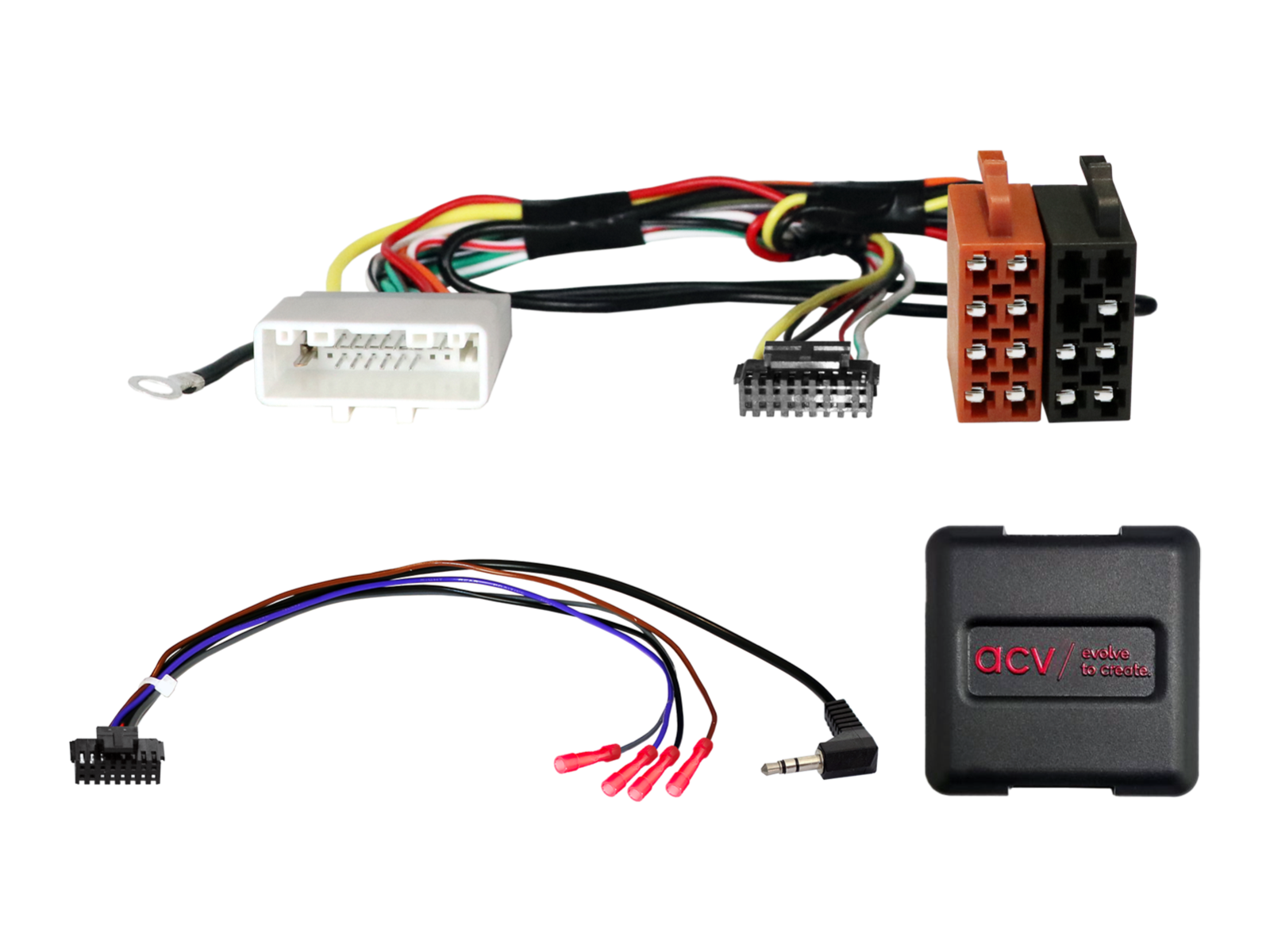

Steering Wheel Control Adapter for Nissan ACV SWC 42XNS001-0
Preserve the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on vehicle equipment, feature set and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify vehicle functionality, system settings and correct operation of the steering wheel controls (SWC).
Intended for vehicles
- Nissan Micra (K12) (10/2007 -> 09/2010) vehicles with Blaupunkt / Bosch / Clarion OEM HU, 6 SWC functions except I / back, with OEM amplifier system +12V Amp remote Pin 2 next to +12V constant power – check with OEM HU by measuring or without OEM amplifier system.
- Nissan Micra C+C (K12) (11/2005 -> 03/2009) vehicles with Blaupunkt / Bosch / Clarion OEM HU, 6 SWC functions except I / back, with OEM amplifier system +12V Amp remote Pin 2 next to +12V constant power – check with OEM HU by measuring or without OEM amplifier system.
- Nissan Micra (K13) (09/2013 -> 02/2017) vehicles with Blaupunkt / Bosch / Clarion OEM HU, 6 SWC functions except I / back, with OEM amplifier system +12V Amp remote Pin 2 next to +12V constant power – check with OEM HU by measuring or without OEM amplifier system.
- Nissan Navara (D40) (04/2010 -> 08/2015) vehicles with Blaupunkt / Bosch / Clarion OEM HU, 6 SWC functions except I / back, with OEM amplifier system +12V Amp remote Pin 2 next to +12V constant power – check with OEM HU by measuring or without OEM amplifier system.
- Nissan NV200 (M20M) (07/2016 -> 08/2022) vehicles with Blaupunkt / Bosch / Clarion OEM HU, 6 SWC functions except I / back, with OEM amplifier system +12V Amp remote Pin 2 next to +12V constant power – check with OEM HU by measuring or without OEM amplifier system.
- Nissan NV200 electro (M20) (04/2018 -> 08/2022) vehicles with Blaupunkt / Bosch / Clarion OEM HU, 6 SWC functions except I / back, with OEM amplifier system +12V Amp remote Pin 2 next to +12V constant power – check with OEM HU by measuring or without OEM amplifier system.
- Nissan Pathfinder (R51) (04/2010 -> 2013) vehicles with Blaupunkt / Bosch / Clarion OEM HU, 6 SWC functions except I / back, with OEM amplifier system +12V Amp remote Pin 2 next to +12V constant power – check with OEM HU by measuring or without OEM amplifier system.
- Nissan Qashqai (J10) (02/2007 -> 02/2010) vehicles with Blaupunkt / Bosch / Clarion OEM HU, 6 SWC functions except I / back, with OEM amplifier system +12V Amp remote Pin 2 next to +12V constant power – check with OEM HU by measuring or without OEM amplifier system.
- Nissan Qashqai (J10) (03/2010 -> 10/2014) vehicles with Blaupunkt / Bosch / Clarion OEM HU, 6 SWC functions except I / back, with OEM amplifier system +12V Amp remote Pin 2 next to +12V constant power – check with OEM HU by measuring or without OEM amplifier system.
- Nissan X-Trail (T31) (10/2010 -> 06/2014) vehicles with Blaupunkt / Bosch / Clarion OEM HU, 6 SWC functions except I / back, with OEM amplifier system +12V Amp remote Pin 2 next to +12V constant power – check with OEM HU by measuring or without OEM amplifier system.
CAN Bus information
Connectors and power:
- Connector: 20-pin Nissan.
- Connector: OEM SWC > 3.5mm jack / free wire.
- Black: GND terminal 31.
Compatibility:
- Vehicles with Blaupunkt / Bosch / Clarion OEM HU.
- Vehicles with 6 SWC functions except I / back.
- Vehicles with OEM amplifier system +12V amp remote Pin 2 next to +12V constant power – check with OEM HU by measuring.
- Vehicles without OEM amplifier system.
- Active system adapter for selected vehicles ISO>ISO: 13-1190-50.
Important additional information
- To fully activate the adapter it is necessary to order the connection cable for the specific radio brand.
General installation instructions
Verification before installation:
- Check all control functions and vehicle settings with the original OEM head unit.
- Disconnect the original radio (OEM HU) with power off.
- Check all interface connections to ensure they are correctly connected – with power off.
Connection and wiring sequence:
- Check the interface settings and hardware configuration – with power off.
- Check the configuration of the connection cable to the radio – with power off.
- Connect the cable to the radio according to the aftermarket device manual.
- Connect the remaining wires according to the device manual.
- Connect the entire installation to the vehicle – connect the main power connection last.
- Perform the software configuration of the interface according to the product description or manual.
- Configure the aftermarket head unit (steering wheel controls, camera, handsfree, antenna power and others).
- Perform a functional test of the steering wheel controls and communication with the vehicle.
Changing the interface and HU cable configuration:
- Make all changes with power off.
- After changes, repeat steps 5 to 8 listed above.
In case of interface or vehicle system failure:
- Reinstall the original OEM head unit.
- Start the original unit.
- Initiate CAN Bus system shutdown.
- Check the hardware configuration of the interface.
- After CAN Bus shutdown, repeat steps 5 and 6 above.
When modifying wiring or cable routing:
- Wiring and modifications must only be performed by professionally trained personnel.
- All changes must be verified for manufacturer approval or impact on the vehicle warranty before connection.
- All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
- You make modifications at your own risk, without warranty of functionality.
- Modifications are carried out at your own risk, without guarantee against damage to the vehicle, device or interface.
- Modifying pre-installed wiring may result in loss of product warranty.
| Catalog number | 42XNS001-0 |
| Brand | ACV |
| Links | Official web presentation |
