Steering wheel button control adapter for Nissan ACV SWC 42XNS003-0

Be the first to rate the product
steering wheel adapter for Nissan 370Z (Z34) (07/09->03/13), Cube (Z12) (01/10->03/11), Juke (F15) (10/10->06/14), Micra (K13) (03/11->07/13), Navara (D40) (04/10->08/15), Note (E11) (01/09->08/13), NV200 (M20) (2013->09/16) a Pathfinder (R51) (09/13->05/15)
More about the product
51,60 EUR
Catalog number: 42XNS003-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days

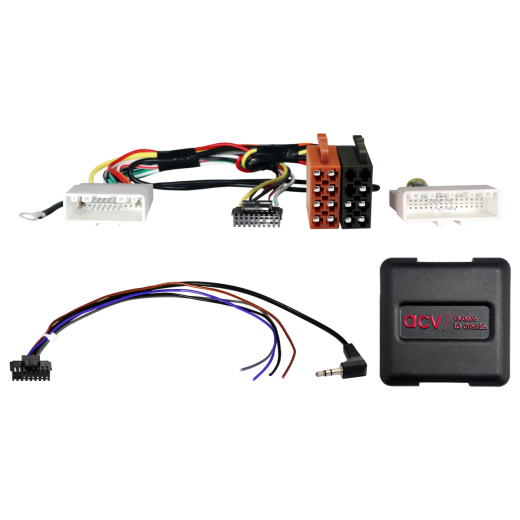

Steering wheel button control adapter for Nissan ACV SWC 42XNS003-0

Steering wheel button control adapter for Nissan ACV SWC 42XNS003-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

              • Nissan 370Z (Z34) (07/2009 - 03/2013) vehicles with Blaupunkt / Bosch / Clarion OEM HU, with OEM amplifier system +12V amp remote on Pin 2 next to constant +12V – check with OEM HU measurement, with external OEM phone module located near the BT-OEM connector/cover on the passenger side in the luggage compartment/behind/above the glove box/in the center console/under the front seats, or without OEM amplifier system and without OEM navigation.
              • Nissan Cube (Z12) (01/2010 - 03/2011) vehicles with Blaupunkt / Bosch / Clarion OEM HU, with OEM amplifier system +12V amp remote on Pin 2 next to constant +12V – check with OEM HU measurement, with external OEM phone module located near the BT-OEM connector/cover on the passenger side in the luggage compartment/behind/above the glove box/in the center console/under the front seats, or without OEM amplifier system and without OEM navigation.
              • Nissan Juke (F15) (10/2010 - 06/2014) vehicles with Blaupunkt / Bosch / Clarion OEM HU, with OEM amplifier system +12V amp remote on Pin 2 next to constant +12V – check with OEM HU measurement, with external OEM phone module located near the BT-OEM connector/cover on the passenger side in the luggage compartment/behind/above the glove box/in the center console/under the front seats, or without OEM amplifier system and without OEM navigation.
              • Nissan Micra (K13) (03/2011 - 07/2013) vehicles with Blaupunkt / Bosch / Clarion OEM HU, with OEM amplifier system +12V amp remote on Pin 2 next to constant +12V – check with OEM HU measurement, with external OEM phone module located near the BT-OEM connector/cover on the passenger side in the luggage compartment/behind/above the glove box/in the center console/under the front seats, or without OEM amplifier system and without OEM navigation.
              • Nissan Navara (D40) (04/2010 - 08/2015) vehicles with Blaupunkt / Bosch / Clarion OEM HU, with OEM amplifier system +12V amp remote on Pin 2 next to constant +12V – check with OEM HU measurement, with external OEM phone module located near the BT-OEM connector/cover on the passenger side in the luggage compartment/behind/above the glove box/in the center console/under the front seats, or without OEM amplifier system and without OEM navigation.
              • Nissan Note (E11) (01/2009 - 08/2013) vehicles with Blaupunkt / Bosch / Clarion OEM HU, with OEM amplifier system +12V amp remote on Pin 2 next to constant +12V – check with OEM HU measurement, with external OEM phone module located near the BT-OEM connector/cover on the passenger side in the luggage compartment/behind/above the glove box/in the center console/under the front seats, or without OEM amplifier system and without OEM navigation.
              • Nissan NV200 (M20) (2013 - 09/2016) vehicles with Blaupunkt / Bosch / Clarion OEM HU, with OEM amplifier system +12V amp remote on Pin 2 next to constant +12V – check with OEM HU measurement, with external OEM phone module located near the BT-OEM connector/cover on the passenger side in the luggage compartment/behind/above the glove box/in the center console/under the front seats, or without OEM amplifier system and without OEM navigation.
              • Nissan Pathfinder (R51) (09/2013 - 05/2015) vehicles with Blaupunkt / Bosch / Clarion OEM HU, with OEM amplifier system +12V amp remote on Pin 2 next to constant +12V – check with OEM HU measurement, with external OEM phone module located near the BT-OEM connector/cover on the passenger side in the luggage compartment/behind/above the glove box/in the center console/under the front seats, or without OEM amplifier system and without OEM navigation.

              CAN Bus Information

              Connectors and Power Supply:

              • Connector: 20 Pin Nissan.
              • Connector: OEM SWC > 3.5 mm jack / loose wire.
              • Connector: 32 Pin phone module.
              • Black: GND (terminal 31).

              Compatibility:

              • Vehicles with Blaupunkt / Bosch / Clarion OEM HU units.
              • Vehicles with OEM amplifier system: +12 V Amp remote Pin 2 next to permanent +12 V – verify by measurement with OEM HU.
              • Active system adapter for selected vehicles ISO > ISO: 13-1190-50.
              • Vehicles with external OEM phone module located at: BT-OEM module connector / panel on passenger side in trunk / behind or above glove compartment / in center console / under front seats.
              • Vehicles without OEM amplifier system.
              • Vehicles without OEM navigation.

              Important Additional Information

              • To fully activate the adapter, a connection cable for the specific car radio brand must be ordered.

              General Installation Instructions

              Verification Before Installation:

              1. Check all control functions and vehicle settings using the original OEM HU.
              2. Disconnect the original radio (OEM HU) in a voltage-free condition.
              3. Check all interface connections – without power.

              Connection and Installation Sequence:

              1. Set and check the HW configuration of the interface – without power.
              2. Check the configuration of the HU connection cable – without power.
              3. Connect the cable to the HU according to the aftermarket device manual.
              4. Connect the remaining wires according to the device manual.
              5. Connect the complete installation to the vehicle – connect the main power supply last.
              6. Perform the software configuration of the interface according to the product description or manual.
              7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power etc.).
              8. Perform a functional test of steering wheel control and vehicle communication.

              Configuration Changes:

              • All changes must be carried out without power.
              • After changes repeat steps 5 to 8 above.

              In Case of Failure:

              • Reinstall the original OEM HU.
              • Start the original unit.
              • Initiate CAN Bus shutdown.
              • Check the HW configuration of the interface.
              • After CAN Bus shutdown repeat steps 5 and 6.

              When Modifying Wiring:

              • Installation and modifications may only be carried out by professionally trained personnel.
              • All changes must be verified before connection regarding manufacturer approval or impact on vehicle warranty.
              • All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
              • Modifications are carried out at your own responsibility without guarantee of functionality.
              • Modifications are performed at your own risk without guarantee against damage to the vehicle, device or interface.
              • Modifications of pre-installed wiring may result in loss of product warranty.
