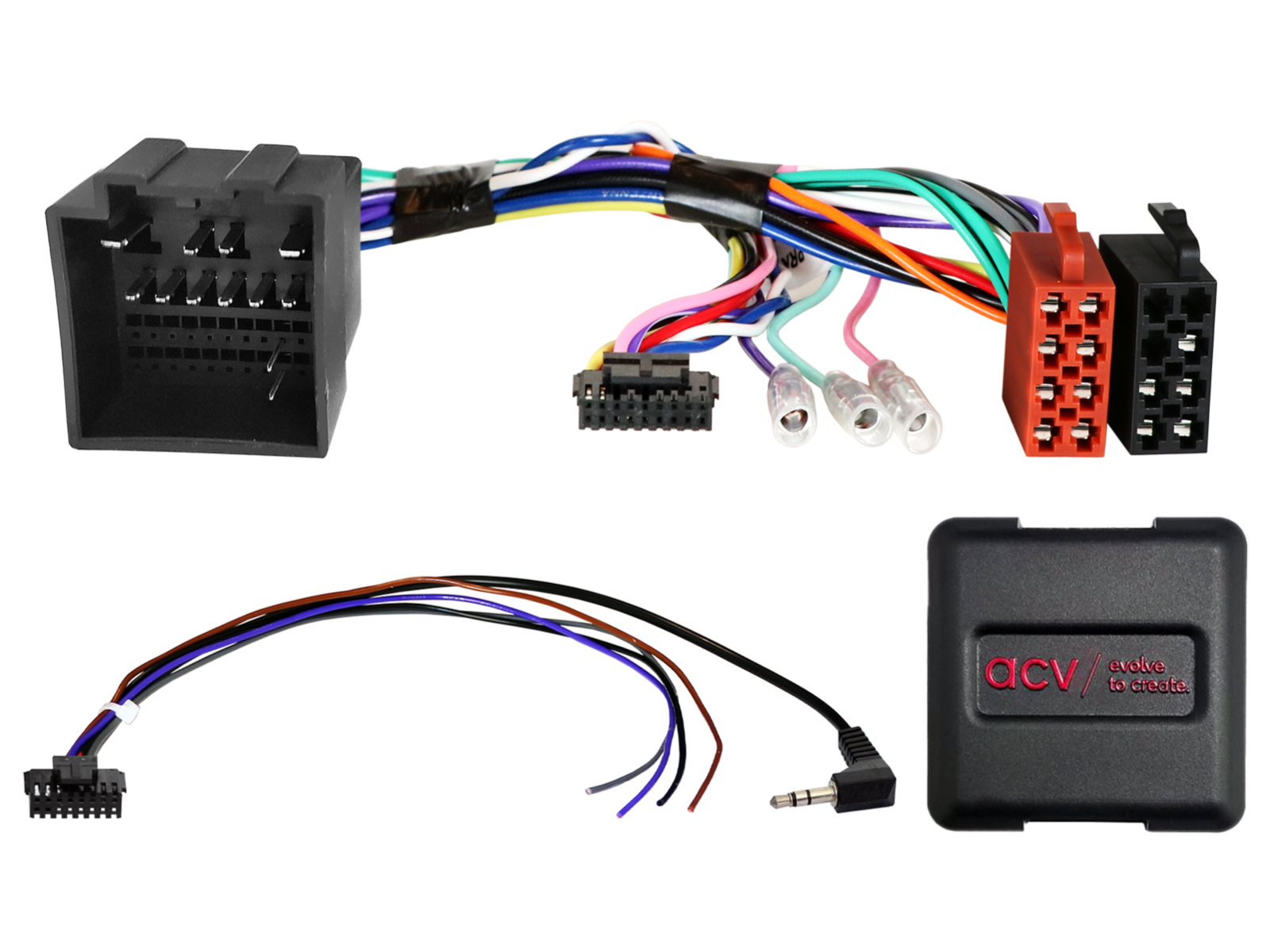

Steering wheel button control adapter for Ford ACV SWC 42XFO020-0

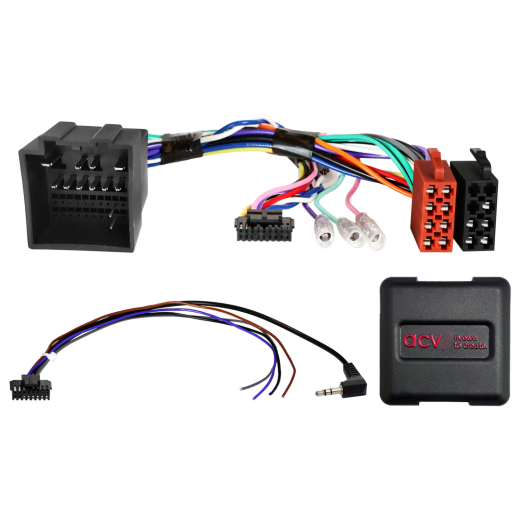

Steering Wheel Button Control Adapter for Ford ACV SWC 42XFO020-0

Preserve the original radio control functions from the steering wheel when replacing the factory radio with an aftermarket unit. Depending on the vehicle equipment, range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify vehicle functionality, system settings and correct operation of the steering wheel controls.

Intended for vehicles

• Ford Fiesta [JHH] (06/2017 -> 03/2022) - original OEM head unit.
• Ford Fiesta [JHH] (03/2022 -> 2024) - original OEM head unit.
• Ford Transit [FAC/FAD] (06/2019 -> 2024) - original OEM head unit.
• Ford Transit Custom [FAC/FAD] (01/2018 -> 2024) - original OEM head unit.

CAN Bus information

• System type: CAN Bus.
• Connector: 32-pin Ford.
• Output for OEM steering wheel control: 3.5 mm jack or free wire.
• Support for OEM parking camera:
  • Rear OEM camera adapter: 52-pin Fiat / 32-pin Ford – item: 771000-2000.
  • Yellow: Video(+).
  • Black: Video(-).
  • Verify wiring by measurement before installation.
  • Pin 14: Video(+).
  • Pin 25: Video(-).
  • To resolve a flickering image: connect Video(-) Pin 25 to Pin 24.
• Set DIP switches according to the aftermarket head unit manual.

Important additional information

• Designed for aftermarket head units from Sony, Kenwood, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, XZent, Digital Dynamics, ESX, Snooper and universal “China HU” units with Key1/Key2/GND wires or a 3.5 mm jack depending on the type.
• To fully activate the adapter, it is necessary to order the connection cable for the specific head unit brand.

Provided signals

• Red: +12V switched power (terminal 15).
• Orange: +12V illumination (terminal 58).
• Purple-white: +12V reverse.
• Pink: speed pulse.
• Green: parking brake signal ground.
• Maximum load of outputs: 250 mA.
• If drawing more than 250 mA:
  • 1 relay – minimum coil resistance 75 Ohm.
  • 2 relays – minimum coil resistance 150 Ohm.
• Steering wheel control (SWC).

General installation guidelines

Checks before installation:

1. Check all control functions and vehicle settings with the original OEM head unit installed.
2. Remove the original radio with the power disconnected.
3. Check all interface connections to ensure they are correctly connected – with power off.

Connections and wiring sequence:

1. Perform interface settings and hardware configuration with the power off.
2. Check the configuration of the connection cable to the HU.
3. Connect the cable to the HU according to the aftermarket device manual.
4. Connect the remaining wires according to the device manual.
5. Connect the entire installation to the vehicle – connect the main power last.
6. Perform the software configuration of the interface according to the product description or manual.
7. Configure the aftermarket HU (steering wheel control, camera, hands-free, antenna power, etc.).
8. Perform a functional test of the steering wheel controls and communication with the vehicle.

Changing the interface configuration and HU cable:

• Make all changes with the power off.
• After changes, repeat steps 5 to 8 listed above.

If the interface or vehicle system malfunctions:

• Reinstall the original OEM head unit.
• Start the original unit.
• Wait for the CAN Bus system to go to sleep.
• Check the hardware configuration of the interface.
• After the CAN Bus has slept, repeat steps 5 to 8 listed above.

When modifying wiring or cable routing:

• Wiring and modifications may only be performed by professionally trained personnel.
• All changes must be verified for manufacturer approval or impact on the vehicle warranty before connection.
• All modifications must be verified by measurement and comparison with the vehicle wiring diagram before connection.
• Modifications are made at your own risk, without warranty of functionality.
• Modifications are performed at your own risk, with no guarantee against damage to the vehicle, device or interface.
• Changes to preassembled wiring may result in loss of product warranty.
