Steering wheel button control adapter for Citroen / Fiat / Opel / Peugeot ACV SWC 42XPG013-0

Be the first to rate the product
steering wheel adapter for Citroën Berlingo (7) (06/08->03/12), Berlingo (7) (04/12->05/15), Berlingo (7) (06/15->06/18), C2 (J) (12/04->12/09), C3 (F) (10/05->01/10), C3 (S) (01/10->01/17), C4 (L) (11/04->08/10), C5 (D) (10/04->04/08), C8 (E) (01/08->07/12), C8 (E) (07/12->06/14), DS3 (S) (03/10->07/14), Jumpy (V) (02/07->05/16), Jumpy (V) (09/16->01/24), Spacetourer (V) (03/16->03/24) a Fiat Scudo (ZAF 270) (02/07->07/16), Opel Vivaro C (V) (09/19->01/24), Zafira Life V (V) (02/19->01/24), Peugeot 207 (WC) (06/06->06/09), 207 (W) (06/09->07/15), 208 (C) (04/12->04/15), 307 (3/3 Break/3 SW/3 CC) (06/05->03/09), 308 (4/4 GTI/4 SW/4 CC) (09/07->07/15), 407 (6/6 SW/6 Coupé) (05/04->07/08), 407 (6/6 SW/6 Coupé) (02/06->03/11), 607 (9) (10/04->04/09), 807 (E) (07/02->02/08), 807 (E) (02/08->06/14), 3008 (OU) (06/09->10/13), 5008 (O) (10/09->10/13), Bipper (A) (12/07->12/15), Expert (X) (02/07->08/16), Expert (X) (03/16->04/24), Partner (7) (05/08->03/12), RCZ (4J) (04/10->09/15) a Traveller (V) (03/16->04/24)
More about the product
135,60 EUR
Catalog number: 42XPG013-0
1 to 4 weeksWatchdog
Free transport
We will help you with your purchase
  • You can return the goods to us within 14 days

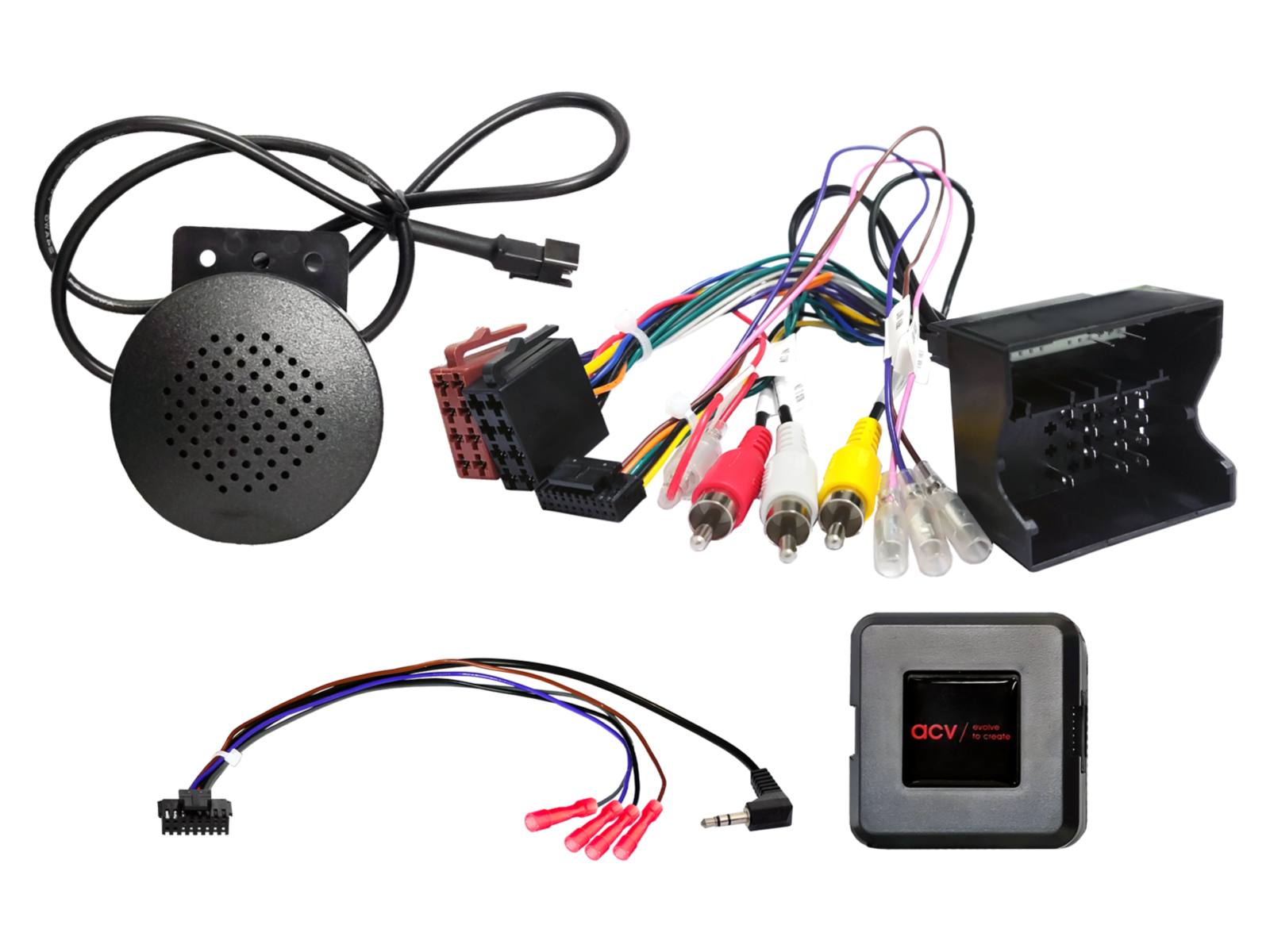

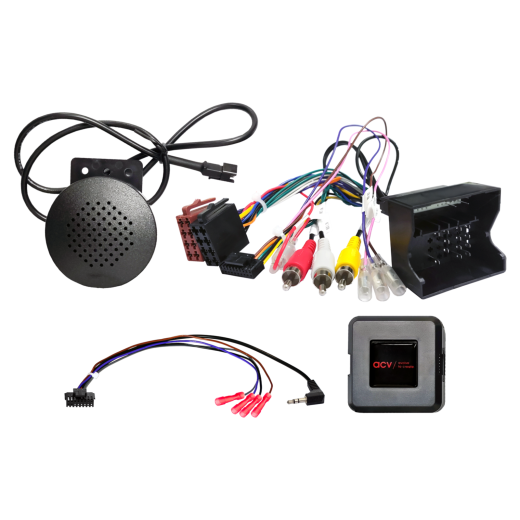

Steering wheel button control adapter for Citroen / Fiat / Opel / Peugeot ACV SWC 42XPG013-0

Steering wheel button control adapter for Citroen / Fiat / Opel / Peugeot ACV SWC 42XPG013-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

        • Citroën Berlingo (7) (06/2008 -> 03/2012) - original OEM head unit.
        • Citroën Berlingo (7) (04/2012 -> 05/2015) - original OEM head unit.
        • Citroën Berlingo (7) (06/2015 -> 06/2018) - original OEM head unit.
        • Citroën C2 (J) (12/2004 -> 12/2009) - original OEM head unit.
        • Citroën C3 (F) (10/2005 -> 01/2010) - original OEM head unit.
        • Citroën C3 (S) (01/2010 -> 01/2017) - original OEM head unit.
        • Citroën C4 (L) (11/2004 -> 08/2010) - original OEM head unit.
        • Citroën C5 (D) (10/2004 -> 04/2008) - original OEM head unit.
        • Citroën C8 (E) (01/2008 -> 07/2012) - original OEM head unit.
        • Citroën C8 (E) (07/2012 -> 06/2014) - original OEM head unit.
        • Citroën DS3 (S) (03/2010 -> 07/2014) - original OEM head unit.
        • Citroën Jumpy (V) (02/2007 -> 05/2016) - original OEM head unit.
        • Citroën Jumpy (V) (09/2016 -> 01/2024) - original OEM head unit, vehicles with PDC and Clarion MQ-RD6 OEM HU with monochrome display and central rotary controller.
        • Citroën Spacetourer (V) (03/2016 -> 03/2024) - original OEM head unit, vehicles with PDC and Clarion MQ-RD6 OEM HU with monochrome display and central rotary controller.
        • Fiat Scudo (ZAF 270) (02/2007 -> 07/2016) - original OEM head unit.
        • Opel Vivaro C (V) (09/2019 -> 01/2024) - original OEM head unit, vehicles with PDC and Clarion MQ-RD6 OEM HU with monochrome display and central rotary controller.
        • Opel Zafira Life V (V) (02/2019 -> 01/2024) - original OEM head unit, vehicles with PDC and Clarion MQ-RD6 OEM HU with monochrome display and central rotary controller.
        • Peugeot 207 (WC) (06/2006 -> 06/2009) - original OEM head unit.
        • Peugeot 207 (W) (06/2009 -> 07/2015) - original OEM head unit.
        • Peugeot 208 (C) (04/2012 -> 04/2015) - original OEM head unit.
        • Peugeot 307 (3/3 Break/3 SW/3 CC) (06/2005 -> 03/2009) - original OEM head unit.
        • Peugeot 308 (4/4 GTI/4 SW/4 CC) (09/2007 -> 07/2015) - original OEM head unit.
        • Peugeot 407 (6/6 SW/6 Coupé) (05/2004 -> 07/2008) - original OEM head unit.
        • Peugeot 407 (6/6 SW/6 Coupé) (02/2006 -> 03/2011) - original OEM head unit.
        • Peugeot 607 (9) (10/2004 -> 04/2009) - original OEM head unit.
        • Peugeot 807 (E) (07/2002 -> 02/2008) - original OEM head unit.
        • Peugeot 807 (E) (02/2008 -> 06/2014) - original OEM head unit.
        • Peugeot 3008 (OU) (06/2009 -> 10/2013) - original OEM head unit.
        • Peugeot 5008 (O) (10/2009 -> 10/2013) - original OEM head unit.
        • Peugeot Bipper (A) (12/2007 -> 12/2015) - original OEM head unit.
        • Peugeot Expert (X) (02/2007 -> 08/2016) - original OEM head unit.
        • Peugeot Expert (X) (03/2016 -> 04/2024) - original OEM head unit, vehicle settings not supported.
        • Peugeot Partner (7) (05/2008 -> 03/2012) - original OEM head unit.
        • Peugeot RCZ (4J) (04/2010 -> 09/2015) - original OEM head unit.
        • Peugeot Traveller (V) (03/2016 -> 04/2024) - original OEM head unit, vehicle settings not supported.

        CAN Bus Information

        Connectors and Power Supply:

        • Connector: 40 Pin Quadlock Citroën / Peugeot.
        • OEM steering wheel control connection: 3.5 mm jack or loose wire to the SWC input of the head unit.
        • OEM AUX connection: RCA (red / white).
        • RCA connector (yellow) is not connected.
        • Vehicles with ECO mode: connect +12 V permanent power (Klemme 30) from the fuse box – fused.

        Settings:

        • DIP switch settings according to the manufacturer of the aftermarket unit (see BDA).

        Vehicle Compatibility:

        • Rear PDC supported.
        • Vehicle settings supported (unless otherwise specified).
        • Vehicles without OEM JBL amplifier system.

        Special Cases and Notes:

        • Peugeot CC vehicles: SWC Citroën / Fiat / Peugeot / Toyota Quadlock PDC – item: 42a-1041-008.
        • Vehicles with Continental RD45 OEM HU with volume control: SWC Citroën / Fiat / Peugeot / Toyota Quadlock PDC – item: 42a-1041-008.

        Important Additional Information

        • Compatible with aftermarket car radios with analog or digital steering wheel control input.
        • To fully activate the adapter, a connection cable for the specific car radio brand must be ordered.

        General Installation Instructions

        Verification Before Installation:

        1. Check all control functions and vehicle settings using the original OEM HU.
        2. Disconnect the original radio (OEM HU) in a voltage-free condition.
        3. Check all interface connections – without power.

        Connection and Installation Sequence:

        1. Set and check the HW configuration of the interface – without power.
        2. Check the configuration of the HU connection cable – without power.
        3. Connect the cable to the HU according to the aftermarket device manual.
        4. Connect the remaining wires according to the device manual.
        5. Connect the complete installation to the vehicle – connect the main power supply last.
        6. Perform the software configuration of the interface according to the product description or manual.
        7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power etc.).
        8. Perform a functional test of steering wheel control and vehicle communication.

        Configuration Changes:

        • All changes must be carried out without power.
        • After changes repeat steps 5 to 8 above.

        In Case of Failure:

        • Reinstall the original OEM HU.
        • Start the original unit.
        • Initiate CAN Bus shutdown.
        • Check the HW configuration of the interface.
        • After CAN Bus shutdown repeat steps 5 and 6.

        When Modifying Wiring:

        • Installation and modifications may only be carried out by professionally trained personnel.
        • All changes must be verified before connection regarding manufacturer approval or impact on vehicle warranty.
        • All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
        • Modifications are carried out at your own responsibility without guarantee of functionality.
        • Modifications are performed at your own risk without guarantee against damage to the vehicle, device or interface.
        • Modifications of pre-installed wiring may result in loss of product warranty.
