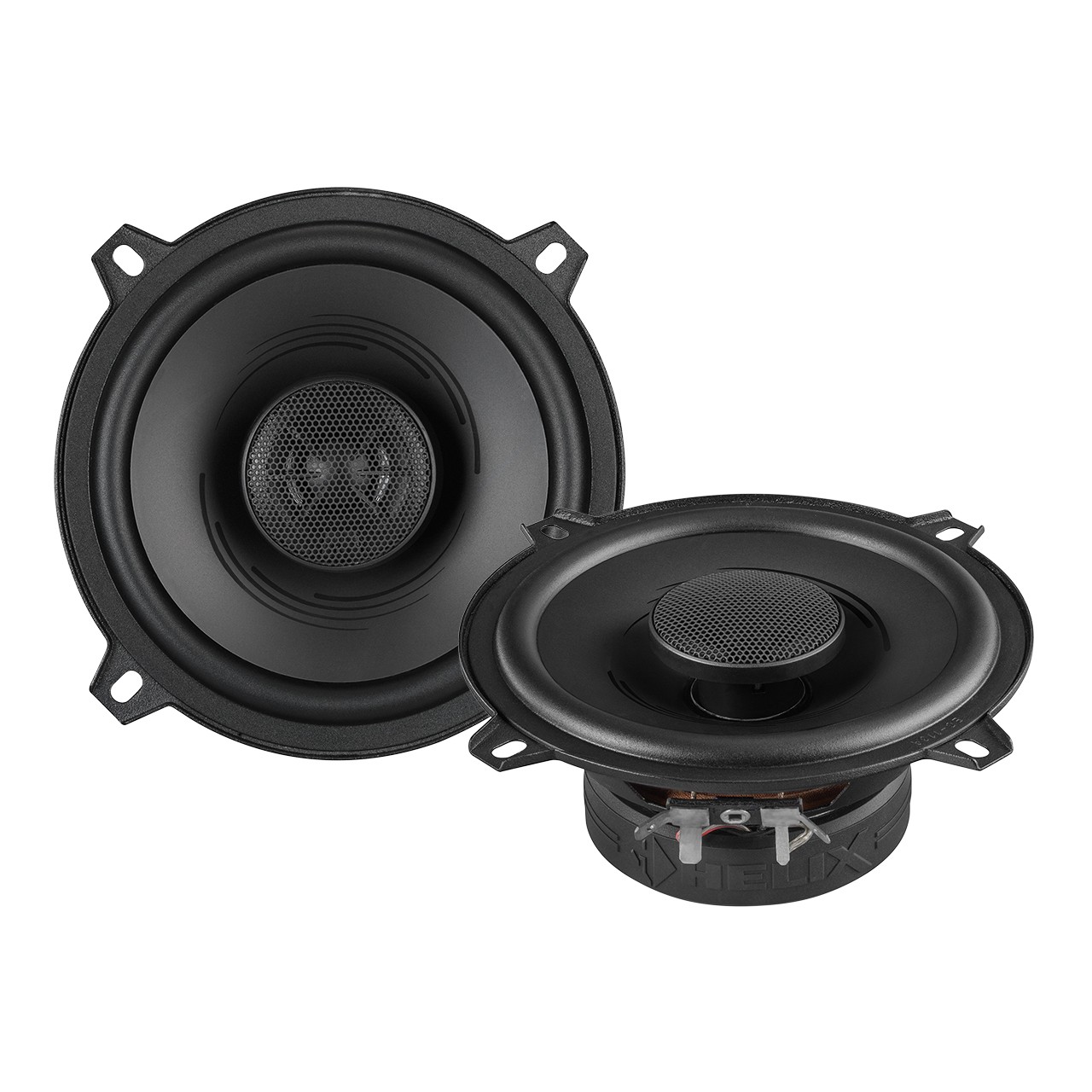

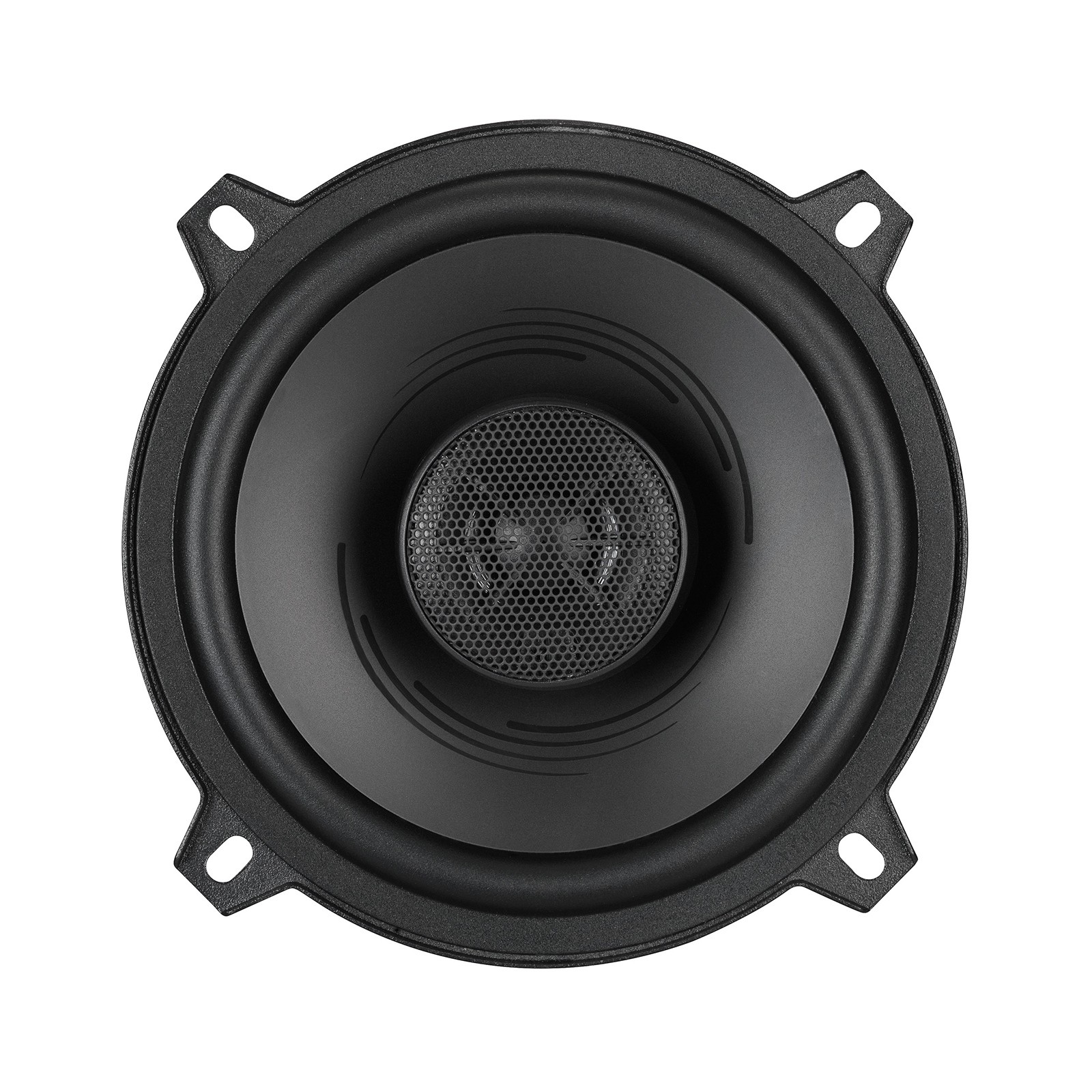

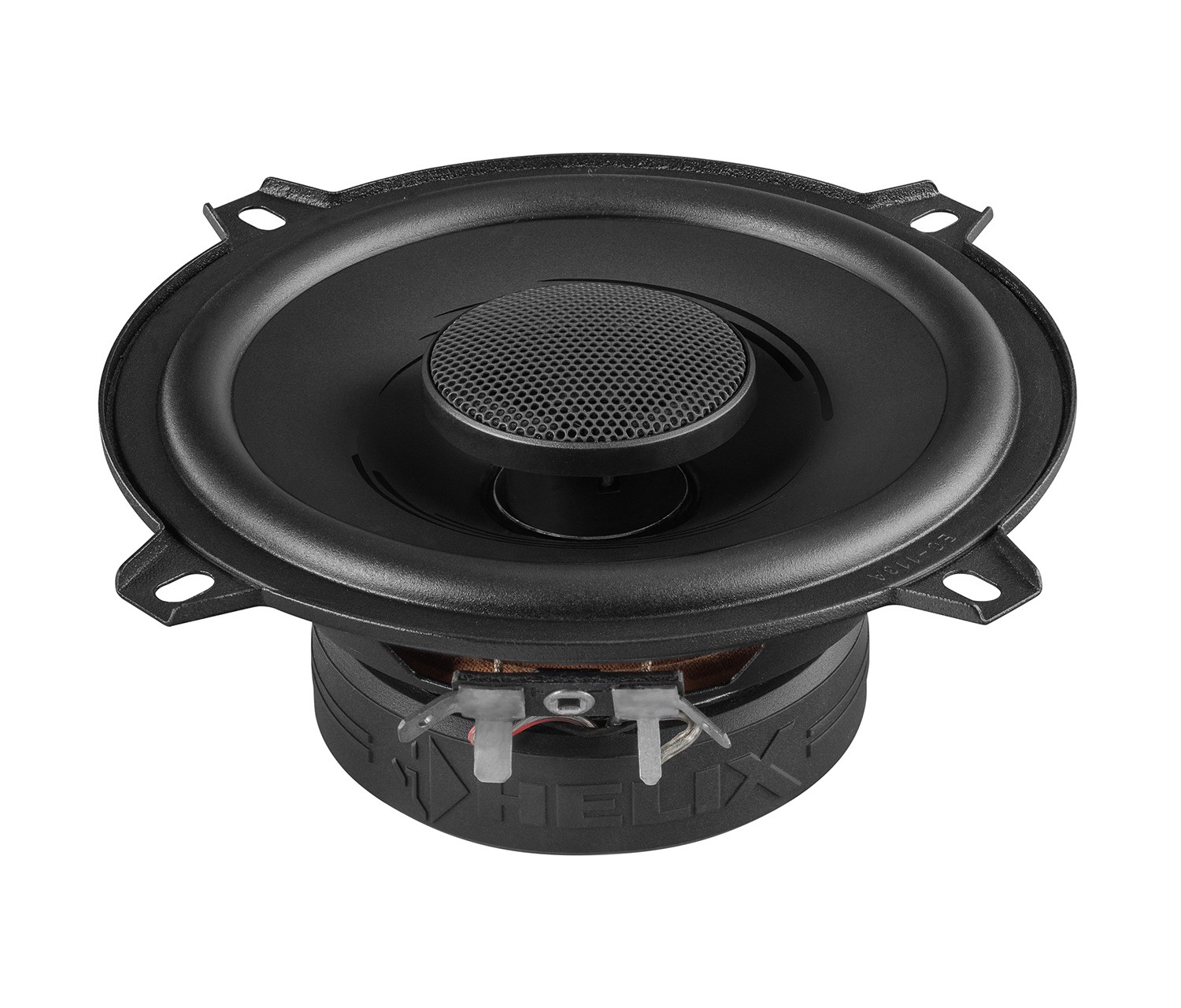

Speakers Helix PF C130.2

Name: Speakers Helix PF C130.2
Brand: Helix
Price: 87.85 EUR
Availability: InStock

Be the first to rate the product

Add to FavoritesRemove from favourites

coaxial speakers, Ø 130 mm, 50 W RMS, 3 Ω, 91 dB (2.83V/1m), installation depth 50 mm
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Updated

Description and parameters
Comments0
Evaluation0
Category

Helix PF C130.2 Speakers

Enter the world of Helix with the Pure F speaker line, which extracts maximum power from your car radio or amplifier thanks to its 3 ohm impedance. Combined with exceptional sound, powerful bass, clean mids and detailed highs, it delivers an exciting audio experience. Even the best sound isn't enough if installation causes problems.

Easy installation comes first!

The Pure F speakers, thoughtfully designed down to the smallest detail, show what proper workmanship looks like. It starts with a shallow mounting depth that takes into account the increasingly limited space in modern vehicles. In addition, the system offers a wide range of installation accessories with an innovative bayonet lock for an extremely compact tweeter, allowing virtually any installation option.

Cool design and premium materials

The timeless and stylish design of the F series with dynamic Space-Line styling of the woofer cone is not merely aesthetic, but the result of using high-quality materials. Carbon fibers embedded in the polypropylene woofer cone optimize midrange reproduction, while the silk-dome coated tweeter ensures exceptionally airy highs.

Key features

2-way coaxial speakers with a diameter of 130 mm.
High sound quality with deep bass, clear mids and detailed highs.
Powerful speaker system with high efficiency thanks to a 3 ohm impedance.
Low mounting depth for trouble-free installation in almost any vehicle.
Elegant Helix design with a black matte cone and black glossy Space Line styling.
13 mm Mylar dome and neodymium magnet for brilliant, well-defined high-frequency reproduction even at high levels.
130 mm woofer with an injection-molded polypropylene cone reinforced with carbon fibers.
Powerful magnetic system with optimal control for strong, clean lows.
Basket with additional ventilation holes for improved voice coil cooling and high-power handling.

About the brand

HELIX by Audiotec Fischer is a German brand of high-end car audio that for more than 35 years has been among the world leaders in amplifiers and DSP processors. HELIX is regarded as a leader in digital signal processors, offering some of the most advanced and highest-quality DSP units in the world, enabling a skilled technician to tune any audio system to perfection and bring an authentic hi‑fi experience into the vehicle. The combination of precise German engineering, state-of-the-art technology and innovative design delivers clean, dynamic and detailed sound that has earned the brand the favor of audiophiles worldwide. HELIX products are characterized by high efficiency, reliability and seamless integration into modern cars, making them an excellent choice for demanding users who want the best possible sound without compromise. Helix, together with the brands Brax and Match, is part of the German manufacturer Audiotec Fischer.

Catalog number	F622511
Brand	Helix
Links	Official web presentation
Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.	Coaxial 2-band
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged!	50 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged!	100W
Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.	87 dB
Sensitivity (SPL 1W/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.	91 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.	3 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	70 - 22000 Hz
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm.	130 mm
Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces.	50 mm
Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems.	Polypropylene reinforced with carbon fibers
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter.	13 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter.	Mylar
Cover grids included in the packageOriginal cover grilles in speaker packaging.	No
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover.	Few
