SGM BB-Tone 8 noise-absorbing material
More about the product
- You can return the goods to us within 14 days

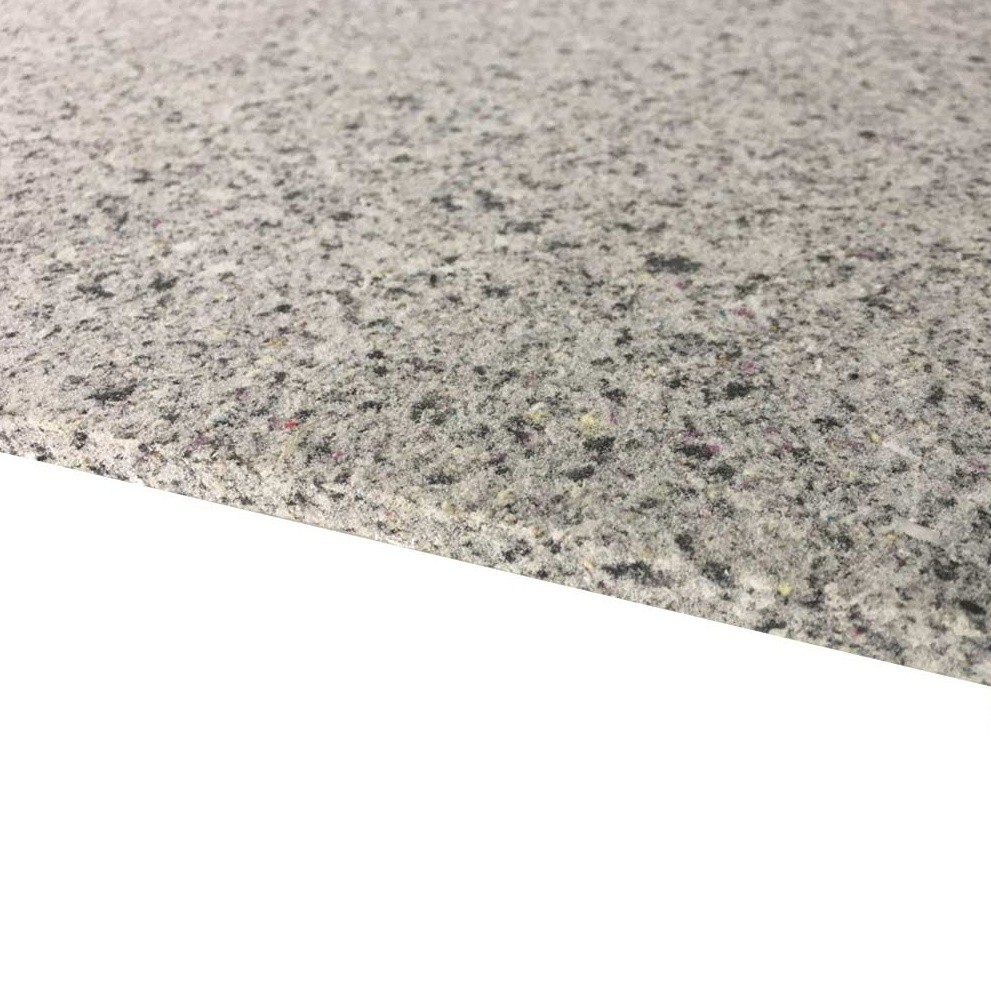

Noise-absorbing material SGM BB-Tone 8
SGM BB-Tone is a noise-absorbing material made from an elastic material in the form of re-foamed polyurethane foam with polymer impregnation and a self-adhesive layer. On the mounting side the material is protected by siliconeized paper. The material’s greatest advantage is the high ability to absorb airborne noise inside the vehicle and resistance to significant changes in temperature and humidity. The structure of the polyurethane foam with secondary foaming is characterized by the presence of open pores and relatively large cavities between flakes, so there is almost no sound reflection. Sound waves are absorbed by the cellular structure of the material. The specially selected structure of the crosslinking composition and the polymer impregnation of the material are a unique development by SGM and provide the maximum possible sound absorption characteristics. BB-Tone is also an extremely lightweight material weighing only 0.4 Kg / 1 m², which can be used for installations where the main task is not to add too much weight to the vehicle while still effectively soundproofing it. The material is highly flexible and can be applied to very contoured surfaces. The extremely adhesive self-adhesive layer guarantees effectiveness at -40 °C to +120 °C. The material meets automotive fire safety standards; the burn rate is less than 100 mm per minute. Available in thicknesses of 4 and 8 mm. Please note that the final color of the material may differ from the photograph, depending on the current source of raw materials used in production.
Main properties of SGM BB-Tone 8
- Acoustic and thermal insulation material suitable for soundproofing any areas of the vehicle.
- High ability to absorb airborne noise inside the vehicle.
- Significantly higher sound insulation capability than common rubber foam-based materials.
- Resistance to extreme temperatures with the same adhesive effect at temperatures from -40 °C to +100 °C.
- High flexibility of the material for fast and easy application even on very contoured surfaces.
- Thermal insulation capability and protection against heat loss.
Technical parameters of BB-Tone 8
- Thickness: 8 mm
- Dimension: 750 x 1000 mm
- Weight: ?
- Specific weight: 0.6 kg / m²
- Adhesion: 3 N / cm
- Color: mix of colors
- Price for: 1 pc
Where to apply SGM BB-Tone 8
SGM BB-Tone is intended for soundproofing practically all areas of the vehicle. Due to its extremely low weight its use is especially suitable for installations where you do not want to significantly increase the vehicle weight. It is applied as a second layer over anti-vibration material, which prevents vibrations and the lowest frequency noise (e.g. SGM Beta 2 or SGM Alpha 2). The most common uses of the SGM BB-Tone 8 sound insulation material:- Floor
- Engine bay partition
- Center tunnel
- Boot/trunk
- Fenders
About SGM
SGM Technology was founded in 2006 and is among the leading global manufacturers of acoustic and thermal insulation materials for the automotive, marine, aerospace and construction industries. SGM products stand out for excellent physical properties, high efficiency and stable quality, which are the result of long-term development and precise manufacturing. The company offers more than 200 types of materials that meet strict international quality standards ISO 9001 and ISO / TS 16949. The top Prime series represents the pinnacle of the brand’s technological level and offers some of the most advanced materials for automotive soundproofing on today’s market.
| Catalog number | SGM BB-TONE 8 |
| Brand | SGM |
| Oversized shipment | Yes, |
| Links | Official web presentation |
| Material type | Sound-absorbing material |
| Thickness | 8 mm |
| Dimension | 1000 x 700 mm |
| Anti-noise membrane | No |
| Basis weight | 0.6 kg / m² |
| Adhesion | 3 N / cm |
| Water resistance | No |
| Heat insulation | Yes |
| Color | Multiple colors |
| Price for | 1 piece |
| Layer order | 2nd layer |
