Parkovací kamera BC SSG-69

Parking camera for Ssangyong Actyon (BC SSG-69)

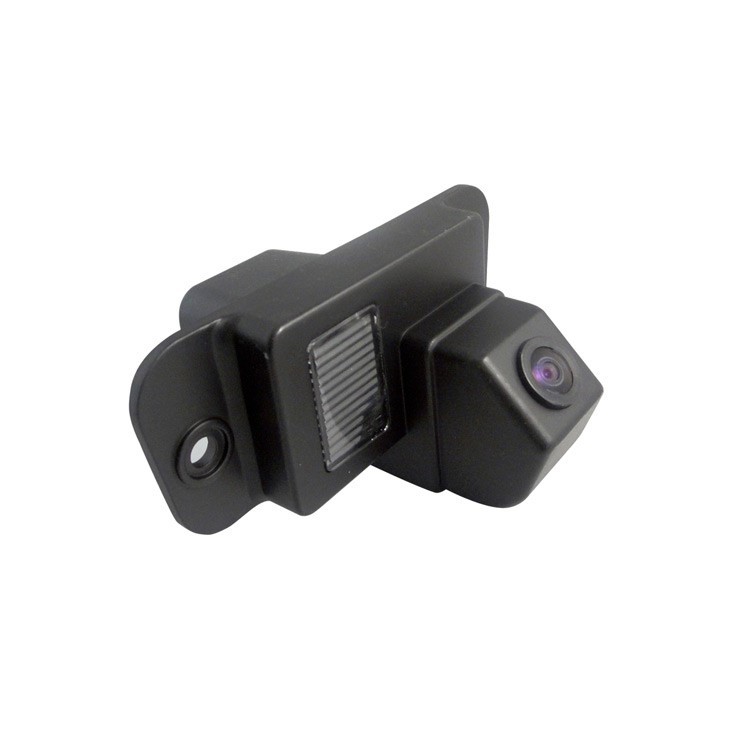

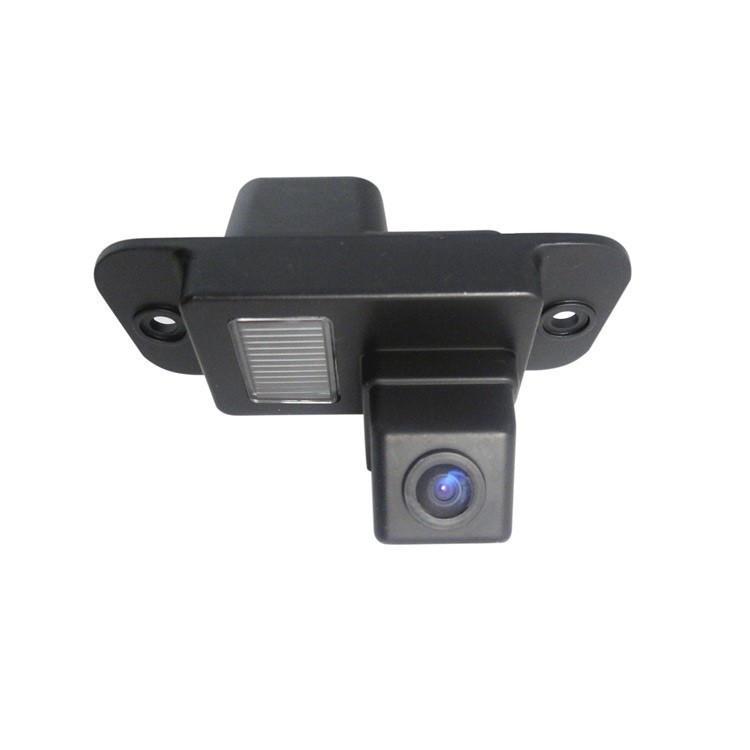

OEM color parking camera for installation into the light for illuminating the rear license plate. The camera includes space for the bulb socket from the original light.

The camera is suitable for the following vehicles:

• Ssangyong Actyon

Technical specifications

• Image sensor: PC3089 1/3"
• Option to turn on/off the display of auxiliary trajectories (guidelines)
• Electronic shutter: 1/60–1/10000 sec.
• Minimum illumination: 0.1 lux
• Signal-to-noise ratio: > 48 dB
• TV system: NTSC
• Number of TV lines: 600
• Effective pixels: 668 × 576
• Weather protection: IP67
• Viewing angle: 170°
• Camera body: durable plastics "private housing"
• Image display: mirrored
• White balance: automatic
• Operating temperature: from -30 °C to +70 °C
• AGC, BLC, white balance: automatic
• Signal cable: length 6.2 m terminated with CINCH / RCA connector
• Video output: 1.0 V / 75 Ohm
• Power cable length: 1 m
• Power supply: 12 V DC
• Power consumption: <1 W
• Base: 39 x 96 mm
• Distance between screw holes: 77 mm

Note

This camera is intended for aftermarket (retrofit) radios with a CINCH AV input. Using it with an original factory radio may require a video adapter for the parking camera!
