OEM parking camera Volkswagen, Seat, Skoda (BC VW-14)

OEM parking camera for VW, Skoda, Seat

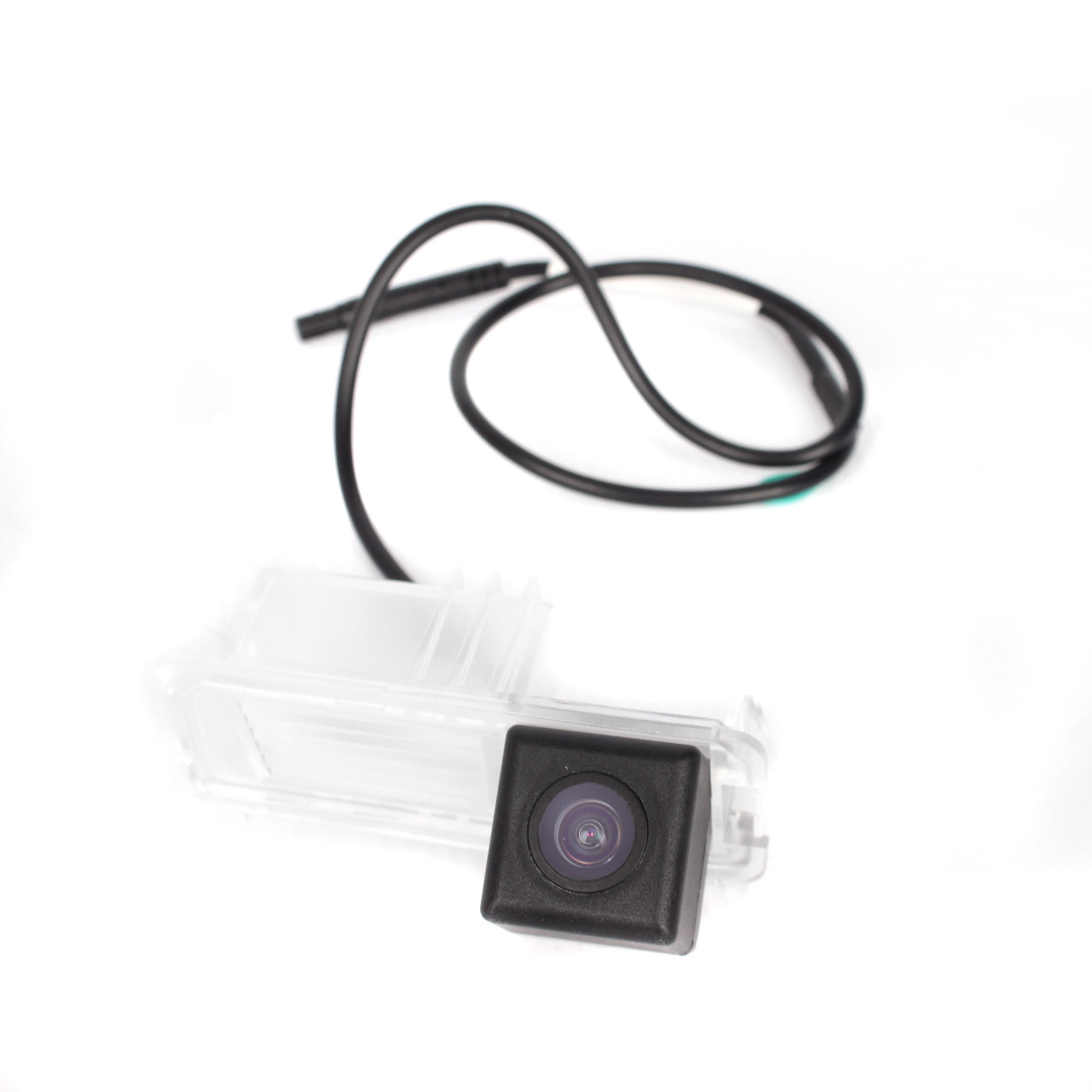

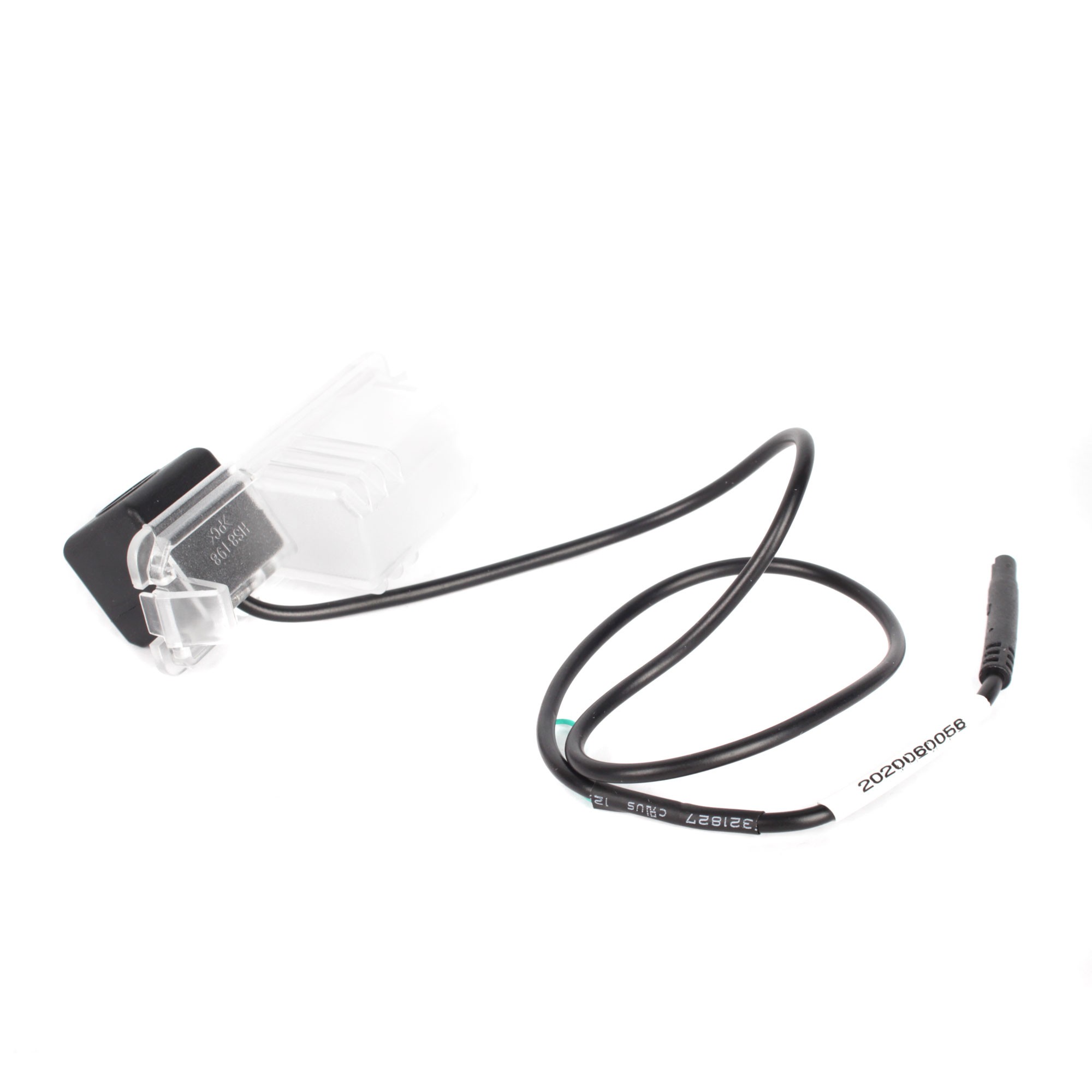

OEM color parking camera for installation in the rear license plate lamp. The camera includes a place to place the socket with the bulb from the original license plate light. For Seat, Škoda, VW vehicles.

Camera suitable for the following vehicles:

• Seat Altea (2007 -> 2009)
• Seat Exeo (2009->)
• Seat Ibiza Cupra
• Seat Leon (2006 -> 2009)

• Skoda Superb II (2008->)

• VW Amarok (2010->)
• VW Beetle (2005 -> 2010)
• VW Bora (2013->)
• VW EOS (2006->)
• VW Golf5 hatchback
• VW Golf6 hatchback
• VW Golf7 hatchback
• VW Jetta (2005->)
• VW Lupo
• VW Passat B7
• VW Passat CC (2008->)
• VW Phaeton (2002->)
• VW Polo IV (9N3) (2005 -> 2009)
• VW Polo V (6R, 6C) (2005 -> 2017)

Technical parameters of OEM cameras for VW, Seat and Škoda:

• imaging sensor: CMOS 1/3"
• the option to turn on / off the display of auxiliary trajectories (guide lines)
• electronic aperture: 1/60 1/10000 sec.
• minimum illumination: 0.05 lux
• signal / noise ratio: > 48 dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal scanning angle: 120°
• image display: mirror image
• white balance: automatic
• operating temperature: from -30 °C to +70 °C
• AGC, BLC, white balance: automatic

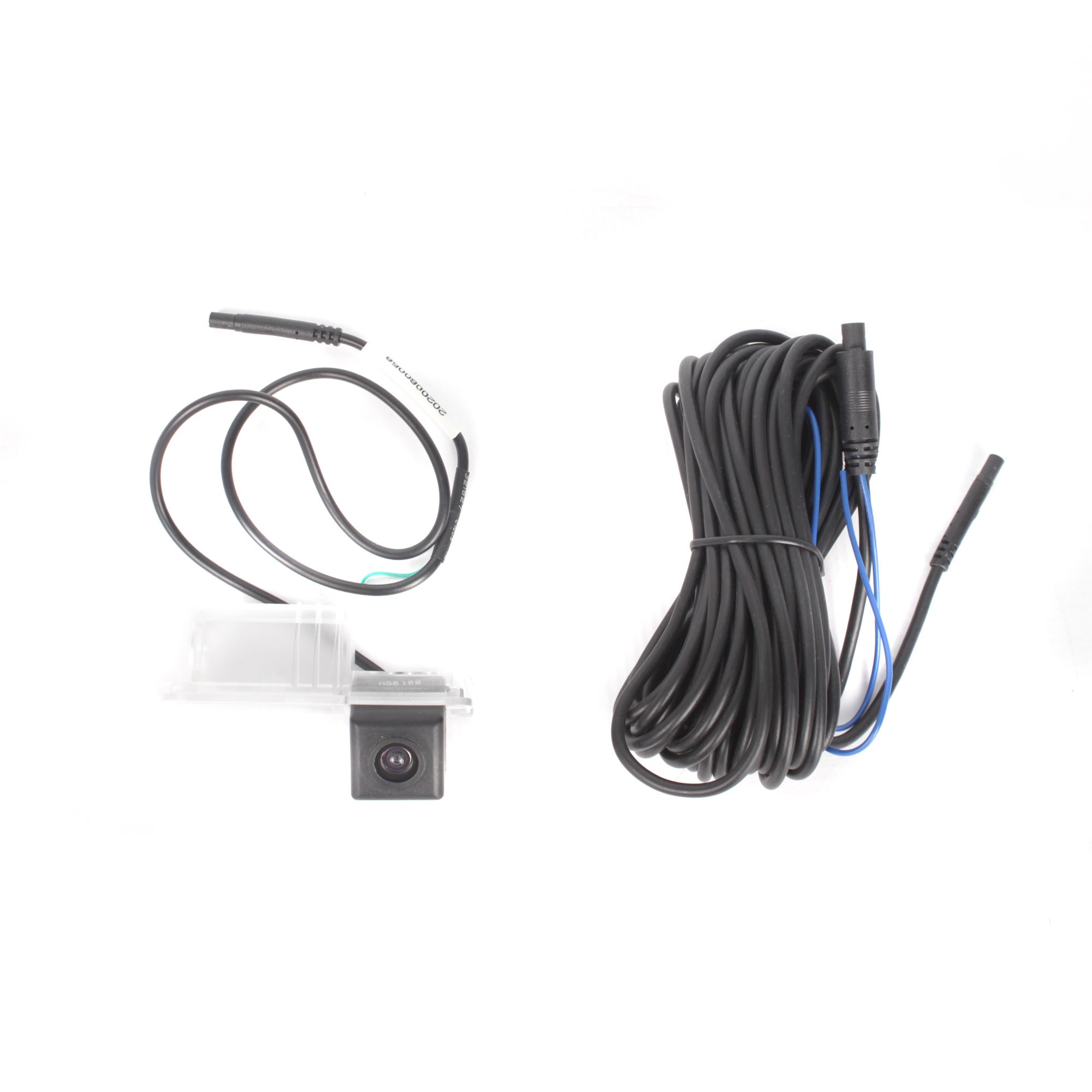

• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• power cable: 30 cm
• video output: 1.0V / 75 ohm
• power supply: 12 V DC
• consumption: <1W

Camera dimensions:

• base: 77 x 28 mm
• pitch: 79 mm

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
