OEM parking camera Volkswagen, Skoda (BC VW-01)

VW Golf IV. (97->03), Golf V. [1K] (03->09), Polo IV. [9N2] (01->08), Eos [1F] (5/06->11), Passat [B6] sedan (06->11), Passat CC (5/08->12), Touran 1, Bora , Lupo (99->06), VW Beetle (06->10) / Skoda Superb II. sedan (08->)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

OEM parking camera Volkswagen, Skoda (BC VW-01)

Description and parameters
Comments0
Evaluation1
Category

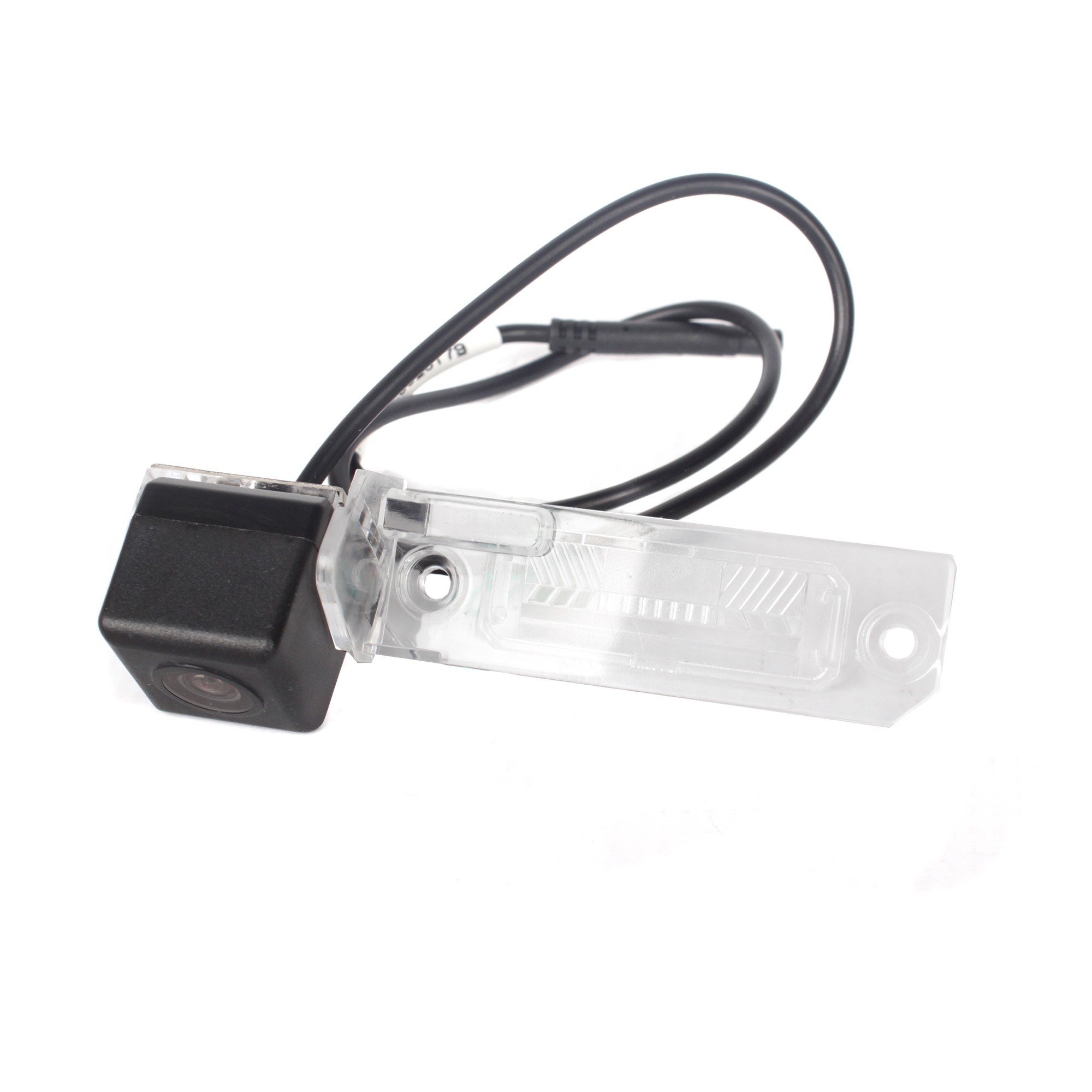

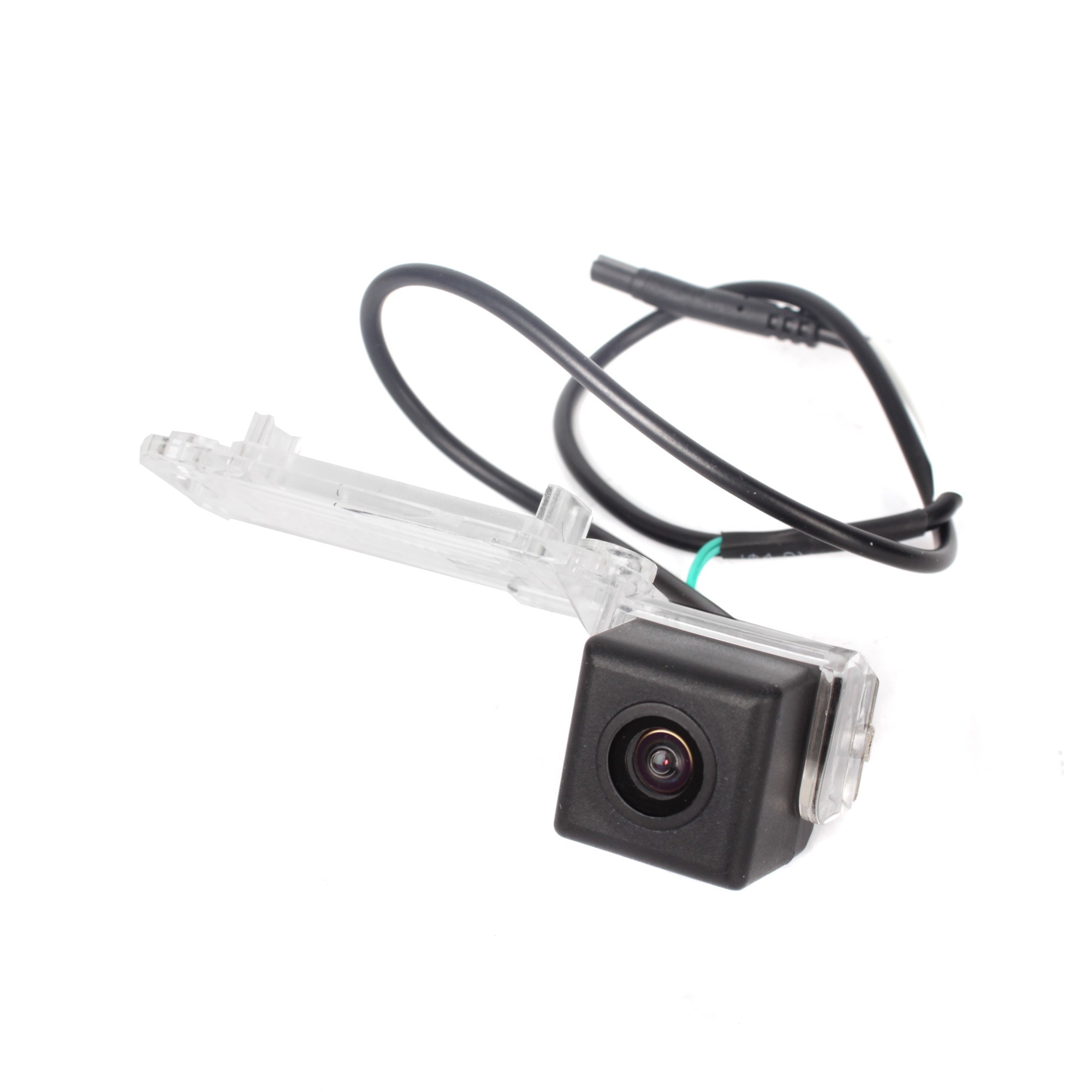

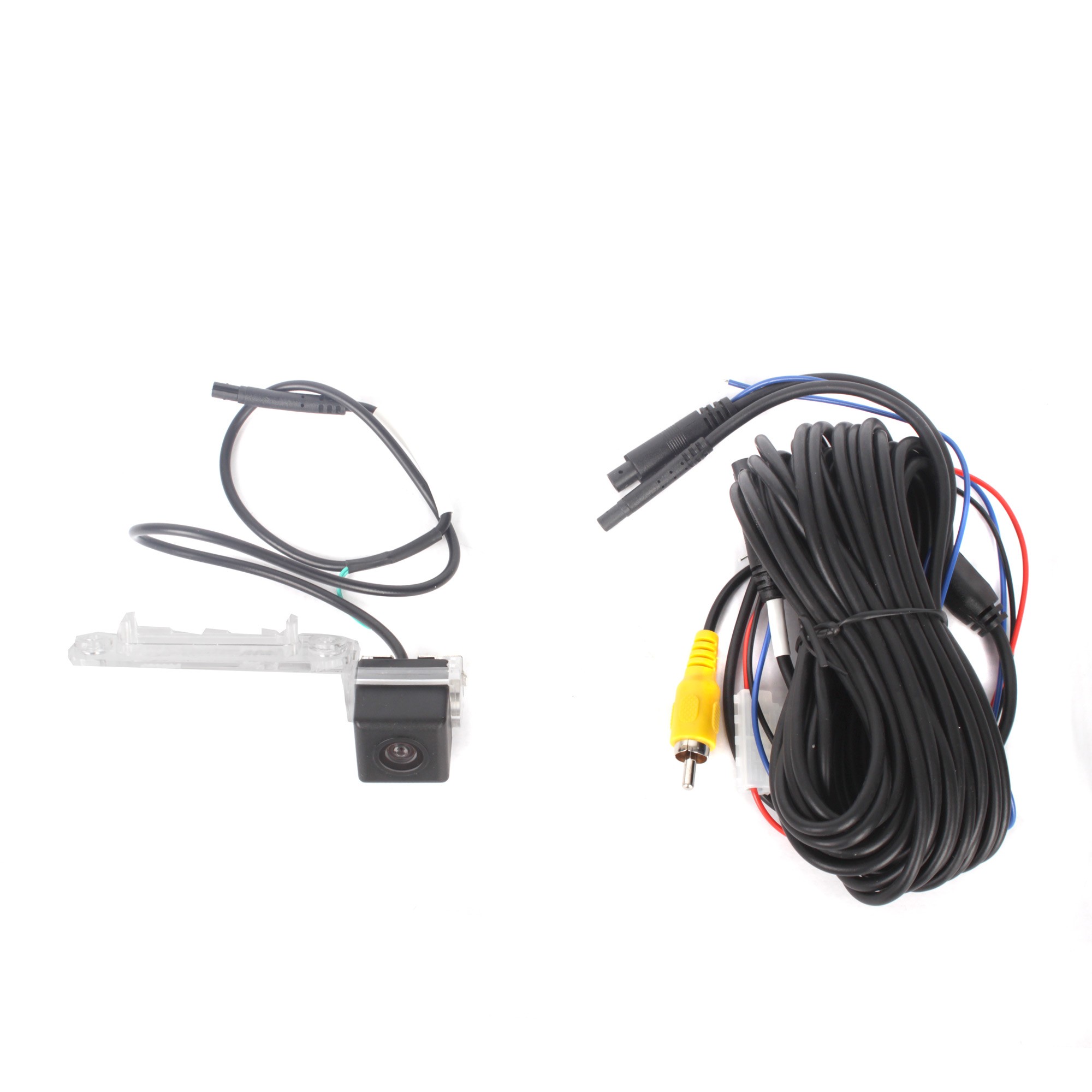

OEM parking camera for VW, Skoda

OEM color parking camera for installation in the rear license plate lamp.

Camera suitable for the following vehicles:

Škoda Superb II sedan (2008 ->)

VW Golf IV. (1997 -> 2003) - cannot be used for combi
VW Golf V. [1K] (2003 -> 2009) - cannot be used for combi
VW Polo IV. [9N2] (2001 -> 2008)
VW Eos [1F] (5/2006 -> 2011)
VW Passat [B6] saloon (2006 -> 2011)
VW Passat CC (5/2008 -> 2012)
VW Touran 1
VW Bora
VW Polo (1999 -> 2006)
VW Beetle (2006 -> 2010)

Technical parameters of the OEM camera for VW and Skoda:

sensing sensor: PC3089 1/3"
the option to turn on / off the display of auxiliary trajectories (guide lines)
electronic aperture: 1/60 1/10000 sec.
minimum illumination: 0.1 lux
signal / noise ratio: > 48 dB
TV system: NTSC
number of TV lines: 600
effective pixels: 668 × 576
weather protection: IP67
scanning angle: 170°
camera body: durable plastic "private housing"
image display: mirror image
white balance: automatic
operating temperature: from -30°C to +70°C
AGC, BLC, white balance: automatic
signal cable: length 6.2 m terminated with CINCH / RCA connector
video output: 1.0V / 75 ohm
power cable length: 1 m
power supply: 12 V DC
consumption: <1W

Camera dimensions:

base: 22 x 60 mm

Note
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
