OEM parking camera Peugeot, Citroen, Fiat (BC PGT-BOXER)

OEM parking camera for Peugeot, Citroen, Fiat

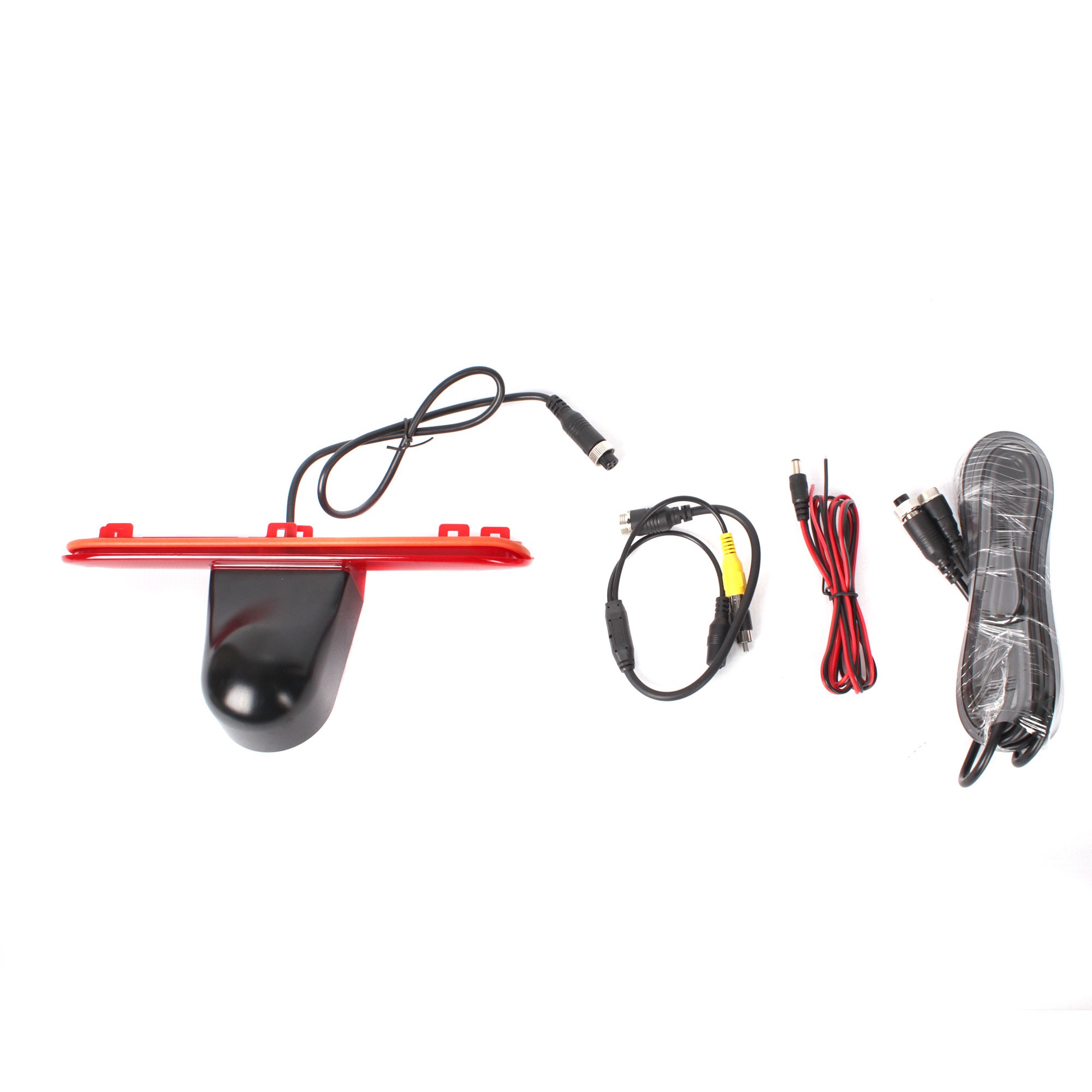

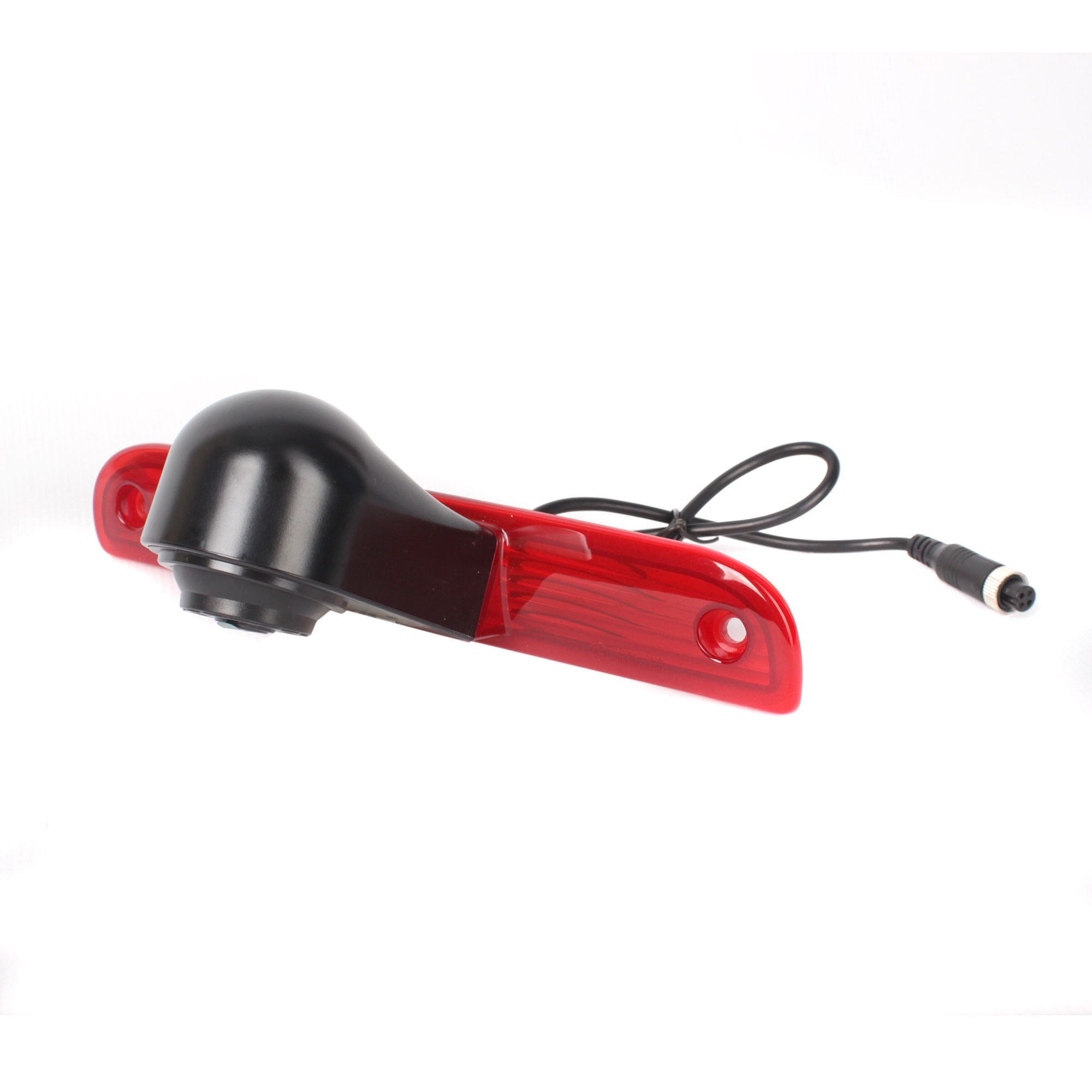

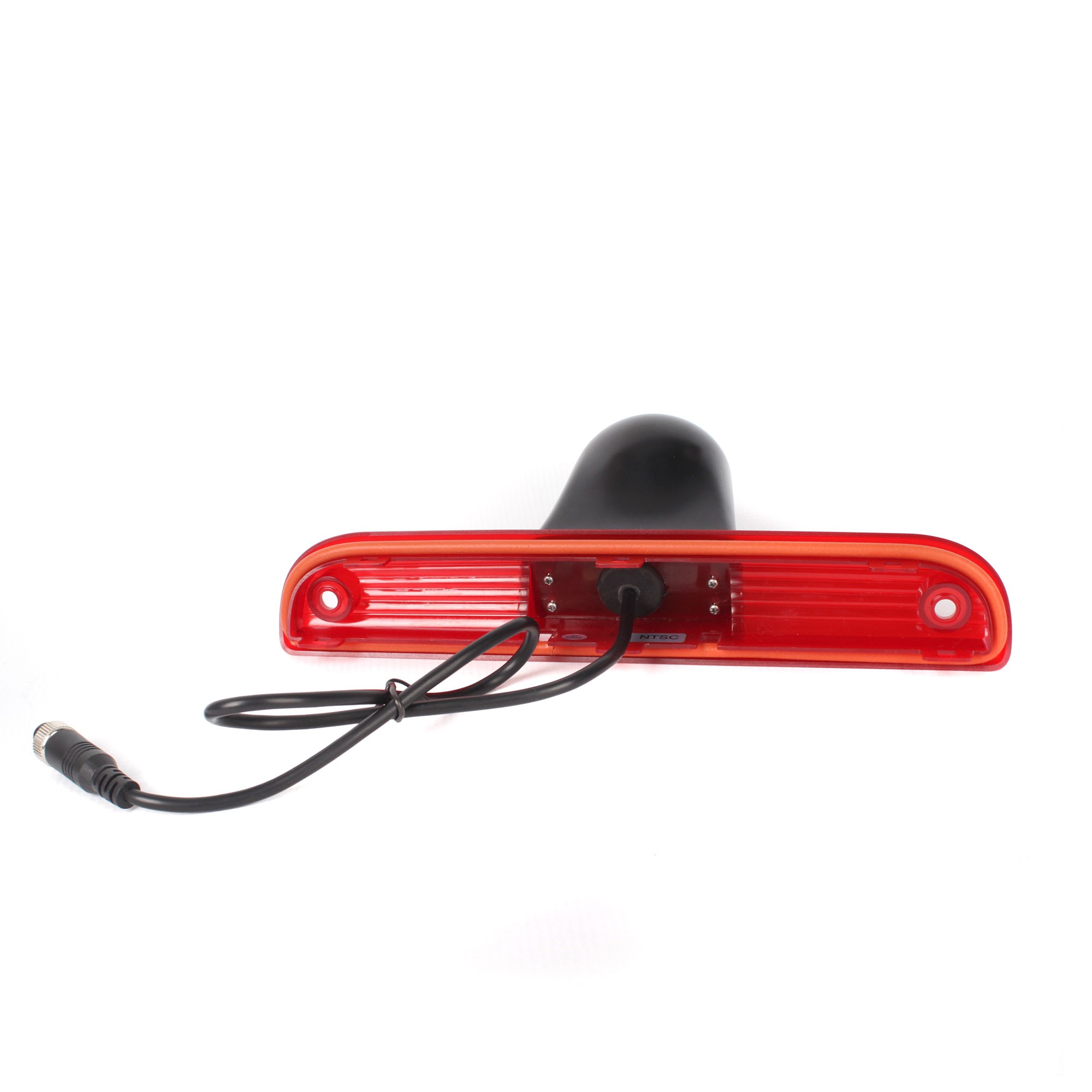

OEM color parking camera integrated in the cover glass of the central brake light for Jumper, Boxer, Ducato (06->).

Camera suitable for the following vehicles:

• Fiat Ducato (2006 -> 2014)
• Fiat Ducato [X250][X290] (2014 ->)

• Peugeot Boxer (2006 -> 2014)
• Peugeot Boxer (2015 ->)

• Citroen Jumper (2006 -> 2014)
• Citroen Jumper (2015 ->)

Technical parameters of OEM cameras for Peugeot, Citroen, Fiat:

• CCD Sharp 1/4" sensor chip
• lens diameter: 14 mm
• electronic aperture: 1/50 1/10000 sec.
• minimum illumination: 0.1 lux
• signal-to-noise ratio: >48 dB
• TV system: NTSC
• number of TV lines: 420
• weather protection: IP68
• scanning angle: 170°
• video output: 1.0V / 75 ohms
• white balance: automatic
• operating temperature: from -30°C to +70°C
• power and signal cable for the camera: approx. 80 cm
• signal cable length: 10 m terminated with CINCH connectors
• power cable length: 1 m

Camera dimensions:

• base: 46 x 263 mm
• pitch of mounting screws: 220 mm

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
