OEM parking camera Peugeot, Citroen (BC PGT-PARTNER)

OEM parking camera for Peugeot, Citroen

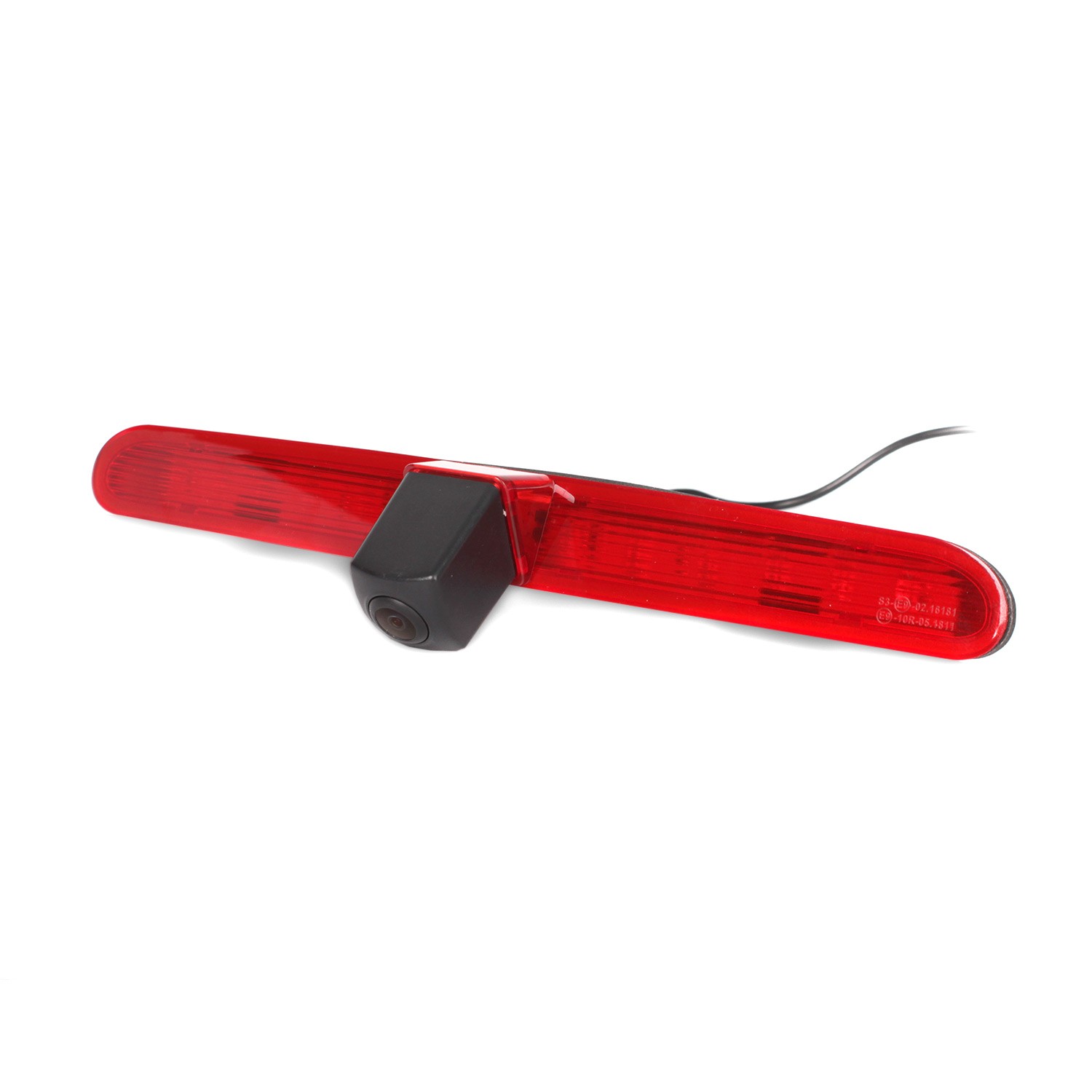

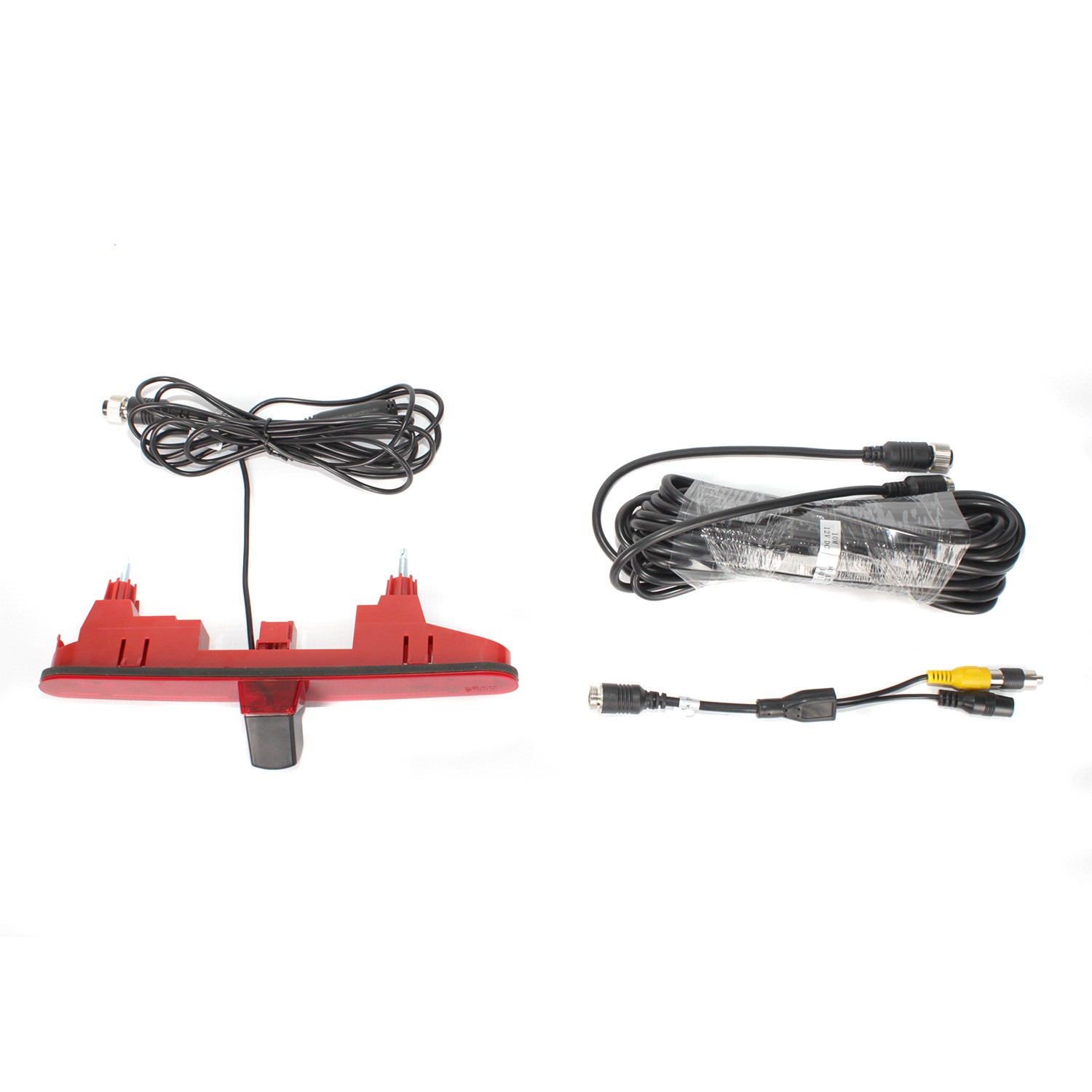

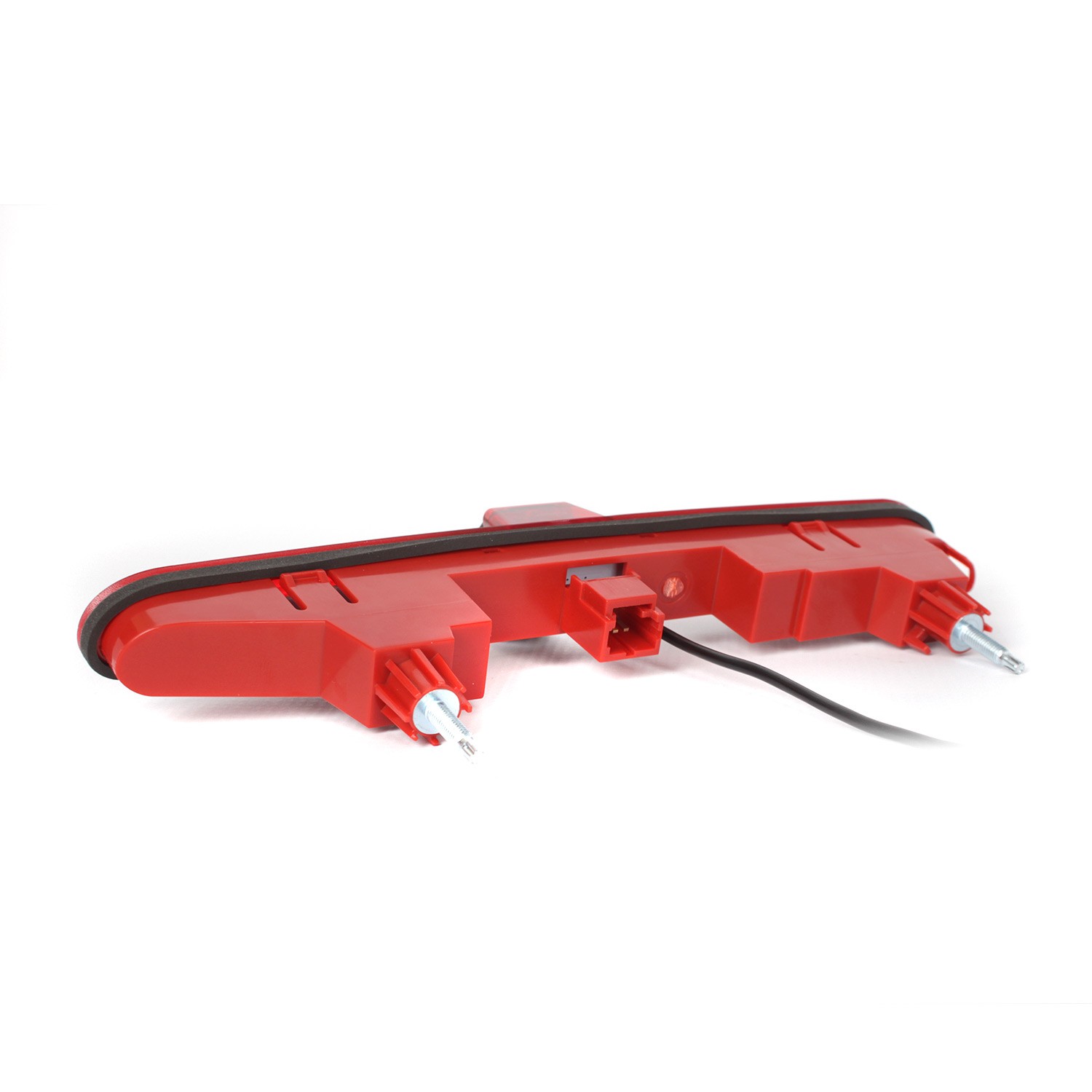

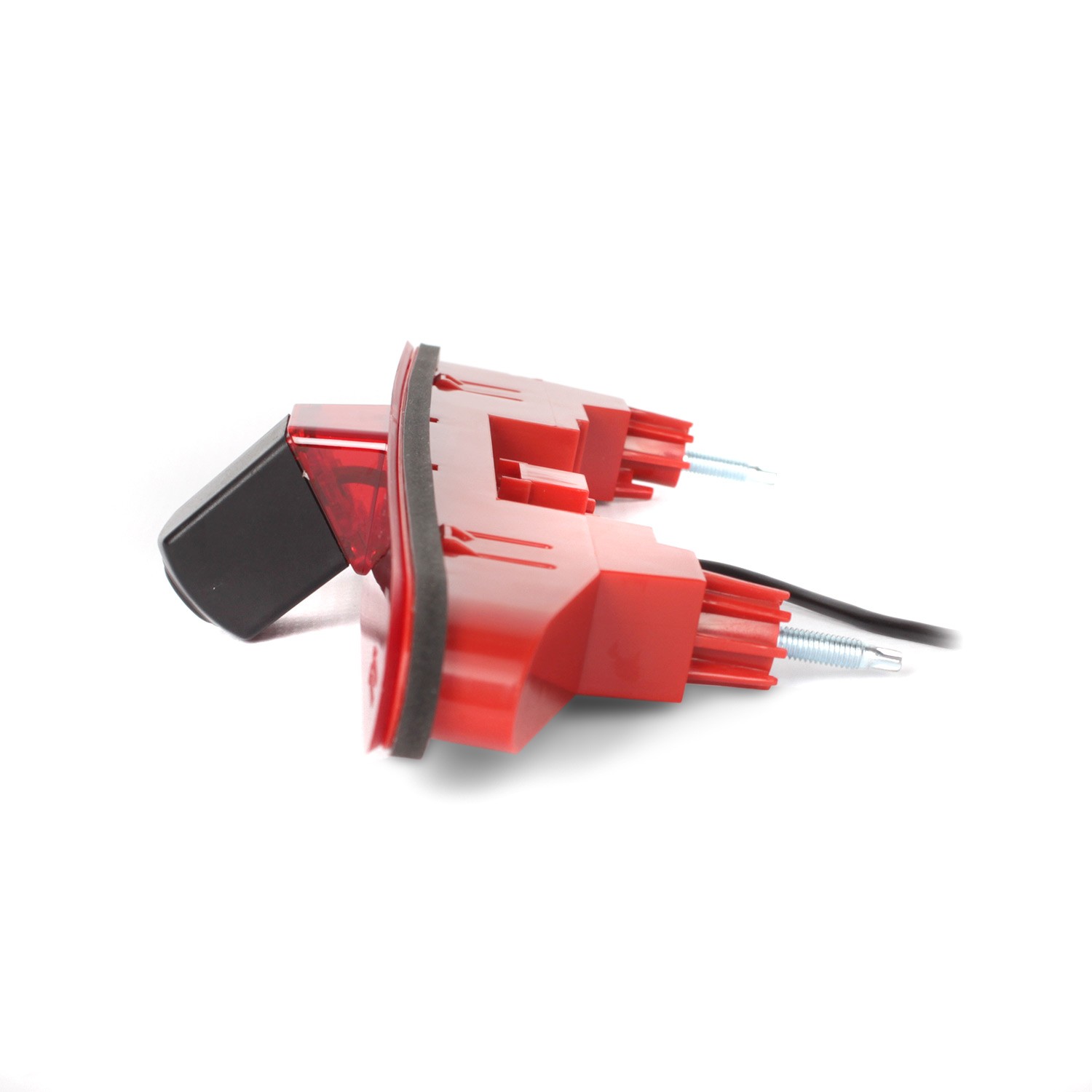

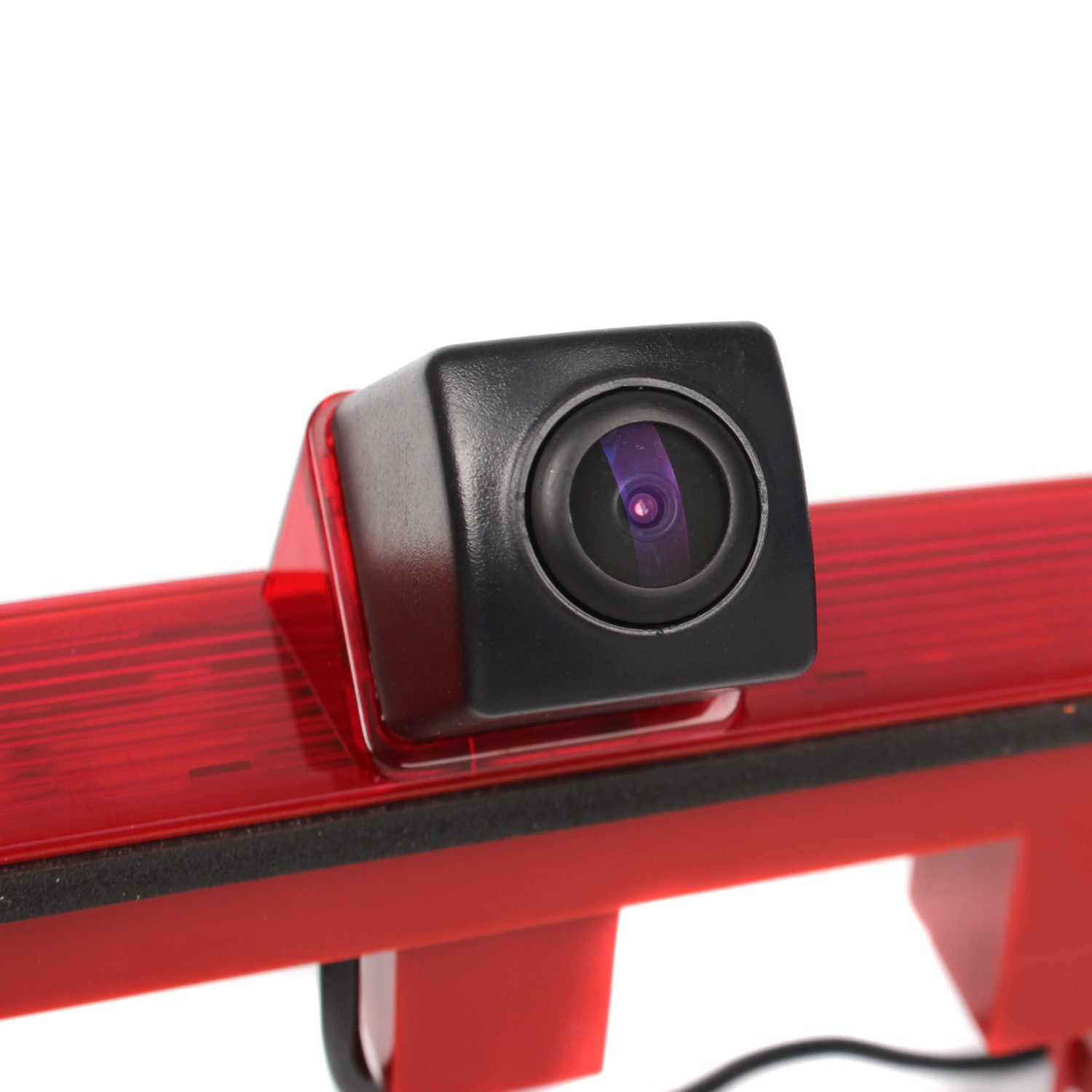

OEM color parking camera integrated in central brake light for Peugeot Partner and Citroen Berlingo (08-18).

Camera suitable for the following vehicles:

• Peugeot Partner II. (04/2008 -> 2018)

• Citroen Berlingo (04/2008 -> 2018)

Technical parameters of the OEM camera for Peugeot, Citroen:

• CMOS 1/3" sensor chip
• TV system: NTSC
• video output: 1.0V / 75 ohm
• horizontal scanning angle: 120°
• weather protection: IP69K
• vibration resistance: min. 4G
• camera connector: 4 pin
• monitor connector: CINCH (RCA)
• camera cable length: 2.5 m
• cable length in cable harness: 10 m
• horizontal resolution: 700 TV lines
• white balance: automatic
• minimum illumination: 0 lux (illumination by infrared LEDs)
• signal / noise ratio: > 48 dB
• electronic aperture: 1/60 to 1/100000 sec.
• power consumption: <3W
• supply voltage: 12 V
• operating temperature from -30 °C to +70 °C
• homologated

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
