JBL STAGE1 GEN2 962M Speakers

Be the first to rate the product

Add to FavoritesRemove from favourites

coaxial speakers, 6 x 9", 70 W RMS, 4 Ω, 91 dB (2.83 V/1 m)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Updated

Description and parameters
Evaluation0
Category

JBL STAGE1 GEN2 962M

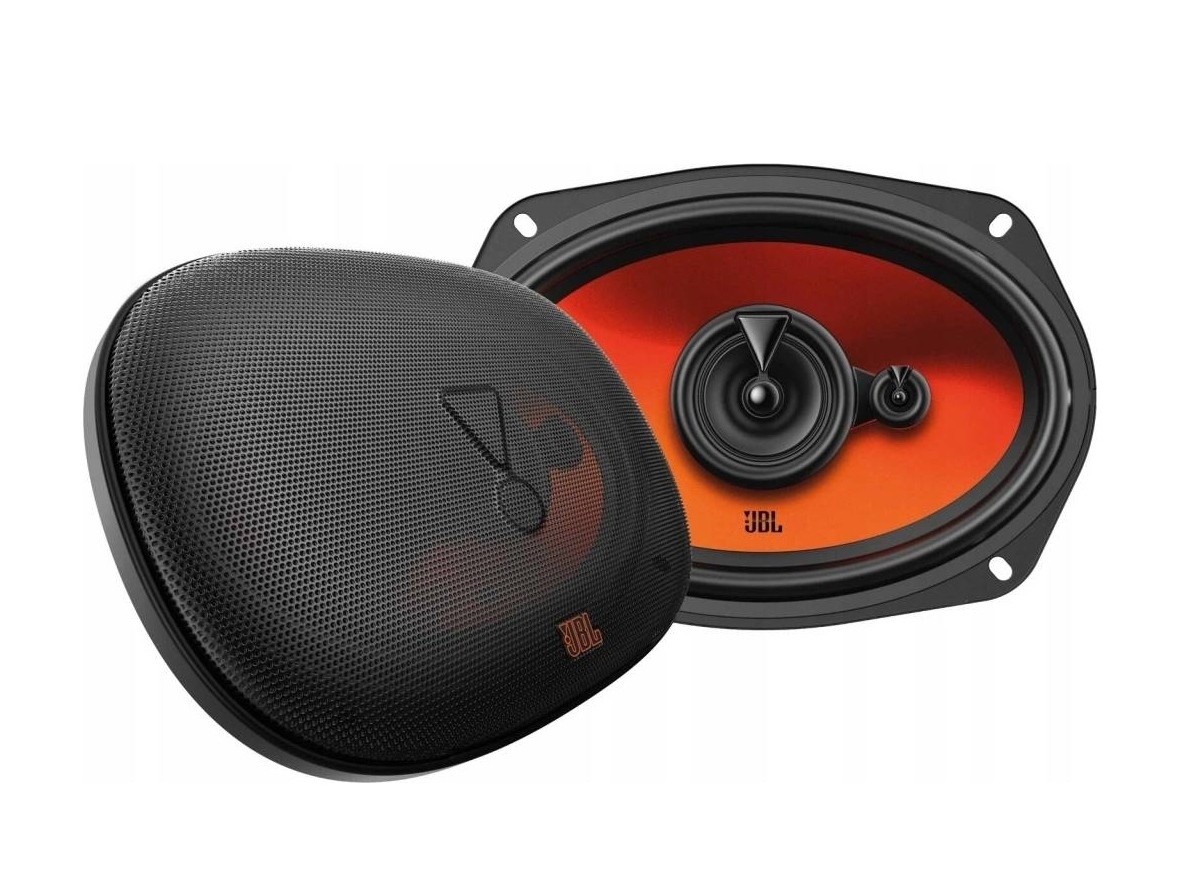

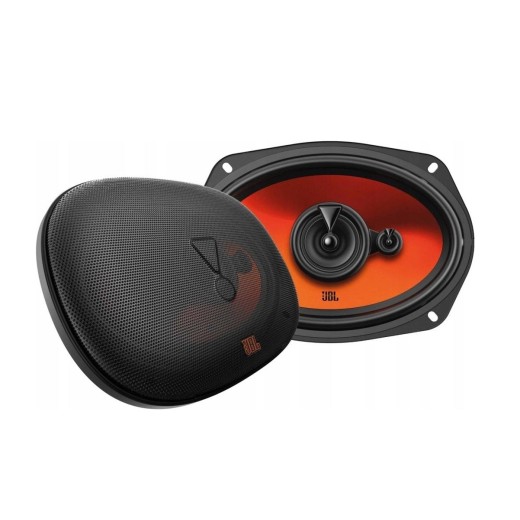

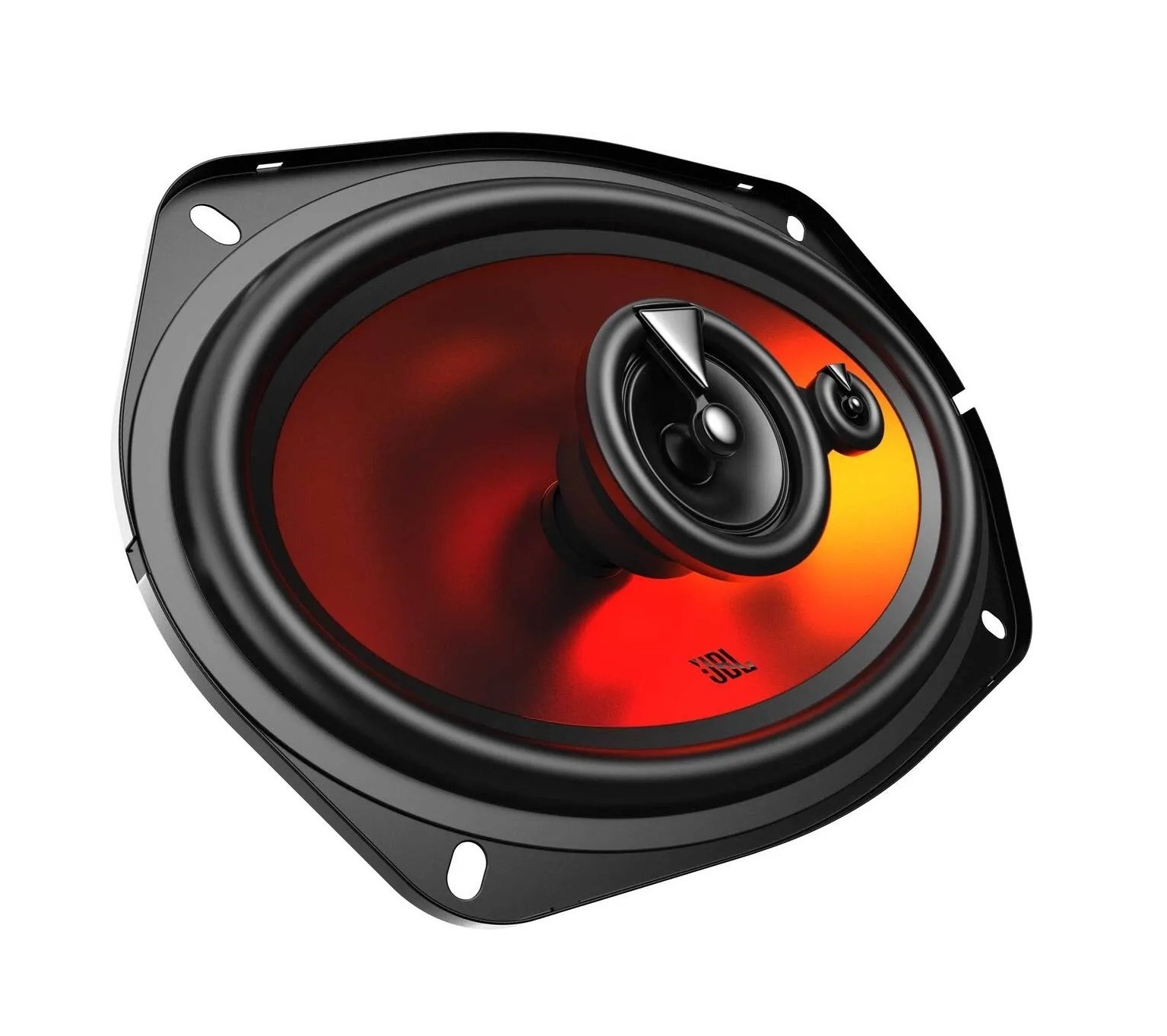

The JBL Stage1 962M speakers are powerful 6×9" (152 × 230 mm) three-way coaxial speakers, representing an ideal upgrade for vehicles with larger mounting locations. Thanks to the larger cone area and three-way design, they deliver noticeably fuller sound, stronger bass and better detail than smaller speakers, even when driven by a standard car stereo.

At the core is a polypropylene cone with Plus One™ technology, which offers a larger active surface than typical speakers of the same size. This provides higher sensitivity, a stronger bass foundation and an overall more dynamic sound performance.

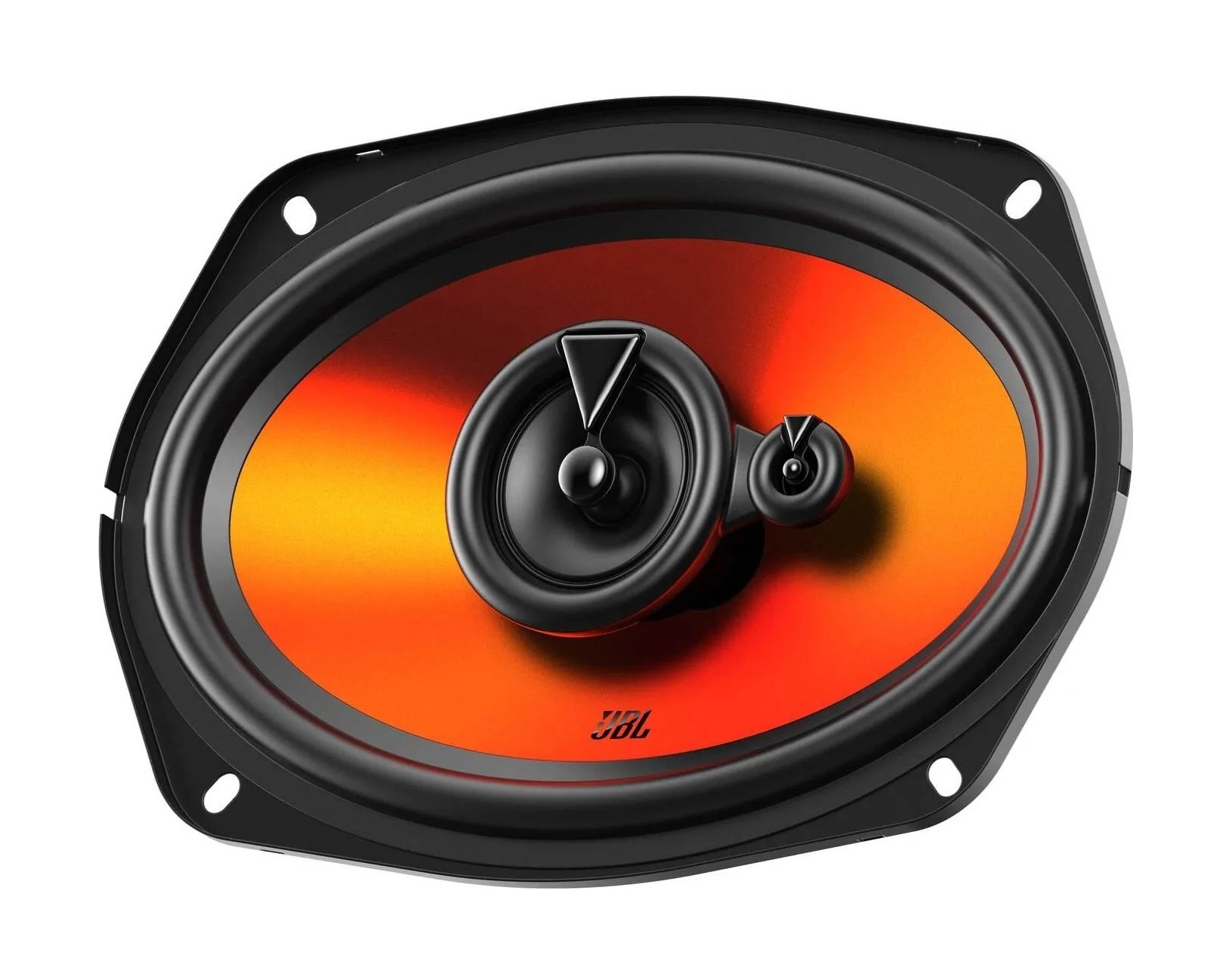

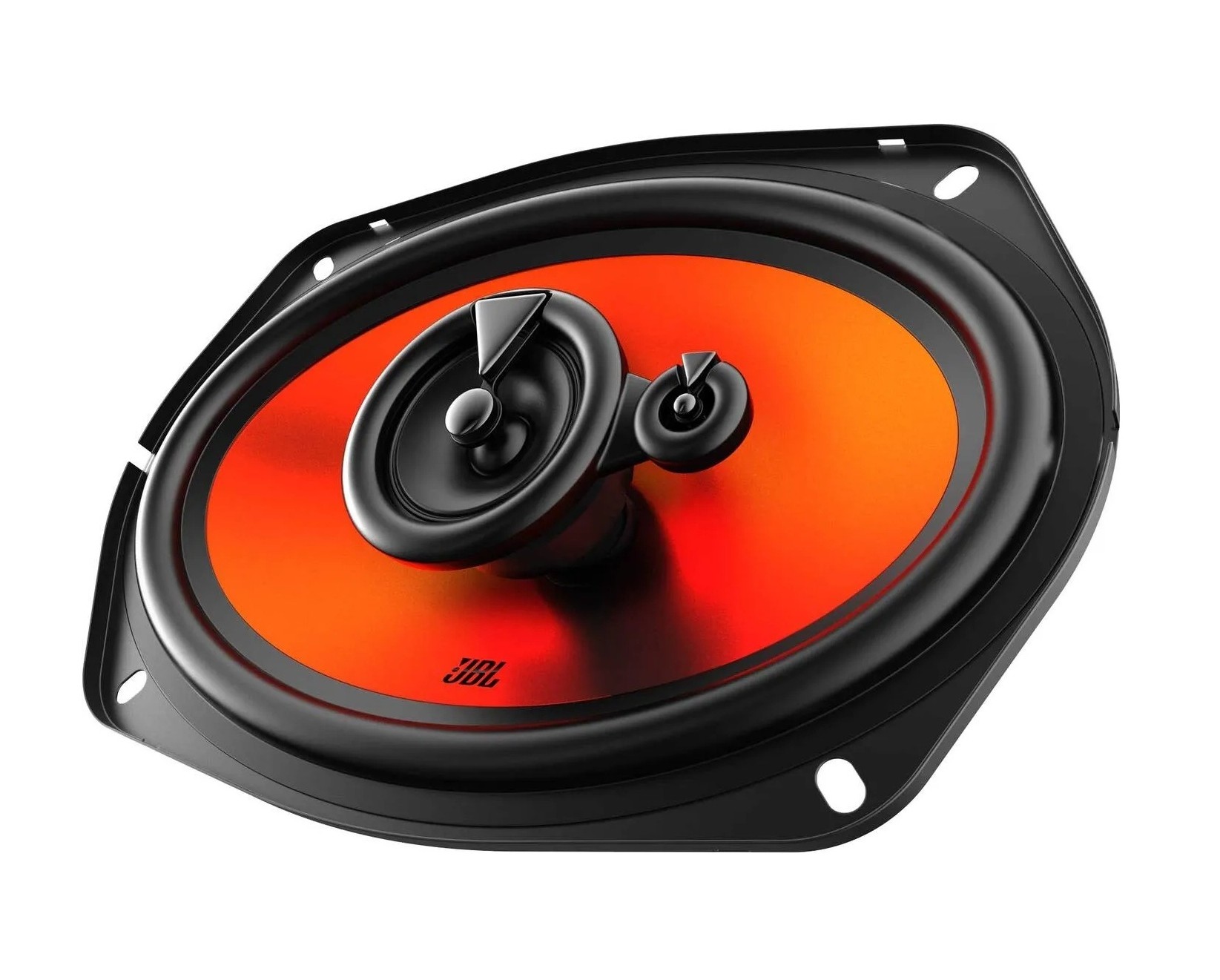

The three-way design combines a woofer, a midrange driver and a PEI dome tweeter, ensuring better frequency separation, clearer vocals and more detailed highs without harshness. The result is a balanced and clear sound across the entire frequency spectrum.

With sensitivity around 91 dB, 70 W RMS power and 4 Ω impedance, these speakers can efficiently use the power from a car stereo or amplifier to deliver loud, dynamic and clean reproduction. JBL Stage1 962M are an ideal choice for anyone seeking a significant sound upgrade, stronger bass and a fuller musical presentation at an affordable price.

Main features

Three-way coaxial speakers from the JBL Stage1 series.
6×9" (152 × 230 mm) size for strong, full sound.
Three-way design for improved detail and frequency resolution.
Plus One™ polypropylene cone for strong, deep bass.
Midrange driver for better vocal and detail reproduction.
PEI dome tweeter for clean, non-aggressive highs.
High sensitivity of approx. 91 dB for loud playback even from a car stereo.
70 W RMS power for dynamic and clean sound.
4 Ω impedance for wide compatibility with amplifiers.

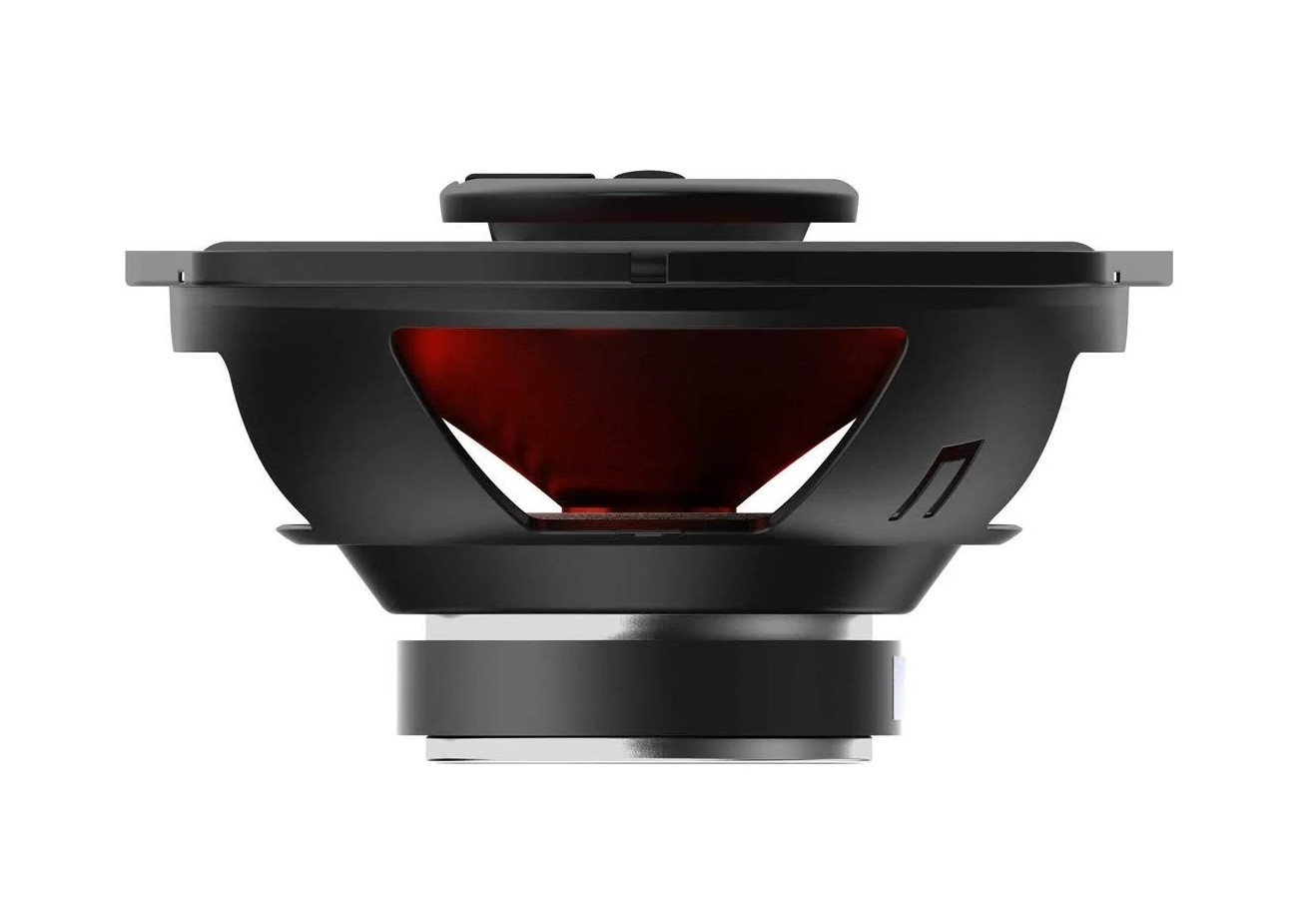

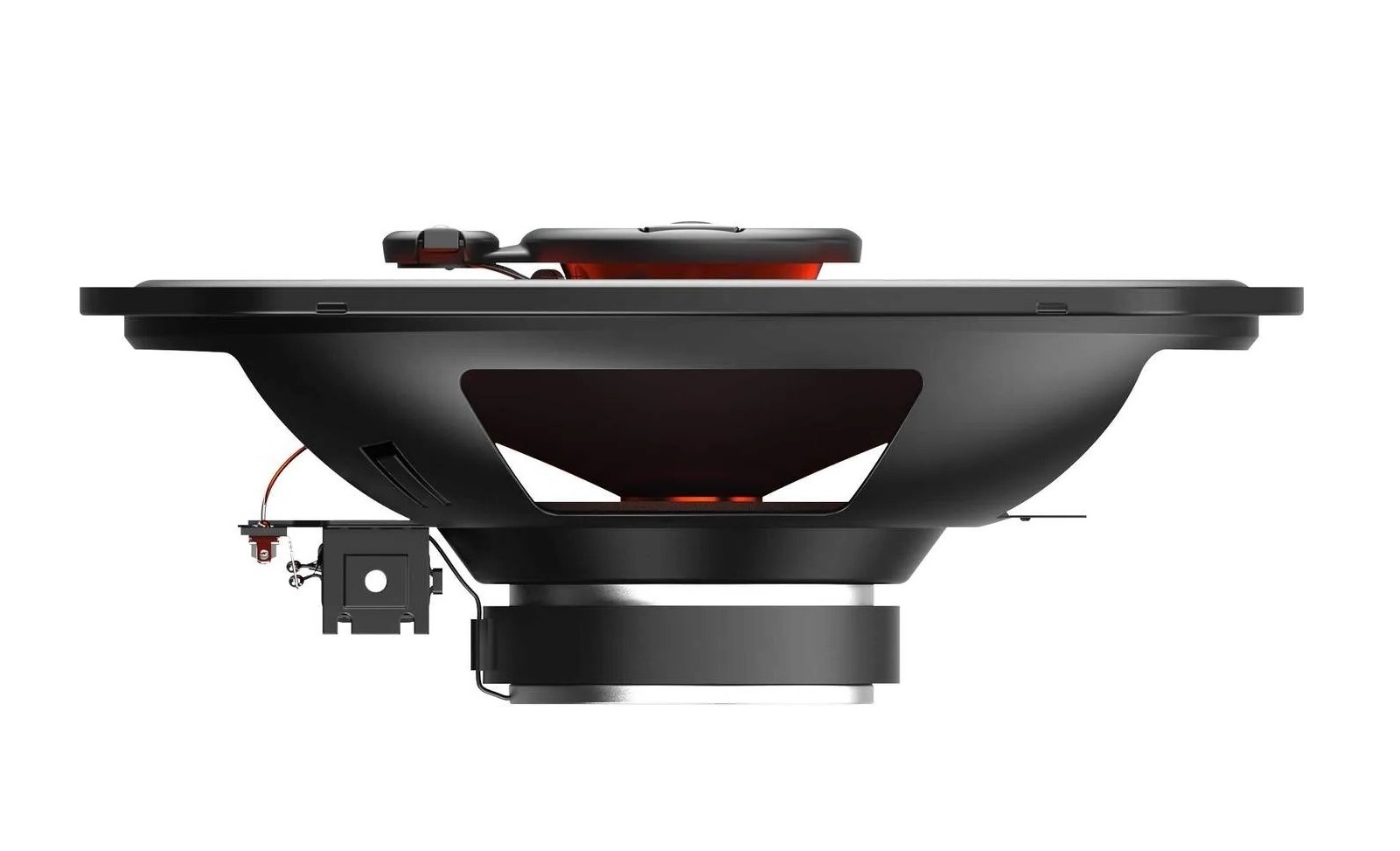

Design engineered for easy installation without vehicle modifications.

Catalog number	STAGE1 GEN2 962M
Brand	JBL
Links	Official web presentation
Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.	Coaxial 3-way
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged!	70 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged!	560 W
Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.	91 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.	4 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	55 - 20000 Hz
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm.	6 x 9"
Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems.	Polypropylene
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter.	PEI (Polyetherimide)

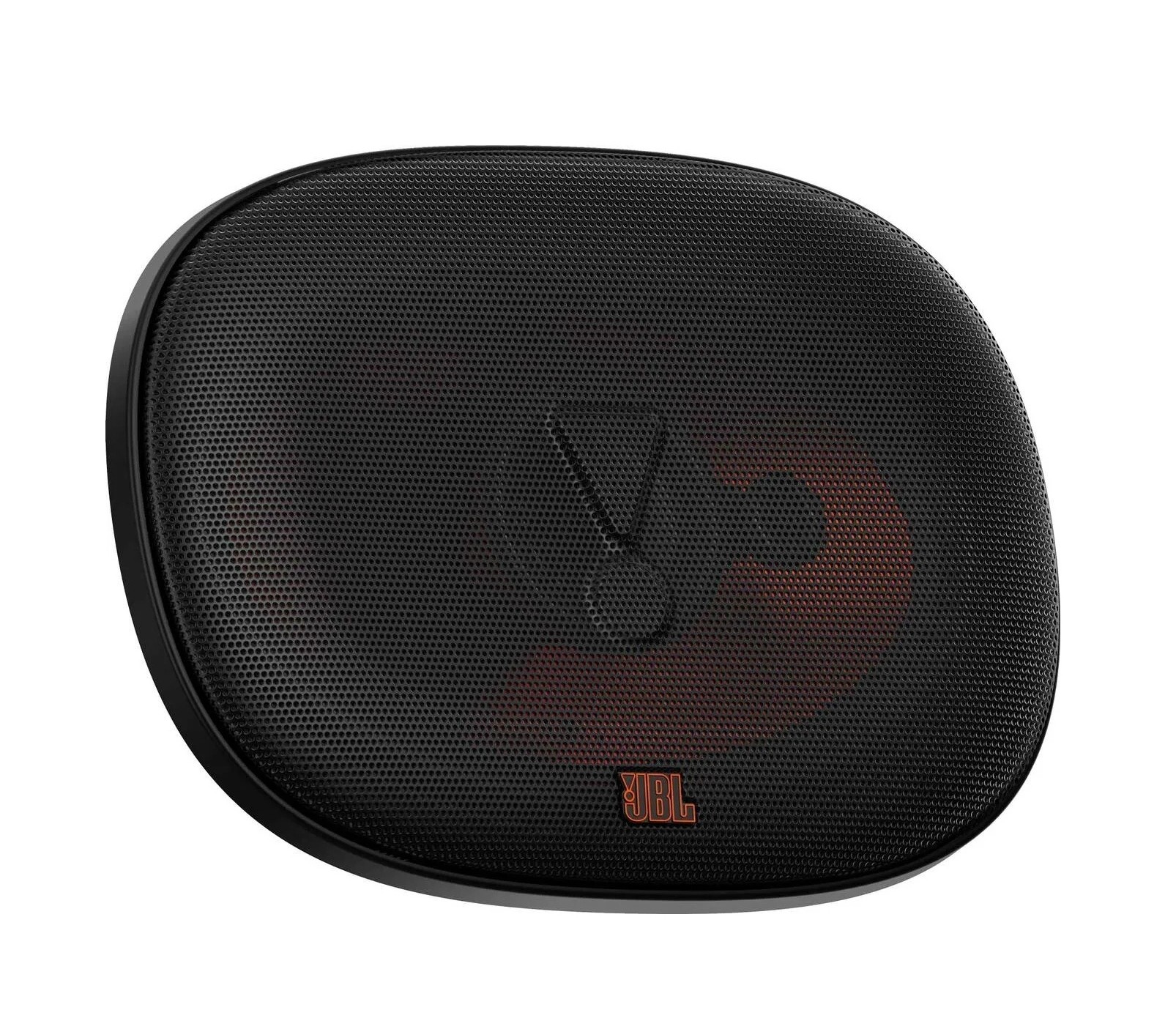

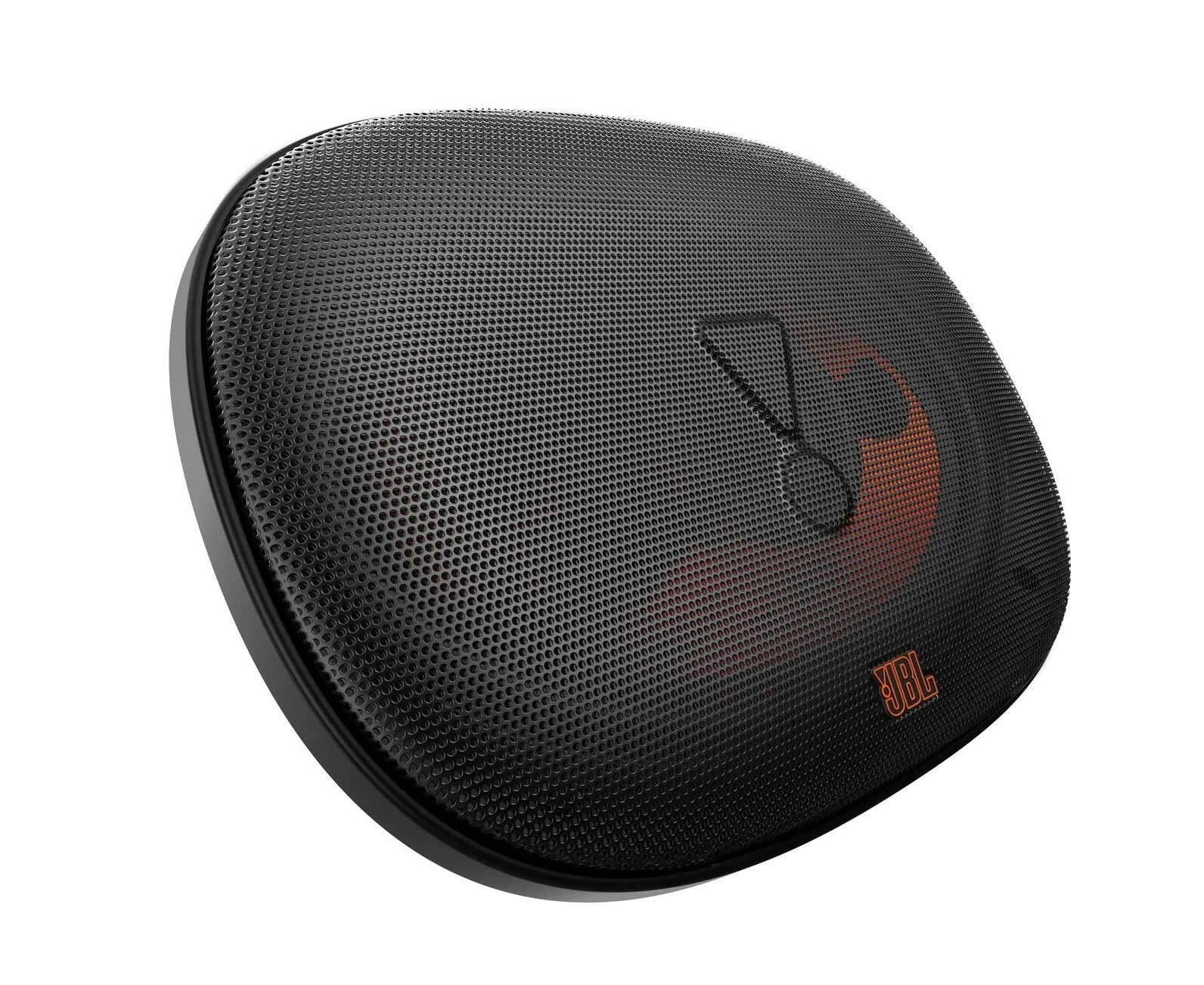

Cover grids included in the packageOriginal cover grilles in speaker packaging.	Yes
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover.	Pair
