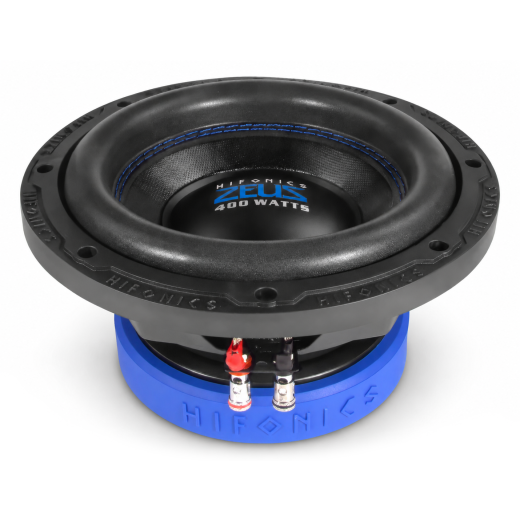

Hifonics ZXE8S4 subwoofer

8" subwoofer, 250 W RMS, 87 dB (2.83V/1m), 4 Ω, enclosure from 10 l
More about the product
We will help you with your purchase
  • You can return the goods to us within 14 days
Hifonics ZXE8S4 subwoofer
New

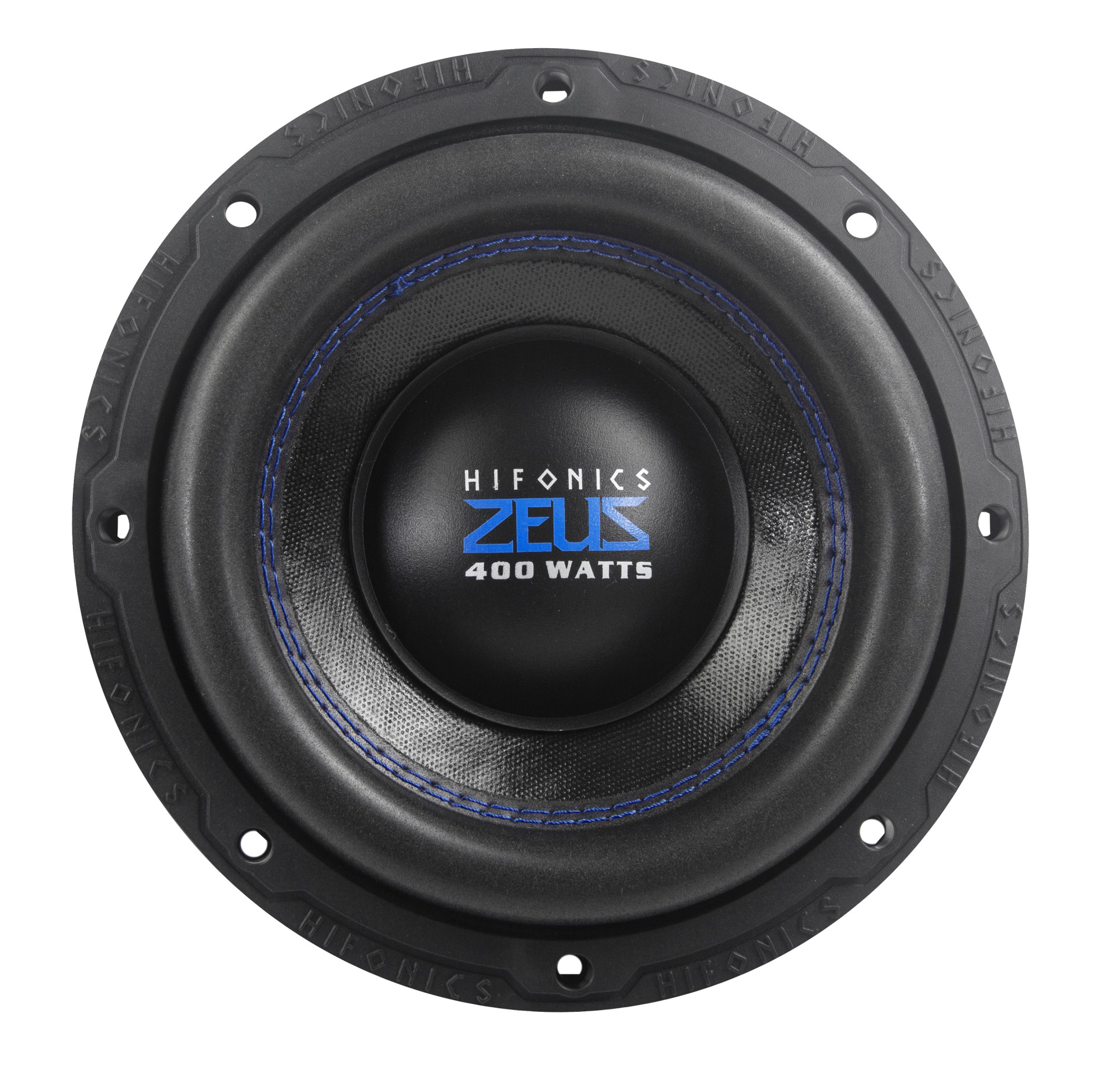

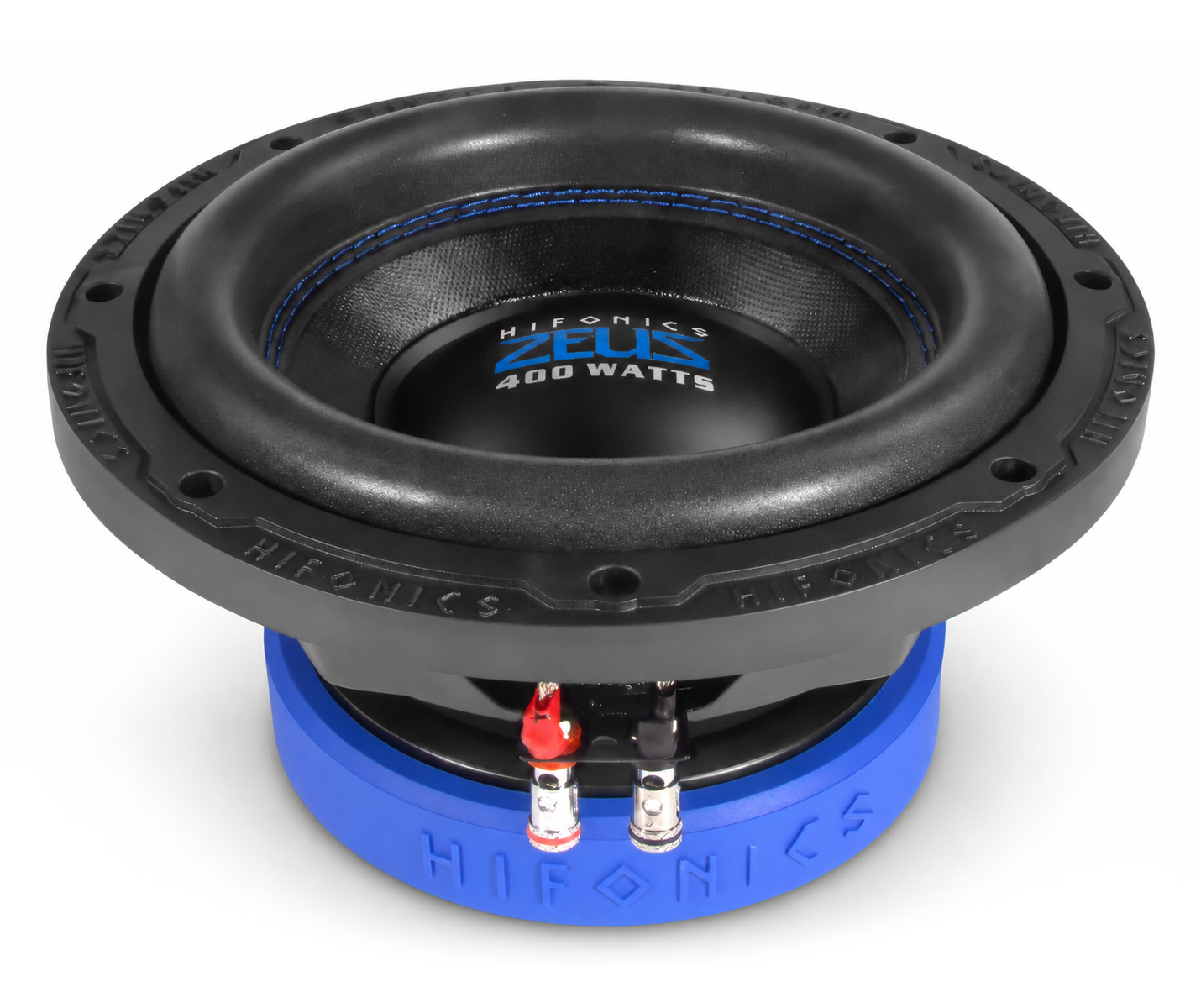

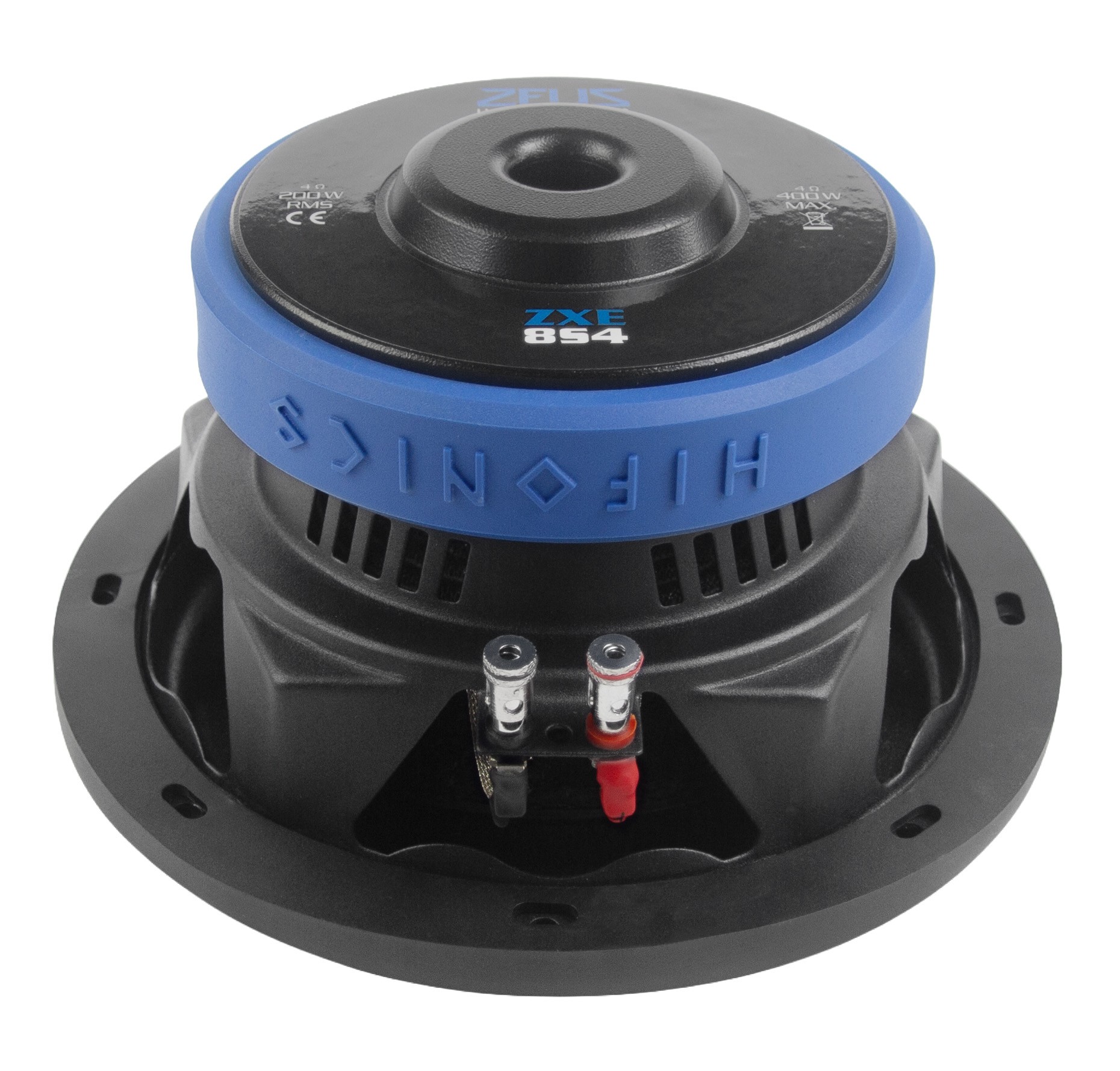

Hifonics ZXE8S4 Subwoofer

The Hifonics ZEUS EVOLUTION ZXE8S4 is a compact 20 cm subwoofer designed for installations where a combination of small dimensions, quality sound and good dynamics is important. The construction is based on the ZEUS EVOLUTION series and relies on robust mechanical design, quality materials and universal use in sealed as well as bass-reflex enclosures.

The cone is made of hand-finished unpressed paper, a material prized for a natural and musical bass character. The surround is double-stitched to the cone, which increases mechanical durability at higher excursions. The drive is provided by a strong Y35 magnet weighing approximately 1.13 kg and a 50 mm voice coil on an aluminum former. The subwoofer has a robust steel basket and a design intended for reliable operation even under higher loads.

A key advantage of the ZXE8S4 is its versatility regarding enclosure type. The manufacturer recommends a compact sealed enclosure of 10 to 20 l, or alternatively a bass-reflex enclosure of 18 l. Thanks to this, the subwoofer can be easily used even in smaller trunk spaces where preserving usable volume is a priority. The 4-ohm impedance also makes it easy to pair with a wide range of monoblocks and multi-channel amplifiers. The design follows the typical Hifonics ZEUS style. The blue magnet cover, blue stitching on the cone and prominent logo give the subwoofer a distinctive look that integrates well into visible installations.

Main features

  • 20 cm subwoofer from the Hifonics ZEUS EVOLUTION series.
  • Single 4 Ω voice coil for easy connection to common amplifiers.
  • Hand-finished unpressed paper cone for a natural and musical sound.
  • Double-stitched surround for increased mechanical durability.
  • Powerful Y35 magnet drive weighing approximately 1.13 kg.
  • 50 mm voice coil on an aluminum former.
  • Robust steel basket.
  • Design suitable for sealed as well as bass-reflex enclosures.
  • Recommended sealed enclosure 10 to 20 l.
  • Recommended bass-reflex enclosure 18 l.
  • Compact dimensions suitable for space-limited installations.
  • Typical Hifonics ZEUS design with blue design elements.

About the brand

Hifonics is one of the world legends in car audio. Since its inception in the 1980s it has defined standards in automotive sound and is a strong player in the segments of amplifiers, speakers and subwoofers. The brand is known for its uncompromising philosophy – combining top performance with precise workmanship and unmistakable design. Hifonics products appeal to a wide range of customers, from demanding audiophiles to enthusiasts who want powerful bass and maximum dynamics in their vehicle. Hifonics amplifiers are renowned for high stability, clean sound and enormous power potential. Speakers and subwoofers also stand out for precise craftsmanship and long life even under extreme load. Hifonics continuously innovates its products. Modern technologies such as hybrid puffer capacitors, extremely stiff carbon cones, MICA composite cones or advanced cooling push the boundaries of sound even further. Alongside top amplifiers you’ll also find practical accessories in the portfolio from wired bass remotes to installation accessories and decorative protective grilles. If you’re looking for a proven brand that combines a legendary name with modern technologies and top sound, Hifonics is the right choice for your car. Treat yourself to superior performance you can feel – with Hifonics you’ll always be a step ahead!
Catalog numberZXE8S4
BrandHifonics
LinksOfficial web presentation
Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers. 200 mm (8\")
RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer. 200 W
Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur, or to burn out the voice coil of the subwoofer. 400 W
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center!

Example:
A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm.
4 Ω
Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency.

The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter.

A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with 91 dB sensitivity needs only 150 Watts to reach the same efficiency.
87 dB
Sensitivity (SPL 1W/1m)Subwoofer sensitivity or efficiency.

The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter.

A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 watts to produce a certain volume, then a 91 dB subwoofer needs only 150 watts to reach the same efficiency.
84 dB
Frequency rangeThe ability of the subwoofer to play a signal from the lowest frequency to the highest, or the ability of a subwoofer to faithfully reproduce sound in a specific frequency band. Subwoofers ideally play from 20 - 150 Hz.

Professionally:
In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph.

Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even indicate this maximum tolerance of sound pressure in decibels in their catalogs for tactical reasons. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB.

The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.
30 – 300 Hz
Fs - resonant frequencyFs - is the lower resonant frequency. This parameter is the de facto free air resonant frequency of the subwoofer. Simply put, it is the point at which the weight of the subwoofer's moving parts equals the force of the subwoofer's suspension while it is in motion. If you've ever seen a piece of string start to hum uncontrollably in the wind, you've seen the effect of reaching a resonant frequency.

The weight of the moving parts and the stiffness of the suspension (surround and spider) are key elements that affect the resonant frequency. As a general rule, a lower Fs indicates a subwoofer that would be better at reproducing low frequencies than a subwoofer with a higher Fs. However, this is not always the case, as other important parameters of the subwoofer also enter the resulting sound.
46 Hz
Subwoofer voice coil diameterThe larger the diameter of the voice coil, the more load capacity the subwoofer has, in layman's terms. 50 mm
Subwoofer diaphragm materialThe specific material from which the subwoofer membrane is made. Paper
Basket materialSteel
Xmax + -Xmax - the maximum deflection of the subwoofer diaphragm in one direction – it is not a sum, or an abbreviation for the maximum linear deflection. The subwoofer output becomes non-linear as the voice coil begins to leave the magnetic gap. 3.5 mm
Subwoofer mounting depthThe mounting depth of the subwoofer is measured from the bottom edge of the magnet to the bottom edge of the subwoofer's metal or cast basket. 98 mm
Recommended enclosure volumeThe closed enclosure is characterized by a simple construction. Closed enclosures are usually smaller than bass-reflex enclosures, and a special damping fleece is used for their damping.

A closed baffle has the advantage of preventing an acoustic short between the front and back radiation of the subwoofer diaphragm. The disadvantage is that the closed enclosure raises the natural resonance frequency of the used subwoofer and thereby also increases the lower limit frequency. This is because the back side of the diaphragm is forced to compress and dilute the air inside the enclosure when the subwoofer is radiating in a closed enclosure. This adds to the inherent stiffness of the subwoofer's oscillation system the stiffness of the air in the closed enclosure. This causes an increase in the stiffness of the oscillating system and thus an increase in the resonant frequency of the entire system: subwoofer -> loudspeaker.

The increase in resonant frequency for a given subwoofer is greater, the smaller the volume of air in the closed enclosure. The relatively small volume of air in the closed enclosure acts on the subwoofer as an acoustic spring when radiating the back side of the membrane into the enclosed enclosure.

USE: Mainly for quality bass listening in the entire band with an emphasis on detail and accurate reproduction in the lower band.

Pros and cons:
+ pure reproduction
+ small closets
+ easier tuning
- low level of efficiency in deep bass
- loudness only at the cost of enormous deflection of the membrane
- a significant acoustic pressure cannot be expected
10 – 20 L
Recommended bass reflex speaker volumeA bass reflex enclosure is designed in the same way as a closed enclosure, but it also has a so-called bass reflex mouthpiece, or "bass reflex" or slot. Needle foam is used to dampen bass reflex enclosures.

USE:
The ideal use is in cases where the listener wants to achieve a high volume and a good sound pressure level. It is the best compromise between sound quality and performance and is also the most commonly used

Pros and cons:
+ good efficiency in deep bass
+ a small deflection of the membrane is enough for a large volume
- reproduction less accurate than with closed enclosures
18 L
