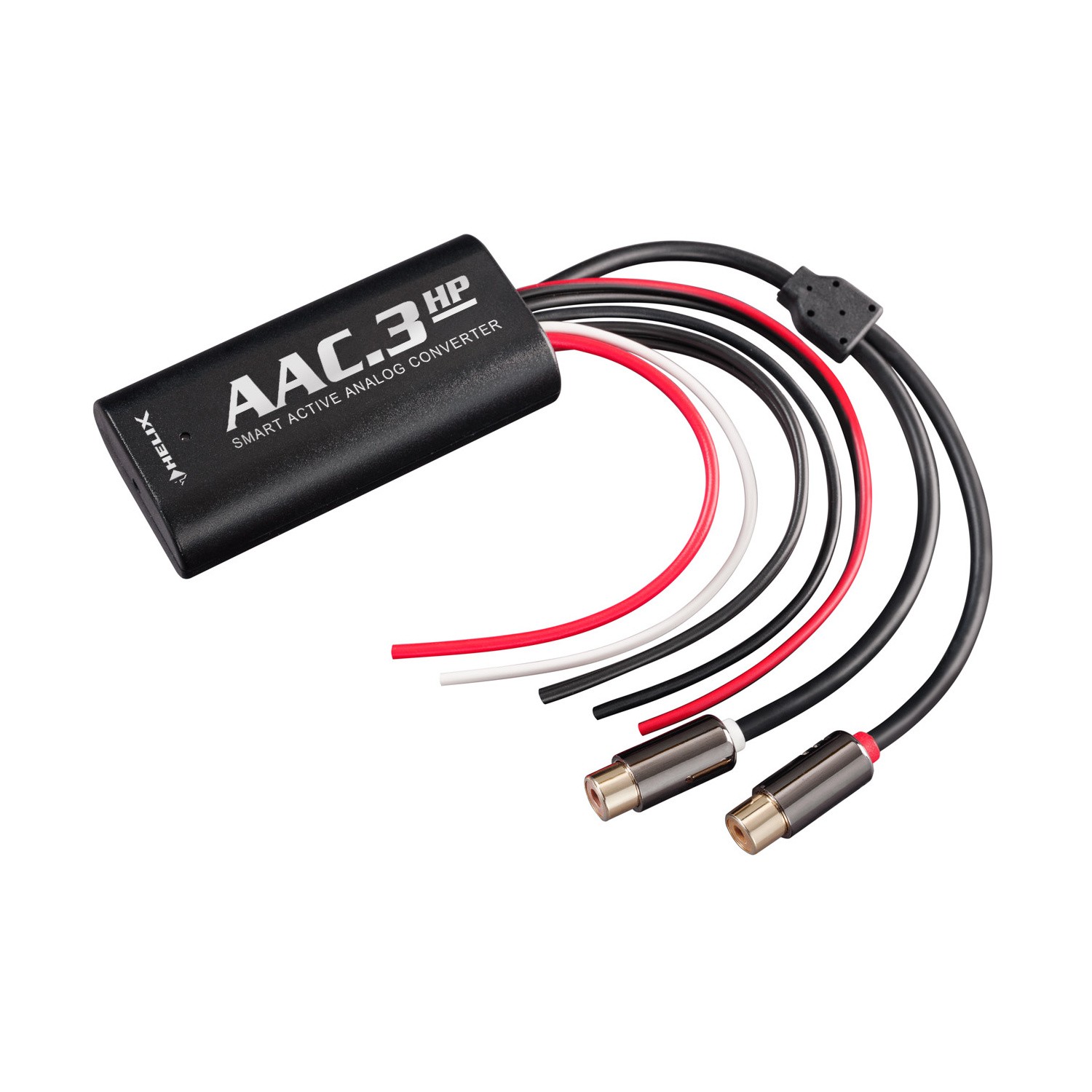

Helix AAC.3 HP

Active high/low converter Helix AAC.3 HP (for OEM amplifiers)

Integrating car hi‑fi components into existing OEM audio systems with an external amplifier is becoming increasingly challenging due to the lack of preamp outputs or the inclusion of speaker diagnostic functions. That’s where the new Helix AAC.3 comes in. Forget error messages or loss of functions (e.g. fader). The integrated ADEP.3P circuit smartly “bypasses” speaker diagnostics in factory head units. It also prevents distorted sound and increased THD that can occur with conventional converters. In addition, it does not unnecessarily load the head unit amplifier and can reduce its current draw by up to 70%.

Intelligent signal detection

The “Double Activation Circuit” generates a +12 V remote turn‑on signal to activate connected aftermarket power amplifiers in two different ways. It either detects the DC offset on the speaker outputs of the OE amplifier or uses an integrated, switchable signal detection with variable sensitivity. Additionally, the AAC.3 HP features Audiotec Fischer’s own “Power Save Mode,” which switches off the remote output if no music signal is present for more than 2 minutes. This is a real advantage, because many cars with “CAN” or similar bus architectures keep the audio system invisibly “alive” for up to 15 minutes after you have left the vehicle.

Ready for high resolution

The AAC.3 HP generates a high‑quality preamp signal from the speaker output of the factory amplifier, enabling easy connection of additional power amplifiers. Its wide frequency response of 18 Hz to 80,000 Hz ensures excellent sound quality and makes this high‑resolution converter ready to reproduce high‑resolution audio. For OEM audio systems without a factory‑installed amplifier we recommend using the AAC.3. This is specifically developed for direct connection to the speaker outputs of the factory radio.

Key features

• Allows easy connection of additional amplifiers to your factory audio system.
• Suitable for all head units – including those with factory‑installed amplifiers.
• “ADEP.3P circuit” for bypassing radio diagnostic systems.
• Microcontroller‑controlled monitoring of the music signal and generation of the remote signal.
• “Power Save Mode” significantly reduces the power consumption of connected amplifiers when no input signal is present (after 2 minutes).
• “Double Activation Circuit” – generates a +12 V remote signal in two different ways to switch on connected amplifiers.
• Excellent sound quality thanks to a very wide frequency response (18 Hz – 80 kHz).
• High‑quality, sealed and gold‑plated RCA / Cinch connectors for lossless signal transmission.

About the brand

HELIX by Audiotec Fischer is a German high‑end car audio brand that has been among the world leaders in amplifiers and DSP processors for over 35 years. HELIX is considered a leader in digital signal processors. It offers some of the most advanced and highest‑quality DSP processors in the world, allowing an experienced technician to tune any audio system to perfection and deliver an authentic hi‑fi experience in the car. The combination of precise German engineering, state‑of‑the‑art technologies and innovative design delivers clean, dynamic and detailed sound that has won the favor of audiophiles worldwide. HELIX products are characterized by high efficiency, reliability and perfect integration into modern vehicles. Products of this brand are a perfect choice for demanding users who require the best possible sound without compromise. HELIX, together with the brands Brax and Match, is part of the German manufacturer Audiotec Fischer.
