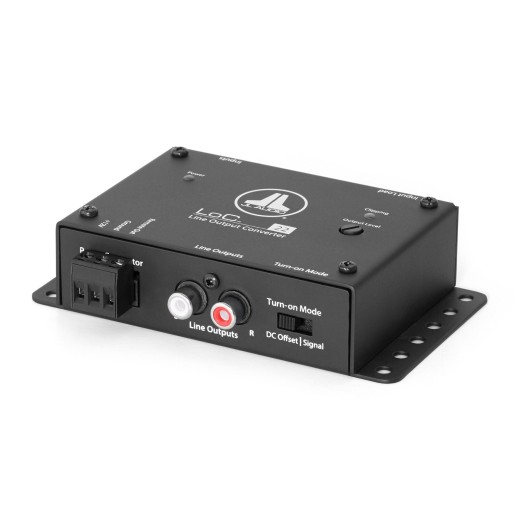

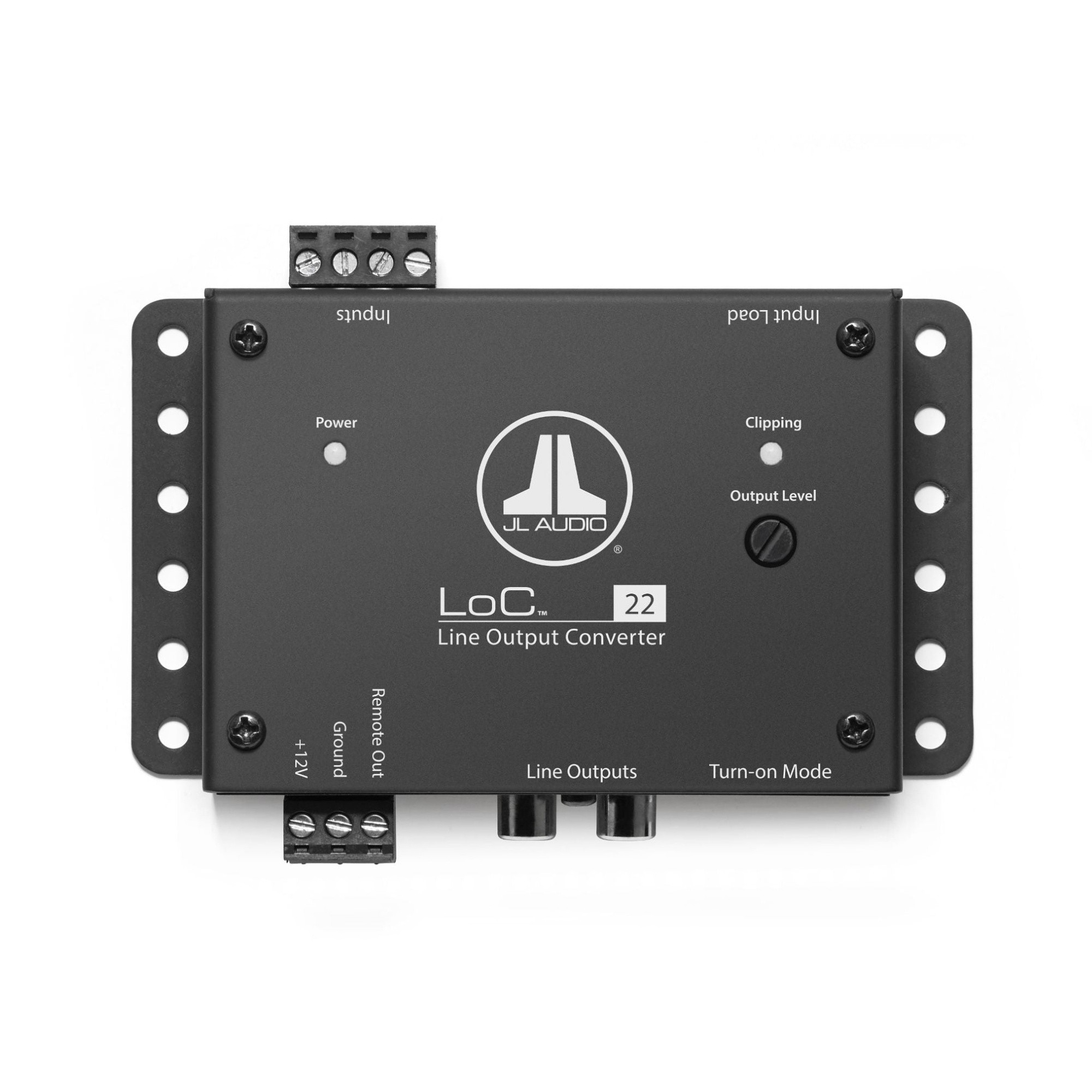

JL Audio LoC-22 High/Low Converter
Fully active two-channel converter from speaker-level to line-level outputs with automatic turn-on. The LoC-22, designed by JL Audio Sr. Engineer Bruce MacMillan, is an active two-channel processor for applications requiring attenuation of factory audio signals for use with aftermarket amplifiers and signal processors. The LoC-22 uses a fully regulated switched MOSFET power supply and a fully analog circuit design to provide flat frequency response at any signal level (3 Hz – 32 kHz, +0, -1 dB) without altering bass response at high levels, as is common with passive line-output converters. The LoC-22 is designed to suppress induced cable noise and features a differential balanced input architecture, making it compatible with virtually any analog audio signal. The LoC-22 can accept up to 40 V RMS per channel (equivalent to 400 W @ 4 ohms) and easily handles the most powerful factory amp outputs. The integrated dual-range input load switch allows compatibility with most factory amplifiers that use impedance sensing to attenuate channels. The LoC-22 is equipped with a pair of analog RCA line output jacks (up to 8V RMS) for feeding audio signals into your aftermarket system. The analog outputs are compatible with most types of aftermarket signal processors or amplifiers. Output level adjustment is super simple thanks to a specially calibrated integrated clipping indicator that works with test tones or music. The LoC-22 offers two automatic turn-on methods (DC-Offset Sensing or Signal Sensing) and provides a positive 12V turn-on output to activate aftermarket amplifiers or other downstream electronics.
Main features of the JL Audio LoC-22 converter
- Fully active high/low converter.
- Handles powerful factory amplifier outputs, up to 40 volts per channel.
- Differential balanced input architecture provides noise suppression and compatibility with most analog outputs from source units and OEM amplifiers.

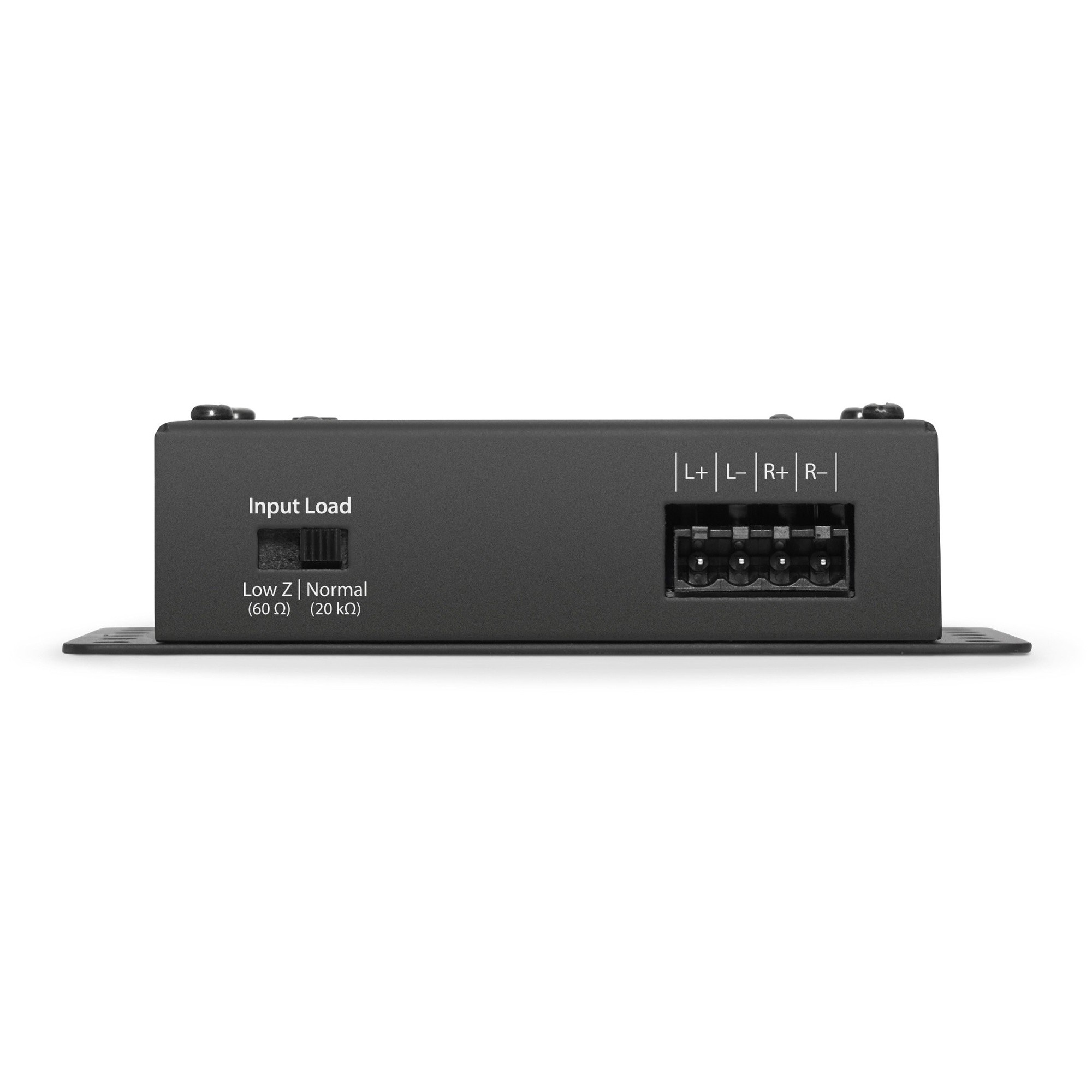

- Dual-range input load switch (20 kΩ/Normal, 60 Ω/Low Z, thermally protected) for maximum compatibility with OEM amplifiers.

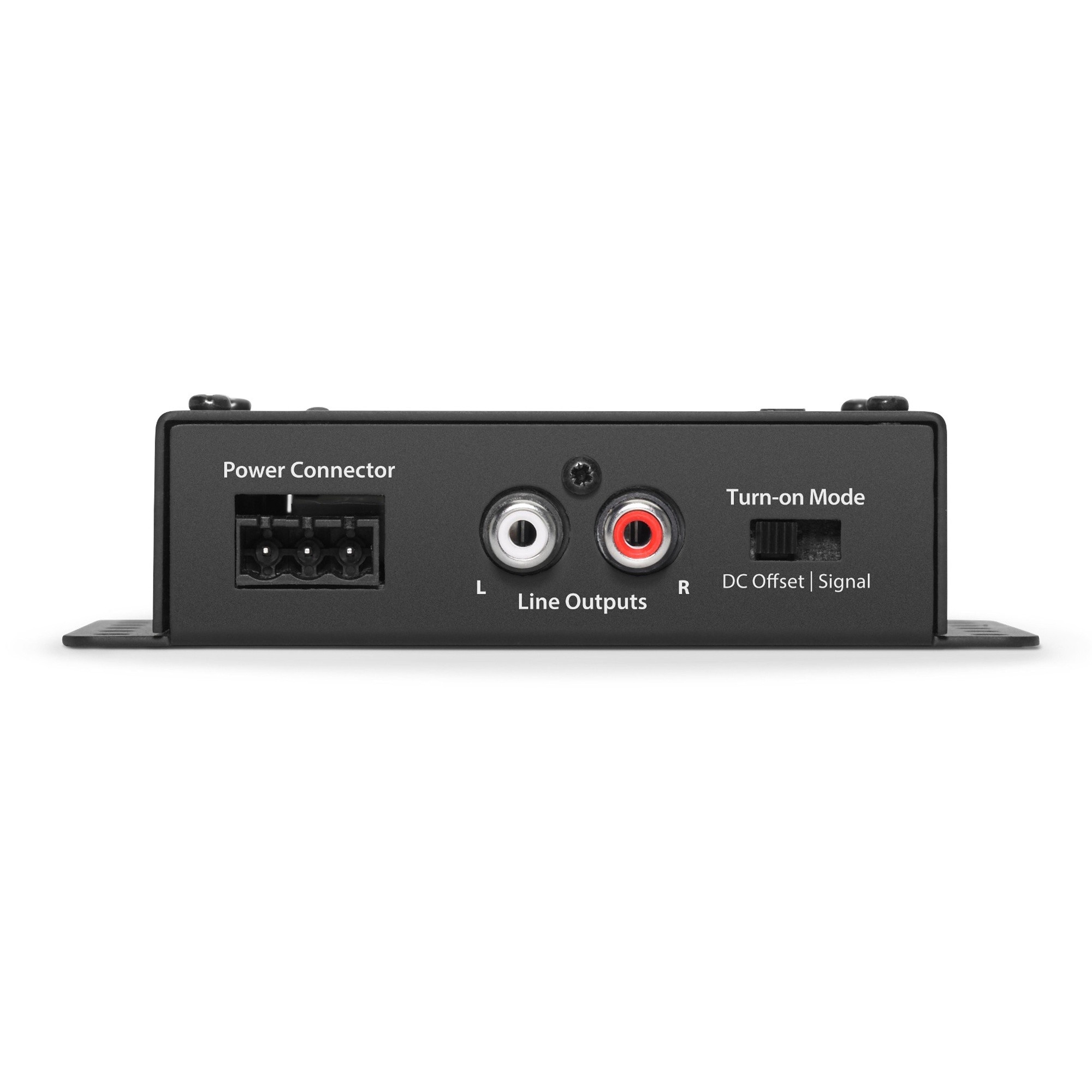

- A single stereo pair of crystal-clear RCA line output connectors (up to 8V RMS).
- Automatic turn-on via DC-Offset or Signal-Sensing.
- Dedicated 12V remote output for remote turn-on (maximum 100 mA) to activate signal processors or amplifiers.
- Integrated LED clipping indicator allows quick and easy output level adjustment.

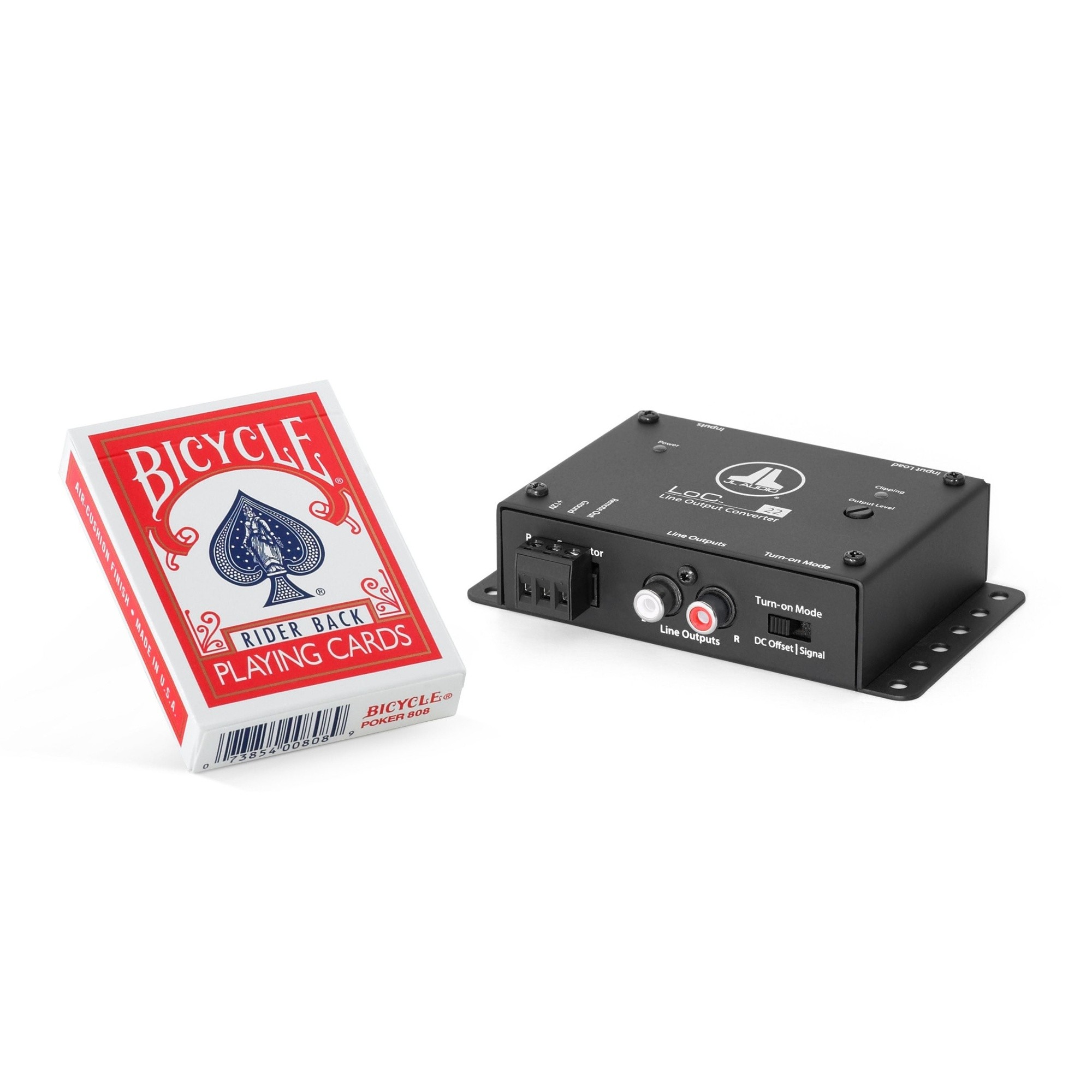

- Ultracompact chassis design fits in almost any installation location.
About JL Audio
JL Audio is an American manufacturer of consumer audio equipment specializing in home, car and marine audio. It is one of the main pioneers in car audio and is best known for its high-end subwoofers. The company was founded in 1975 and is therefore one of the oldest manufacturers in this field. Its original focus was home audio, but already in the late 1970s and early 1980s they began working in the car audio segment, whose popularity then surged. During its rich history JL Audio produced many unique and patented subwoofers that had almost no competition at the time. The same applies today. The manufacturer's subwoofers impress with their power and top-quality sound, unique patents and excellent workmanship. Especially the top W6 and W7 series have long been among the most interesting products on today's market. Also impressive are the revolutionary flat subwoofers of the TW1 and TW3 series and the perfectly tuned subwoofer enclosures. You can expect the same quality from their amplifiers, and they also offer top products designed for integration with factory audio systems. With JL Audio products you can't go wrong and you can always rely on their high quality and uniqueness.
| Catalog number | LOC-22 |
