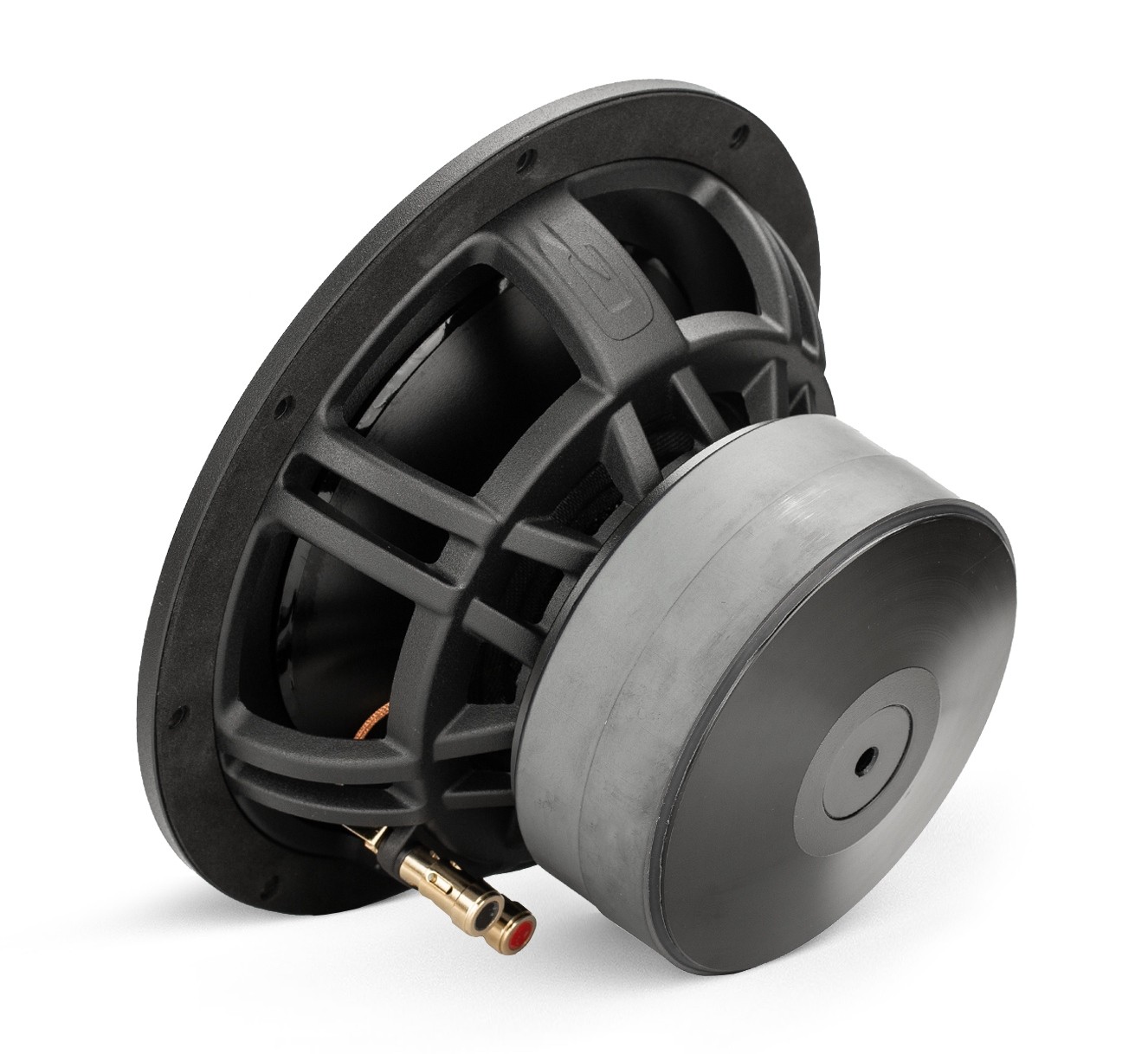

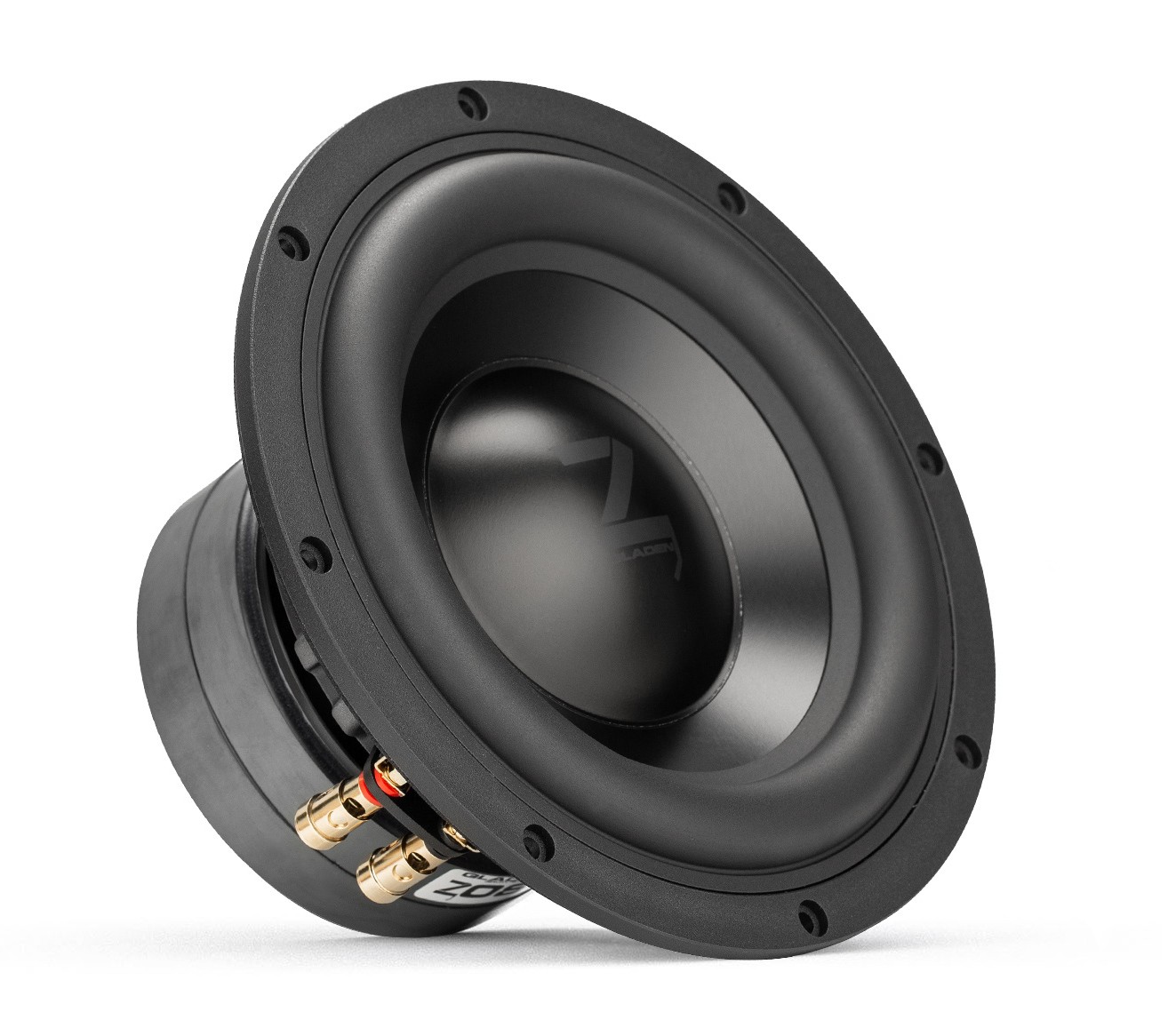

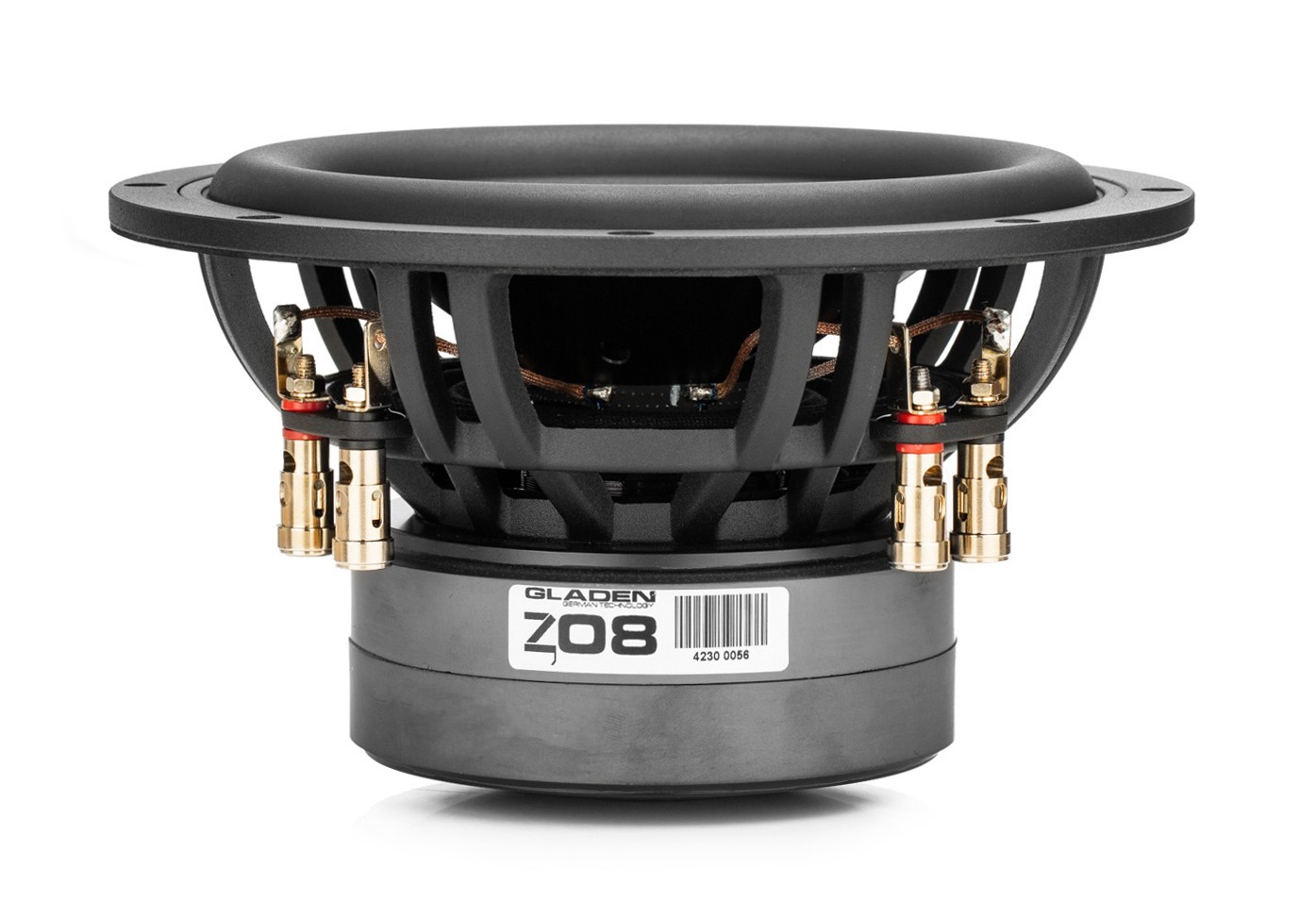

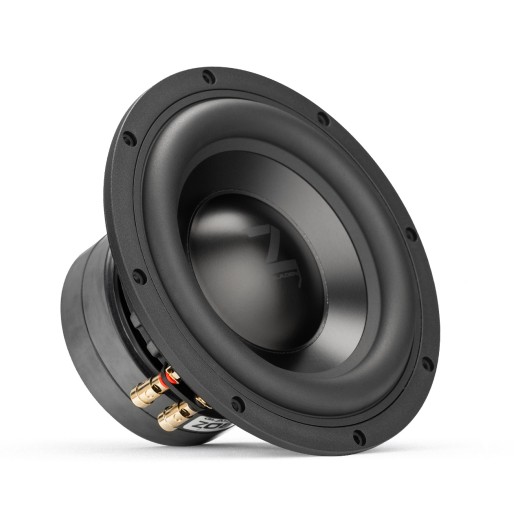

Gladen Zeta 08 subwoofer

Name: Gladen Zeta 08 subwoofer
Brand: Gladen
Price: 649.00 EUR
Availability: InStock

Be the first to rate the product

Add to FavoritesRemove from favourites

subwoofer, Ø 8" (200 mm), 200 W RMS, 89 dB (2.83V/1m), 2 + 2 Ω
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

New

Description and parameters
Evaluation0
Category

Gladen Zeta 08 subwoofer

The Zeta line represents the pinnacle of Gladen's technical approach to car audio, emphasizing maximum accuracy, control and reproduction fidelity. Zeta subwoofers were developed as a natural extension of this concept toward the lowest frequencies. They are not aimed at short-term maximum acoustic pressure, but at deep, accurate and stable bass that integrates smoothly with quality front systems and supports the overall sound without unnecessary dominance. Low distortion, high control and musicality are the fundamental pillars of the entire Zeta subwoofer range.

Long-throw motor and 2" voice coil

The ZETA 08 subwoofer uses a powerful long-throw motor system designed for stable and precise operation even at larger cone excursions. The aerodynamically optimized 2" voice coil is wound on a robust fiberglass former that minimizes mechanical losses and increases overall motion efficiency. This design allows very accurate control of the cone and maintains linear behavior across the operating range. Thanks to the large linear excursion the subwoofer preserves control, quick response and low distortion even at higher volumes and during dynamically demanding passages.

Aluminum cone

A stiff aluminum cone was chosen to maximize piston-like motion and mechanical stability when reproducing deep frequencies. Due to its stiffness and low deformation it contributes to accurate and readable reproduction of the bass band even under higher loads. The stable aluminum pressure basket provides a solid foundation for the driver and is designed with effective ventilation. This reduces air compression, improves cooling and contributes to consistent behavior of the subwoofer during long-term use. The result is high mechanical durability and long life without loss of sonic properties.

Magnetic system

The subwoofer's magnetic system is equipped with integrated magnetic field stabilization aimed at maintaining a constant magnetic flux even at higher cone excursions. This solution significantly reduces nonlinear distortion that commonly occurs under high motor load. Thanks to the stable magnetic field the cone movement is more precise, better controlled and more readable even at the lowest frequencies. The result is bass with higher definition, better dynamics and a more natural character without undesired artifacts.

Wiring flexibility and compact installation

The Zeta 08 is equipped with dual 2 Ohm voice coils, providing high flexibility in wiring design and allowing optimal matching to power amplifiers. This makes it easy to combine the subwoofer with powerful amplifiers in various configurations. The driver's optimized parameters allow use in both sealed and ported enclosures, while the subwoofer maintains control even in smaller volumes. This makes it ideal for demanding installations with limited space where the priority is sound quality rather than just bass quantity.

Key features:

Subwoofer developed as part of the hi-end Zeta series.
Focus on precise, controlled and musical bass.
Long-throw motor with high linear excursion.
Aerodynamically optimized 2" voice coil on a fiberglass former.
Stiff aluminum cone with clean piston motion.
Stabilized magnetic field to reduce nonlinear distortion.
Massive aluminum pressure basket with effective ventilation.
Conex spider for stable cone guidance.
Dual 2 Ohm voice coils for flexible wiring.
Recommended enclosure volume: from 12 l (sealed).

About the brand

Gladen is a renowned German brand specializing in the development and manufacture of car audio components, which over more than two decades has secured a top position in the industry. The brand was founded in Germany and key product development still takes place there, with emphasis on technical precision, build quality and long-term reliability. Gladen is known for its meticulous approach to sound tuning, low distortion and the ability to offer solutions from affordable systems to true high-end. The product range includes speakers, subwoofers, amplifiers and a wide assortment of installation accessories and damping materials. Gladen products have in the past received prestigious EISA awards, confirming the technical level and sound quality of the brand. Gladen is consistently one of the most popular brands on the German market and holds a strong position among demanding customers across Europe.

Catalog number	ZETA 08
Brand	Gladen
Links	Official web presentation
RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer.	200 W
Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur, or to burn out the voice coil of the subwoofer.	500 W
Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with 91 dB sensitivity needs only 150 Watts to reach the same efficiency.	89.06 dB
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm.	2 + 2 Ω
Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers.	200 mm (8\")
Subwoofer mounting depthThe mounting depth of the subwoofer is measured from the bottom edge of the magnet to the bottom edge of the subwoofer's metal or cast basket.	118 mm
Recommended enclosure volumeThe closed enclosure is characterized by a simple construction. Closed enclosures are usually smaller than bass-reflex enclosures, and a special damping fleece is used for their damping. A closed baffle has the advantage of preventing an acoustic short between the front and back radiation of the subwoofer diaphragm. The disadvantage is that the closed enclosure raises the natural resonance frequency of the used subwoofer and thereby also increases the lower limit frequency. This is because the back side of the diaphragm is forced to compress and dilute the air inside the enclosure when the subwoofer is radiating in a closed enclosure. This adds to the inherent stiffness of the subwoofer's oscillation system the stiffness of the air in the closed enclosure. This causes an increase in the stiffness of the oscillating system and thus an increase in the resonant frequency of the entire system: subwoofer -> loudspeaker. The increase in resonant frequency for a given subwoofer is greater, the smaller the volume of air in the closed enclosure. The relatively small volume of air in the closed enclosure acts on the subwoofer as an acoustic spring when radiating the back side of the membrane into the enclosed enclosure. USE: Mainly for quality bass listening in the entire band with an emphasis on detail and accurate reproduction in the lower band. Pros and cons: + pure reproduction + small closets + easier tuning - low level of efficiency in deep bass - loudness only at the cost of enormous deflection of the membrane - a significant acoustic pressure cannot be expected	12 l
Recommended bass reflex speaker volumeA bass reflex enclosure is designed in the same way as a closed enclosure, but it also has a so-called bass reflex mouthpiece, or "bass reflex" or slot. Needle foam is used to dampen bass reflex enclosures. USE: The ideal use is in cases where the listener wants to achieve a high volume and a good sound pressure level. It is the best compromise between sound quality and performance and is also the most commonly used Pros and cons: + good efficiency in deep bass + a small deflection of the membrane is enough for a large volume - reproduction less accurate than with closed enclosures	30 l
Fs - resonant frequencyFs - is the lower resonant frequency. This parameter is the de facto free air resonant frequency of the subwoofer. Simply put, it is the point at which the weight of the subwoofer's moving parts equals the force of the subwoofer's suspension while it is in motion. If you've ever seen a piece of string start to hum uncontrollably in the wind, you've seen the effect of reaching a resonant frequency. The weight of the moving parts and the stiffness of the suspension (surround and spider) are key elements that affect the resonant frequency. As a general rule, a lower Fs indicates a subwoofer that would be better at reproducing low frequencies than a subwoofer with a higher Fs. However, this is not always the case, as other important parameters of the subwoofer also enter the resulting sound.	21 Hz
Xmax + -Xmax - the maximum deflection of the subwoofer diaphragm in one direction – it is not a sum, or an abbreviation for the maximum linear deflection. The subwoofer output becomes non-linear as the voice coil begins to leave the magnetic gap.	11 mm
Subwoofer voice coil diameterThe larger the diameter of the voice coil, the more load capacity the subwoofer has, in layman's terms.	2\" (50 mm)
Subwoofer diaphragm materialThe specific material from which the subwoofer membrane is made.	Aluminum
