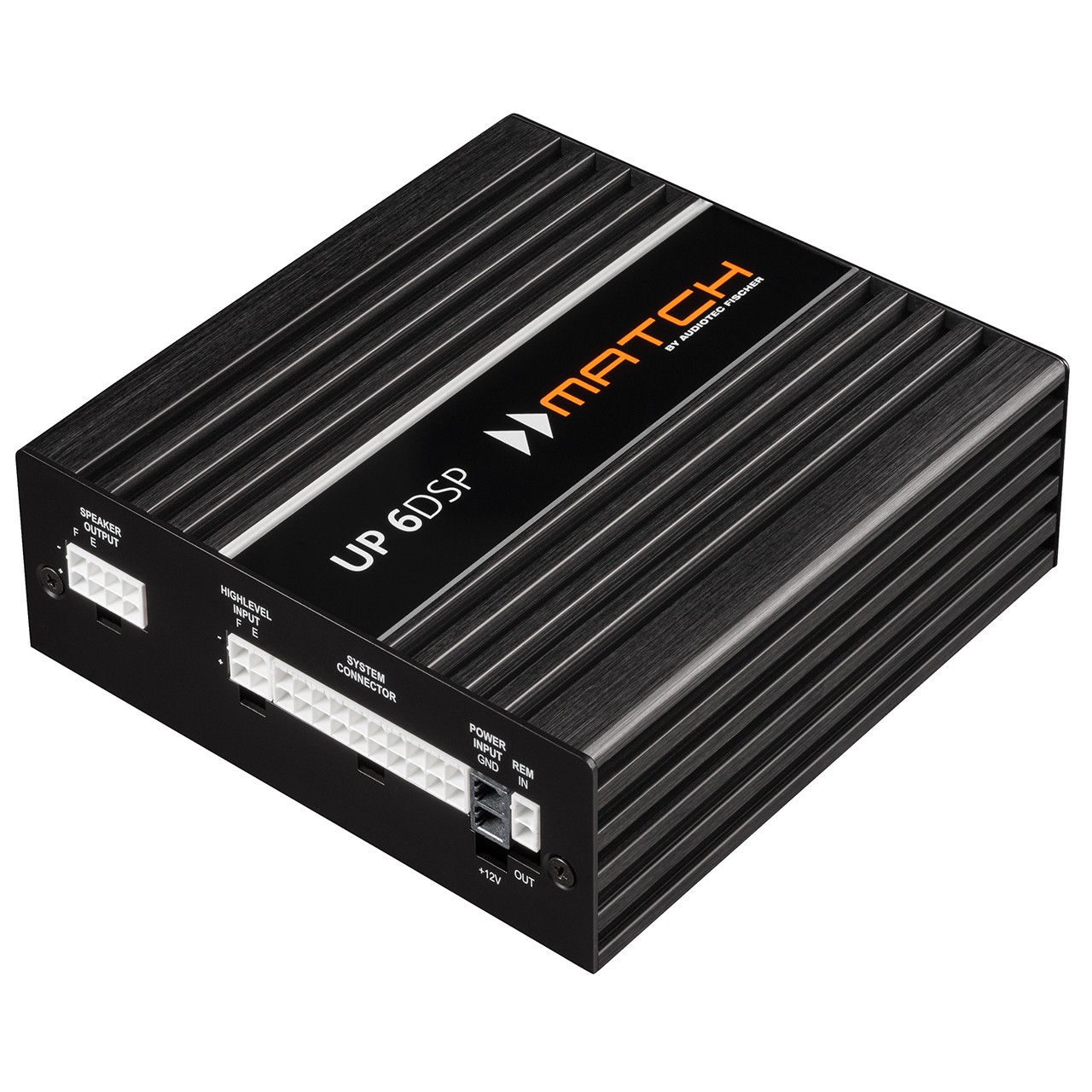

DSP amplifier Match UP 6DSP

Zesilovač s DSP Match UP 6DSP

The new UP 6DSP is a true all-rounder that not only delivers the power and dynamics for authentic hi‑fi sound, but also offers all necessary features for easy integration into a vehicle.

Perfektní upgrade pro standardní ozvučení

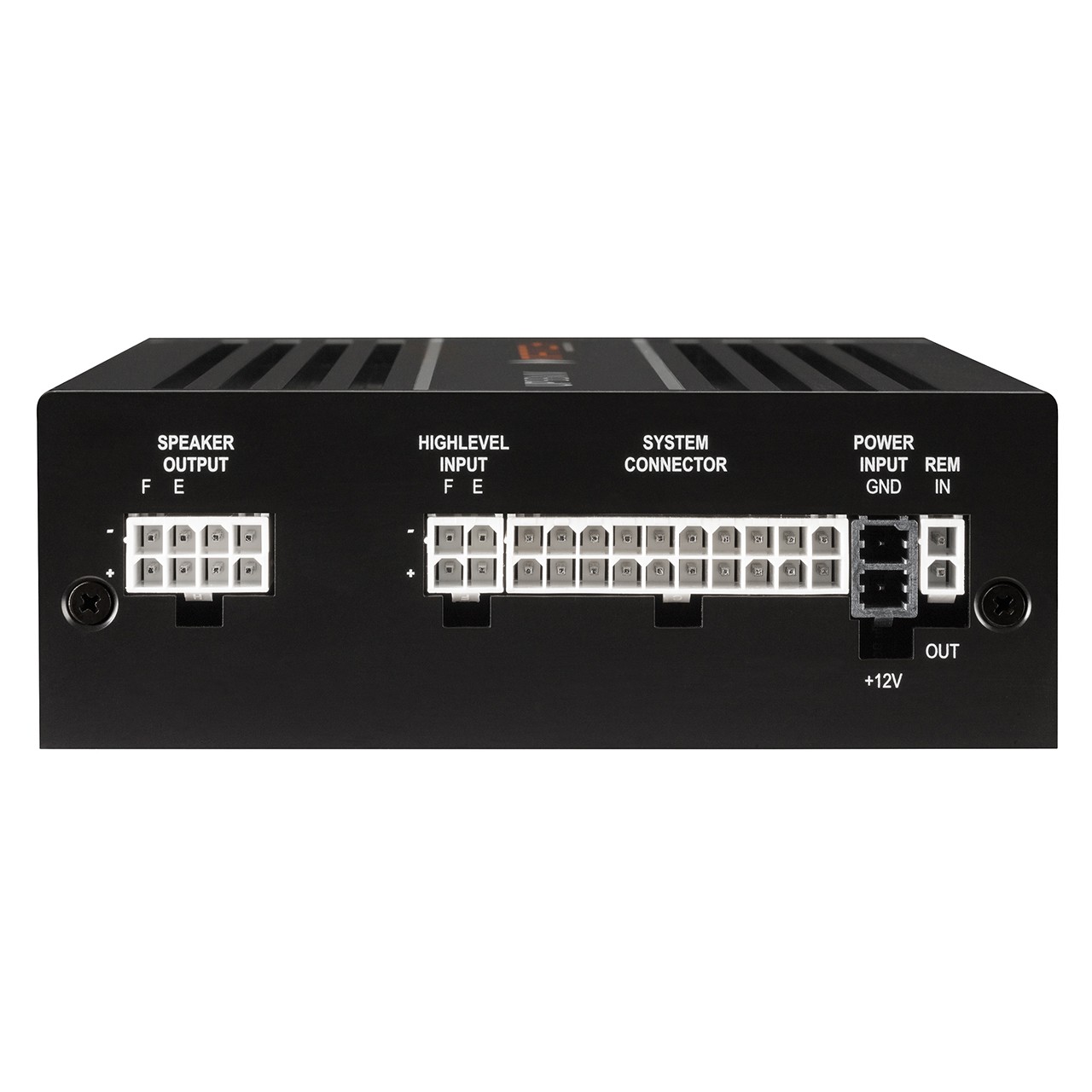

With six high-level inputs, an optical digital input and a slot for the MATCH expansion card, the UP 6DSP easily fits into existing factory systems. Thanks to the innovative ADEP.3 circuitry, six amplifier channels and an additional preamp output, the powerful 7‑channel DSP enables individual speaker configurations. The amplifier’s power can drive even larger subwoofers, as two of its output channels deliver an impressive 160 W at 2 Ohms—ideal for particularly demanding speakers.

Virtuální zpracování kanálů - moderní směrování signálu

Optimal adaptation to existing multichannel systems requires smart control and DSP channel configuration—therefore the UP 6DSP is equipped with Audiotec Fischer’s innovative Virtual Channel Processing. Especially when front, rear and center systems are split into multi‑way assemblies, conventional routing concepts quickly reach their limits. Multi‑level Virtual Channel Processing combined with the proven, user‑friendly DSP PC‑Tool makes it easy to map even very complex configurations and freely assign proprietary FX audio functions. With the same number of inputs and amplifier channels, the UP 6DSP is also an ideal solution for applications where 1:1 input-to-output routing (IOR) makes sense.

ACO - pokročilá 32bitová platforma CoProcessor

Of course, the UP 6DSP features its own 32‑bit ACO platform, which not only takes over control tasks at lightning speed but also handles a range of audio functions: impressive effects such as Augmented Bass Processing or RealCenter, as well as an input equalizer separated per channel including an Input Signal Analyzer (ISA) for easy analysis and compensation of input signals from factory radios that often already include factory sound settings.

Kompaktní design pro flexibilní montáž

The UP 6DSP impresses with a robust yet compact design that allows easy installation even in space‑restricted locations.

DSP PC-Tool 5 s TuneEQ - výkonné funkce pro ultimátní zvukový zážitek

The MATCH UP 6DSP can of course be easily configured using the professional and highly intuitive DSP PC‑Tool 5. The familiar and extensive adjustment options meet all expectations and ensure extremely precise tuning even for complex setups. The new proprietary TuneEQ function for automatic frequency response correction also saves a lot of time during sound optimization.

TuneEQ

TuneEQ is an exceptionally flexible and very easy‑to‑use feature for automatic frequency response correction. A single measurement on one or several channels using a suitable measurement microphone is enough, and TuneEQ then independently and precisely sets the equalizers according to the chosen reference curve. TuneEQ uses the full possibilities of the parametric equalizer—including center frequency, Q‑factor and gain settings. Because all complex calculations run in the background, TuneEQ saves a lot of time when optimizing the sound.

RealCenter

RealCenter is an algorithm developed by Audiotec Fischer that highlights musical information present in both the left and right front channels and creates a unique center signal from them. Unlike common methods that simply sum channels, the intensity of the center signal is dynamically controlled based on the stereo content of the left and right channels. It may sound complex, but the result is stunning: if only the left or right channel plays, the center channel remains silent. With conventional algorithms the center volume is only reduced by 6 dB (half the volume). Thanks to RealCenter you get a unique, wide soundstage for driver and passenger simultaneously. The drawbacks of classic center channels, such as a intrusive and narrow sound image, become a thing of the past.

Augmented Bass Processing

The proprietary Augmented Bass Processing from Audiotec Fischer consists of two revolutionary functions—Dynamic Bass Enhancement and SubXpander—which were developed specifically to dramatically improve subwoofer bass reproduction.

• Dynamic Bass Enhancement cleverly combines maximum bass depth with the highest sound pressure—regardless of music genre or tone control settings in the head unit. Based on the input signal, it raises the low‑frequency level while variably shifting the cutoff frequency of the subsonic filter. The result is noticeably stronger and deeper bass at low and medium volumes without risking subwoofer overload at higher volumes.

• For an even deeper and “darker” bass character, the SubXpander can be activated, which adds subharmonic tones to the fundamental tones in the 50–100 Hz range.

Hlavní vlastnosti

• Ultra‑efficient 6‑channel amplifier with 1 line output and 7‑channel DSP.
• Perfect for upgrading factory sound systems of up to 6 channels.
• Optional wiring harnesses for easy integration into existing multichannel factory systems.
• Extremely powerful 64‑bit fixed‑point audio DSP.
• ACO – advanced 32‑bit CoProcessor platform for extended functions.
• ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals.
• DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume‑dependent dynamic adjustment of highs and lows.
• Proprietary TuneEQ for automatic adjustment of input, virtual and output equalizers.
• SFX (DSP sound effects) – Augmented Bass Processing, RealCenter and more.
• Smart 6‑channel high‑level input with ADEP.3 circuitry.
• 1:1 IOR (Input‑to‑Output Routing) – equal number of high‑level inputs and amplifier outputs.
• VCP (Virtual Channel Processing) enables even more flexible configuration for very complex systems.
• Slot for MATCH expansion card (MEC) – for example Bluetooth HD audio streaming, Hi‑Res audio streaming via USB, etc.

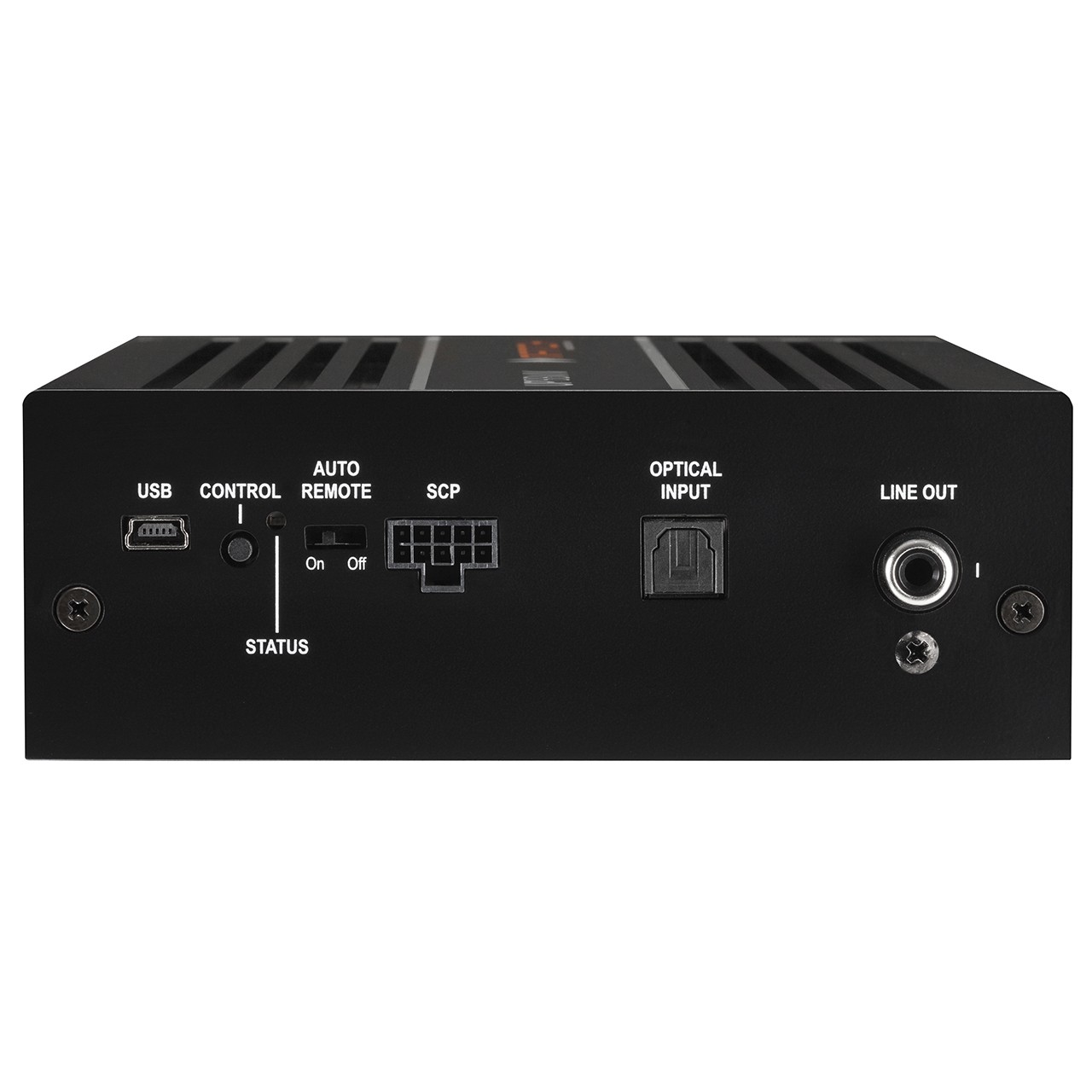

• Optical SPDIF input with sample rates from 12 to 96 kHz.
• Mono RCA output for connecting an external amplifier, e.g. for a subwoofer.
• SCP (Smart Control Port) for optional accessories such as DIRECTOR, CONDUCTOR and others.
• Automatic turn‑on (Auto Remote).
• Power supply supporting start‑stop and an extended input voltage range up to 18 V—ideal for modern electric vehicles.
• Compact design with low heat generation thanks to exceptional efficiency.
