Blaupunkt Kiel 260 DAB car radio
More about the product
- You can return the goods to us within 14 days
Blaupunkt Kiel 260 DAB
Blaupunkt Kiel 260 is a modern 1DIN car radio from the PRO-LINE series that combines Blaupunkt’s classic design with reliable radio reception and contemporary connectivity. It offers DAB+, FM/AM tuner, Bluetooth, USB-A, AUX input, handsfree calling, steering wheel control and a short mounting depth. This makes it a versatile solution for drivers who want a quality car radio without overly complex multimedia features. The radio offers a maximum output of 4 × 50 W, a sine output of 4 × 24 W at 14.4 V, a 2-channel RCA preamp output and a minimum speaker impedance of 4 Ω.
Kvalitní příjem FM, AM a DAB+
Blaupunkt Kiel 260 is equipped with a High Grade tuner for FM, AM and DAB+. It supports RDS, alternative frequencies AF, regional REG function, automatic station storage Travelstore and traffic announcements on the FM band. There are 15 FM presets, 10 AM and 15 DAB+ stations. The tuner can be switched between several regional settings for Europe, Asia, USA, South America, Thailand and Japan.
Bluetooth 5 for calls and music
Built-in Bluetooth 5 enables handsfree calling and wireless music streaming. The radio supports A2DP, AVRCP, HFP and SPP profiles and uses the SBC codec. It remembers the last 5 paired devices, with one mobile phone connected at a time. It also supports access to a phonebook of up to 1 000 numbers and automatic wake on incoming call.
USB-A and AUX input on the front panel
The front panel includes a USB-A connector and a 3.5 mm AUX input. The USB player supports MP3, WMA and WAV formats, FAT16, FAT32 and exFAT file systems and media over 128 GB. Folder and file browsing, shuffle, repeat and ID3 display including track title, artist and album are available. The USB connector can also be used to charge mobile devices.
X-Bass and sound presets
Blaupunkt Kiel 260 offers classic bass and treble adjustment, Balance, Fader and an X-Bass function to emphasize low frequencies. Sound presets Pop, Rock and Classical are also available. The radio does not include a multi-band equalizer or integrated DSP, keeping sound settings simple and clear.
Steering wheel control
Kiel 260 features an input for steering wheel control (SWC). The function is preprogrammed for Blaupunkt remote controls RC-24 and RC-26 and can also be freely programmed for compatible analog controls.
Short mounting depth
The radio body is only 120 mm deep, which greatly simplifies installation in cars with limited space behind the dashboard. The radio body dimensions are 50 × 178 × 120 mm.
Main features
- Classic 1DIN design.
- Digital radio DAB+.
- High Grade FM and AM tuner.
- Built-in Bluetooth 5.
- Handsfree calling via internal or external microphone.
- External microphone included.
- Wireless music streaming via Bluetooth.
- Phonebook access for up to 1 000 numbers.
- USB-A connector on the front panel.
- 3.5 mm AUX input on the front panel.
- Support for MP3, WMA and WAV formats.
- Support for USB media over 128 GB.
- X-Bass function to emphasize low frequencies.
- Sound presets Pop, Rock and Classical.
- Maximum output 4 × 50 W.
- 2-channel RCA preamp output.
- Input for steering wheel control.
- Short mounting depth of only 120 mm.
- White display and button backlight.
- Permanent memory for settings and stored stations.
- Software update via USB.
Technical specifications
- Type: 1DIN car radio.
- Tuner: FM / AM / DAB+.
- RDS: Yes.
- Bluetooth: Version 5.
- Bluetooth profiles: A2DP, AVRCP, HFP, SPP.
- Bluetooth codec: SBC.
- Number of stored Bluetooth devices: 5.
- Number of phones connected at once: 1.
- Phonebook: Up to 1 000 numbers.
- USB: 1× USB-A on the front panel.
- AUX input: Yes, 3.5 mm on the front panel.
- Memory card reader: No.
- CD mechanism: No.
- Supported audio formats: MP3, WMA, WAV.
- Supported file systems: FAT16, FAT32, exFAT.
- Maximum USB capacity: More than 128 GB.
- Apple CarPlay: No.
- Android Auto: No.
- iPod / iPhone control: No.
- Equalizer: No.
- Bass and treble adjustment: Yes.
- Balance / Fader: Yes.
- Loudness: No.
- X-Bass: Yes.
- Sound presets: Pop, Rock, Classical.
- HPF / LPF: No.
- Maximum output: 4 × 50 W.
- Sine output: 4 × 24 W at 14.4 V according to DIN 45324.
- Minimum speaker impedance: 4 Ω.
- RCA outputs: 2 channels.
- RCA output level: Less than 2 V.
- Subwoofer output: No.
- Steering wheel control: Yes.
- Rear camera input: No.
- CAN-Bus functions: No.
- Display: Negative anti-reflective LCD.
- Display backlight color: White.
- Button backlight color: White.
- Panel: Fixed.
- Supply voltage: 12 V.
- Operating current: Less than 10 A.
- Standby current: Less than 5 mA.
- Radio body dimensions: 50 × 178 × 120 mm.
- Front panel dimensions: 58 × 188 × 17 mm.
- Weight: 578 g.

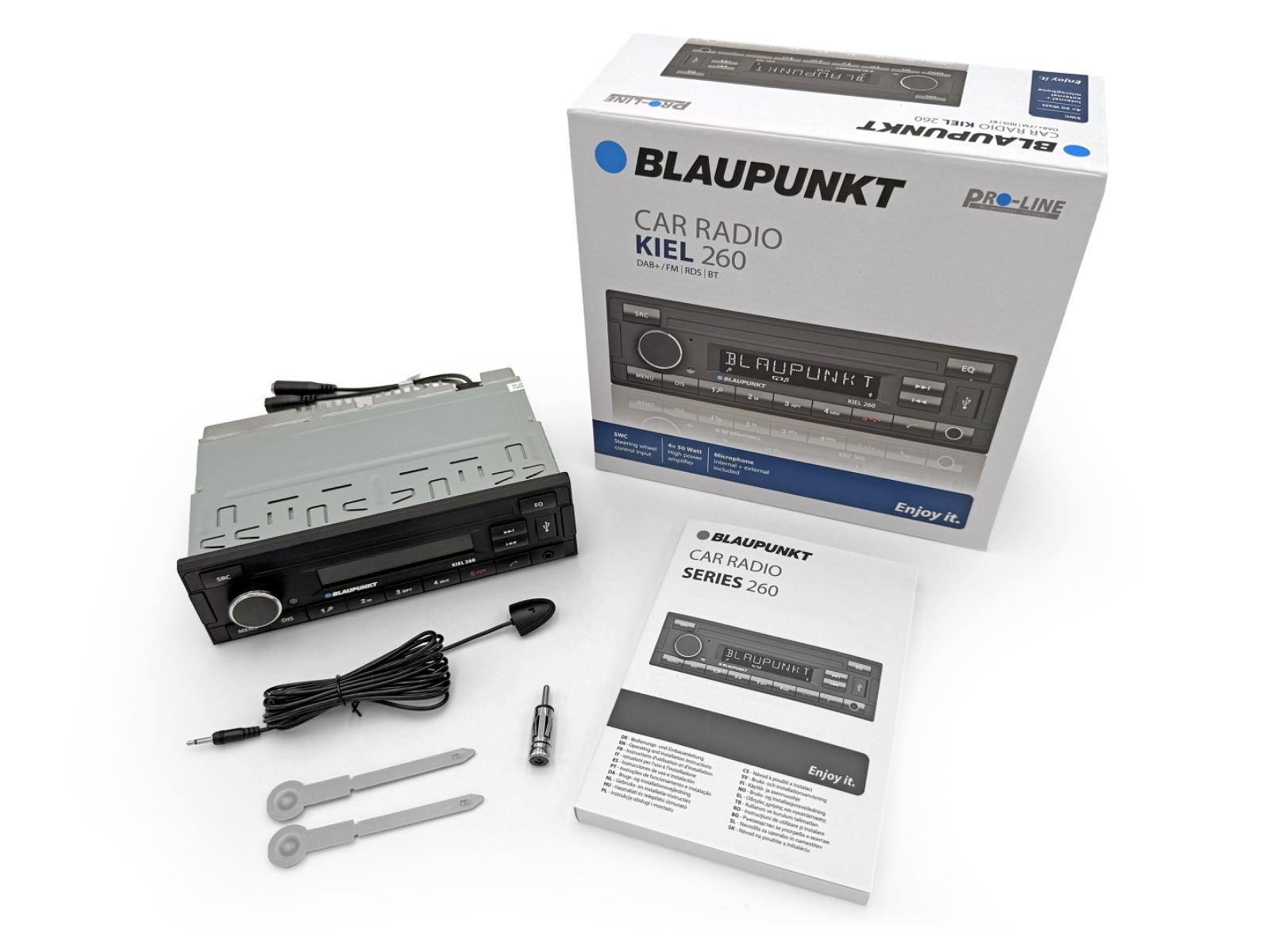

What's in the box
- Blaupunkt Kiel 260 car radio.
- External handsfree microphone.
- 1DIN mounting frame.
- Removal tools for the car radio.
- Antenna adapter DIN / ISO.
- User manual.
ISO A/B wiring and the DAB+ antenna are not included in the package. A DAB+ window antenna, the wired RC-24 remote control or wireless RC-26 remote can be purchased separately.
About the brand
Blaupunkt is a traditional, globally recognized brand with a long history in automotive electronics. For decades it has been associated primarily with car radios and practical automotive accessories. The current lineup includes modern car radios with Bluetooth, handsfree, digital radio DAB+, USB and support for Apple CarPlay and Android Auto. There are also popular retro-styled models that combine a classic look with contemporary technologies. These retro radios are especially interesting for youngtimers and classic cars where preserving the original look and interior atmosphere matters. The brand also offers subwoofers, car antennas, reversing cameras, monitors and other installation accessories. Blaupunkt appeals to drivers seeking a well-known brand, simple and functional solutions, good compatibility and a balanced price-to-performance ratio.
| Catalog number | KIEL 260 DAB |
| Brand | Blaupunkt |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 1DIN |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP2, MP3, WMA, FLAC, M4A/AAC, APE, WAV |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | No |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | No |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50 W |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 1 pair |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
