Blaupunkt Freiburg 260 car radio
More about the product
- You can return the goods to us within 14 days

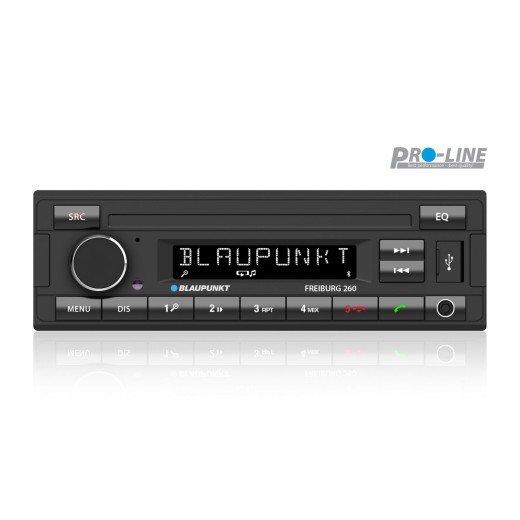

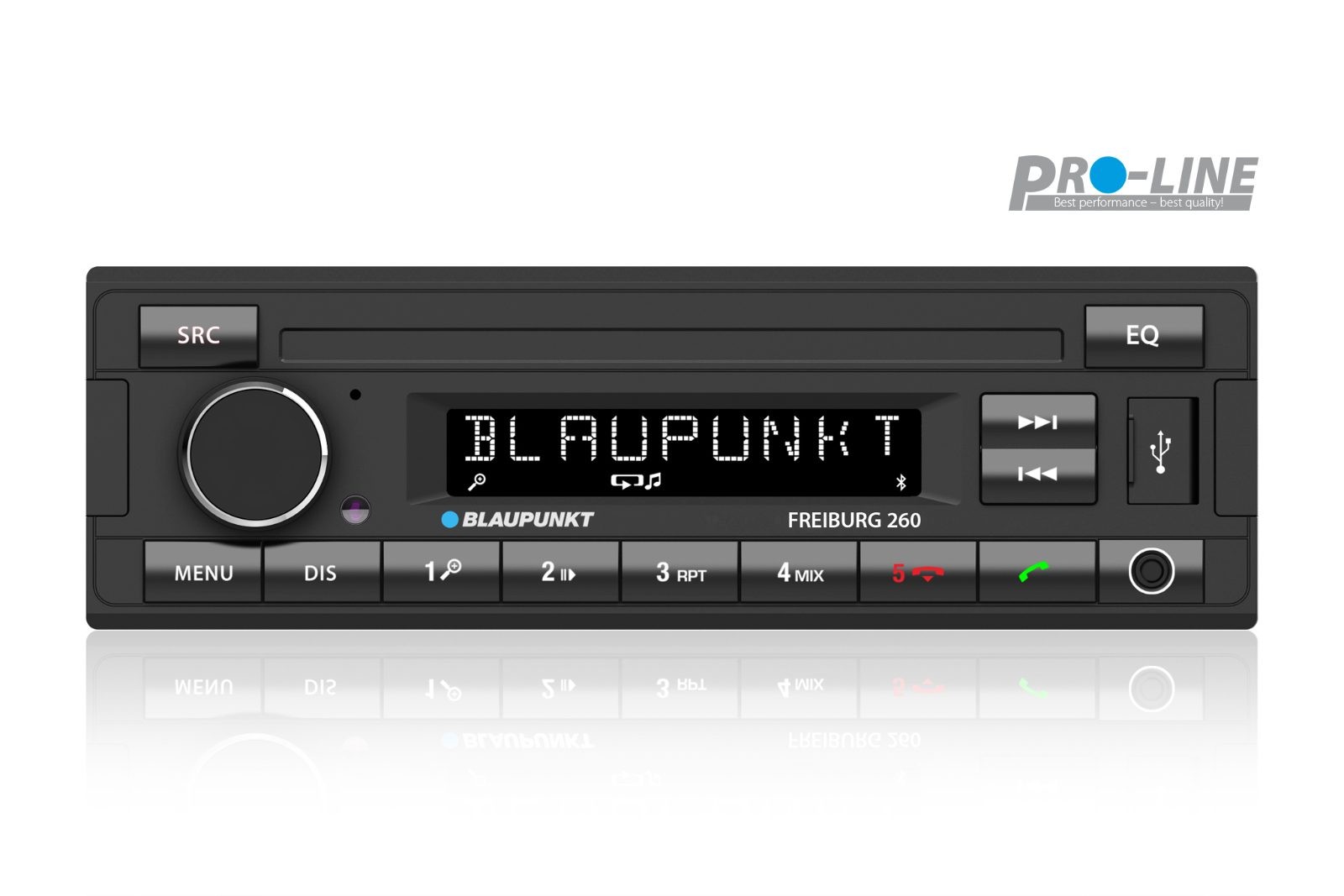

Blaupunkt Freiburg 260
The Blaupunkt Freiburg 260 is a modern 1DIN car radio from the PRO-LINE series that combines Blaupunkt’s classic design with a high-quality analog tuner, Bluetooth connectivity and simple operation. It offers an FM/AM tuner, Bluetooth 5, USB-A, front AUX input, handsfree calling, a steering wheel control input and a short mounting depth.
Unlike the Kiel 260 model, the Freiburg 260 does not include a DAB+ tuner. It is therefore suitable for users who want a traditional car radio with excellent FM reception and modern wireless connectivity without unnecessary extra features.
High-grade FM/AM tuner
The Blaupunkt Freiburg 260 uses a high-grade tuner for FM and AM that supports RDS, Alternative Frequencies (AF), regional REG function, automatic station storage (Travelstore) and Traffic Announcement priority (TA). The tuner can be switched between settings for Europe, Asia, USA, South America, Thailand and Japan. There are 15 FM presets and 10 AM presets, plus a two-stage FM sensitivity setting and a Hi-Cut function to suppress interference.
Bluetooth 5 for handsfree and music
Built-in Bluetooth 5 enables handsfree calling and wireless music streaming. The radio supports A2DP, AVRCP, HFP and SPP profiles and uses the SBC codec. The unit remembers the last 5 paired devices, with one phone able to be connected at a time. It also supports access to a phonebook of up to 1,000 entries and automatic wake-up on incoming calls.
USB-A and AUX on the front panel
The front of the unit features a USB-A connector and a 3.5 mm AUX input. The USB player supports MP3, WMA and WAV formats, FAT16, FAT32 and exFAT file systems and media over 128 GB capacity. Folder and file browsing, ID3 information display and various repeat and shuffle modes are supported. The USB connector can also be used to charge mobile devices.
X-Bass and simple sound settings
The Blaupunkt Freiburg 260 offers bass and treble adjustments, Balance, Fader, an X-Bass function and sound presets Pop, Rock and Classical. However, it does not include a separate multi-band equalizer or DSP processor. The integrated amplifier delivers a maximum output of 4 × 50 W, a nominal output of 4 × 24 W at 14.4 V and supports speakers with a minimum impedance of 4 Ω. A 2-channel RCA preamp output with a level under 2 V is provided for an external amplifier.
Steering wheel control input
The Freiburg 260 features a programmable SWC input for steering wheel control. Preconfigured control for Blaupunkt RC-24 and RC-26 is supported, as well as freely programmable analog control.
Short mounting depth
The radio body has a depth of only 120 mm, which greatly simplifies installation in vehicles with limited space behind the dashboard. The radio body dimensions are 50 × 178 × 120 mm.
Main features
- Classic 1DIN design.
- High-grade FM and AM tuner.
- Support for RDS, AF, REG and Traffic Announcement (TA).
- Built-in Bluetooth 5.
- Handsfree calling via internal or external microphone.
- External handsfree microphone included.
- Wireless music streaming via Bluetooth.
- Access to a phonebook of up to 1,000 entries.
- Memory for the last 5 paired devices.
- USB-A connector on the front panel.
- 3.5 mm AUX input on the front panel.
- Support for MP3, WMA and WAV audio formats.
- Support for USB media with capacity over 128 GB.
- X-Bass function to enhance low frequencies.
- Sound presets Pop, Rock and Classical.
- Maximum output 4 × 50 W.
- 2-channel RCA preamp output.
- Steering wheel control input.
- Short mounting depth of only 120 mm.
- White display and button illumination.
- Permanent memory for settings and stored stations.
- Software update capability via USB.
Technical specifications
- Type: 1DIN car radio.
- Tuner: FM / AM.
- DAB / DAB+: No.
- RDS: Yes.
- Bluetooth: Version 5.
- Bluetooth profiles: A2DP, AVRCP, HFP, SPP.
- Bluetooth codec: SBC.
- Number of stored Bluetooth devices: 5.
- Number of simultaneously connected phones: 1.
- Phonebook: Up to 1,000 entries.
- USB: 1× USB-A on the front panel.
- AUX input: Yes, 3.5 mm on the front panel.
- Rear USB: No.
- Memory card reader: No.
- CD drive: No.
- Supported audio formats: MP3, WMA, WAV.
- Supported file systems: FAT16, FAT32, exFAT.
- Maximum USB capacity: More than 128 GB.
- Apple CarPlay: No.
- Android Auto: No.
- iPod / iPhone control: No.
- Equalizer: No.
- DSP processor: No.
- Bass and treble adjustment: Yes.
- Balance / Fader: Yes.
- Loudness: No.
- X-Bass: Yes.
- Sound presets: Pop, Rock, Classical.
- HPF / LPF: No.
- Maximum output: 4 × 50 W.
- Nominal output: 4 × 24 W at 14.4 V according to DIN 45324.
- Minimum speaker impedance: 4 Ω.
- RCA output: 2 channels / 1 pair.
- RCA output level: Less than 2 V.
- Subwoofer output: No.
- Steering wheel control: Yes.
- Rear camera input: No.
- CAN-Bus functions: No.
- Display: Negative anti-reflective LCD.
- Display backlight color: White.
- Button backlight color: White.
- Panel: Fixed.
- Supply voltage: 12 V.
- Operating current: Less than 10 A.
- Standby current: Less than 5 mA.
- Radio body dimensions: 50 × 178 × 120 mm.
- Front panel dimensions: 58 × 188 × 17 mm.
- Weight: 578 g.

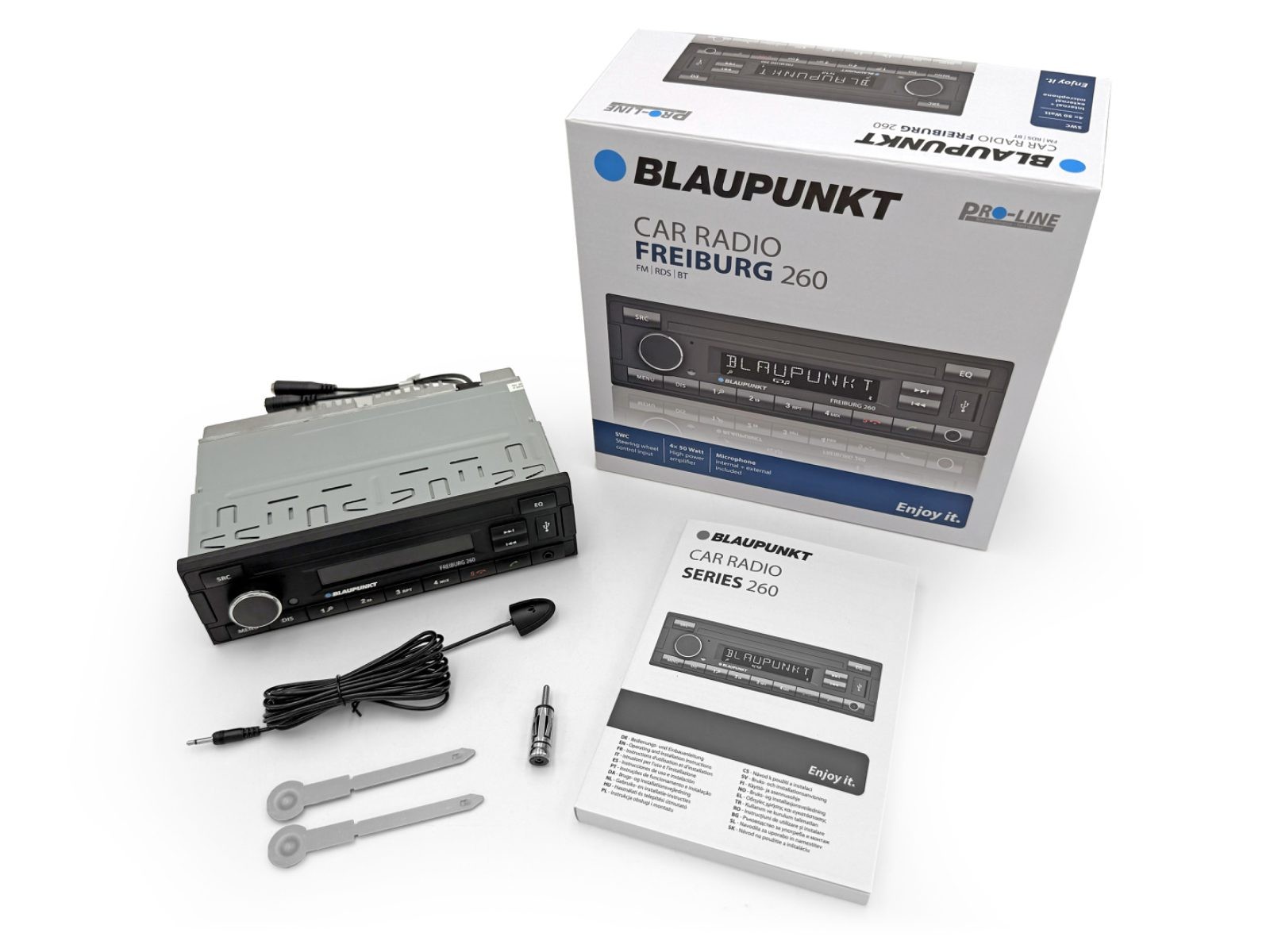

What's in the box
- Blaupunkt Freiburg 260 car radio.
- External handsfree microphone.
- 1DIN mounting frame.
- Removal tools for the car radio.
- DIN / ISO antenna adapter.
- User manual.
ISO A/B connection harness is not included. The RC-24 wired controller and RC-26 wireless controller are available as optional accessories.
About the brand
Blaupunkt is a traditional, globally recognized brand with a long history in automotive electronics. For decades it has been associated primarily with car radios and practical automotive accessories. Today’s range includes modern car radios with Bluetooth, handsfree, digital radio DAB+, USB and support for Apple CarPlay and Android Auto. Popular retro-designed models are also offered, combining a classic look with contemporary technology. These retro radios are ideal for youngtimers and classic cars where preserving the original appearance and interior atmosphere is important. The brand also offers subwoofers, car antennas, reversing cameras, monitors and other installation accessories. Blaupunkt appeals to drivers looking for a well-known brand, simple and functional solutions, good compatibility and a balanced price-performance ratio.
| Catalog number | FREIBURG 260 |
| Brand | Blaupunkt |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 1DIN |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP3, WMA, WAV |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | No |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | No |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50 W |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 1 pair |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
