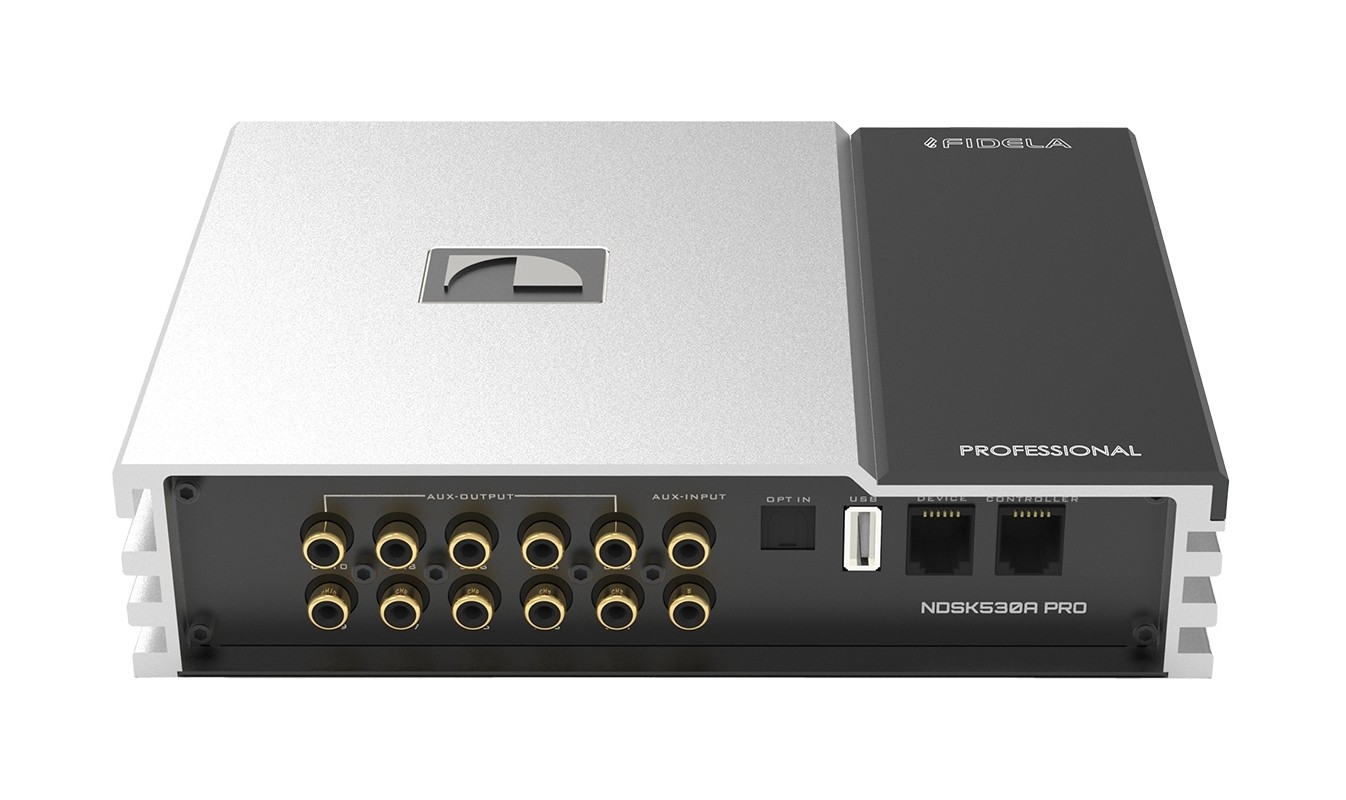

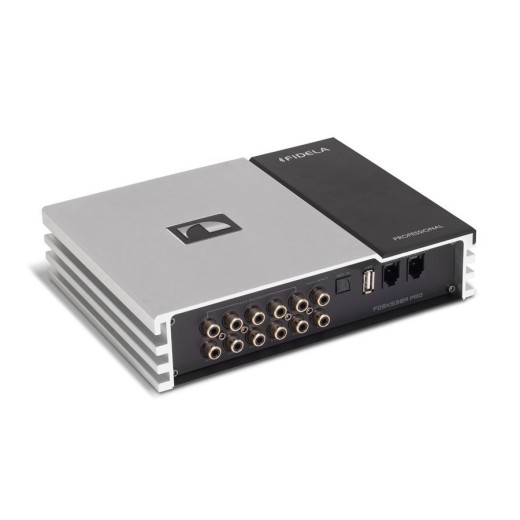

Amplifier with DSP processor Nakamichi FDSK530A Pro
The Nakamichi FDSK230A Pro is a compact 8-channel amplifier with an integrated DSP processor that combines powerful analog output with extensive digital tuning options. It delivers 8 x 35 W RMS and supports a wide range of input signals – from RCA and high-level inputs, through AUX and optical input, to built-in and external Bluetooth connectivity or USB music playback. This makes the unit extremely flexible and easy to integrate into both factory and aftermarket systems. All channels are also available as line-level RCA outputs, which means the unit can be used as a fully functional standalone DSP processor – an ideal solution in combination with external higher-power amplifiers. For more convenient control, the external Nakamichi AC6 remote can be purchased separately.
Fidela - Nakamichi's top line
Fidela represents Nakamichi's top tier, combining the brand's rich history with modern technologies and precise craftsmanship. Originally, the Fidela name was associated with high-end tape recorders in the 1960s, known for their innovative mechanisms and unmistakable sound. Today, the Fidela line focuses on car amplifiers and DSP processors that use premium components for maximum sound quality. Key features of Fidela amplifiers include the use of high-quality components, excellent build quality and a premium design. Thanks to these qualities, Fidela amplifiers are an ideal choice for discerning users seeking high sound quality and extensive customization options in automotive environments.
Integrated 10-channel DSP processor
Inside the unit you will find high-quality components such as WIMA and ELNA capacitors, OPA1678 operational amplifiers and Toshiba chips operating in class AB. The DSP processor is based on the AK7735 chip from Asahi Kasei and digital-to-analog conversion is handled by high-quality PCM3168 circuitry. The DSP offers a 31-band equalizer for each channel with 1 Hz resolution, up to 25 ms of time delay, phase control and a choice of professional crossover types such as Butterworth, Bessel or Linkwitz-Riley. The output signal is fully tunable including gain and Q settings. A stable and comprehensive PC tuning software is included, as well as an intuitive mobile app for settings via phone. With low distortion (≤0.05 %) and a high signal-to-noise ratio (≥98 dB), the resulting sound is precise and faithful, suitable even for demanding installations.
Main features
- 8-channel amplifier with power 8 x 35 W RMS.
- Can be used as a standalone DSP processor thanks to line-level RCA outputs for all channels.
- Supports all input types: RCA, high-level, Bluetooth (internal and external), USB, AUX, optical.
- DSP processor AK7735 with DAC/ADC PCM3168, OPA1678 operational amplifiers.
- Internal components WIMA, ELNA and Toshiba in class AB.
- 31-band EQ for each channel, time delay up to 25 ms, phase control.
- Professional crossovers: Butterworth, Bessel, Linkwitz-Riley.
- Output voltage up to 5.6 V RMS, adjustable gain 0 to +6 dB.
- USB playback support: MP3, WAV, FLAC.
- Stable tuning software + mobile app for iOS/Android.
- Optional external controller Nakamichi AC6 available for purchase.
About the Nakamichi brand
The history of Nakamichi dates back to 1948, when it was founded in Japan by Etsuro Nakamichi. His journey toward fulfilling his dreams began with the establishment of a small research institute, Nakamichi Research Corporation, in Tokyo. It focused on sonar and magnet research and provided development solutions for leading brands, government institutions, universities and other organizations. Since then it has established itself as a trusted creator of high-quality products born from intensive scientific work, a passion for sound and a commitment to uncompromising quality and performance. In 1972, Takeshi Nakamichi joined Nakamichi Corporation and played a key role during its period of growth. He was closely involved in the development of all the brand's legendary audio products sold in Asia, America and Europe – including the introduction of the Nakamichi 1000, the world's first cassette deck. He was regarded as one of the world's leading acoustics and sound engineers, able to combine top-notch sound with the genius design virtues of the brand's then chief engineer Kozo Kobayashi. These amplifiers, players and car radios are today considered legends for their unsurpassed quality. Nakamichi remains successful today, producing high-quality products not only for home audio but also for vehicles. The manufacturer's cleverly designed portfolio continues to grow, and virtually all products stand out for their excellent sound and build quality in their price category.
| Catalog number | FDSK530A PRO |
| Brand | Nakamichi |
| Links | Official web presentation |
| Energy class of the amplifierAmplifiers are divided into two basic classes: analog and digital . Analog amplifiers (A/B) have higher consumption requirements, but usually have a more natural sound. Digital amplifiers (D) have significantly lower consumption and higher efficiency, but the sound may not be as faithful as with classic analog amplifiers. | D |
| Number of amplifier channelsAmplifiers are divided into: - Monoblocks - 2-channel - 3-channel - 4-channel - 5-channel - 6-channel - multi-channel Each channel is used to power one speaker for the coaxial type, or one side if they are component speakers. Monoblock type amplifiers are mainly used for subwoofers. 2-channel are suitable for both subwoofers and, for example, the front pair of speakers in a car. 3-channel is used for front or rear speakers + subwoofer. 4-channel are used for front + rear speakers or 1 pair of speakers + subwoofer. 6 or 5-channel are used for 2 pairs of speakers + subwoofer, most often. Bridging means connecting the amplifier to a bridge, using the + pole from one channel and the - pole from the other channel. In most cases this is shown as "BRIDGED" on the amplifier. | 8 |
| RMS power into 4 ΩRMS power when loading speakers or subwoofer at 4 Ω. RMS power is the constant power of the amplifier and is one of the most important parameters when choosing an amplifier. | 8 x 35 W |
| Frequency rangeThe ability of the amplifier to reproduce the signal from the lowest frequency to the highest = faithfully reproduce the sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 20 - 20000 Hz |
| Harmonic Distortion (THD)Total harmonic distortion indicates how much the input signal is distorted in the amplifier. Distortions appear as overtones contained in the output signal. The proportion of originally absent parts of the signal is given as a percentage, typical values are between 0.001% and 0.5%. Distortion is measured in their power band. If it exceeds the limit of 0.7% from a certain power, it is the value of the output power of the given amplifier, from which it no longer plays without distortion and from which the distortion usually increases steeply, so that no further increase in power can be counted on. The lower the value, the better. | < 0.05% |
| Signal-to-noise ratioThe signal-to-noise ratio means that the output signal always contains noise. The signal-to-noise ratio expresses how much of this noise is compared to the useful signal. The so-called A value is given, which does not take deep and very high frequencies into account. This corresponds to the characteristic of human hearing, which is not so sensitive to deep frequencies, especially below 1 kHz. The higher the value, the better the amplifier is. | > 98 dB |
| Power supply | DC 6.7 V - 18 V |
| Standby power consumption | < 0.1 W |
| High level inputsThe high-level input on the amplifier allows connection directly to the existing speakers in the car without additional purchase of an external high/low adapter. Important equipment in the case of installing an amplifier on an original car radio. | Yes |
| Automatic on and offThis function allows you to automatically switch on the amplifier. | Yes |
| Integrated DSP processor | Yes |
| Number of DSP processor channels | 10 |
| Input for wired remote controlIf the amplifier has a remote control input. | Yes - Nakamichi AC6 |
| Dimensions of the amplifier | 176.5 x 120 x 48 mm |
| Mass | 1.4 Kg |
