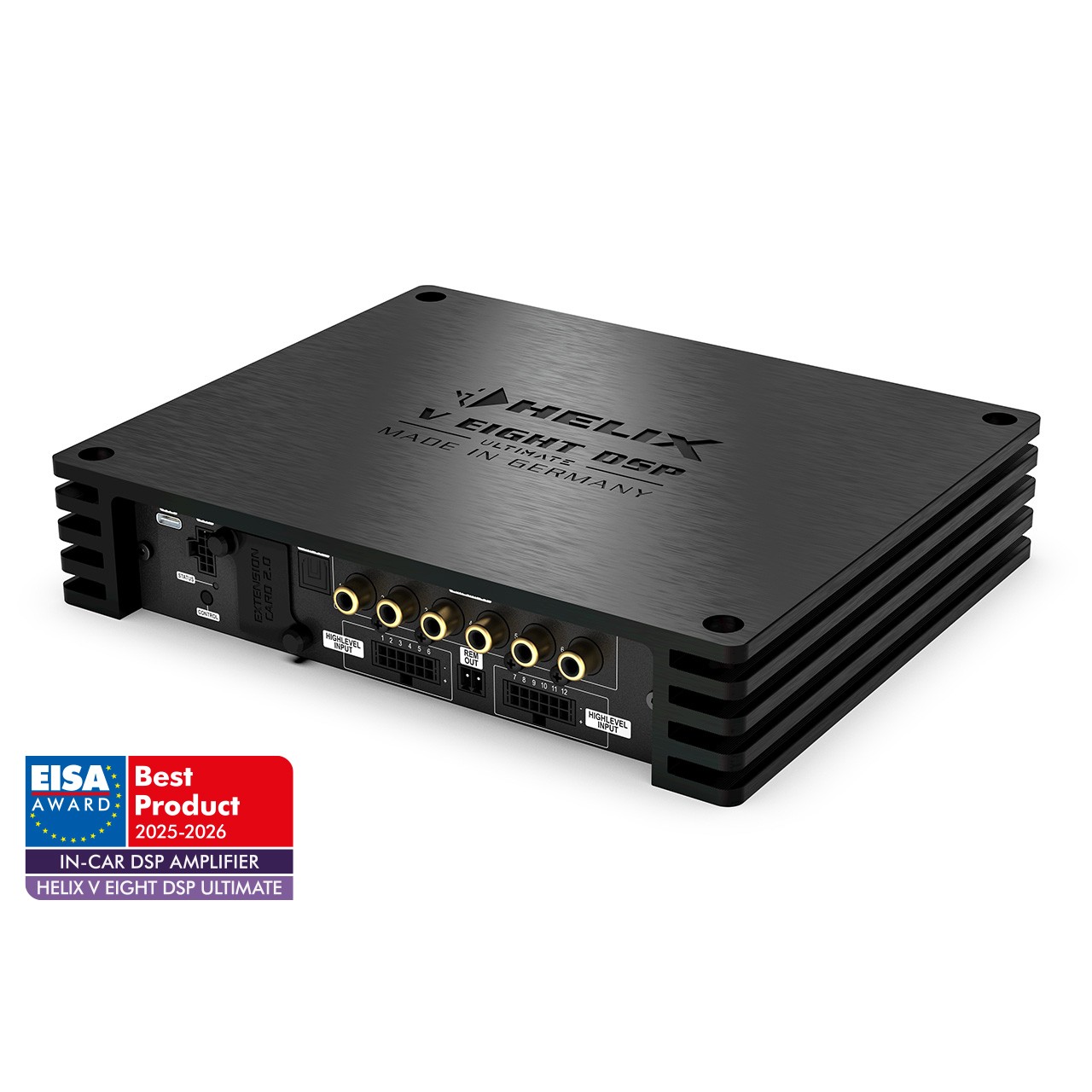

Amplifier with DSP processor Helix Next V Eight DSP Ultimate

Amplifier with DSP processor Helix Next V Eight DSP Ultimate

HELIX V EIGHT DSP ULTIMATE represents the next step in the development of high-end all-in-one solutions. This 8-channel amplifier with an integrated 14-channel DSP has been completely redesigned – from signal processing quality, through connectivity options, to power and sound. It is not just an update but a new standard in multi-channel DSP amplifiers.

Modern amplification technology with next-generation power

At the heart of the V EIGHT DSP ULTIMATE is the latest generation of efficient TI Class D technology, offering up to 66% more power compared to the previous model. The amplifier delivers 8 × 110 W RMS into 4 Ω or 4 × 110 W RMS into 4 Ω + 4 × 220 W RMS into 2 Ω, ensuring ample headroom even for complex and highly demanding speaker systems. The result is precise, dynamic, and controlled sound reproduction.

Maximum connectivity for any setup

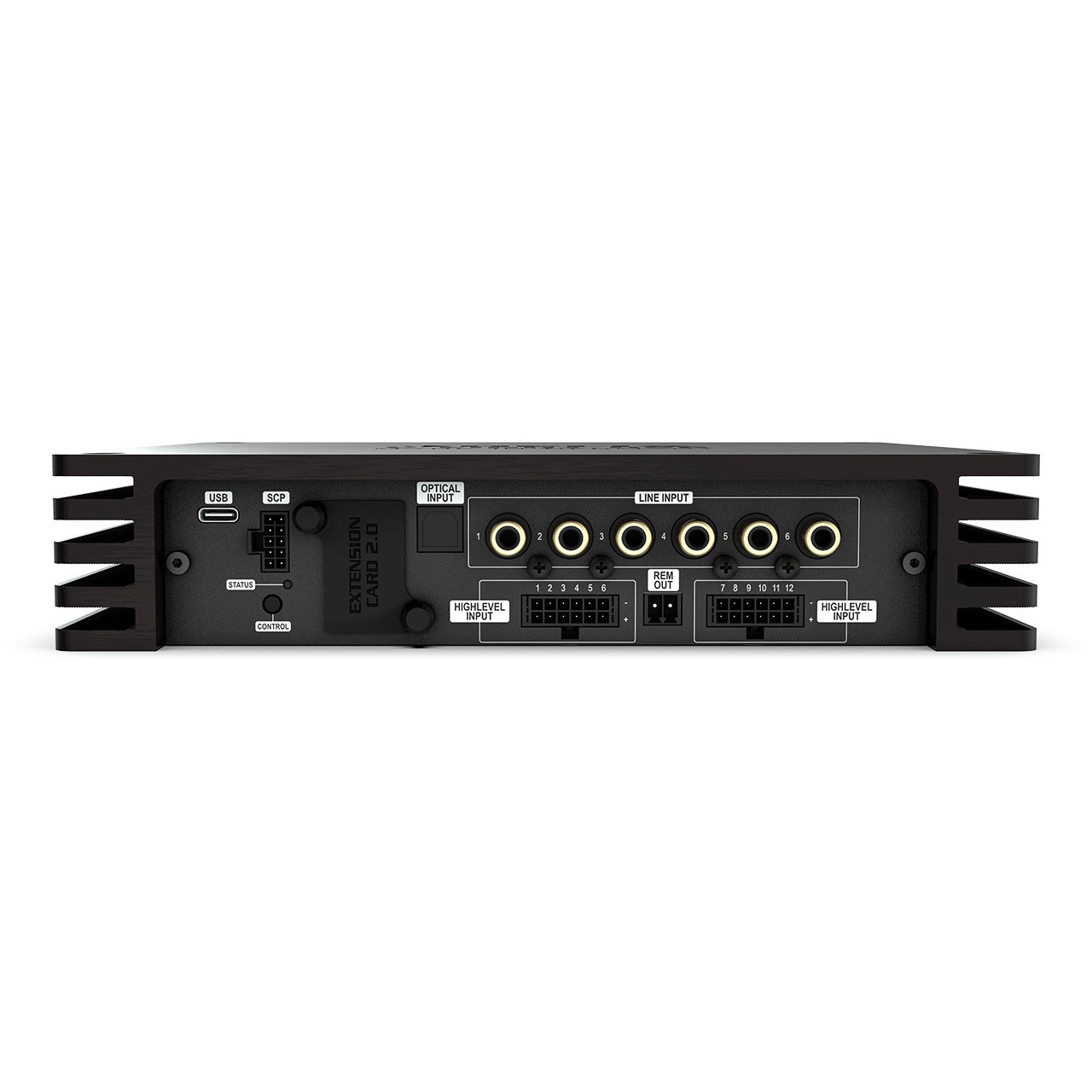

A wide range of inputs and outputs enables easy integration with any system – from OEM installations and aftermarket head units to direct connection with smart devices. Inputs include 12 channels, 6 RCA/Cinch connectors, digital optical input, USB PerfectStream and a new slot for a 2.0 expansion card. On the output side there are 8 speaker outputs and 6 RCA outputs for connecting additional amplifiers.

Professional tuning with DSP PC-Tool 6

Thanks to the 14-channel signal processor, the amplifier offers even greater flexibility than its predecessor. The new DSP PC-Tool 6 software provides an expanded set of features, a more intuitive interface and more precise tuning tools. This allows the user to achieve optimal sound results for any environment and preference.

Powerful ACO platform

The integrated 32-bit coprocessor ensures fast processing and instant communication with the software, including quick switching between up to 10 stored sound profiles. In addition, it provides features such as Augmented Bass Processing, RealCenter, Dynamic Loudness Control, Remote Tone Control and AISA for input signal analysis.

USB PerfectStream – new connectivity options

The unique USB PerfectStream interface not only provides lossless high-resolution music transfer, but also enables real-time measurement and simultaneous DSP configuration. The ACO platform furthermore eliminates the need for additional measuring devices, which is especially appreciated by professional installers.

Slot for 2.0 expansion card – ready for the future

HELIX V EIGHT DSP ULTIMATE is the brand’s first amplifier equipped with a 2.0 slot. This allows easy expansion, for example with Bluetooth® HD streaming or additional inputs. Thanks to the modular system, the device remains prepared for future technological requirements.

Main features

• 14 DSP channels for maximum flexibility in multi-channel systems.
• 8-channel amplifier with modern HD-class technology.
• 12-channel high-level input with sensitivity up to 32 V RMS and ADEP.3 circuitry.
• Input-to-Output Routing for flexible signal routing.
• Power up to 270 W RMS per channel into 2 Ω.
• USB PerfectStream for lossless audio transfer and AISA measurement via USB-C.
• 64-bit audio DSP with high processing precision.
• Virtual Channel Processing for easy configuration of complex systems.
• Advanced DSP features – TuneEQ, RealCenter, Augmented Bass Processing, Dynamic Loudness Control, Remote Tone Control.
• Smart Control Port for connection of remote controls and accessories.
• 2.0 slot for future expansion (Bluetooth® HD, analog inputs, etc.).
• Optical SPDIF input and 6 line outputs (3 V).
• Stabilized output power thanks to SOP Max technology.
• Intelligent power management, compatible with Start-Stop and voltages up to 18 V.
• Automatic remote turn-on for easy installation.
• Compact design with high efficiency and minimal heating.
• Control and detailed configuration via DSP PC-Tool 6 software.
