ACV FLY 4 - red
power cable, OFC copper, cross-section 4 mm², red insulation
More about the product
More about the product
ACV FLY 4 - redIn stock (104 m) 1,96 EUR
ACV FLY 4 - blackIn stock (96 m) 1,96 EUR
ACV FLY 4 - blueIn stock (74 m) 1,96 EUR
ACV FLY 4 - yellowIn stock (75 m) 1,96 EURWe will help you with your purchase
- You can return the goods to us within 14 days

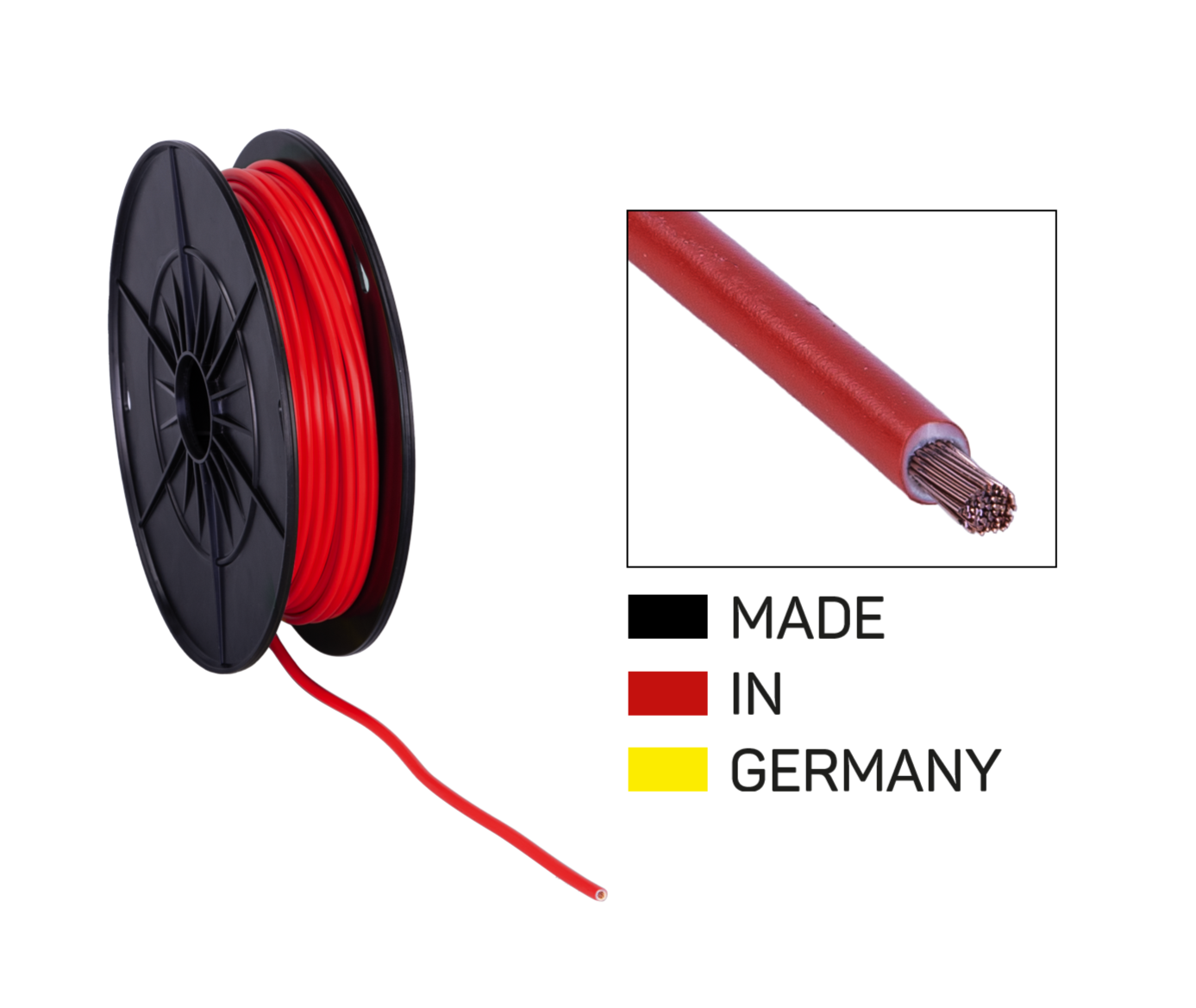

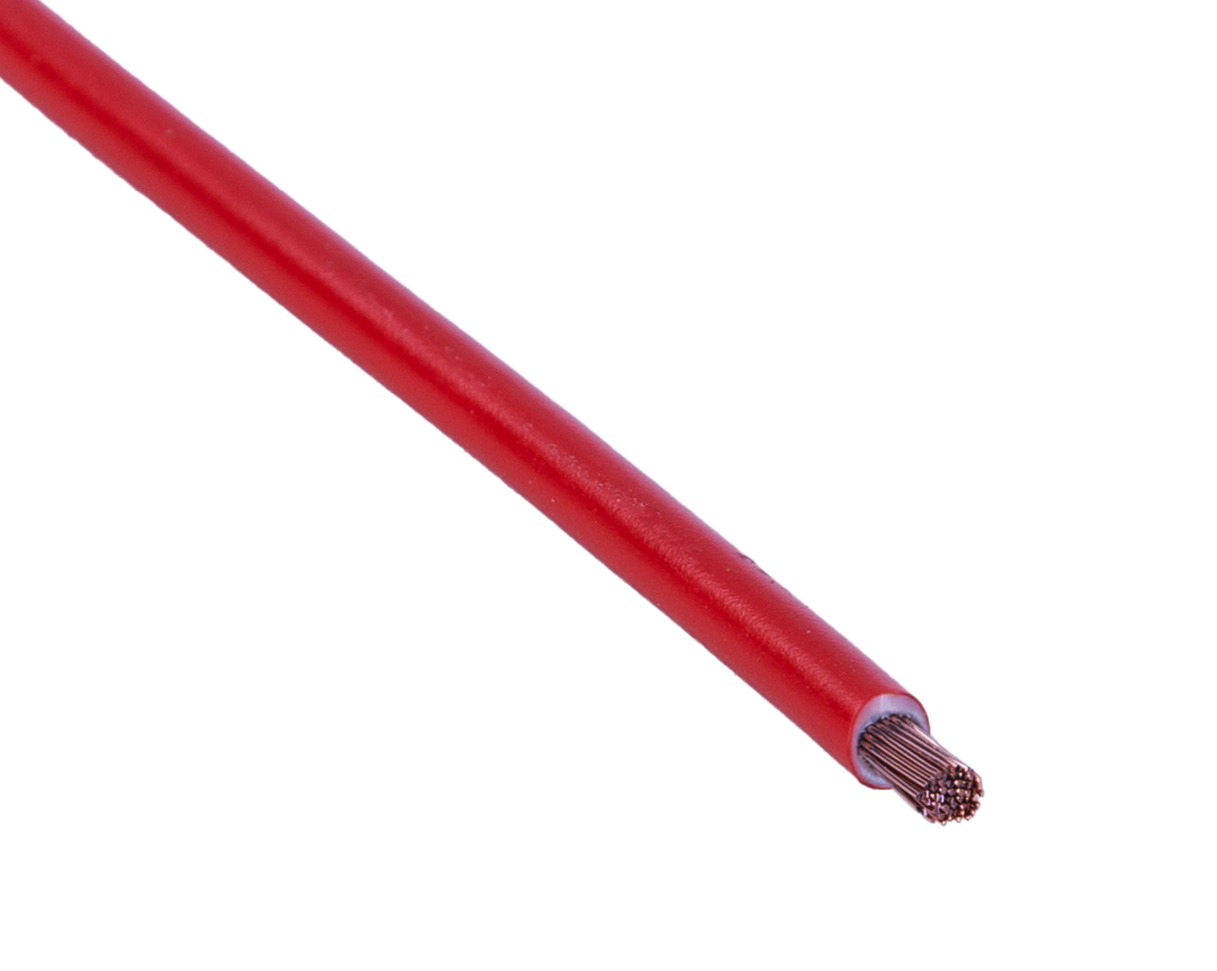

Power cable with 4 mm² cross-section ACV FLY 4 - red
ACV FLY 4 is a power cable manufactured in Germany according to DIN/ISO standards for high-quality automotive electrical installations. Unlike commonly used copper-clad aluminum cables with inferior electrical and mechanical properties, this cable uses 99,9% pure copper conductors, ensuring maximum conductivity and minimal electrical resistance for optimal current flow. The excellent mechanical properties of copper also ensure reliable contact with low contact resistance when crimping or soldering.Main features
- High-quality power cable.
- Insulation according to ISO 6722-1.
- Insulation material: lead-free soft PVC.
- Color according to ISO 6722-1: red.
- Conductor according to DIN 13602: annealed electrolytic copper Cu-ETp1/CW003A bare.
- Nominal cross-section: 4,0 mm².
- Outer diameter: 4,0 mm (+/-0,2 mm).
- Stranded conductor diameter: max. 2,54 mm.
- Single wire diameter: 0,305 mm.
- Number of wires: 52.
- Resistance: 4,8 Ohm/km at 20°C.
- Copper density: 38,4 kg/km.
- Price per 1 meter of cable.
| Catalog number | 50-400-100-1 |
| Brand | ACV |
| Links | Official web presentation |
