Yatour YT-M06 SUZ1
More about the product
- You can return the goods to us within 14 days
Yatour YT-M06 SUZ1
Yatour YT-M06 SUZ1 is a digital music adapter for selected original Suzuki Clarion car radios and some Subaru McIntosh radios with a CD changer input. It enables playback of music from a USB flash drive, SD / SDHC card or via an AUX input without the need to replace the original car radio or disturb the interior appearance.
The adapter plugs into the CD changer connector and after installation behaves similarly to the original CD changer. Music can be controlled directly from the car radio or from steering wheel controls depending on the vehicle's equipment. Thanks to the direct wired connection it offers more stable sound than an FM transmitter and supports formats MP3 and WMA. The basic Yatour YT-M06 supports USB, SD/SDHC/MMC and AUX input, remembers the last playback position and connects without affecting the original wiring.
Main features.
- Digital music adapter for original car radios.
- Intended for selected Suzuki Clarion / Subaru McIntosh radios.
- Connection to the CD changer port.
- Playback of music from a USB flash drive.
- Playback of music from SD / SDHC / MMC card.
- 3.5 mm AUX input for an external audio source.
- Supports MP3 and WMA formats.
- Control via the original car radio.
- Support for steering wheel controls depending on the vehicle.
- Remembers the last playback position.
- Direct wired connection without FM interference.
- Option to add an optional Bluetooth module depending on compatibility.
Compatibility.
The SUZ1 variant is intended for selected Suzuki Clarion car radios and some Subaru McIntosh radios with the corresponding CD changer connector. Stated compatibility includes, for example, selected models Suzuki Swift 2005–2012, Suzuki Jimny 1998–2012, Suzuki Grand Vitara / Escudo / Sidekick 2006–2012 and Suzuki SX4 2006–2012.
Compatibility is always primarily determined by the specific car radio type and connector, not just the car model. Before ordering we recommend checking the radio's rear connector.
Important notice.
- The adapter only works with compatible original radios that have a CD changer input.
- It is not intended for radios without the corresponding connector.
- On some vehicles it may be necessary to activate the CD changer input.
- For reliable media reading we recommend formatting the USB/SD card to FAT16 or FAT32.
- For the Yatour YT-M06 it is commonly recommended to store music in folders like CD01, CD02, CD03, etc.

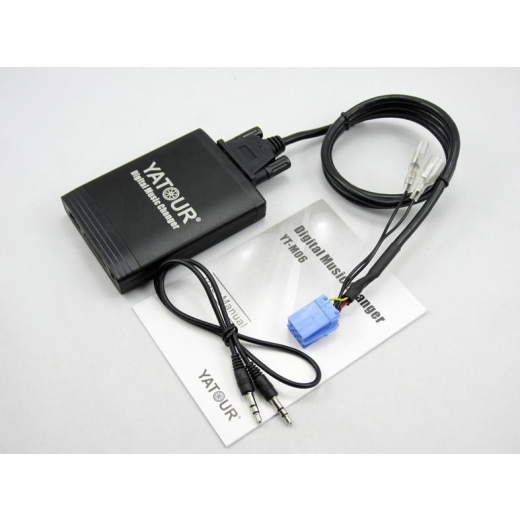

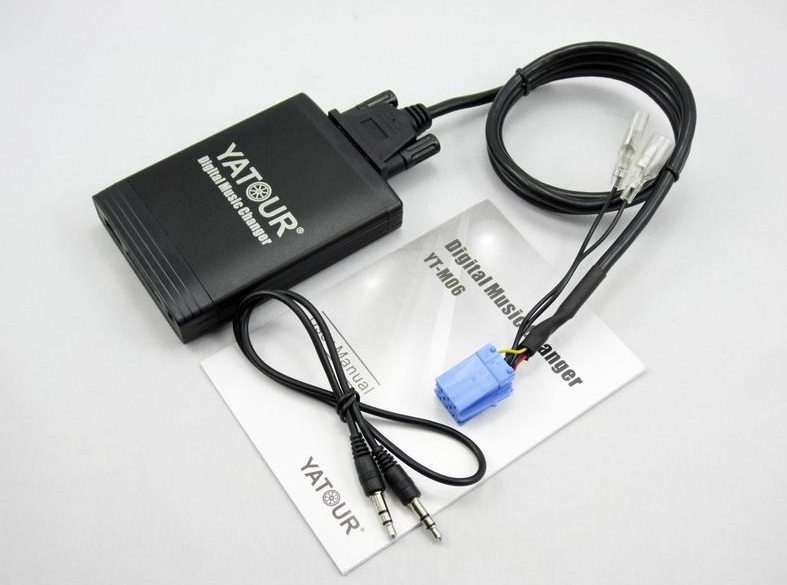

Package contents.
- Yatour YT-M06 SUZ1 module.
- Connection cable for Suzuki / Subaru car radio.
- 3.5 mm AUX cable.
- User manual.
Technical specifications.
- Model: Yatour YT-M06 SUZ1.
- Product type: digital music adapter / CD changer replacement.
- Designed for: selected Suzuki Clarion / Subaru McIntosh car radios.
- Inputs: USB, SD / SDHC / MMC, AUX 3.5 mm.
- Supported formats: MP3, WMA.
- Power supply: 11–14.6 V DC.
- Operating current: approx. 200 mA.
- Signal-to-noise ratio: approx. 90–95 dB.
- Frequency range: 20 Hz – 20 kHz.
- Operating temperature: approx. -35 °C to +80 / +85 °C.
- Module dimensions: approx. 92 × 65 × 16.5 mm.
| Catalog number | YT-M06 SUZ1 |
