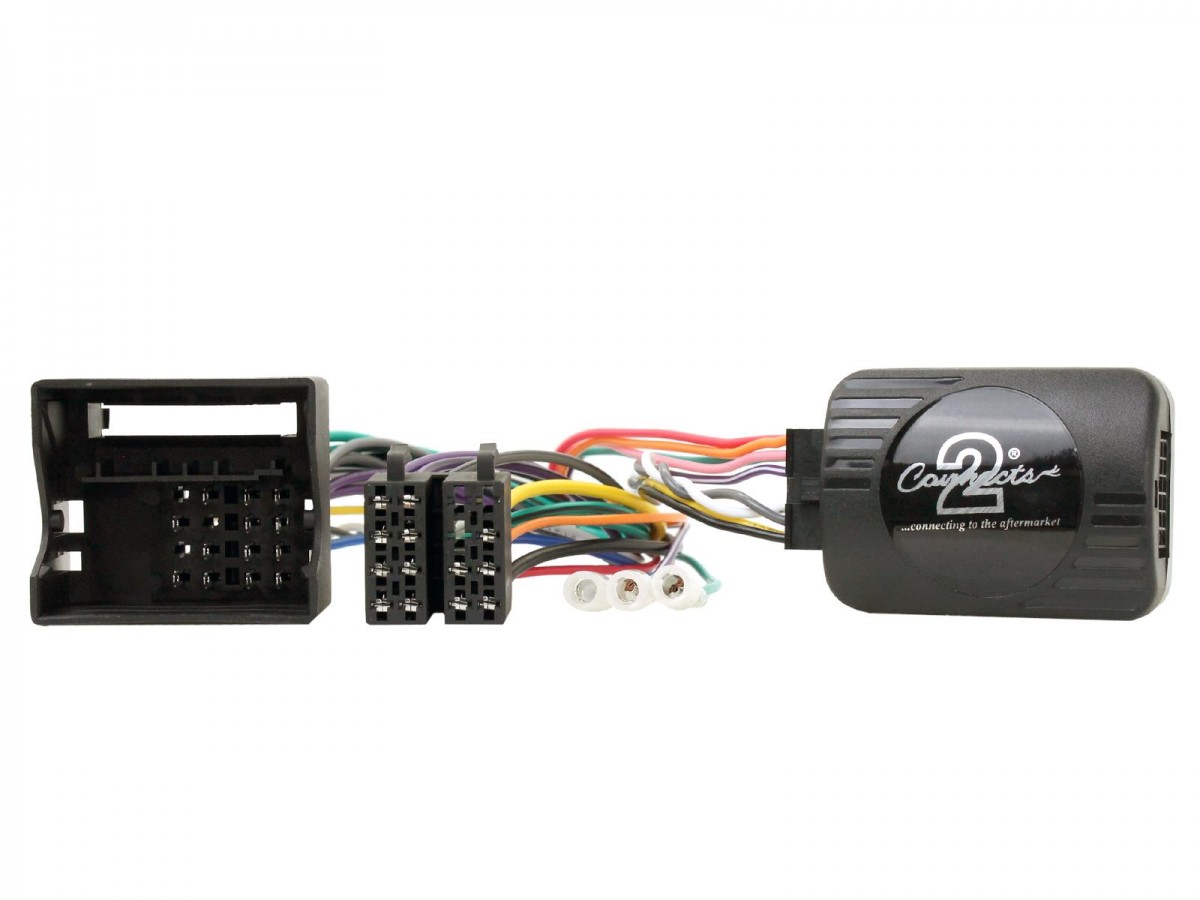

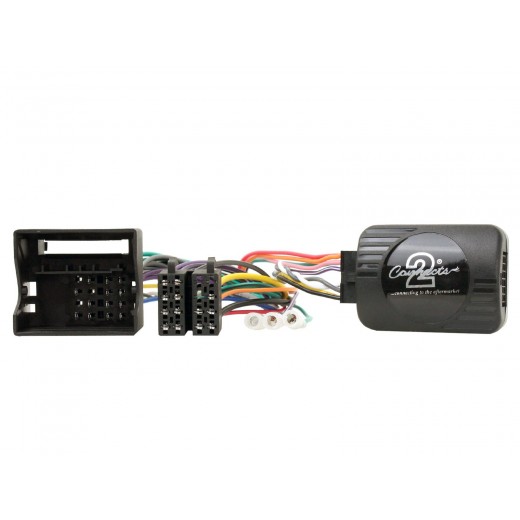

Volkswagen / Seat / Škoda Connects2 steering wheel button control adapter CTSVW002.2

Adapter for VW / Seat / Škoda steering wheel

Adapter for activating the control buttons on the steering wheel when buying an aftermarket car radio with an ISO connector (included in the adapter) for vehicles:

• VW Amarok 2H (2009 ->)   - original car radio RCD 200 /300 / 310 / 500 / 510
• VW EOS 1F (2006 -> 2015)   - original car radio RCD 200 /300 / 310 / 500 / 510
• VW Golf V, VI (2003 -> 2013) - original car radio RCD 200 /300 / 310 / 500 / 510
• VW Jetta (2005 -> 2015) - original car radio RCD 200 /300 / 310 / 500 / 510
• VW Passat B6, B7, 3C, 3C36 (2005 -> 2015) - original car radio RCD 200 /300 / 310 / 500 / 510
• VW Polo 9N, 9N3, 6R (2005 -> 2014)   - original car radio RCD 200 /300 / 310 / 500 / 510
• VW Scirocco (2008 -> 2015)   - original car radio RCD 200 /300 / 310 / 500 / 510
• VW Tiguan 5N (2007 -> 2015)   - original car radio RCD 200 /300 / 310 / 500 / 510
• VW Touran (2003 -> 2015) - original car radio RCD 200 /300 / 310 / 500 / 510
• VW Touareg (2006 ->)   - original car radio RCD 200 /300 / 310 / 500 / 510
• VW Transporter (2003 -> 2015)   - original car radio RCD 200 /300 / 310 / 500 / 510
• VW UP! (VW120) (2011 -> 2016)   - original car radio RCD 200 /300 / 310 / 500 / 510

• Seat Altea 5P (2005 ->)
• Seat Ibiza (2005   -> June 2008)
• Seat Ibiza IV. [6J] [6JN] (June 2008 ->)
• Seat Leon II 1P1 (5/2005   -> 2010)
• Seat Toledo (2005 ->)

• Skoda Fabia (2005 -> 2007)   - the original Audience / Stream car radio
• Skoda Octavia II (2005 -> 2009)   - the original Audience / Stream car radio

Important additional information

• For cars with CAN-Bus control on the steering wheel and FAKRA connector.
• Designed for aftermarket Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker car radios.
• Installation instructions in English can be found under this link .
• To fully activate the adapter, it is necessary to order a connecting cable for the given brand of car radio! (see below).

The adapter includes wires with analog signals

• +12 V after turning on the key (vol. 15) - fitted in the ISO connector.
• +12 V after switching on the vehicle lighting - fitted in the ISO connector.
• +12 V after engaging reverse gear - free wire.
• Speed pulses - free wire.
• Ground (- pole) with the handbrake applied - free wire.
