Volkswagen Jetta OEM parking camera (BC VW-16)

Parking camera for Volkswagen Jetta (BC VW-16)

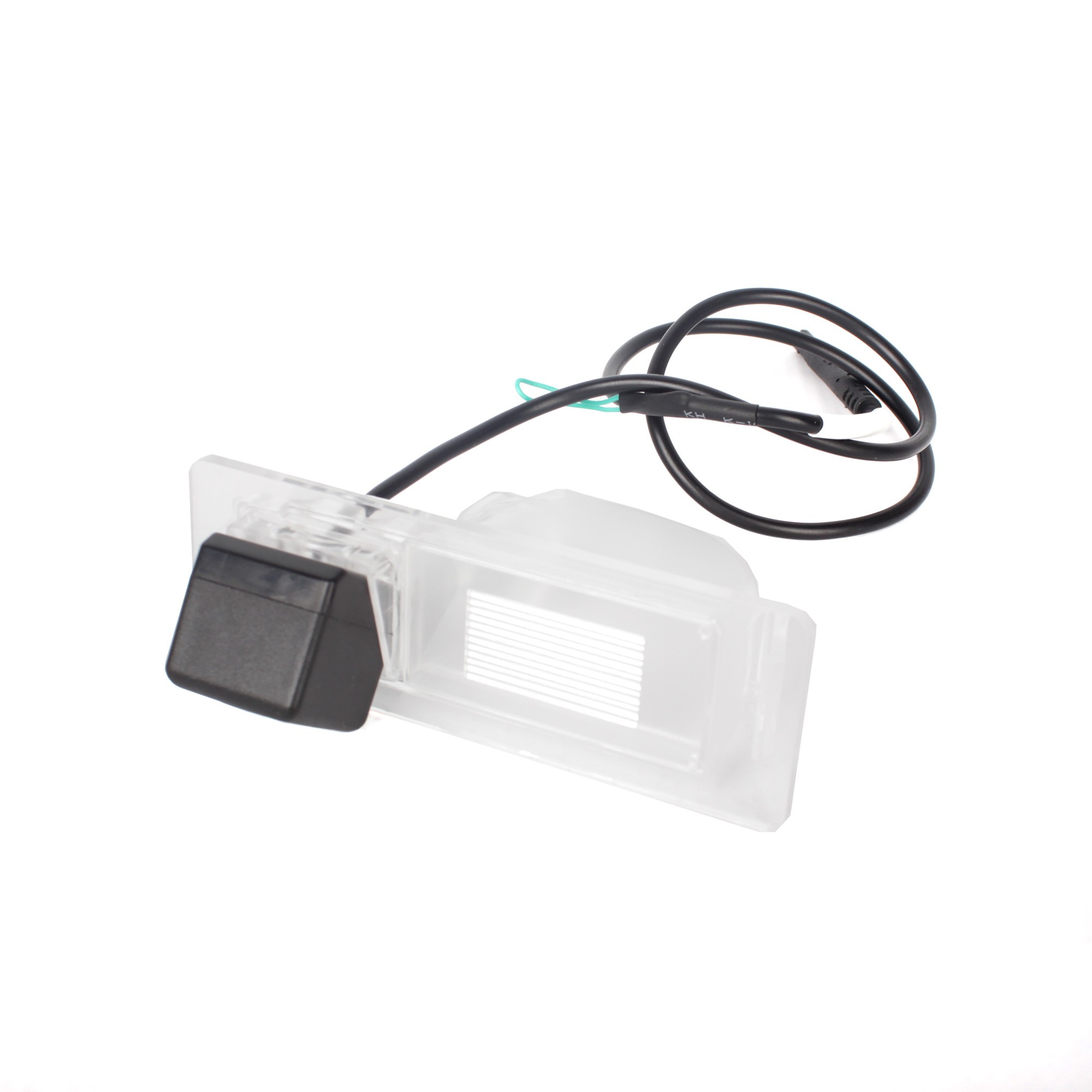

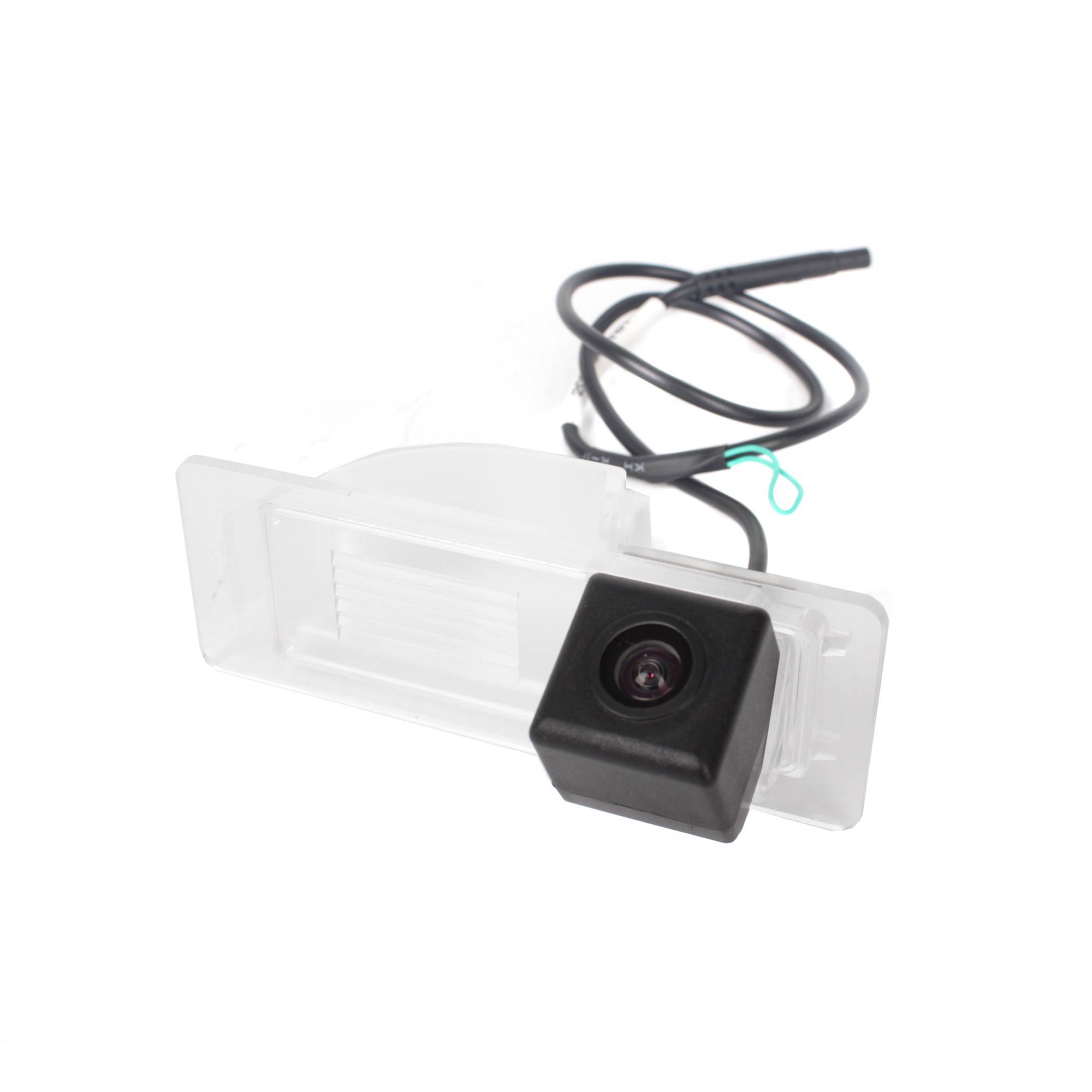

OEM color parking camera for installation into the lamp for the rear license plate illumination. The camera includes a place for the lamp socket from the original license plate light. For VW Jetta vehicles.

The camera is suitable for the following vehicles:

• VW Jetta (2013 ->)

Technical specifications

• image sensor: CMOS 1/3"
• option to turn on / off the display of guiding trajectories (guide lines)
• electronic shutter: 1/60 1/10000 sec.
• minimum illumination: 0.05 lux
• signal-to-noise ratio: > 48 dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal viewing angle: 120°
• image display: mirrored
• white balance: automatic
• operating temperature: from -30 °C to +70 °C
• AGC, BLC, white balance: automatic
• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• power cable: 30 cm
• video output: 1.0 V / 75 ohm
• power supply: 12 V DC
• power consumption: <1 W

Dimensions

• base: 100 x 35 mm
• distance between mounts: 85 mm

Note

The camera is intended for non-original (aftermarket) radios with a CINCH AV input. Use with an original radio may require connecting a video adapter for the parking camera!
