Universal rear parking camera Macrom MRC-1990AHQ AHD / CVBS

Universal Rear Parking Camera Macrom MRC-1990AHQ AHD / CVBS

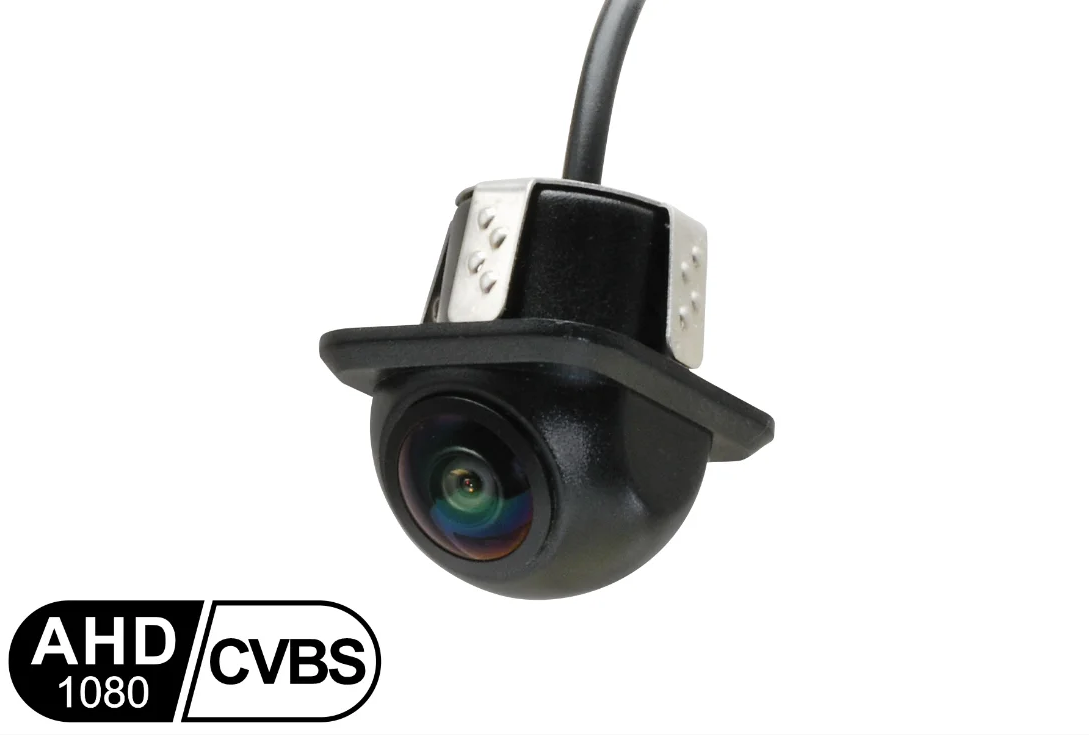

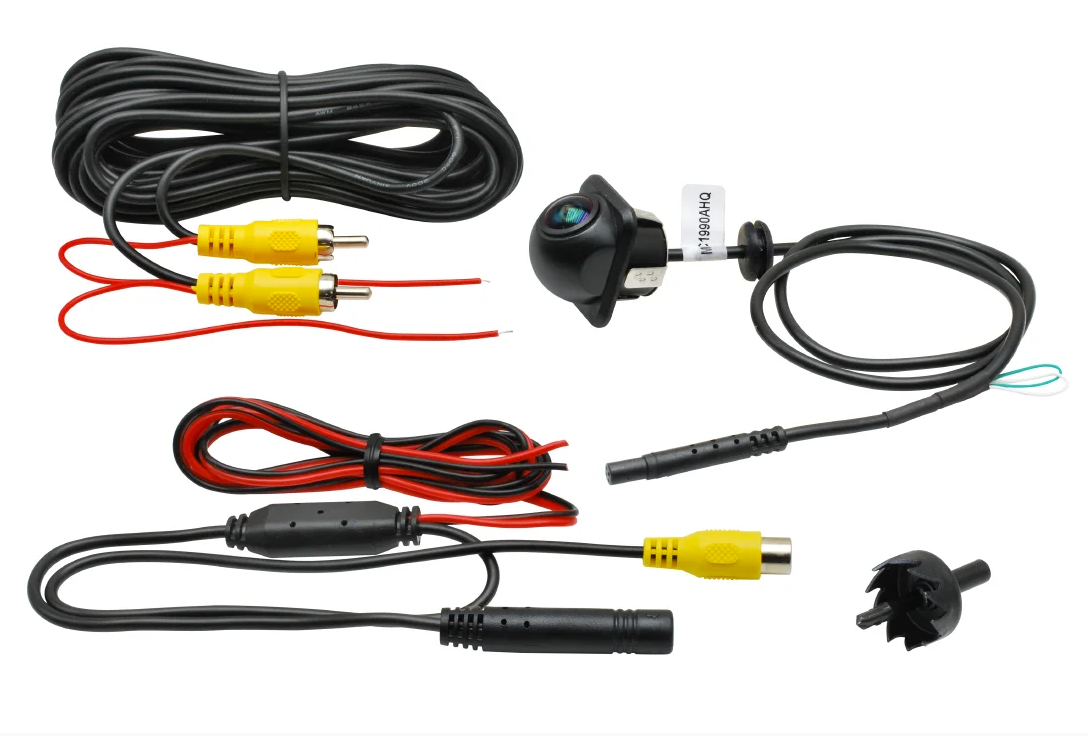

The universal parking camera MRC-1990AHQ is designed for installation in all types of vehicles. With a choice between AHD resolution 1920×1080 and the classic CVBS format, it always delivers a sharp, high-quality image. The camera allows enabling or disabling auxiliary trajectories (guiding lines) and its design permits installation not only at the rear of the vehicle but also under the rearview mirror or on the side of the car to display the area beside the vehicle. A drill bit for installation into a 20 mm diameter hole is included in the package.

Main features

• Universal use for all types of vehicles.
• Selectable between AHD (1920×1080P) and CVBS (733×493P) resolutions.

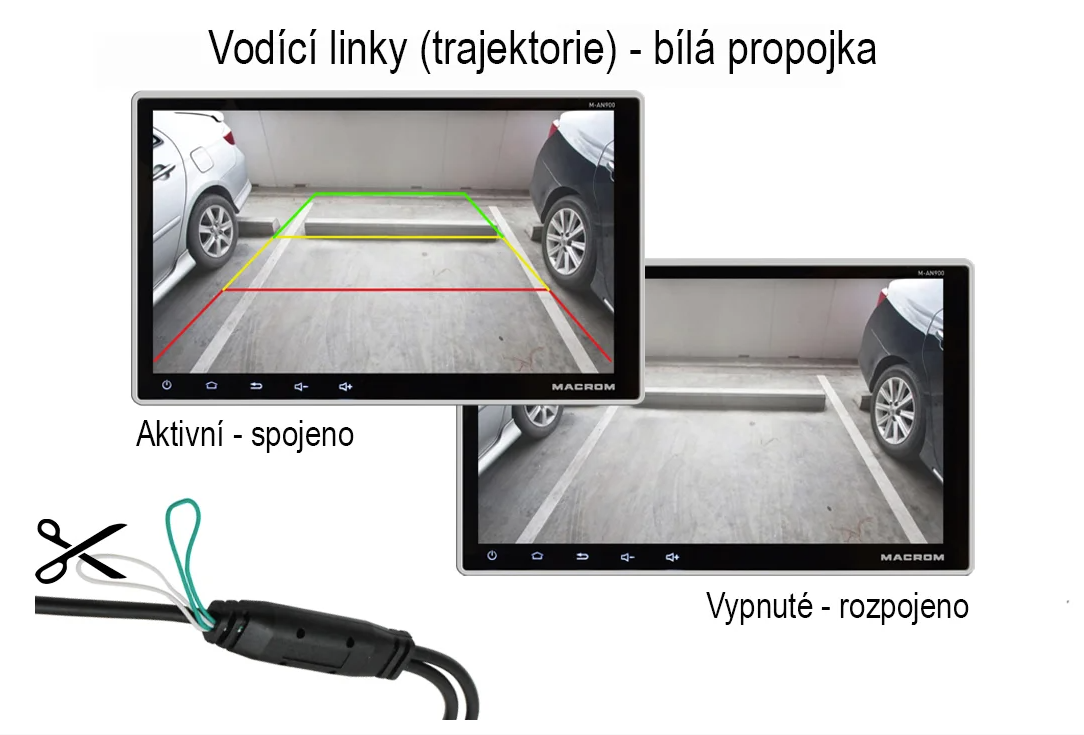

• Option to enable or disable trajectories (guiding lines).

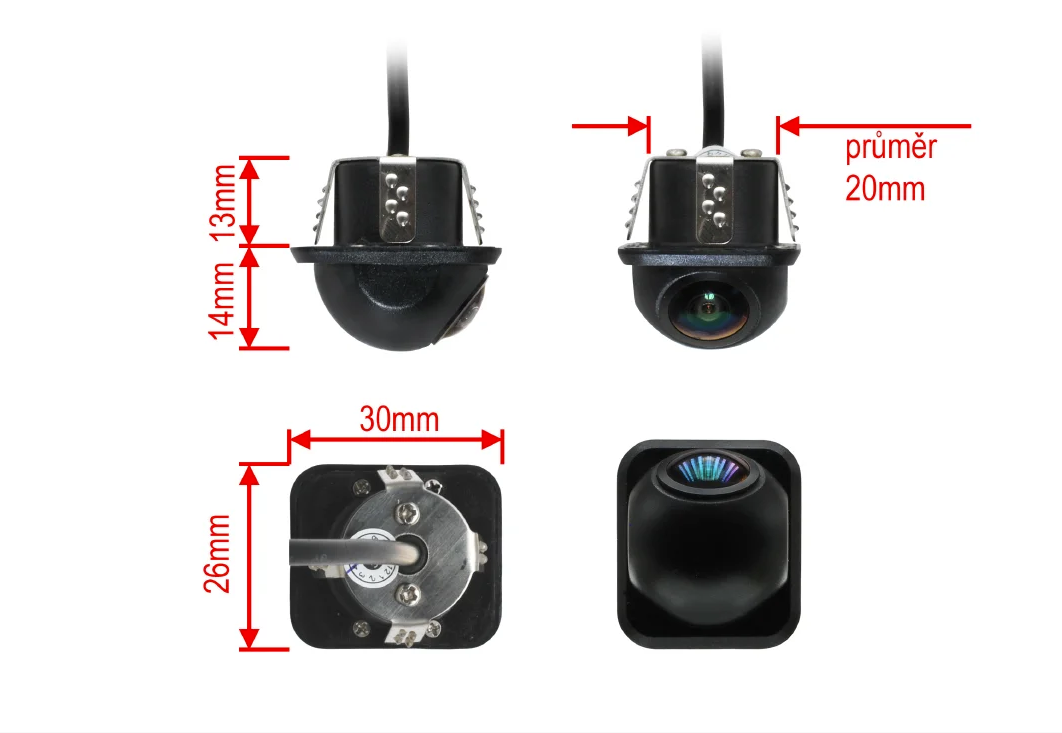

• Installation into a Ø 20 mm hole (drill bit included).

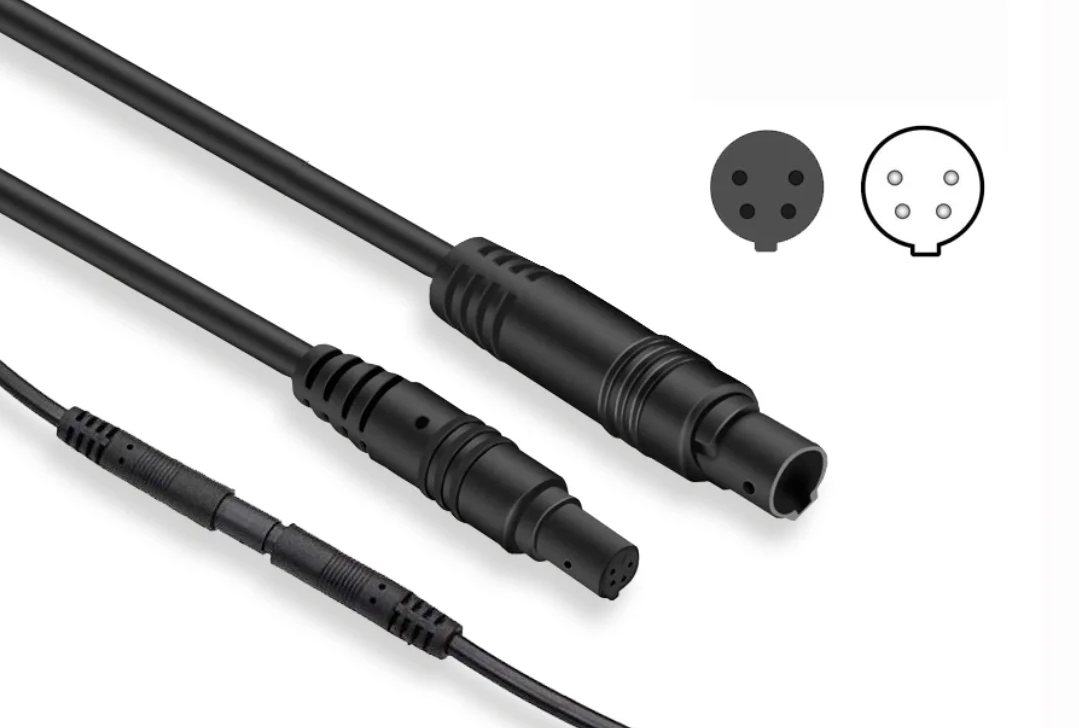

• Narrow connector allowing routing through a 6 mm hole.
• Optional mirrored image.
• High resistance to weather conditions (IP68).

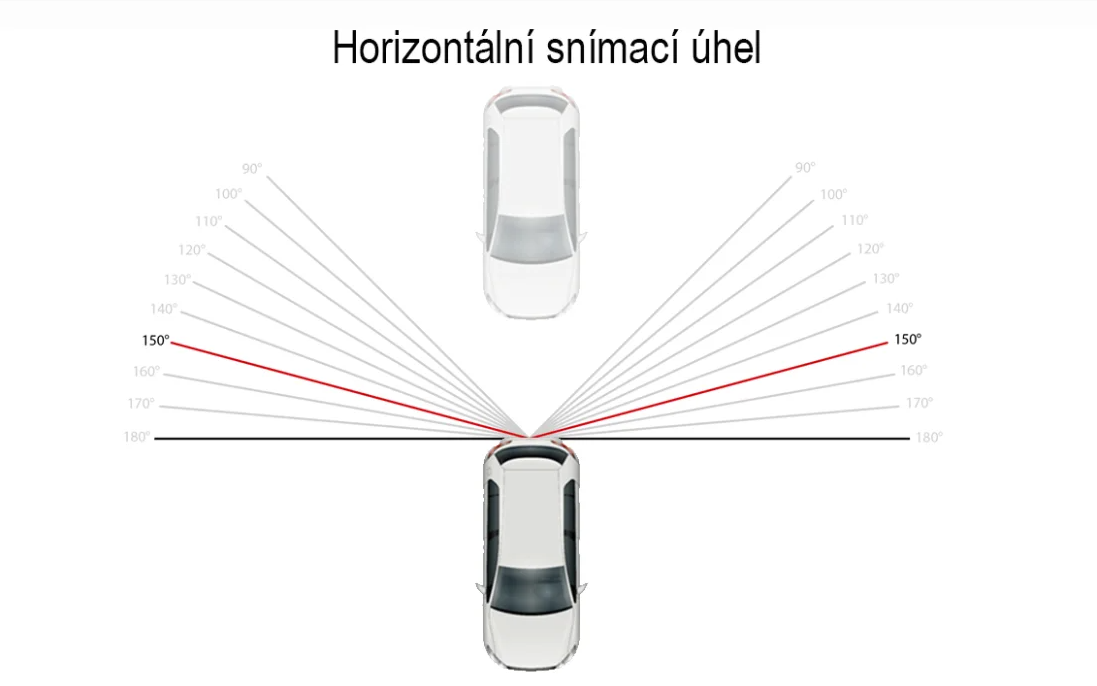

• Wide viewing angle 150°.

Technical specifications

• Resolution: AHD 1920×1080P / CVBS 733×493P (selectable).
• Image sensor: 1/3-inch CMOS.
• Electronic shutter: 1/50 – 1/10000 s.
• Minimum illumination: 0.1 lux.
• Signal-to-noise ratio: >48 dB.
• TV system: NTSC.
• Ingress protection: IP68.
• Viewing angle: 150°.
• Video output: 1.0 V / 75 ohm.
• White balance: automatic.
• Operating temperature: –20 °C to +70 °C.
• Signal cable: length 6 m, RCA connectors.
• Power cable: length 1 m.
• Power supply: 9–16 V DC.
• Power consumption: <1 W.
• Optional display of auxiliary trajectories on the monitor.
