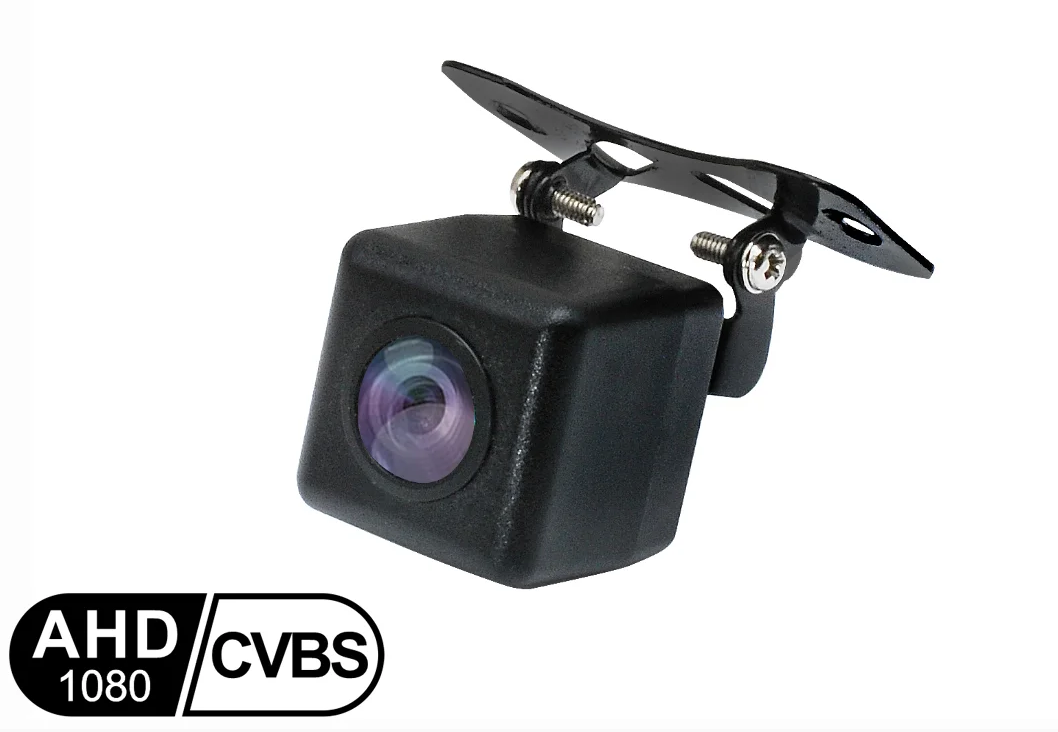

Universal Rear Parking Camera Macrom MRC-1950AHQ AHD / CVBS
The MRC-1950AHQ universal parking camera is suitable for installation in all types of vehicles. With the ability to switch between AHD resolution (1920 × 1080) and the classic CVBS format, it consistently delivers a sharp, clear image. The camera optionally allows the display or hiding of trajectory (guide) lines, making parking maneuvers easier. This model replaces the older 221996 MRF camera and offers improved recording quality and durability.
Key Features
- Universal fit for all vehicle types.

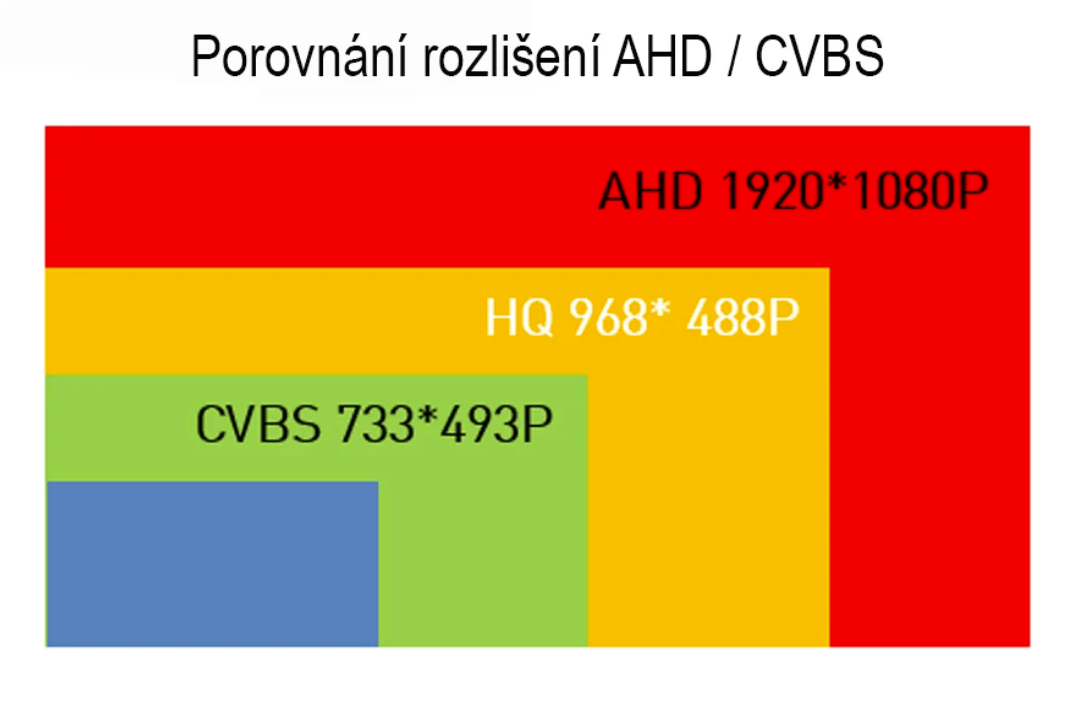

- Selectable AHD (1920 × 1080P) or CVBS (733 × 493P) resolution.

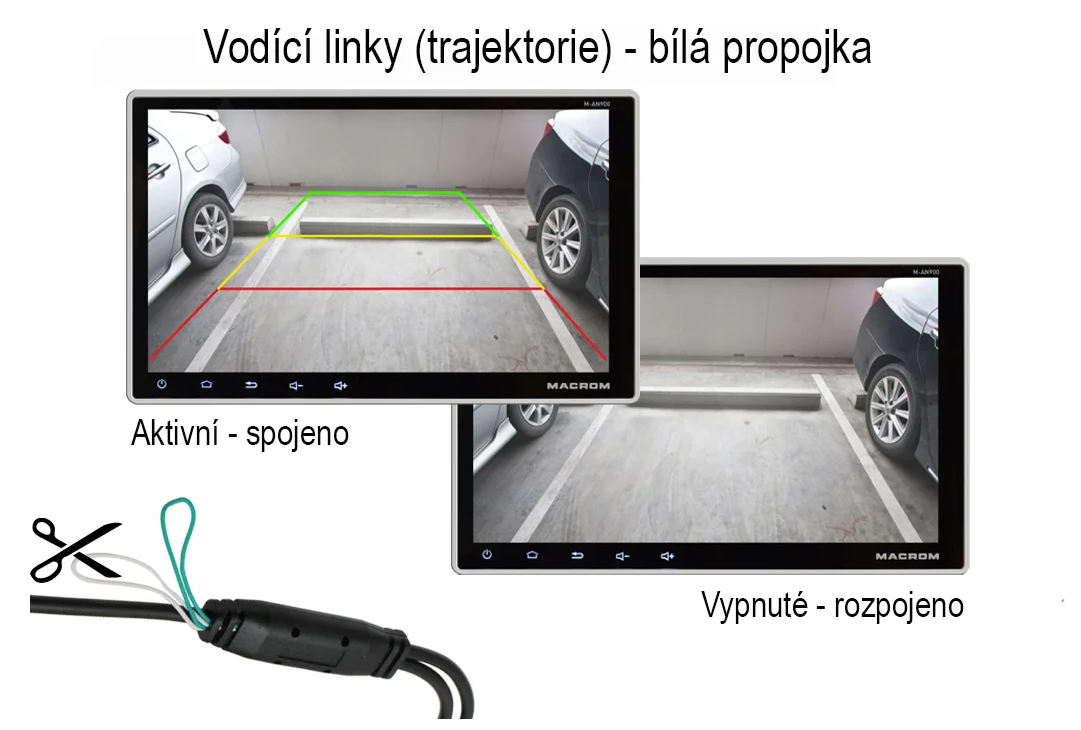

- Optional on/off trajectory (guide line) display.
- CCD sensor providing high image quality.
- Optional mirrored image.
- Durable construction with IP68 protection.

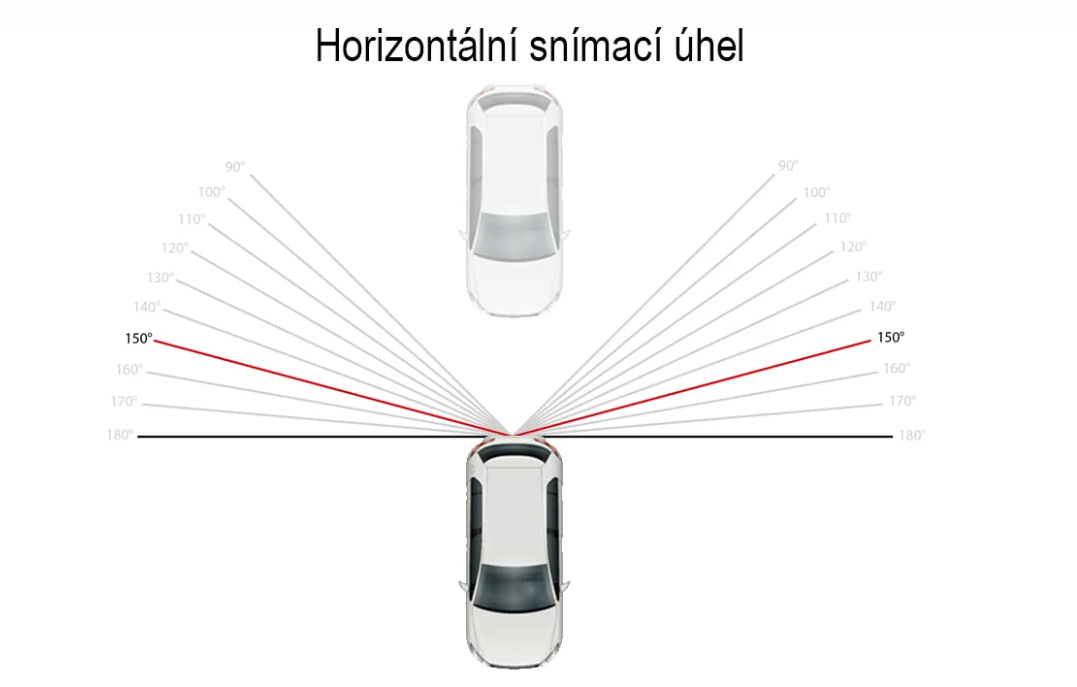

- Wide 150° viewing angle.
- Replaces model 221996 MRF.
Technical Specifications
- Resolution: AHD 1920 × 1080P / CVBS 733 × 493P (selectable).
- Image sensor: CMOS 1/3".
- Lens: 19 mm diameter.
- Electronic shutter: 1/50 – 1/10000 s.
- Minimum illumination: 0.1 Lux.
- Signal-to-noise ratio: >48 dB.
- TV system: NTSC.
- Ingress protection: IP68.
- Viewing angle: 150°.
- Video output: 1.0 V / 75 Ohm.
- White balance: automatic.
- Operating temperature: –20 °C to +70 °C.

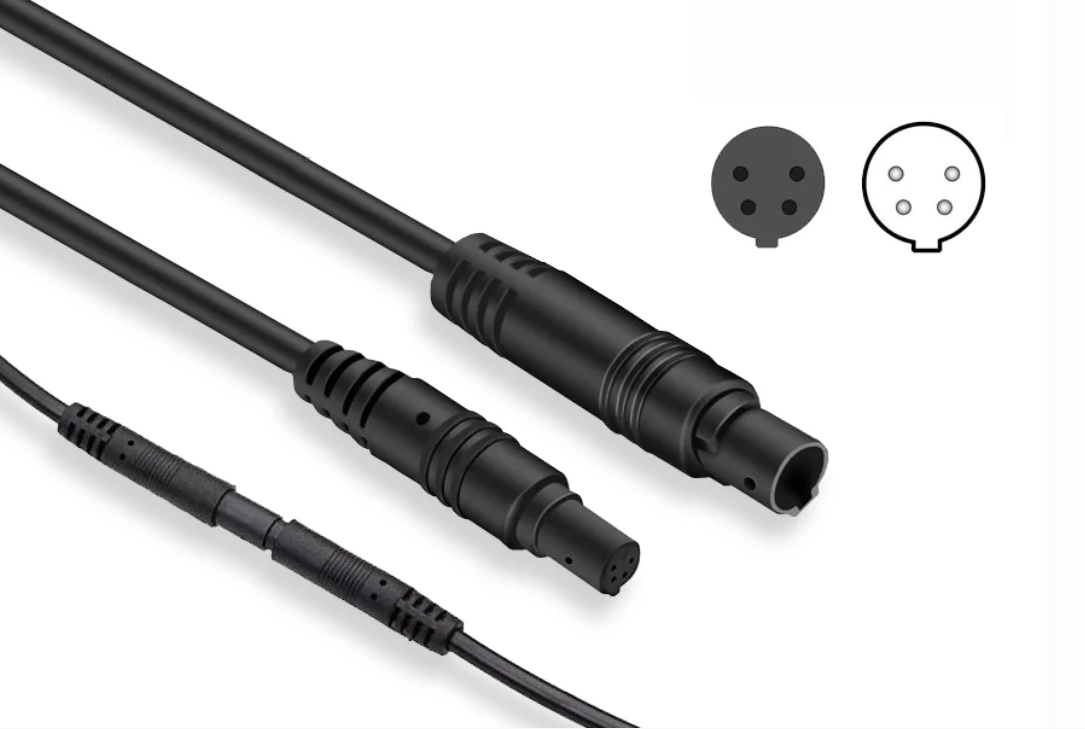

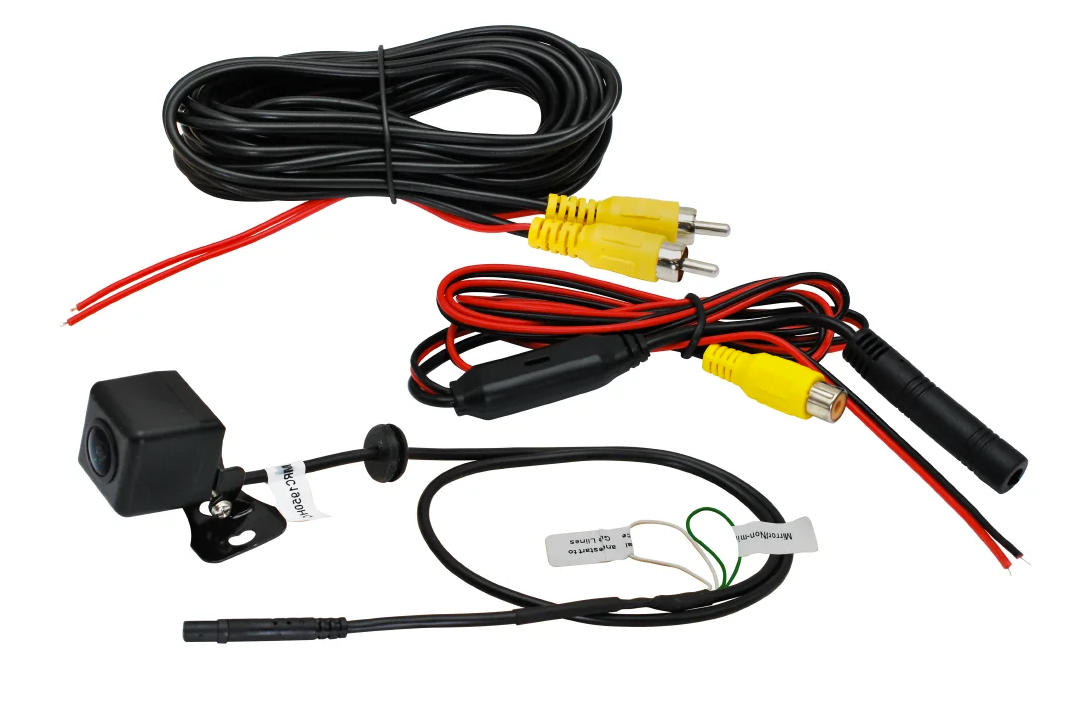

- Signal cable: 6 m length, terminated with RCA (CINCH) connectors.
- Power cable: 1 m length.
- Power supply: 9 – 16 V DC.
- Power consumption: <1 W.
- Optional display of auxiliary guide lines on the monitor.
| Catalog number | 221996 AHD |
| Brand | Macrom |
