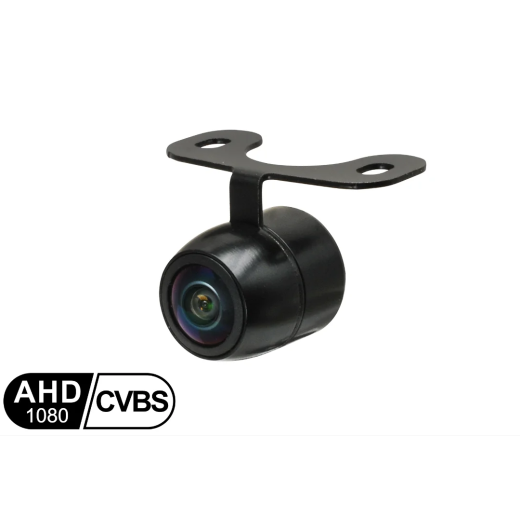

Universal rear parking camera Macrom MRC-1880AHQ

Universal Rear Parking Camera Macrom MRC-1880AHQ

The universal parking camera MRC-1880AHQ is suitable for installation in all types of vehicles. Thanks to the ability to switch between AHD resolution 1920×1080 and the classic CVBS format, it always delivers a high-quality, sharp image. The camera supports enabling or disabling parking guidelines for easier parking. Installation is done using self-tapping screws into the license plate light area or door handle, ensuring a universal and discreet placement.

Main features

• Universal use for all types of vehicles.
• Easy installation using self-tapping screws (e.g., to the license plate light or door handle).

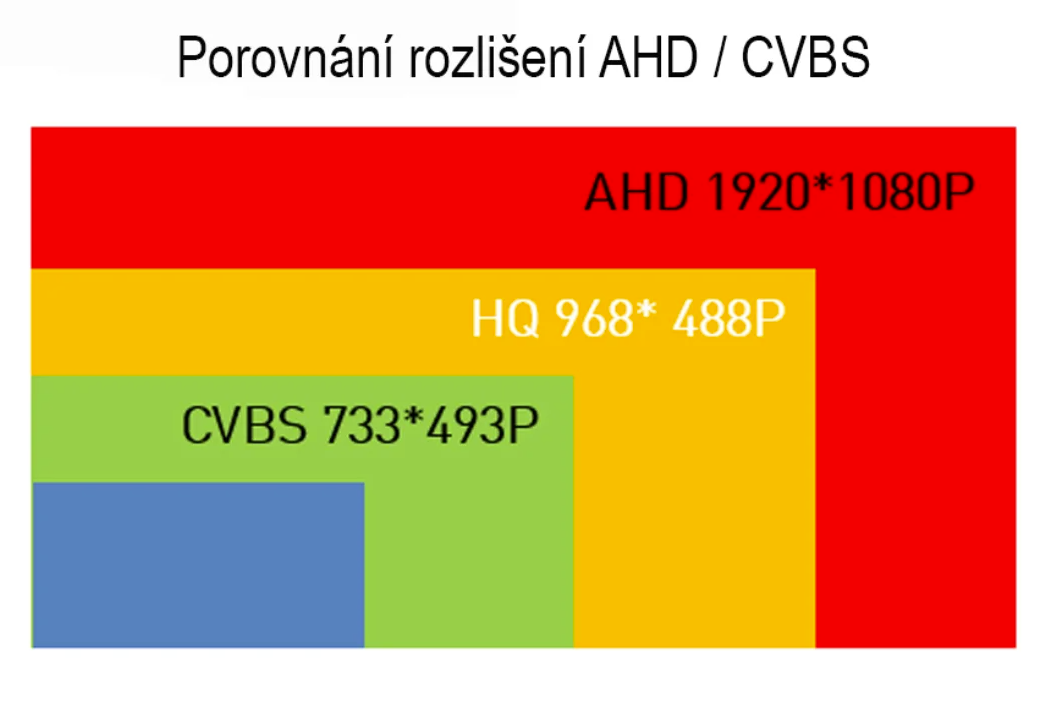

• Selectable AHD (1920×1080P) and CVBS (733×493P) resolutions.
• Option to enable or disable parking guidelines.
• CMOS sensor with high image quality.
• Optional mirrored image.
• Weatherproof (IP68).

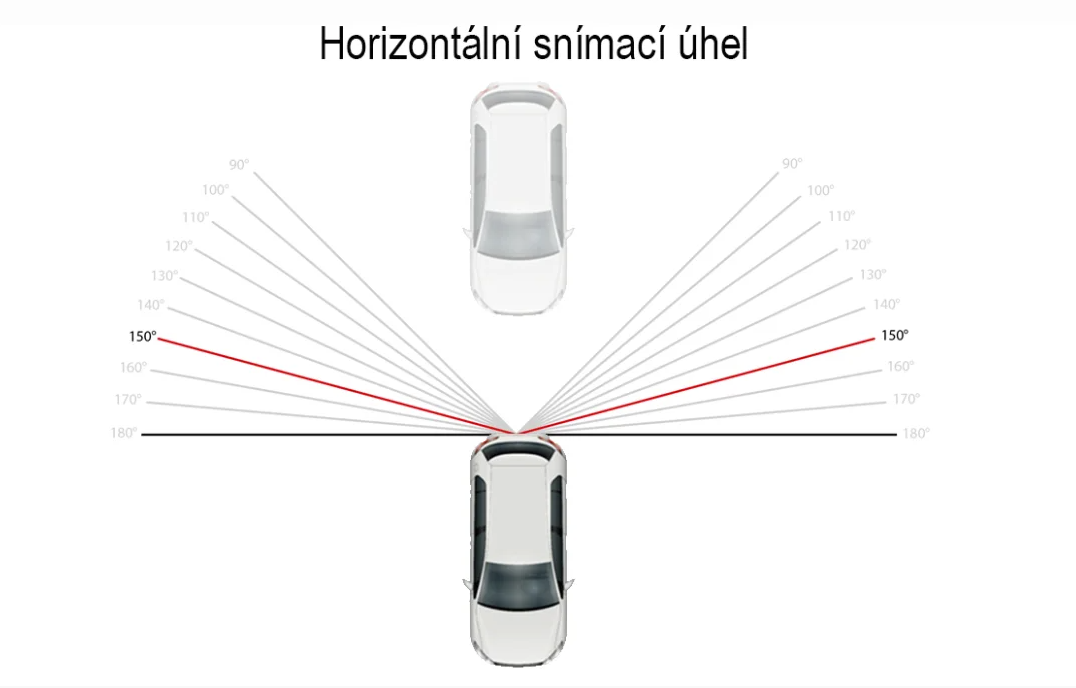

• Wide viewing angle of 150°.

Technical specifications

• Resolution: AHD 1920×1080P / CVBS 733×493P (selectable).
• Imaging chip: CMOS 1/3".

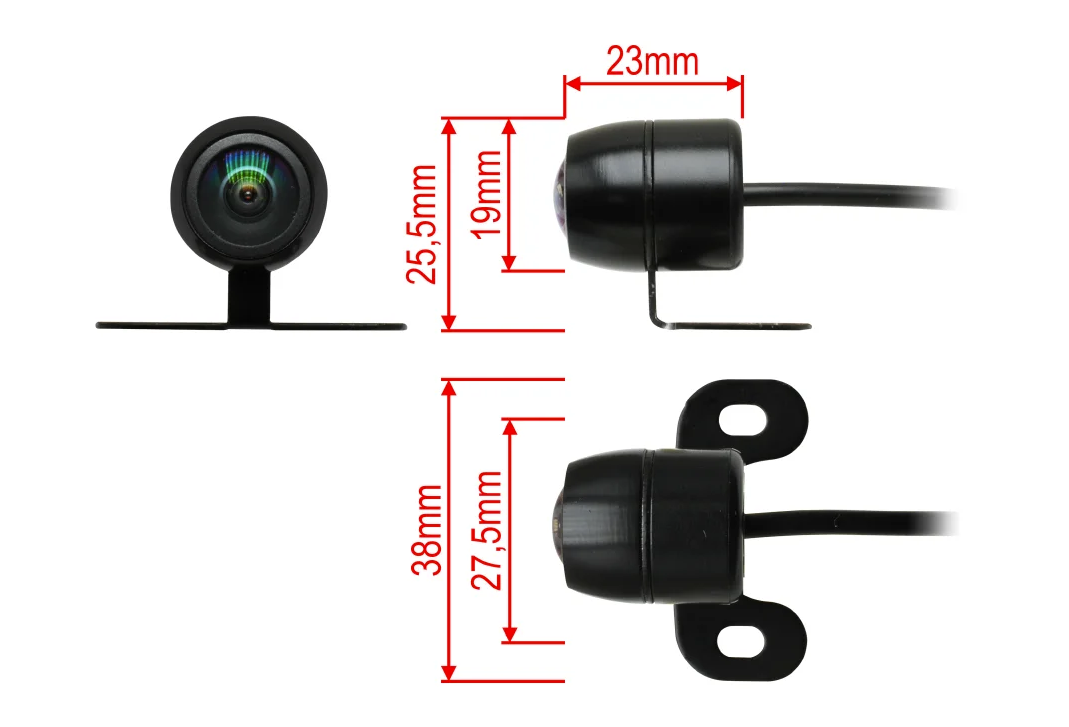

• Lens: diameter 19 mm.
• Electronic shutter: 1/50 – 1/10000 s.
• Minimum illumination: 0.1 Lux.
• Signal-to-noise ratio: >48 dB.
• TV system: NTSC.
• Ingress protection: IP68.
• Viewing angle: 150°.
• Video output: 1.0 V / 75 Ohm.
• White balance: automatic.
• Operating temperature: –20 °C to +70 °C.

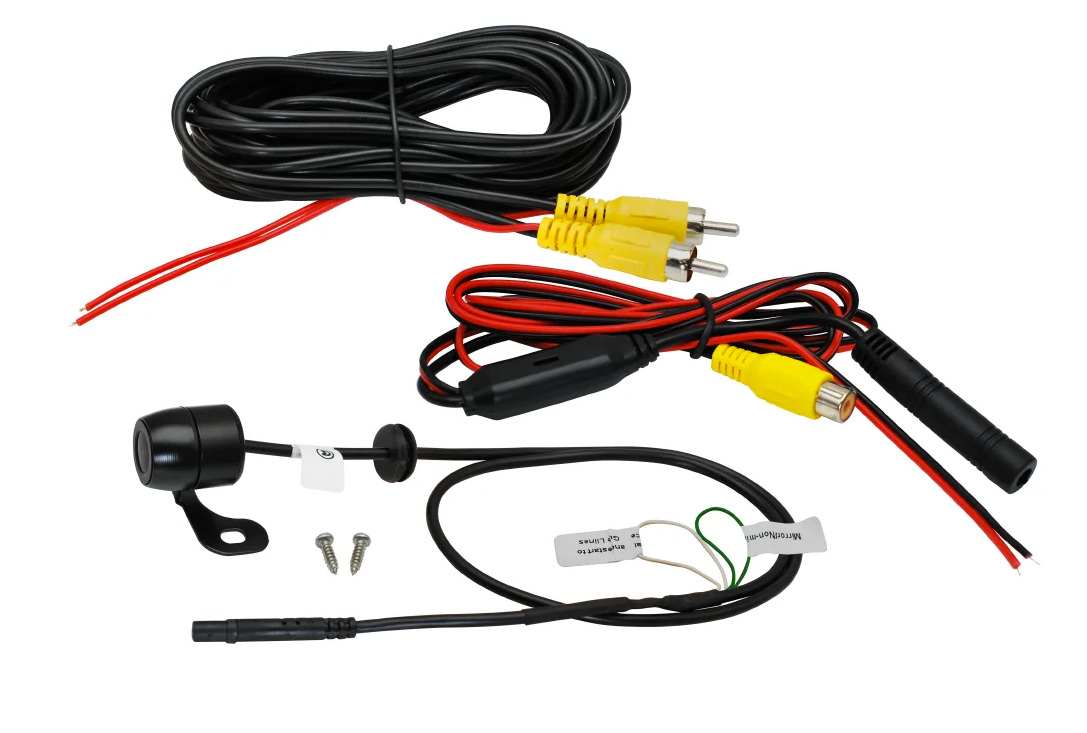

• Signal cable: length 6 m, terminated with CINCH connectors.
• Power cable: length 1 m.
• Power supply: 9–16 V DC.
• Power consumption: <1 W.
• Optional display of auxiliary guidelines on the monitor.
