Universal Rear Parking Camera Macrom AHD / CVBS

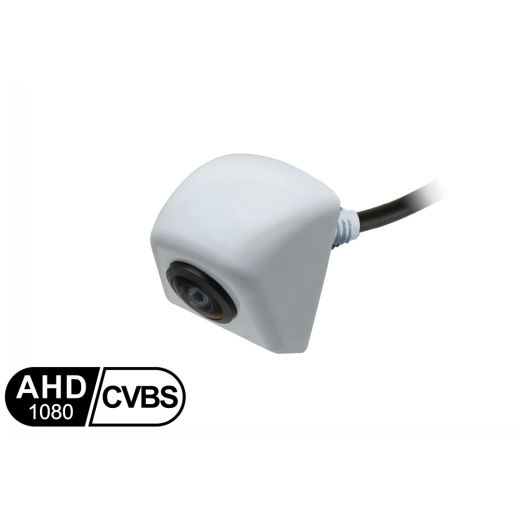

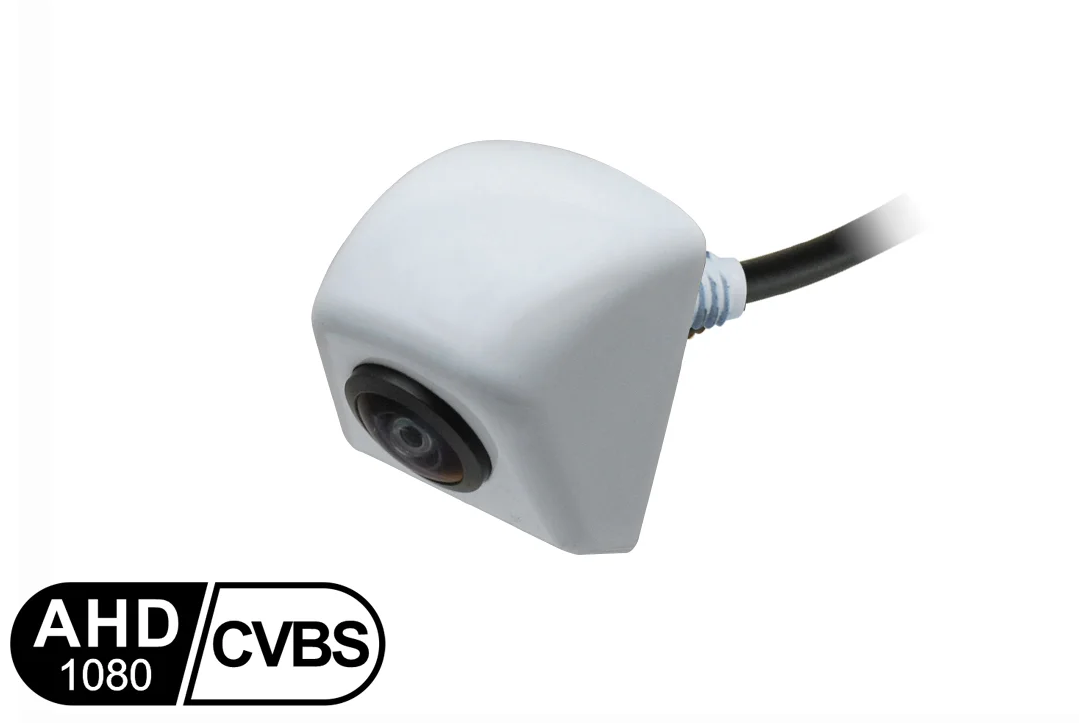

The universal rear parking camera is designed for installation on a vertical surface at the rear of a car, van, motorhome or caravan. With the option to choose between high AHD resolution 1920×1080 and the classic CVBS format, it always delivers a clear and detailed image. The camera allows enabling or disabling guiding lines (trajectory) and significantly facilitates parking and maneuvering in tight spaces. Its compact design and installation into a 6 mm diameter circular hole ensure easy and unobtrusive placement.

Key features

• Suitable for motorhomes, RVs and delivery vans.
• Mounting on a vertical surface using a Ø 6 mm hole.
• Switching between AHD (1920 × 1080P) and CVBS (733 × 493P) resolution.
• Option to turn guiding lines (trajectories) on/off.
• CMOS sensor with high image quality.
• Weather-resistant (IP68).
• Wide viewing angle up to 170° (diagonal).
• Compact dimensions for discreet installation.

Technical specifications

• Switchable resolution: AHD 1920 × 1080 / CVBS 733 × 493.
• Option to turn guiding lines on/off.
• Image sensor: 1/3" CMOS.
• Lens: diameter 1.9 mm / F2.0.
• TV system: NTSC.

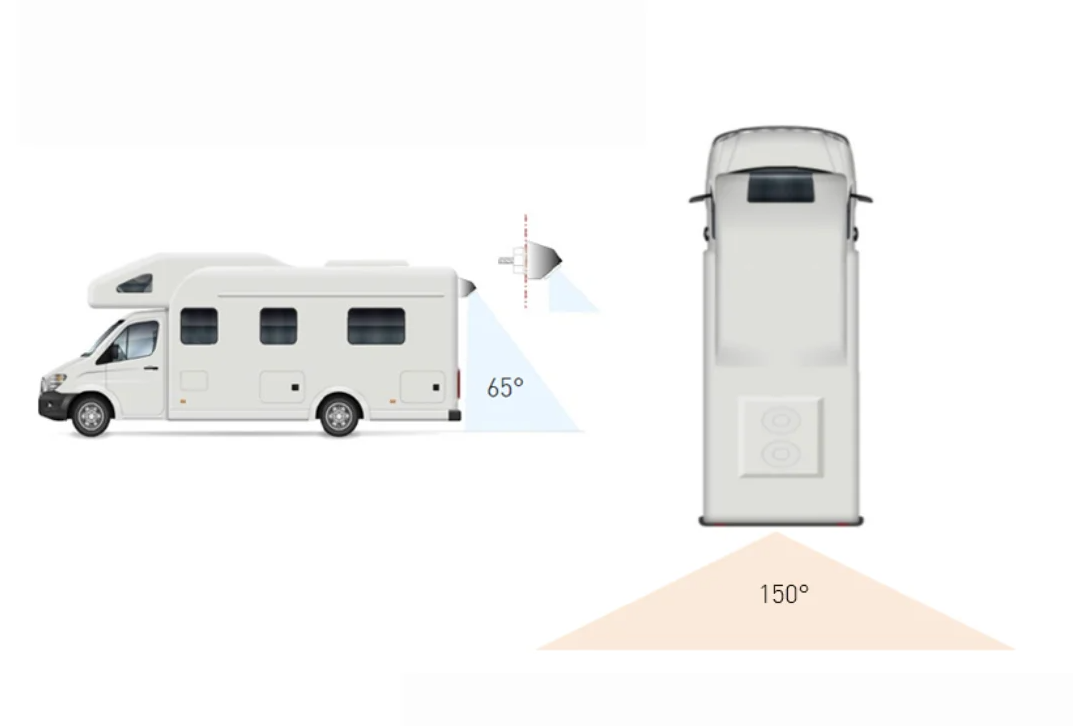

• Viewing angle: 170° (diagonal) / 150° (horizontal) / 65° (vertical).
• Minimum illumination: 0.1 Lux.
• Electronic shutter: 1/50 – 1/10000 s.
• Signal-to-noise ratio: >48 dB.
• Ingress protection: IP68.
• Video output: 1.0 V / 75 Ω.
• White balance: automatic.
• Operating temperature: –30 °C to +75 °C.
• Power supply: 9–16 V DC.
• Power consumption: 60 mA.

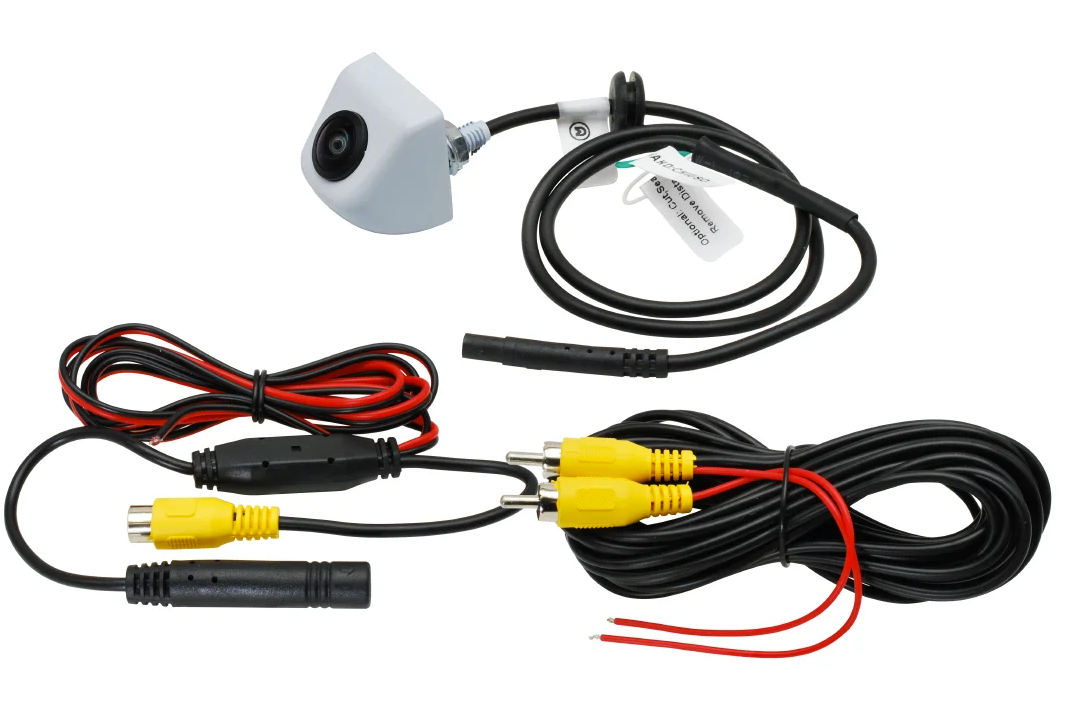

• Signal cable: length 6 m, terminated with RCA connectors.

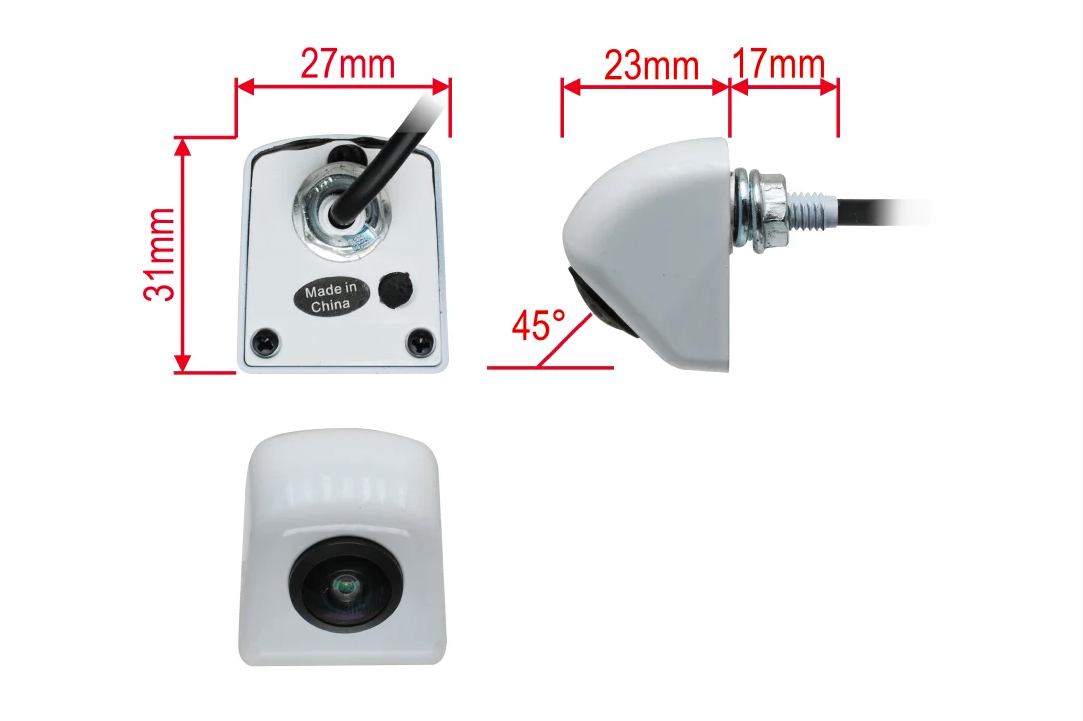

• Dimensions: 31 × 27 × 23 mm (H × W × D).
