Universal parking camera (BC UNI-WIDE AHD)
universal miniature parking camera with a 180° viewing angle, with Full HD resolution 1080p (AHD signal)
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
Universal parking camera (BC UNI-WIDE AHD)

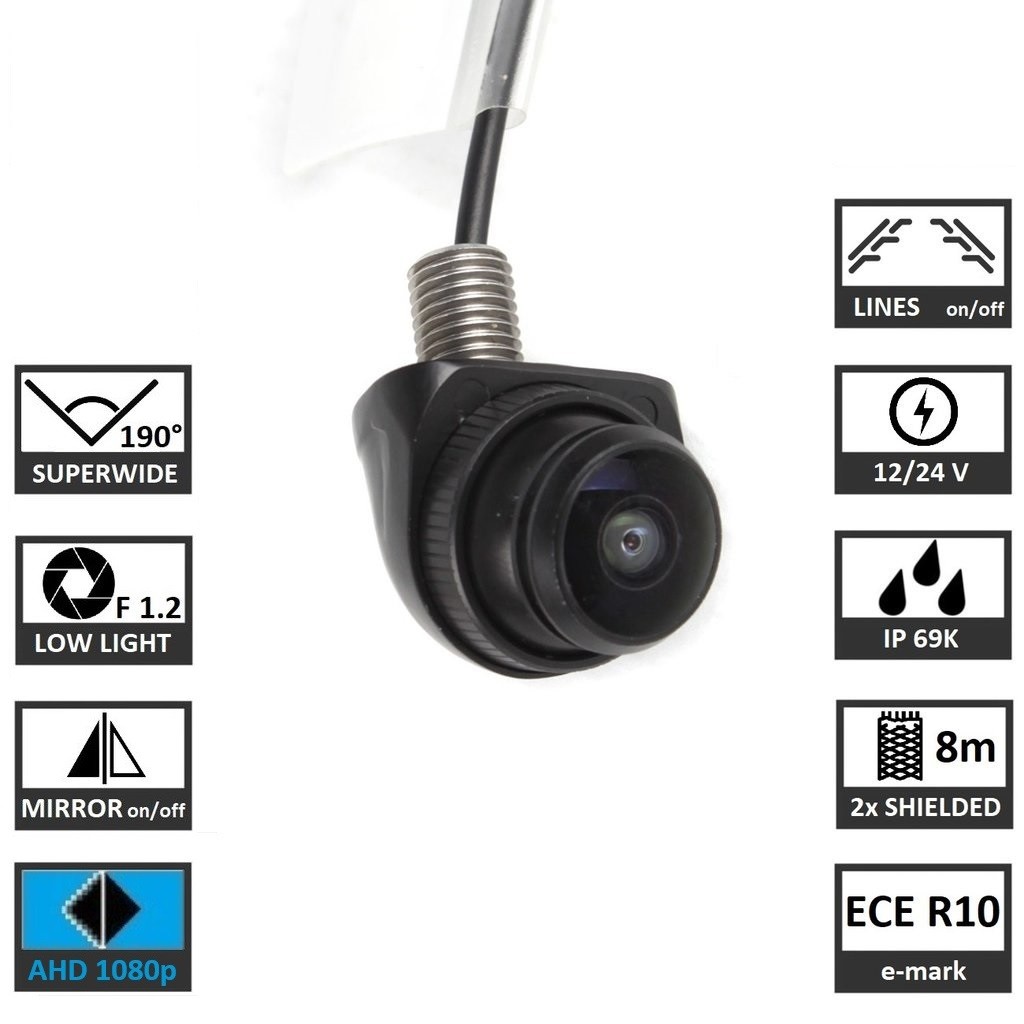

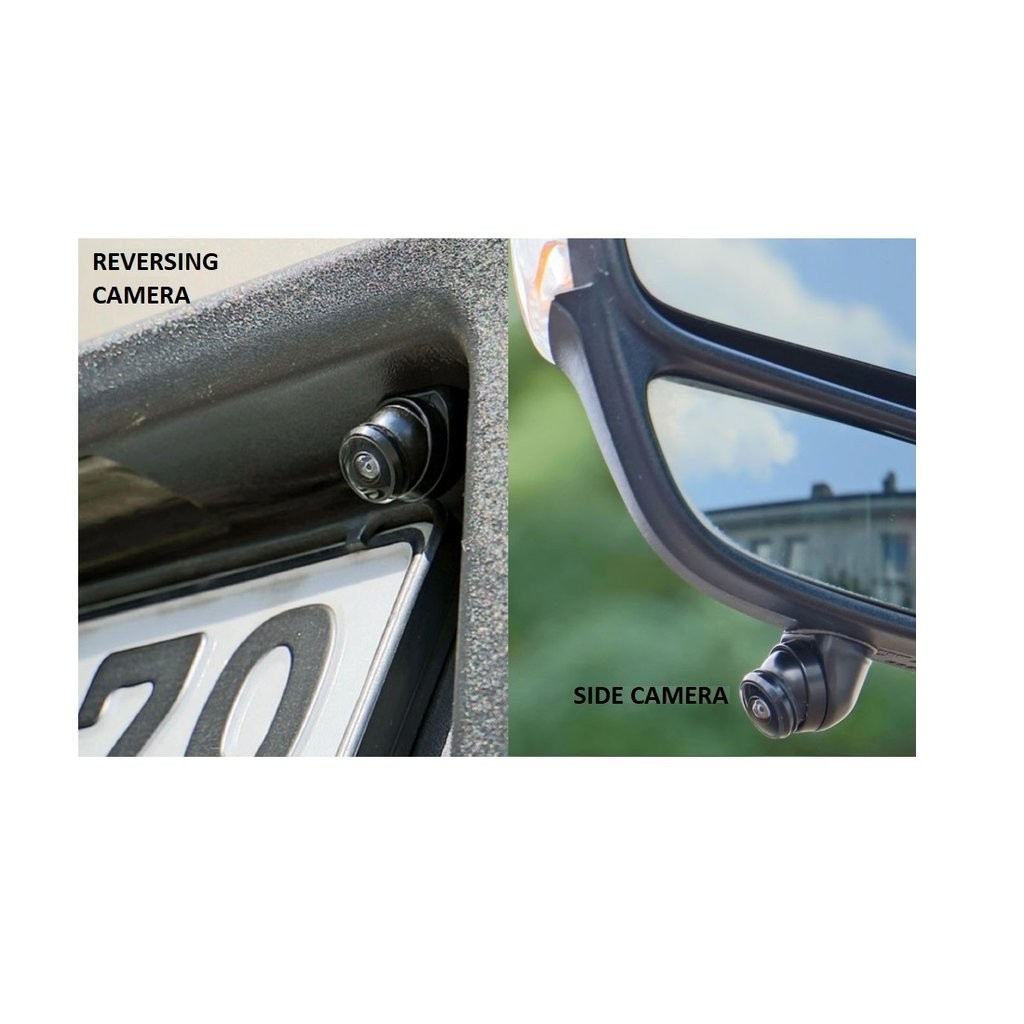

Universal miniature parking camera with a viewing angle of 180°, with Full HD resolution 1080p - AHD signal, use as a parking camera in the area of the license plate, or as a side camera in the rearview mirror, or as a front camera in the grille of the front mask/bumper, with the possibility of turning on guide lines and changing the orientation of the left/right side of the image. For viewing, use an AHD compatible monitor (e.g. TFT5A2, TFT7HD2, TFT MIRROR7,...).
Technical parameters
1/3" low light HD CMOS sensor
scanning angle: 180° horizontal
image resolution 1920x1080 (1080p)
signal type: AHD
luminosity F1.2
power supply: 12V/24V
TV system: NTSC
auto BLC
weather protection: IP69

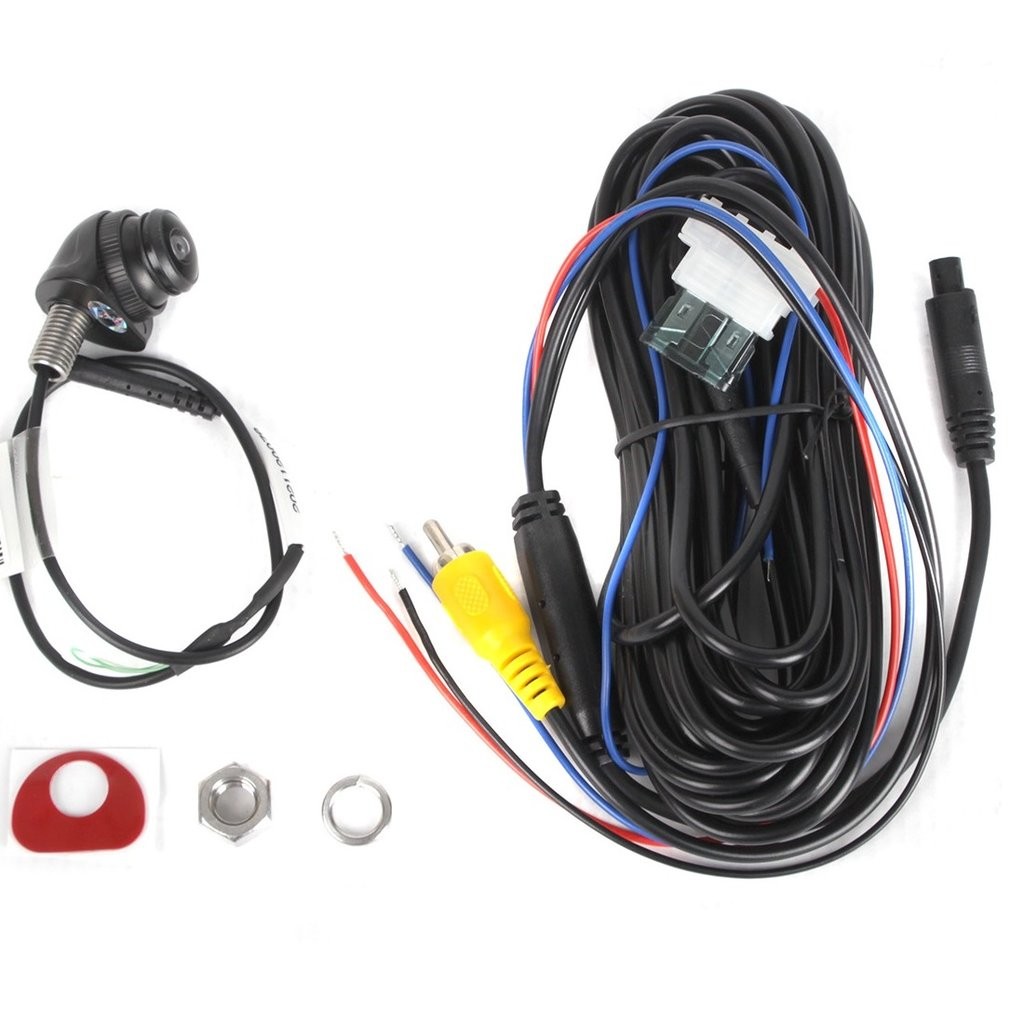

Cableing
double shielding
length 8m
ended with CINCH connector
slim connector 5mm
2 power connection options
from reverse
from ignition
Working temperature -20℃ to 75℃
ECE R10
Function:
GREEN LOOP - guide lines - disappear after cutting the loop (they are displayed by default).
WHITE LOOP - image orientation - left/right side is swapped after cutting the loop.
Universal miniature parking camera with a viewing angle of 180°, with Full HD resolution 1080p - AHD signal, use as a parking camera in the area of the license plate, or as a side camera in the rearview mirror, or as a front camera in the grille of the front mask/bumper, with the possibility of turning on guide lines and changing the orientation of the left/right side of the image. For viewing, use an AHD compatible monitor (e.g. TFT5A2, TFT7HD2, TFT MIRROR7,...).
Technical parameters
1/3" low light HD CMOS sensor
scanning angle: 180° horizontal
image resolution 1920x1080 (1080p)
signal type: AHD
luminosity F1.2
power supply: 12V/24V
TV system: NTSC
auto BLC
weather protection: IP69
Cableing
double shielding
length 8m
ended with CINCH connector
slim connector 5mm
2 power connection options
from reverse
from ignition
Working temperature -20℃ to 75℃
ECE R10
Function:
GREEN LOOP - guide lines - disappear after cutting the loop (they are displayed by default).
WHITE LOOP - image orientation - left/right side is swapped after cutting the loop.
| Catalog number | BC UNI-WIDE AHD |
| Brand | TSS Group |
