Universal parking camera (BC UNI-FLAT AHD)

Universal parking camera (BC UNI-FLAT AHD)

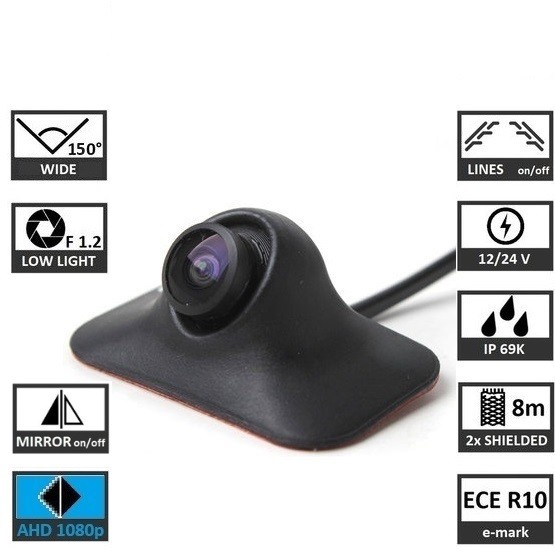

Universal parking camera, Full HD resolution 1080p - AHD signal, can be used as a front camera without guide lines, or a parking camera, viewing angle 150°, mounted on a flat surface using 3M tape. For viewing, use an AHD compatible monitor (e.g. TFT5A2, TFT7HD2, TFT MIRROR7,...).
Technical parameters
1/3" low light HD CMOS sensor
Sensing angle:       150° horizontal
Image resolution  1920x1080 (1080p)
Signal type:        AHD
Aperture          F1.2
Power supply: 12V/24V
TV system: NTSC
auto BLC
Weather protection: IP69
Cableing
double shielding
Length 8m
Ended with CINCH connector
Slim connector 5mm
2 power connection options
From reverse
From ignition
Working temperature      -20℃ to 75℃
ECE R10
Function
GREEN LOOP - guide lines - disappear after cutting the loop (they are displayed by default)
WHITE LOOP - image orientation       - left/right side is swapped after cutting the loop

Catalog number	BC UNI-FLAT AHD
Brand	TSS Group
