Universal parking camera

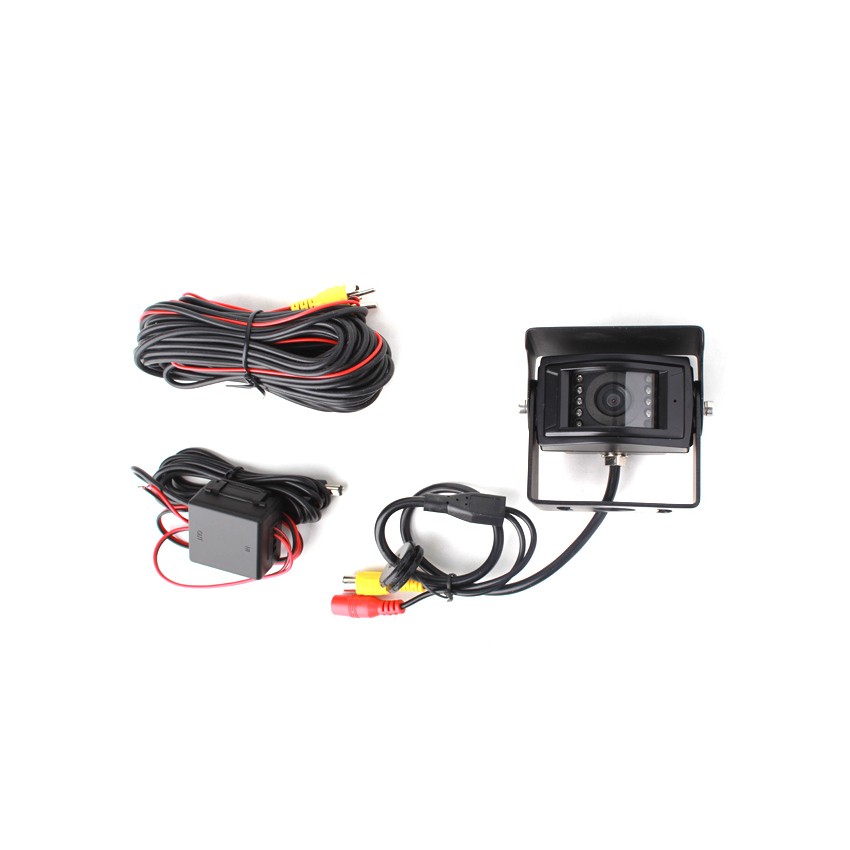

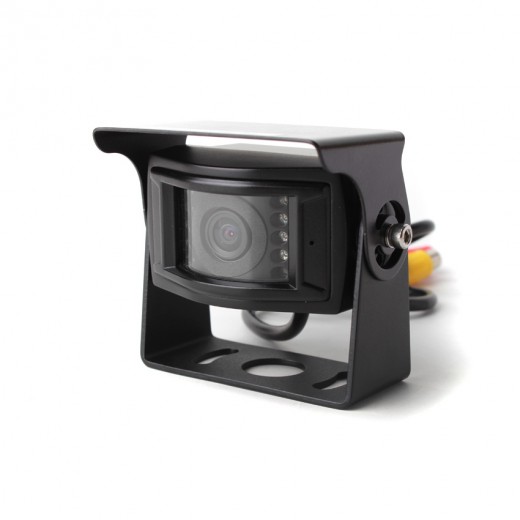

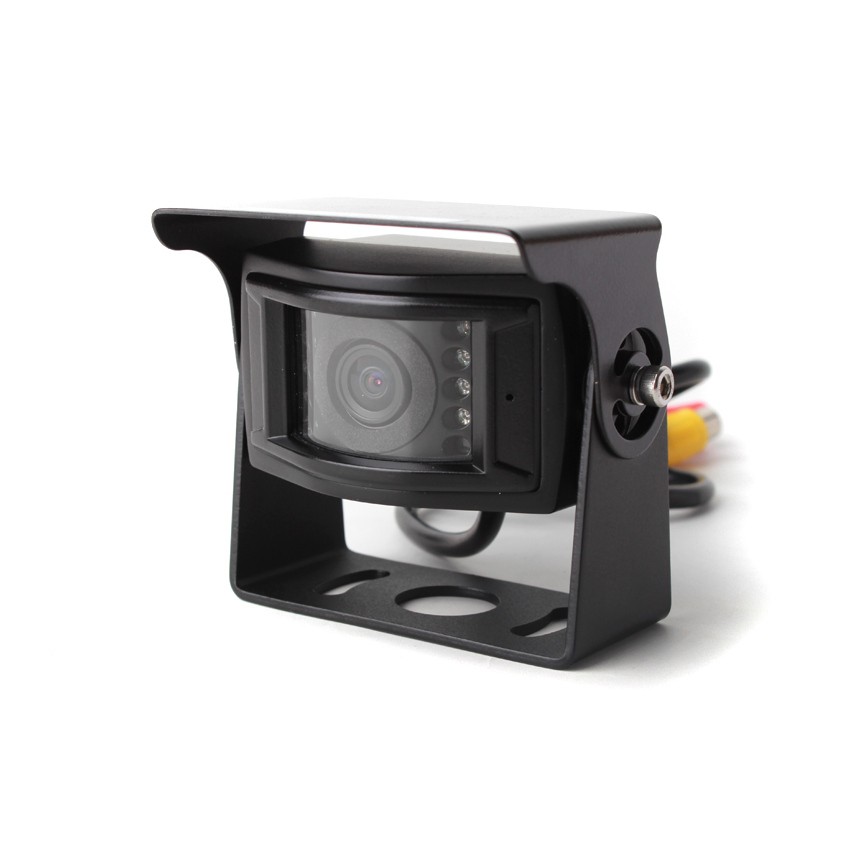

Universal parking camera, 12V / 24V, SONY CCD sensor, without guide lines, angle of view 150°, with automatic IR illumination, metal camera body.
Technical parameters of the camera
- Waterproof design: IP67.
- CCD Sony 1/3" sensor chip.
- Electronic aperture: 1/50 1/10000 sec.
- Minimum illumination: 0.01 lux.
- IR illumination of 10 LEDs.
- Signal-to-noise ratio: >48 dB.
- TV system: NTSC.
- Number of TV lines: 480.
- Weather protection: IP67.
- Scanning angle: 150°.
- Video output: 1.0V / 75 ohm.
- White balance: automatic.
- Operating temperature: from -30°C to +70°C.
- Signal cable length 7m terminated with CINCH/RCA connectors.
- Power cable length 1 m.
- Power supply: 12 - 24 V DC.
- Consumption: <1W.
- Image switching: normal / mirror.
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
| Catalog number | BC UNI-09 |
| Brand | TSS Group |
