Thinkware MB100 video splitter

Thinkware MB100 video splitter

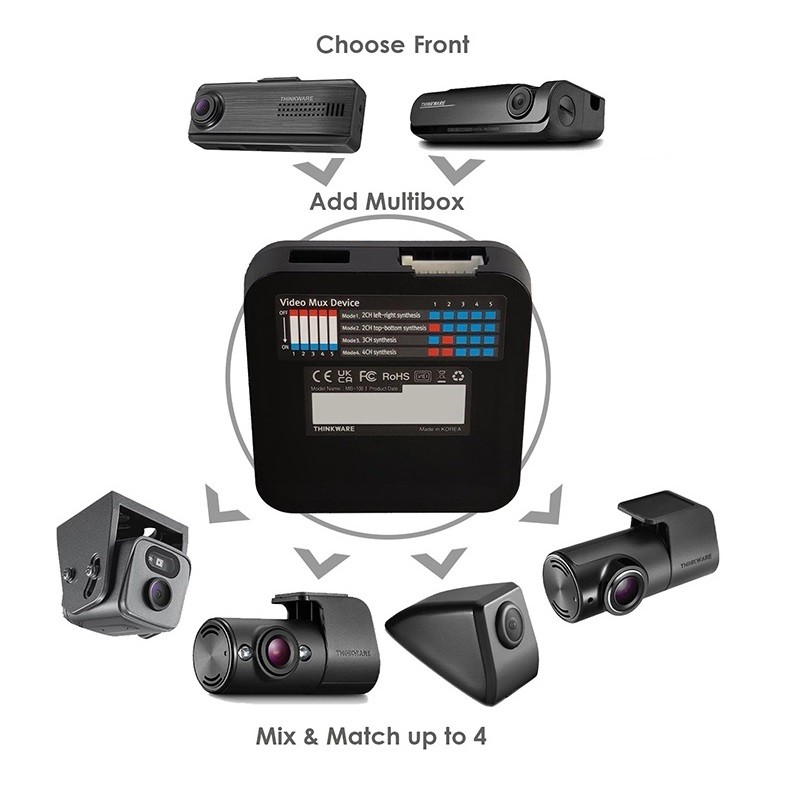

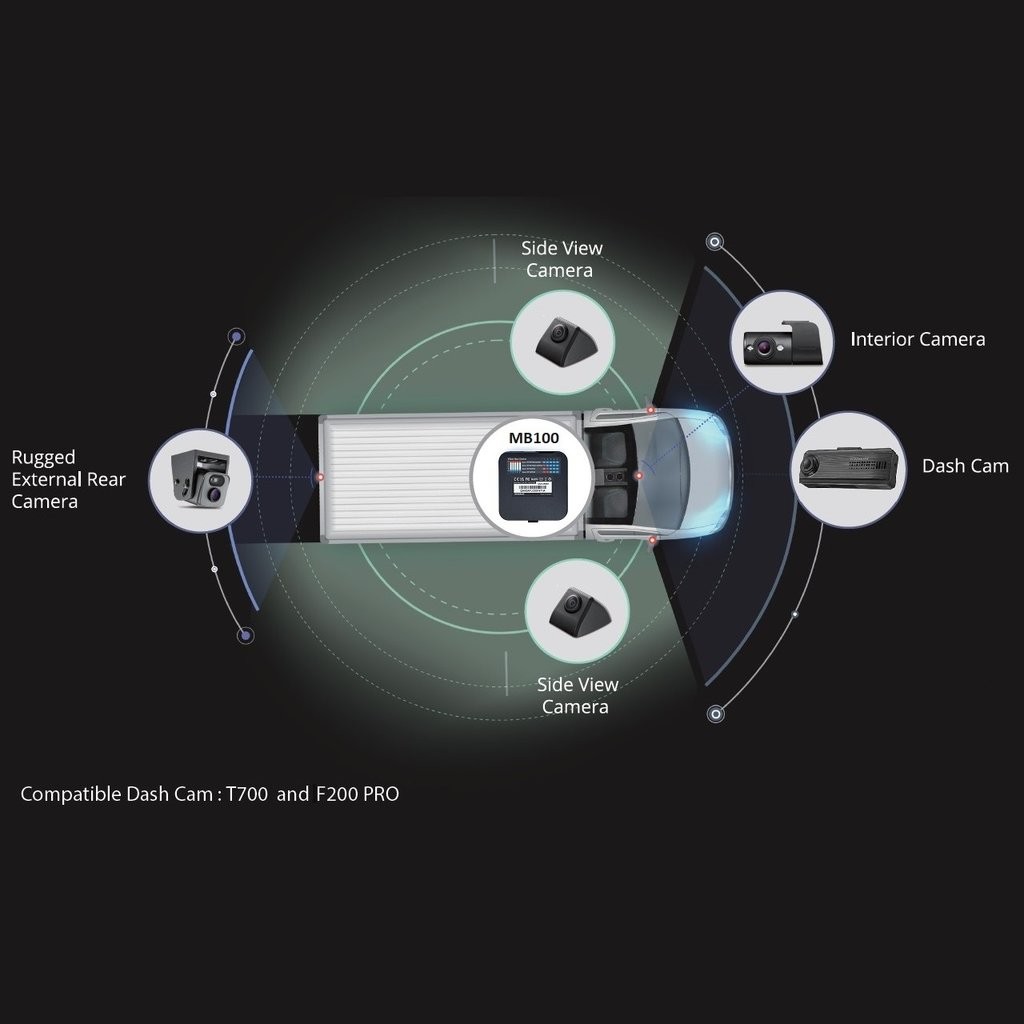

The MB100 video splitter allows you to connect up to 4 additional cameras to the main camera (F200PRO or T700). You will thus get a record of what is happening in the vehicle and its surroundings from a total of up to 5 lenses. In addition, if you use the T700 as the main camera, you can watch the view from all cameras in real time even when the vehicle is parked remotely, wherever you are.

Features:

• In general:
  • contains switches for settings
  • splitr display will be set according to switch configuration
• Power supply:
  • 2 free wires (BAT, GND)
  • DC 12 V / 24 V
  • length: 3 m

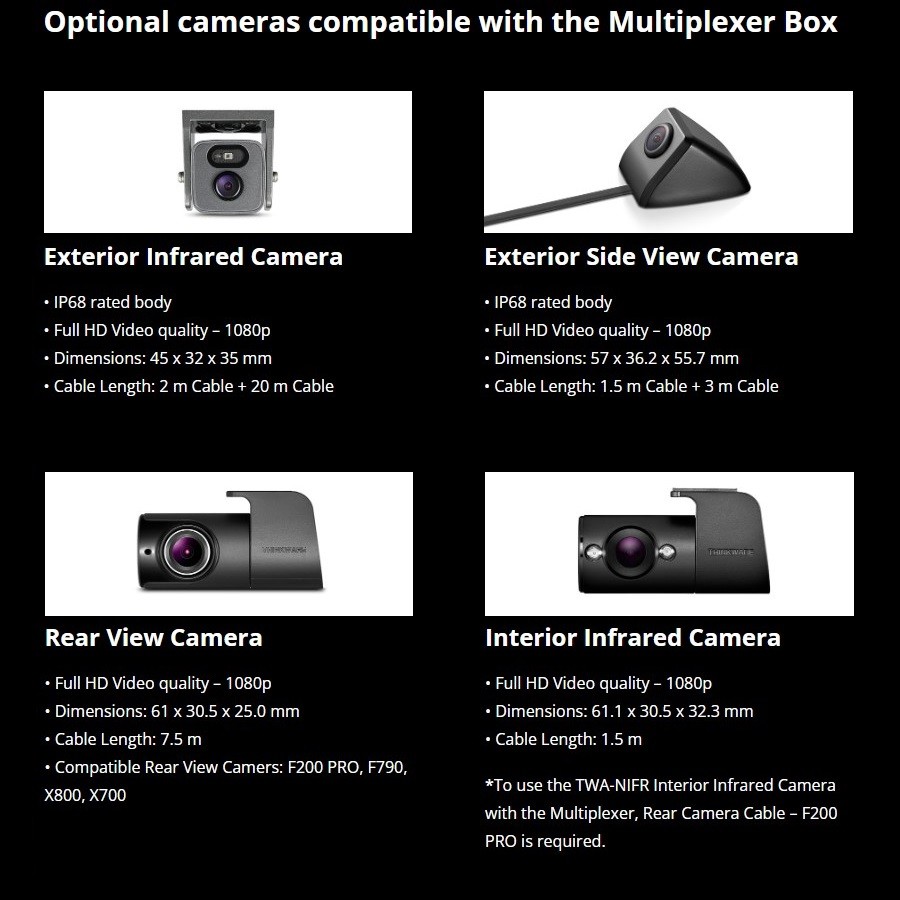

• AV-IN (for optional camera connection):
  • 4 connectors (CAM 1, CAM 2, CAM 3, CAM 4)
  • connector type stereo jack 2.5 mm
  • AFHD
  • length to connector: 15 cm
• AV-OUT (for connecting the main camera):
  • 1 cable (AV-OUT)
  • connector type jack 2.5 mm
  • cable length: 3 m
• Recording channel: Up to 4 analogue Full HD cameras can be connected (5 lenses in total)
• Composite video: Full HD (1920 x 1080) @ 30 frames per second
• Dimensions (W x D x H): 65 x 65 x 17.5 mm

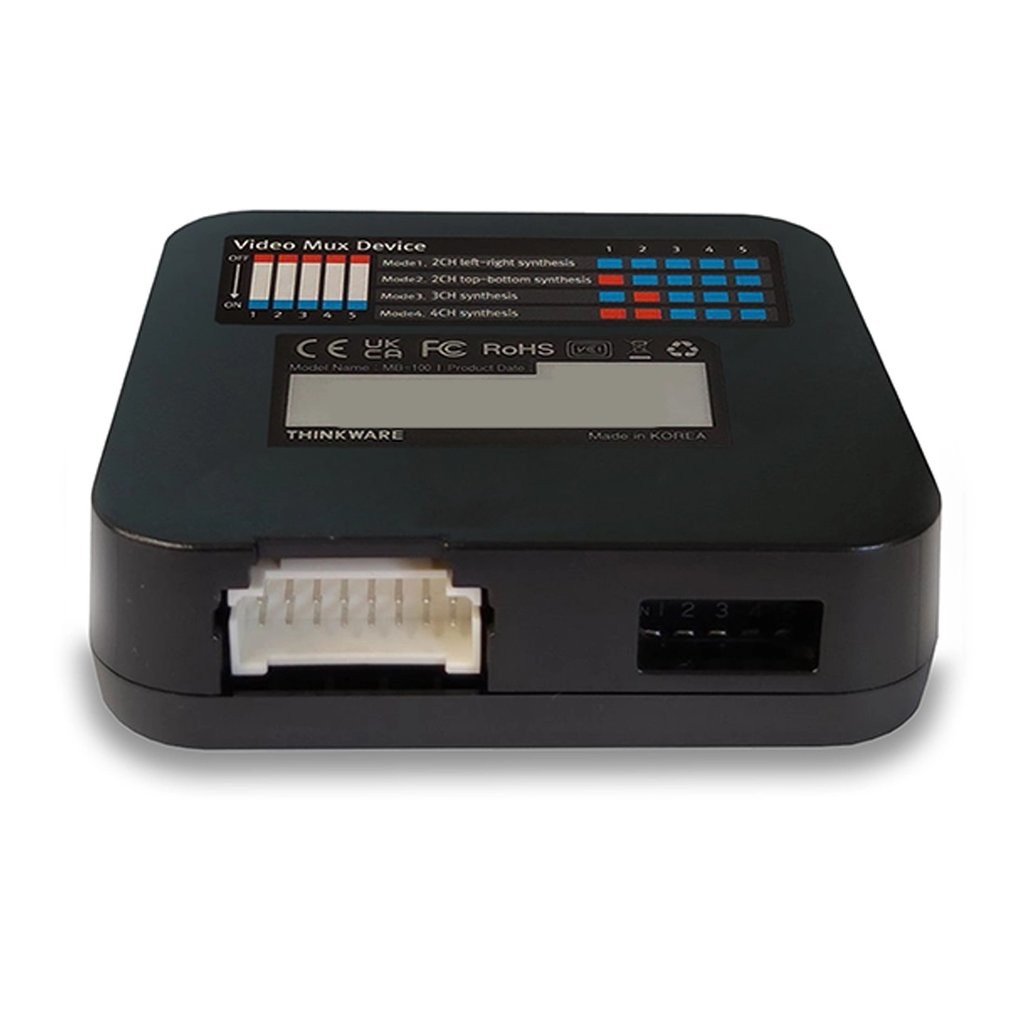

Display Splitter Settings:

In the package:

• MB100 video splitter
• Main wiring
  • 4 x input for additional camera (jack 2.5 mm)
  • 1 x input to MB100 (white connector)
  • 1 x power cable (2.5 meters - free wires BAT, GND)
  • 1 x main camera output (2.5 mm jack)
• Video cable (MB100 connection / main camera)
  • length 3 m
  • connectors 2 x jack 2.5 mm

NOTE:

• The Splitter can ONLY be used as an add-on accessory to a compatible Thinkware camera. The splitter itself cannot be used to record driving footage.
• The recording device (included in a compatible Thinkware camera) records all additional cameras as one channel in the set format = image splitter.
