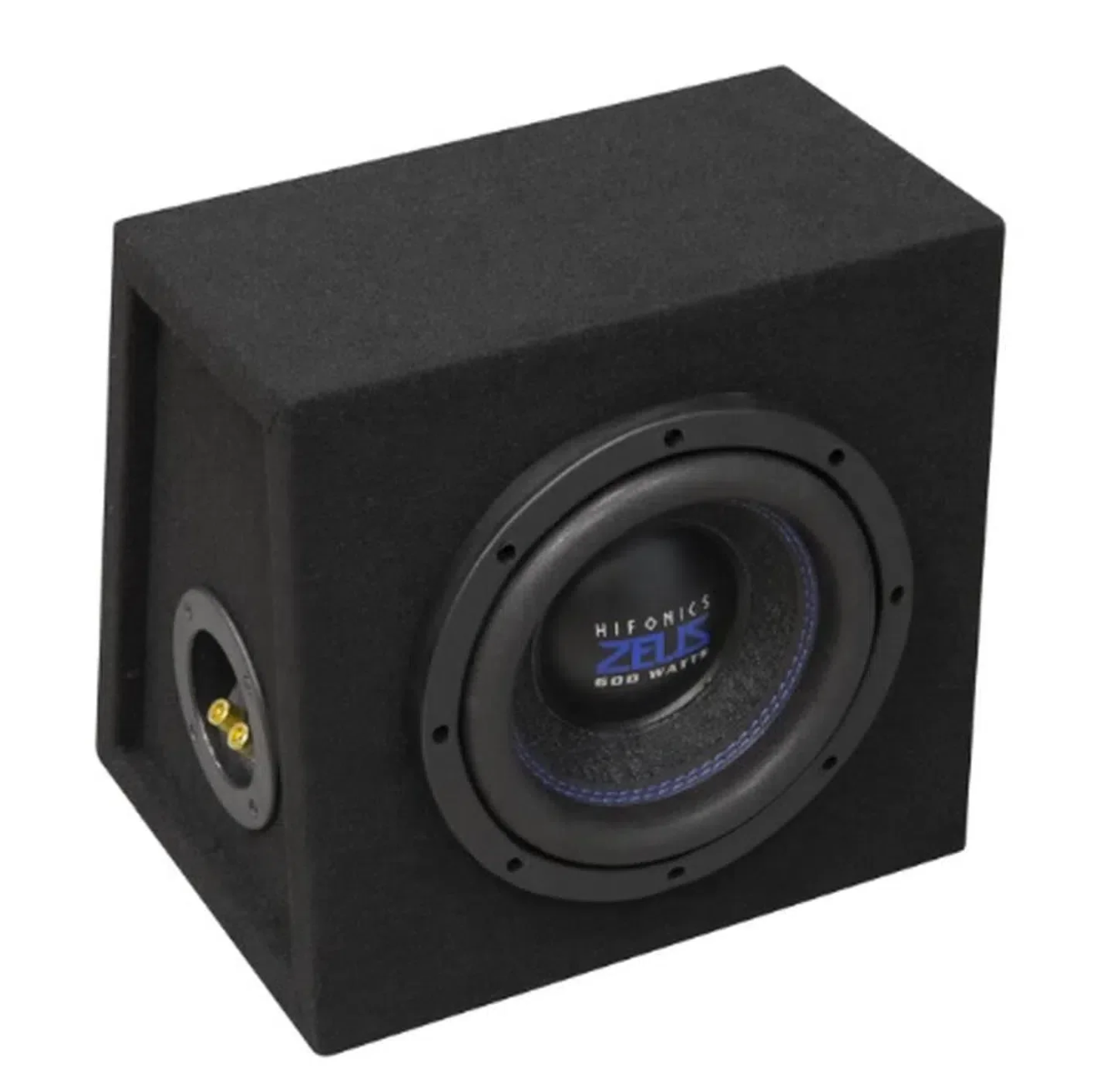

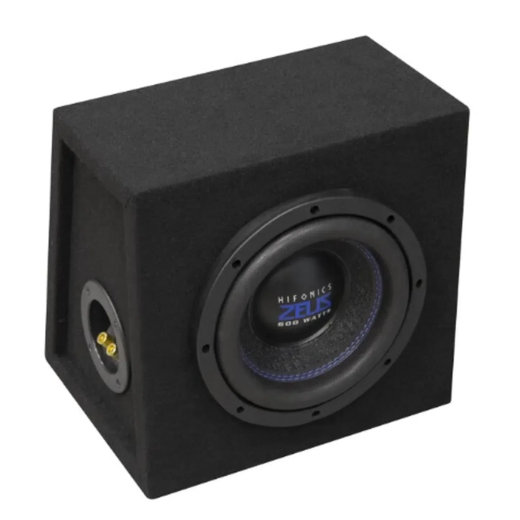

Subwoofer in box Hifonics ZXS8S

Subwoofer in Box Hifonics ZXS8S

The Zeus ZXS8S from Hifonics is an 8" (20 cm) enclosed subwoofer that impresses with a strong output of 300 W RMS and a maximum power of 600 W. With an impedance of 2 + 2 Ω, it offers flexible connectivity options. The compact enclosure is designed as a sealed box. The Zeus ZXS8S combines power and compactness, making it ideal for anyone looking for strong bass in their audio system.

Main Features

• 8" (20 cm) enclosed subwoofer.
• RMS power 300 W, max. power 600 W.
• Impedance 4 Ω for flexible connection.
• Includes subwoofer Zeus ZXS8D2.
• Strong and deep bass sound.

About the Brand

Hifonics is a world-renowned legend in car audio. Since its inception in the 1980s, it has been setting standards in automotive sound systems and is a strong player in the amplifier, speaker, and subwoofer segments. The brand is known for its uncompromising philosophy - combining top performance with precise craftsmanship and distinctive design. Hifonics products appeal to all customers, from demanding audiophiles to enthusiasts seeking powerful bass and maximum dynamics in their vehicles. Hifonics amplifiers are famous for their high stability, clear sound, and enormous power potential. The speakers and subwoofers also excel in precise craftsmanship and longevity, even under extreme load. Hifonics constantly innovates its products. Modern technologies, such as hybrid puffer capacitors, extremely rigid carbon membranes, MICA composite membranes, or advanced cooling, push the boundaries of sound further. In addition to top-notch amplifiers, the portfolio includes practical accessories from remote bass controls to installation accessories and design protective grilles. If you're looking for a proven brand that combines a legendary name with modern technology and top-notch sound, Hifonics is the right choice for your car. Experience superior performance you can feel - with Hifonics, you'll always be one step ahead!

Catalog number	ZXS8S
Brand	Hifonics
RMS powerThe RMS power of the subwoofer is constant power. This is also the performance of continuous use of the subwoofer. If you exceed the power for a longer period of time, irreversible damage or subwoofer voice coil burning! You can tell if the subwoofer is overloaded by the vibration of the subwoofer membrane.	300 W
Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur or subwoofer voice coil burning!	600 W
The diameter of the subwoofer in the box	200 mm (8\")
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance is compatible with the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used with an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm. Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm subwoofer can easily be used with an amplifier that is stable up to 2 Ohms. The most common impedance of subwoofers is 1 x 4 Ohm.	4 Ω
Loudspeaker typeThe closed enclosure is characterized by a simple construction. Closed enclosures are usually smaller than bass-reflex enclosures, and a special damping fleece is used for their damping. A closed baffle has the advantage of preventing an acoustic short between the front and back radiation of the subwoofer diaphragm. The disadvantage is that the closed enclosure raises the natural resonance frequency of the used subwoofer and thereby also increases the lower limit frequency. This is because the back side of the diaphragm is forced to compress and dilute the air inside the enclosure when the subwoofer is radiating in a closed enclosure. This adds to the inherent stiffness of the subwoofer's oscillation system the stiffness of the air in the closed enclosure. This causes an increase in the stiffness of the oscillating system and thus an increase in the resonant frequency of the entire system: subwoofer -> loudspeaker. The increase in resonant frequency for a given subwoofer is greater, the smaller the volume of air in the closed enclosure. The relatively small volume of air in the closed enclosure acts on the subwoofer as an acoustic spring when radiating the back side of the membrane into the enclosed enclosure. USE: Mainly for quality bass listening in the entire band with an emphasis on detail and accurate reproduction in the lower band. Pros and cons: + pure reproduction + small closets + easier tuning - low level of efficiency in deep bass - loudness only at the cost of enormous deflection of the diaphragm - a significant acoustic pressure cannot be expected The bass reflex enclosure is designed in the same way as a closed enclosure, but it also has a so-called bass reflex mouthpiece, or "bass reflex". Needle foam is used to dampen bass reflex enclosures. USE: The ideal use is in cases where the listener wants to achieve a high volume and a good sound pressure level. It is the best compromise between sound quality and performance and is also the most commonly used Pros and cons: + good efficiency in deep bass + a small deflection of the membrane is enough for a large volume - reproduction less accurate than with closed enclosures	Sealed box
What is the baffle made of?Subwoofer enclosures are usually made of 18-22 mm MDF board or pressed chipboard. Due to its higher strength, MDF board is a better material than ordinary chipboard.	MDF
Box weight incl. subwoofer	12 kg
Beveling of the back wallThe bevel of the back wall is a crucial parameter if you intend to place the subwoofer in the luggage compartment, instead of the back wall of the rear seat. This will save you a few centimeters of space in the trunk of your car.	Yes
