Subwoofer in box Gladen RS-X 10 SLIM SB-CU

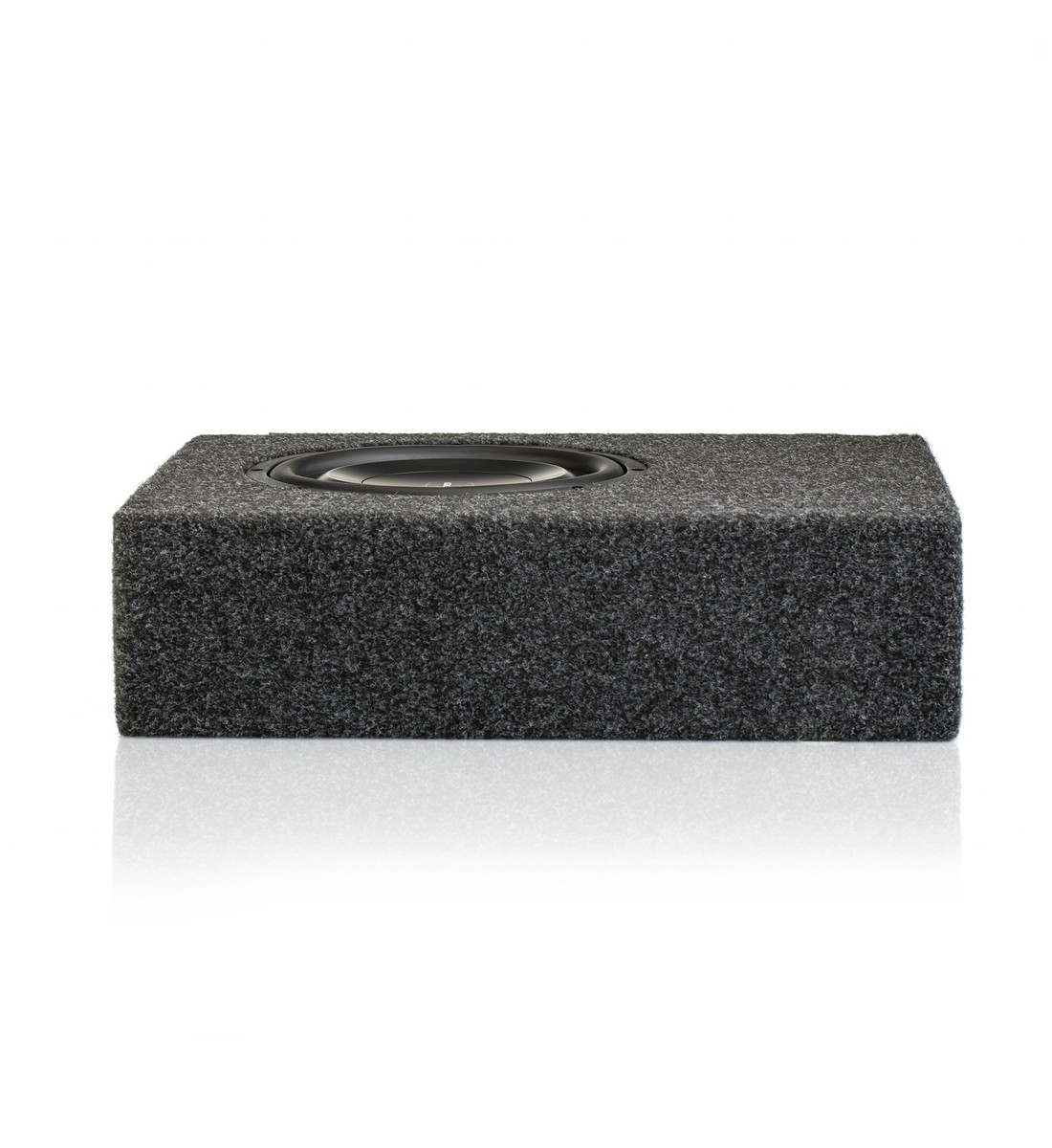

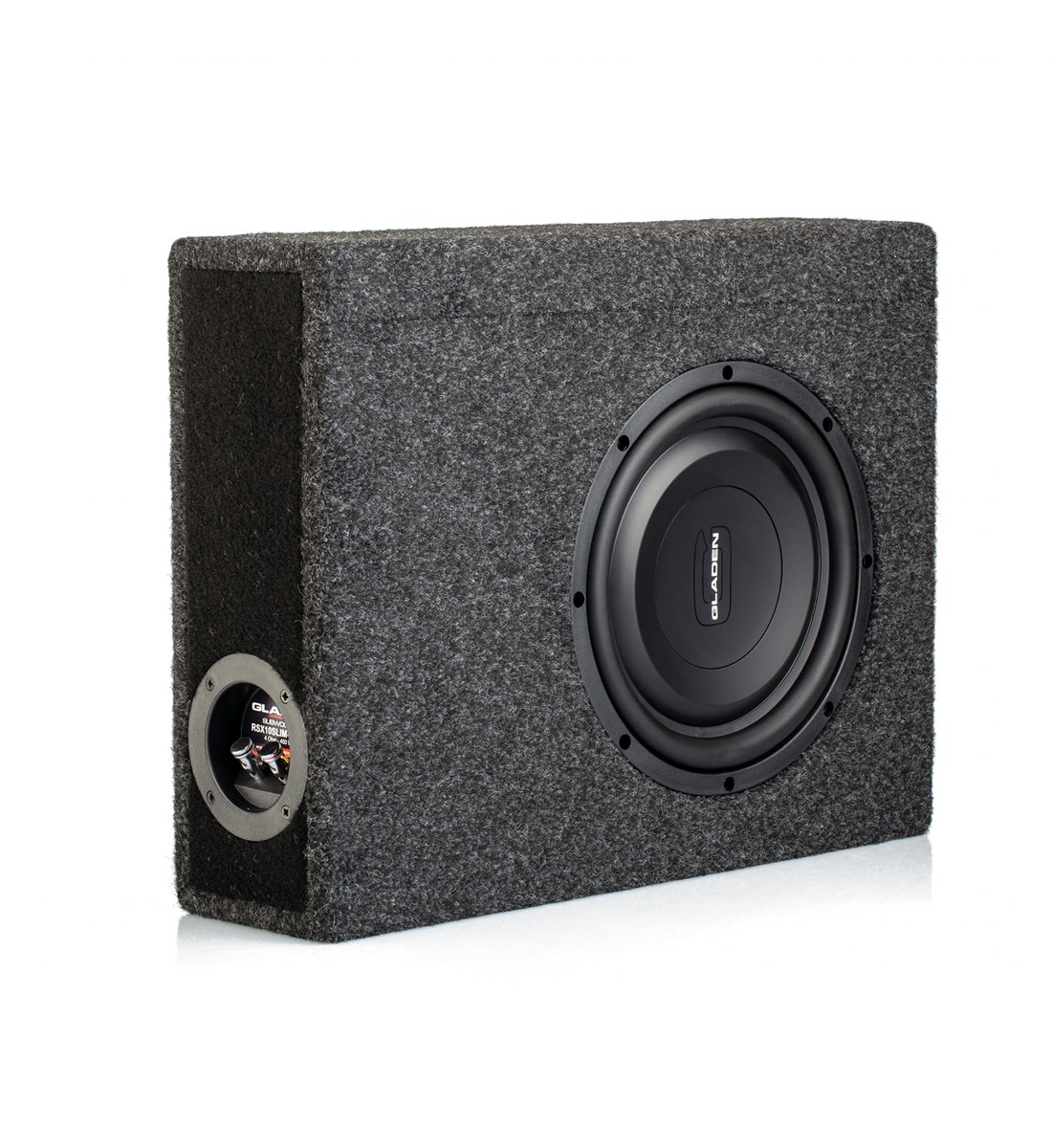

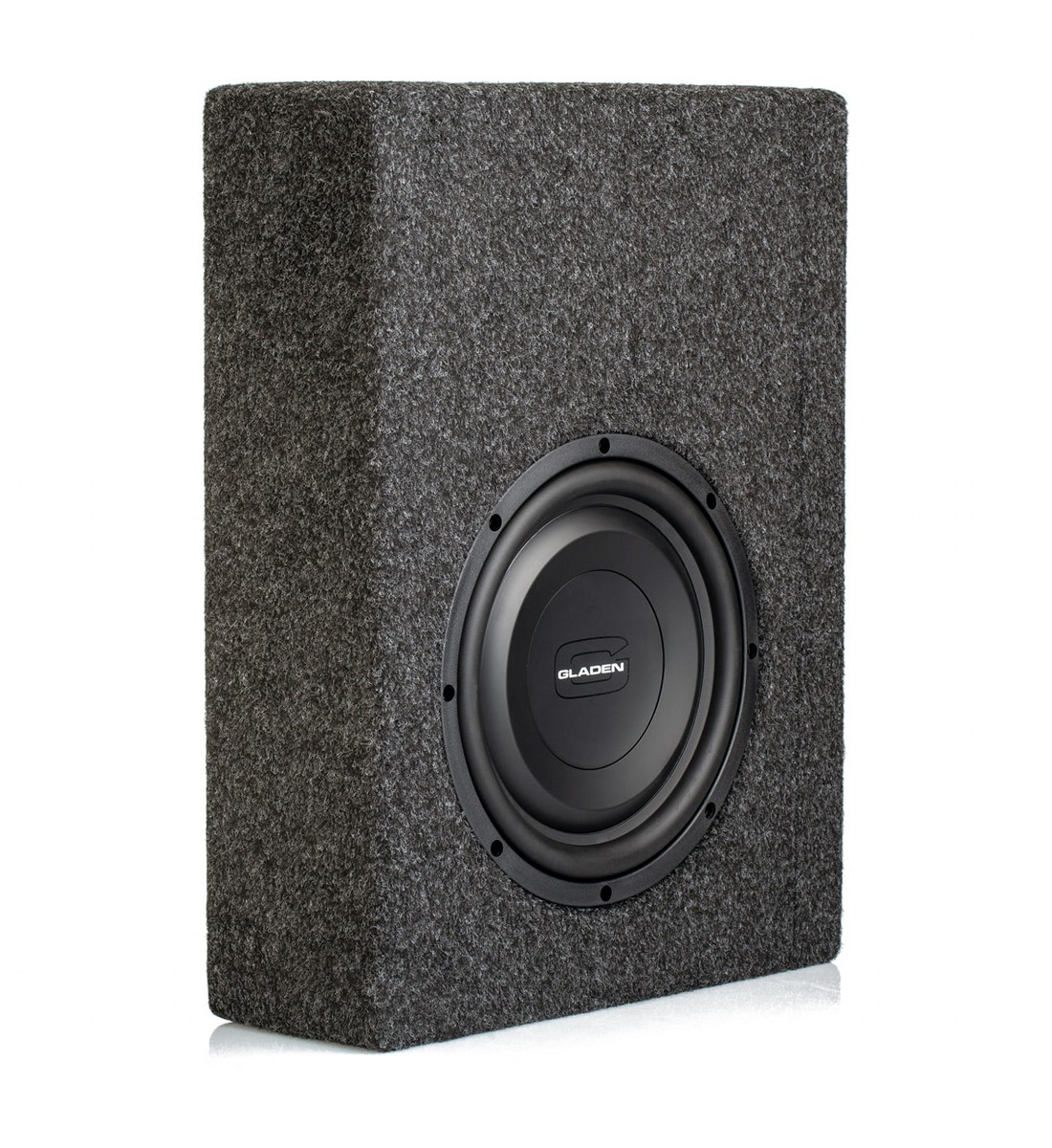

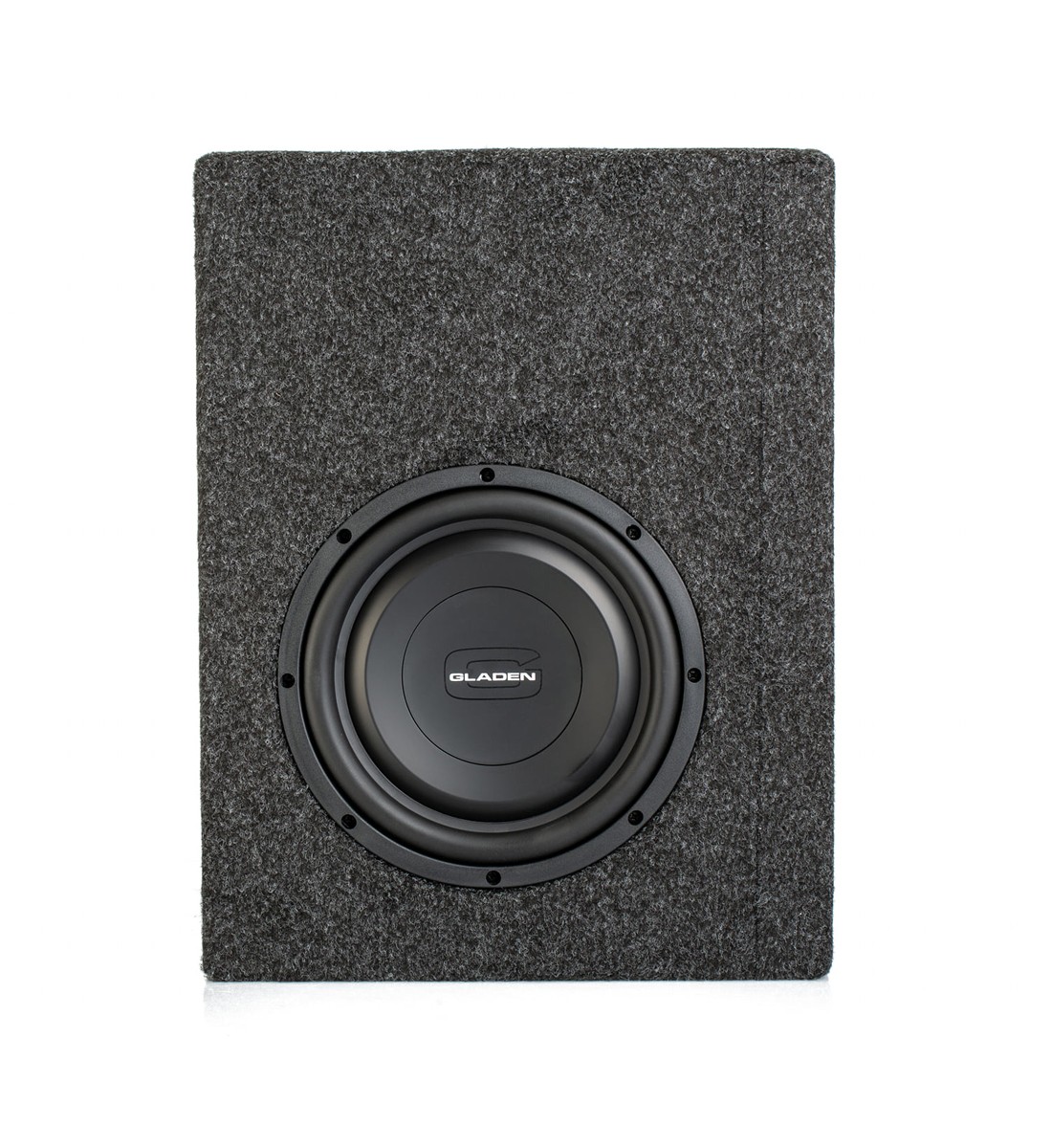

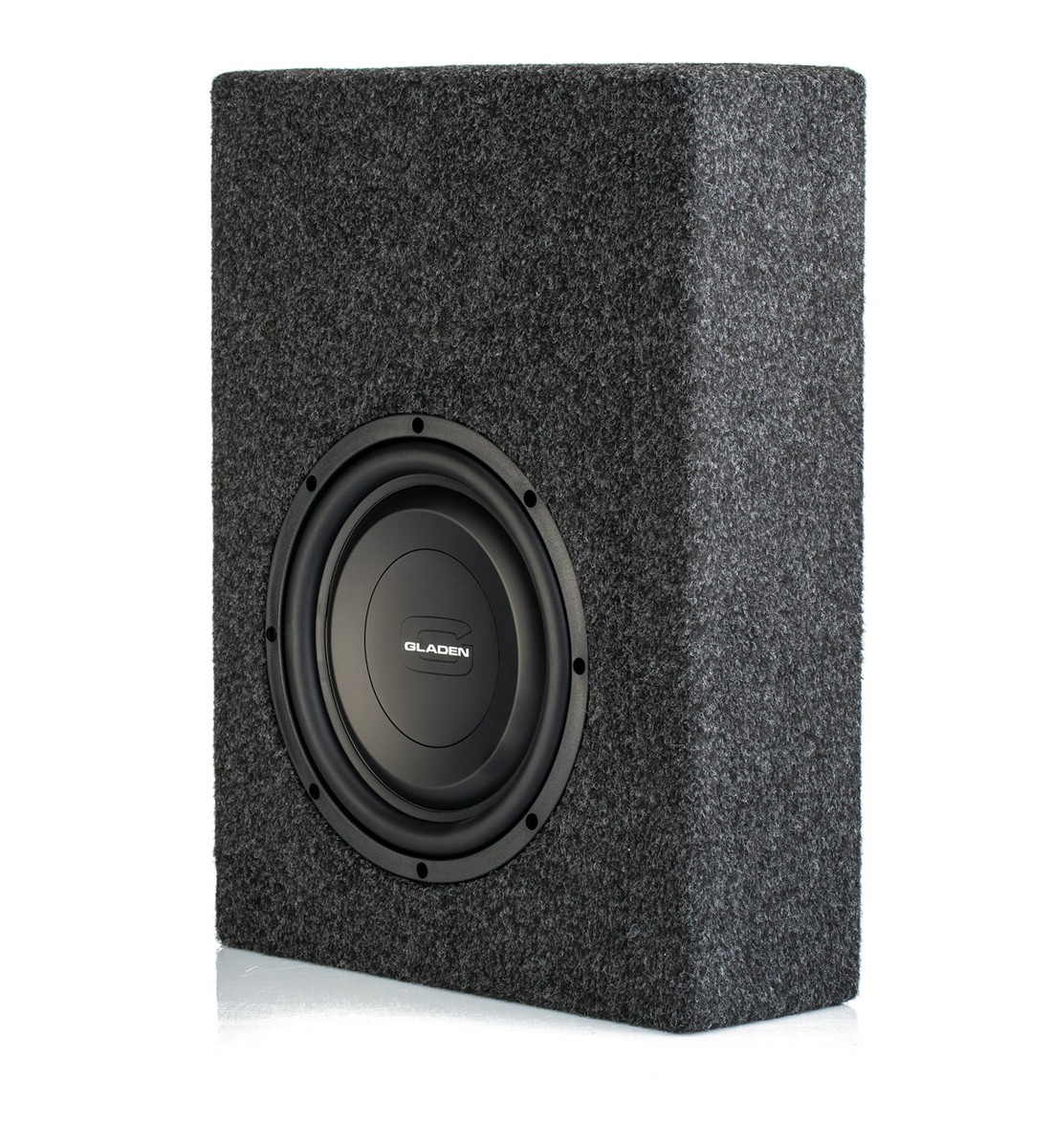

Gladen RS-X 10 SLIM SB-CU boxed subwoofer

Compact and powerful Micro RSX subwoofers from Gladen deliver powerful low-frequency foundations. The enclosure can be universally installed in the vehicle or converted to a downfire subwoofer using the supplied rubber feet. Gladen subwoofer systems offer a wide range of precisely designed and assembled subwoofer solutions. You can choose from compact enclosures with small, shallow subwoofer drivers that allow convenient installation in any space, as well as massive high-power subwoofers. Gladen systems are designed to meet not only the performance requirements of every listener but also the desired budget and available space. All Gladen enclosures are made from sturdy MDF panels, then precisely machined using state-of-the-art 3D milling technology and subsequently hand-assembled and covered with high-quality carpet. Although some materials and components are sourced worldwide, the subwoofer boxes are manufactured and assembled in Germany to meet Gladen's demanding standards.

Main features of the Gladen RS-X 10 SLIM SB-CU boxed subwoofer

• 250 mm passive subwoofer in a compact sealed enclosure.

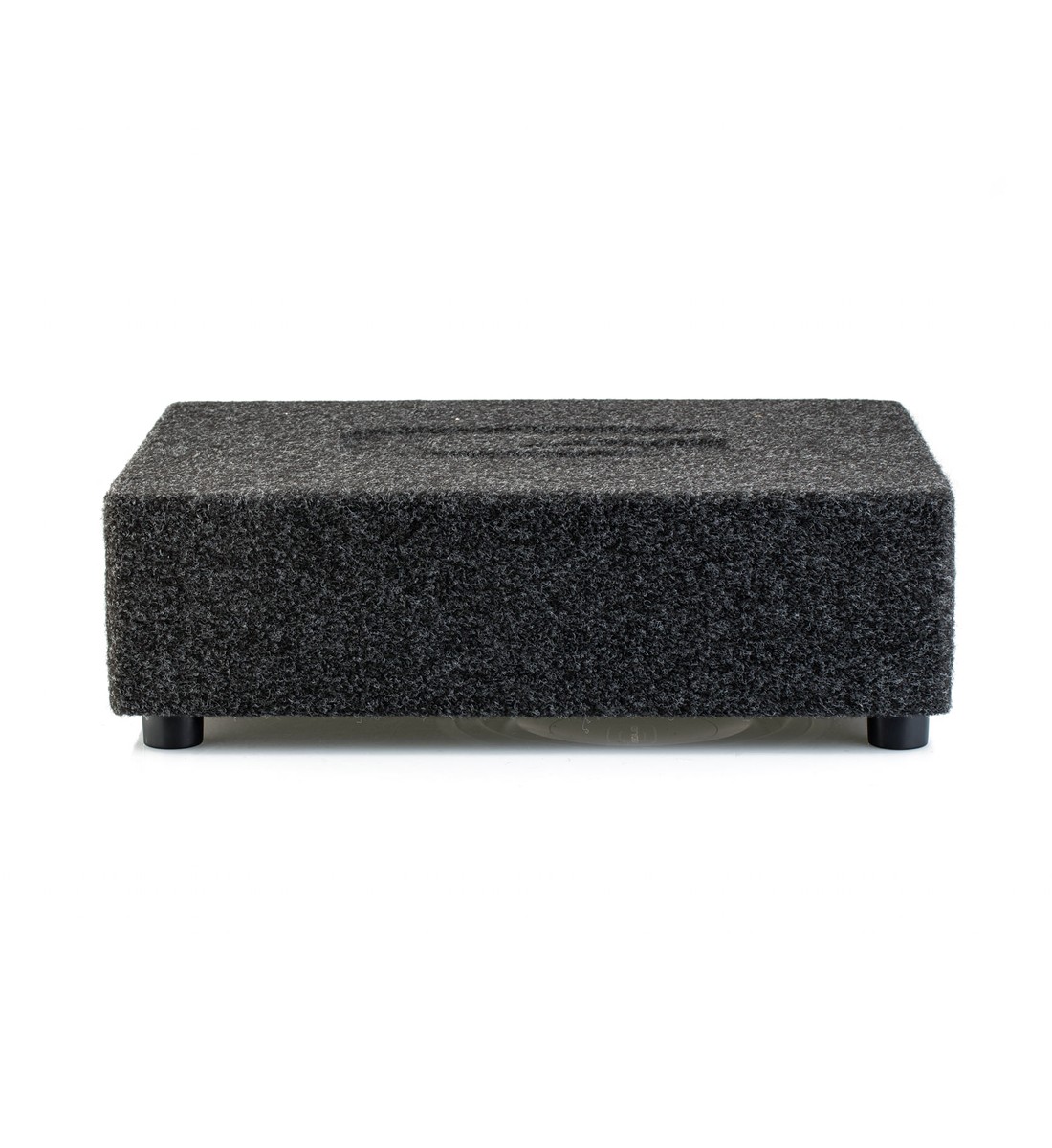

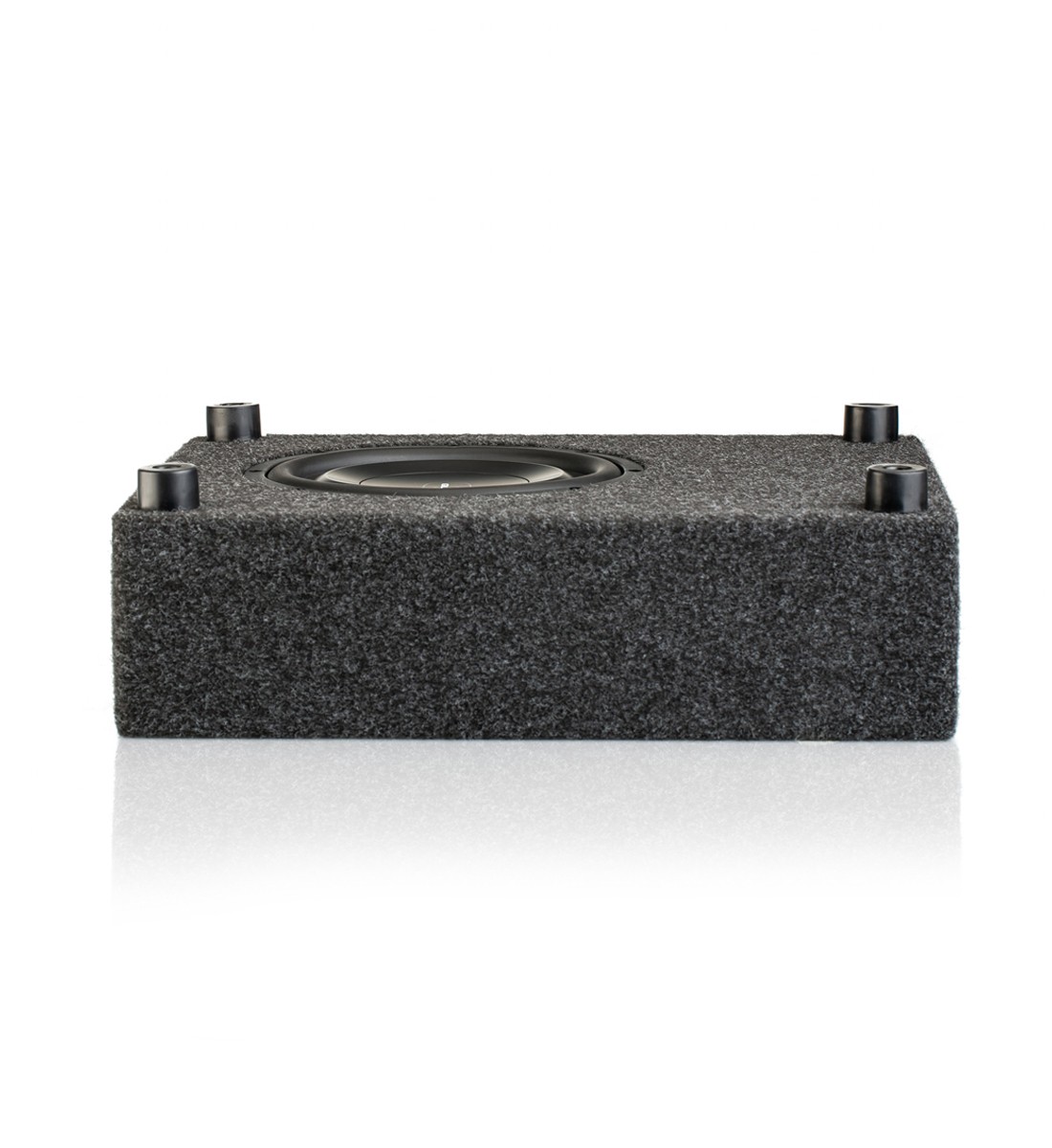

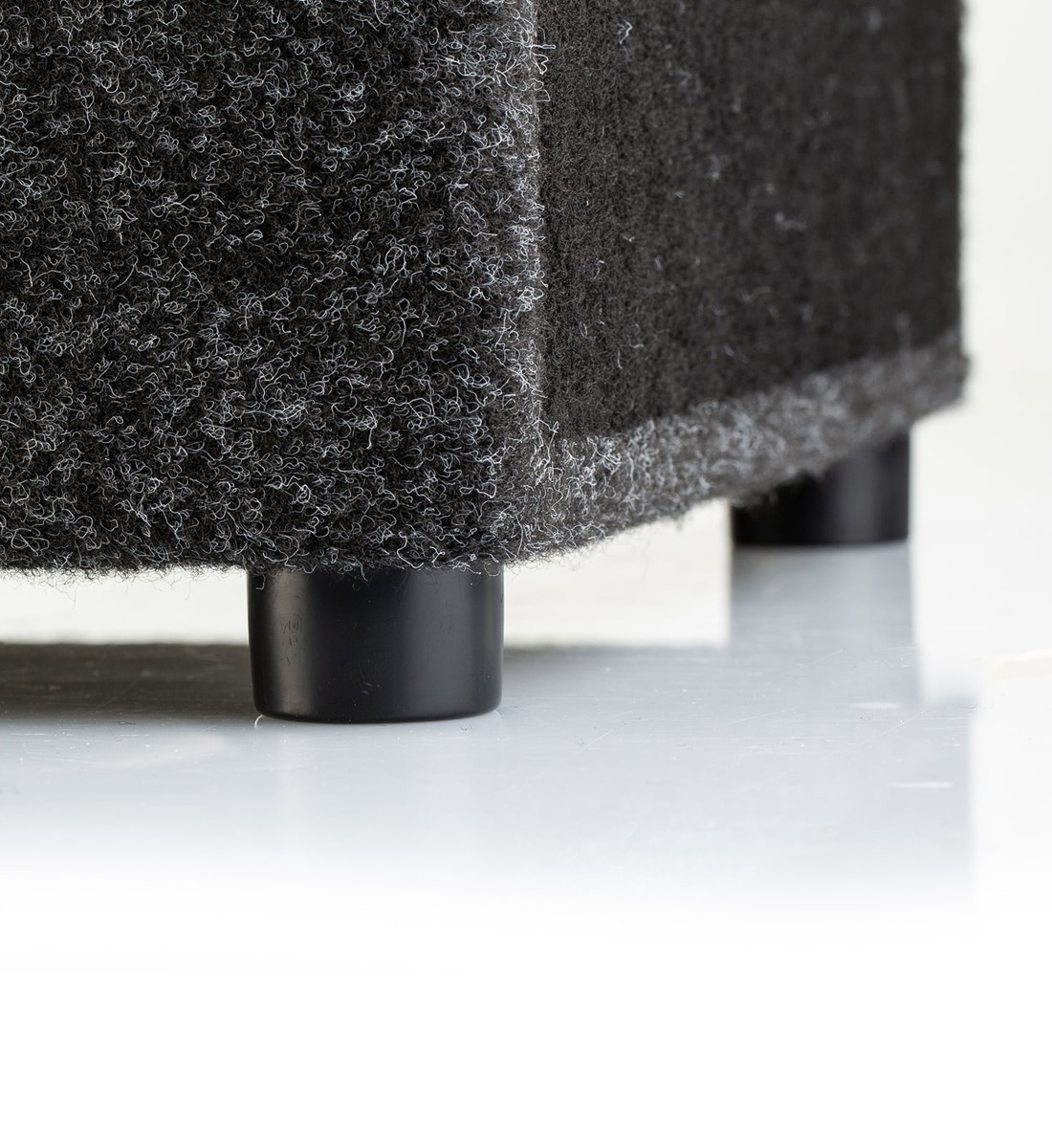

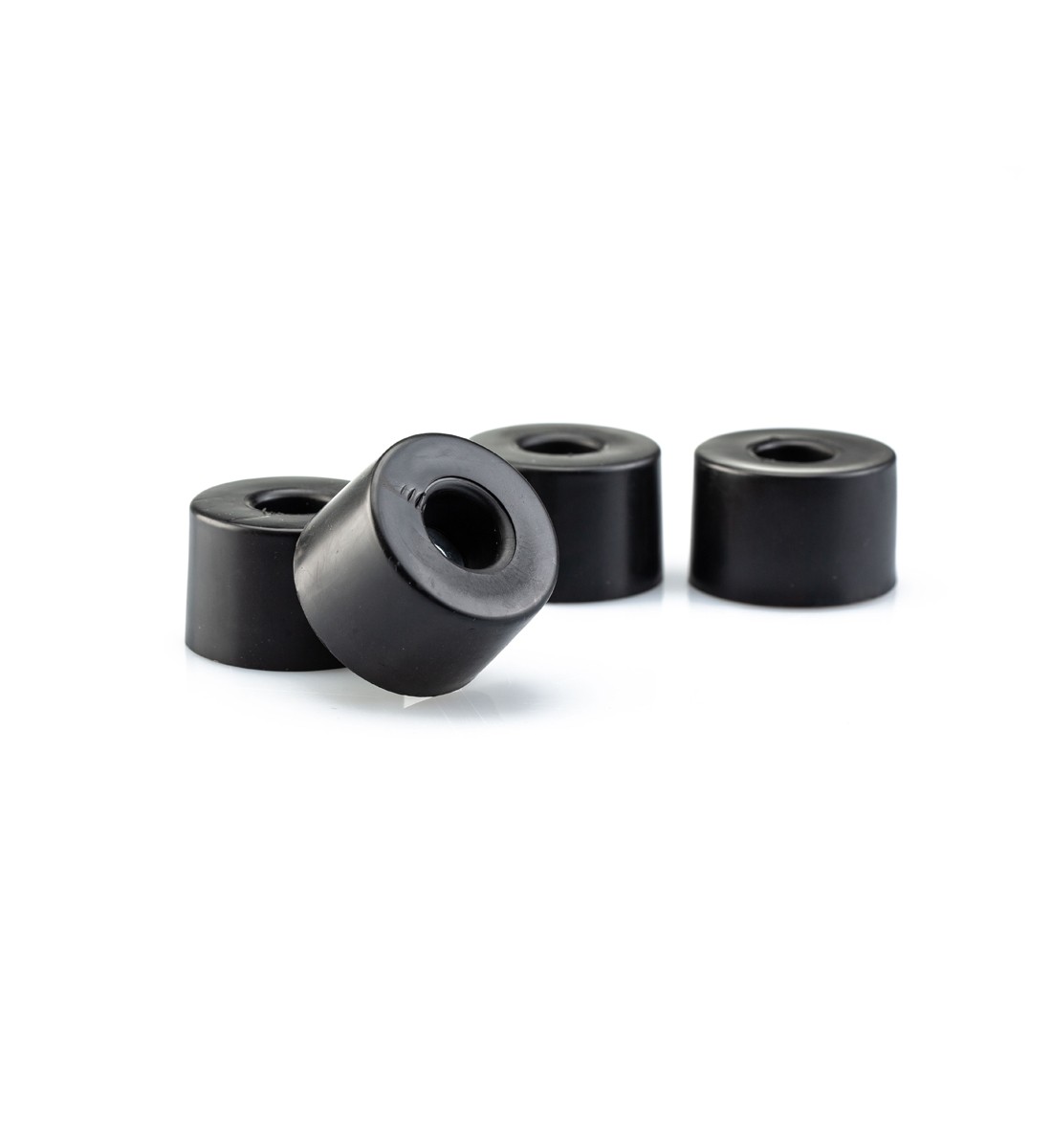

• Can be universally mounted in the vehicle or converted to a downfire subwoofer using the included rubber feet.
• Covered with high-quality automotive carpet in black-grey color.
• Enclosure made from high-quality CNC-cut MDF.
• Manufactured and hand-assembled in Germany.

About the brand

The Gladen brand is one of the most successful brands in Germany, where it was founded and where it has its roots. Gladen offers high-quality products such as speakers, subwoofers and amplifiers. It also has a wide product portfolio that includes hundreds of items, from connectors and damping materials to many other components. Gladen products have received the prestigious EISA award in the past and present. Germans have grown fond of this brand - they simply love it.

Catalog number	RS-X 10 SLIM SB-CU
Brand	Gladen
Links	Official web presentation
RMS powerThe RMS power of the subwoofer is constant power. This is also the performance of continuous use of the subwoofer. If you exceed the power for a longer period of time, irreversible damage or subwoofer voice coil burning! You can tell if the subwoofer is overloaded by the vibration of the subwoofer membrane.	250 W
Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur or subwoofer voice coil burning!	500 W
The diameter of the subwoofer in the box	10" (250mm)
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance is compatible with the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used with an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm. Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm subwoofer can easily be used with an amplifier that is stable up to 2 Ohms. The most common impedance of subwoofers is 1 x 4 Ohm.	4 Ω
Loudspeaker typeThe closed enclosure is characterized by a simple construction. Closed enclosures are usually smaller than bass-reflex enclosures, and a special damping fleece is used for their damping. A closed baffle has the advantage of preventing an acoustic short between the front and back radiation of the subwoofer diaphragm. The disadvantage is that the closed enclosure raises the natural resonance frequency of the used subwoofer and thereby also increases the lower limit frequency. This is because the back side of the diaphragm is forced to compress and dilute the air inside the enclosure when the subwoofer is radiating in a closed enclosure. This adds to the inherent stiffness of the subwoofer's oscillation system the stiffness of the air in the closed enclosure. This causes an increase in the stiffness of the oscillating system and thus an increase in the resonant frequency of the entire system: subwoofer -> loudspeaker. The increase in resonant frequency for a given subwoofer is greater, the smaller the volume of air in the closed enclosure. The relatively small volume of air in the closed enclosure acts on the subwoofer as an acoustic spring when radiating the back side of the membrane into the enclosed enclosure. USE: Mainly for quality bass listening in the entire band with an emphasis on detail and accurate reproduction in the lower band. Pros and cons: + pure reproduction + small closets + easier tuning - low level of efficiency in deep bass - loudness only at the cost of enormous deflection of the diaphragm - a significant acoustic pressure cannot be expected The bass reflex enclosure is designed in the same way as a closed enclosure, but it also has a so-called bass reflex mouthpiece, or "bass reflex". Needle foam is used to dampen bass reflex enclosures. USE: The ideal use is in cases where the listener wants to achieve a high volume and a good sound pressure level. It is the best compromise between sound quality and performance and is also the most commonly used Pros and cons: + good efficiency in deep bass + a small deflection of the membrane is enough for a large volume - reproduction less accurate than with closed enclosures	Closed
What is the baffle made of?Subwoofer enclosures are usually made of 18-22 mm MDF board or pressed chipboard. Due to its higher strength, MDF board is a better material than ordinary chipboard.	MDF
Dimensions of the boxEnclosure dimensions are given as height, width and depth, which is often longer at the bottom edge than at the top, due to the bevel of the rear wall.	500 x 380 x 135 mm
