Subwoofer Hifonics Zeus ZSPL12D2

Name: Subwoofer Hifonics Zeus ZSPL12D2
Brand: Hifonics
Price: 199.00 EUR

Be the first to rate the product

Add to FavoritesRemove from favourites

subwoofer, Ø 12" (300 mm), 600 W RMS, 89 dB (SPL 2.83 V/1 m), 2 + 2 Ω
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Updated

Description and parameters
Evaluation0
Category

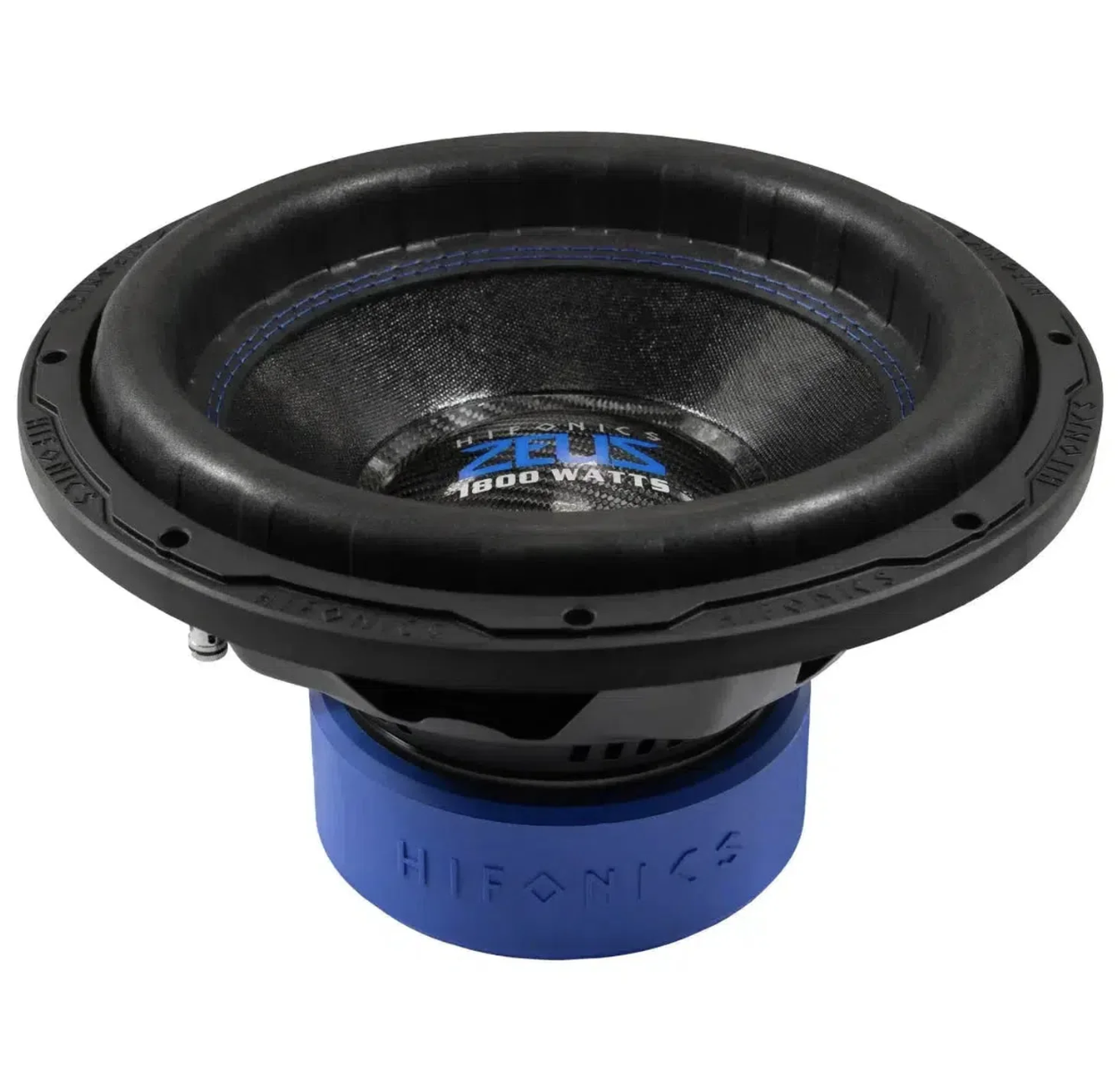

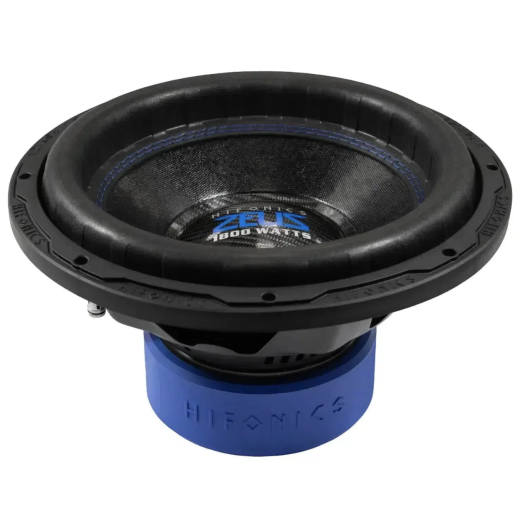

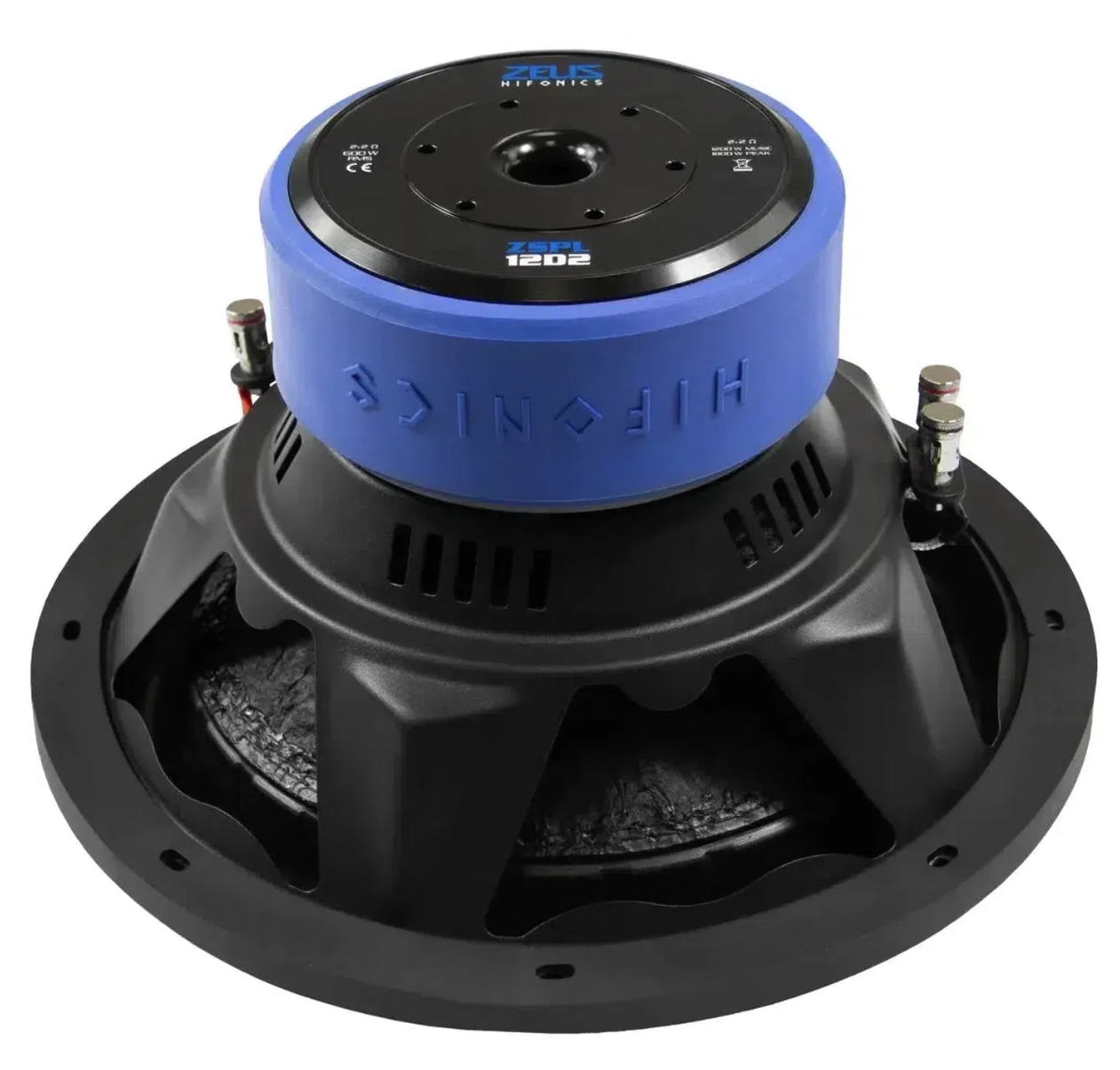

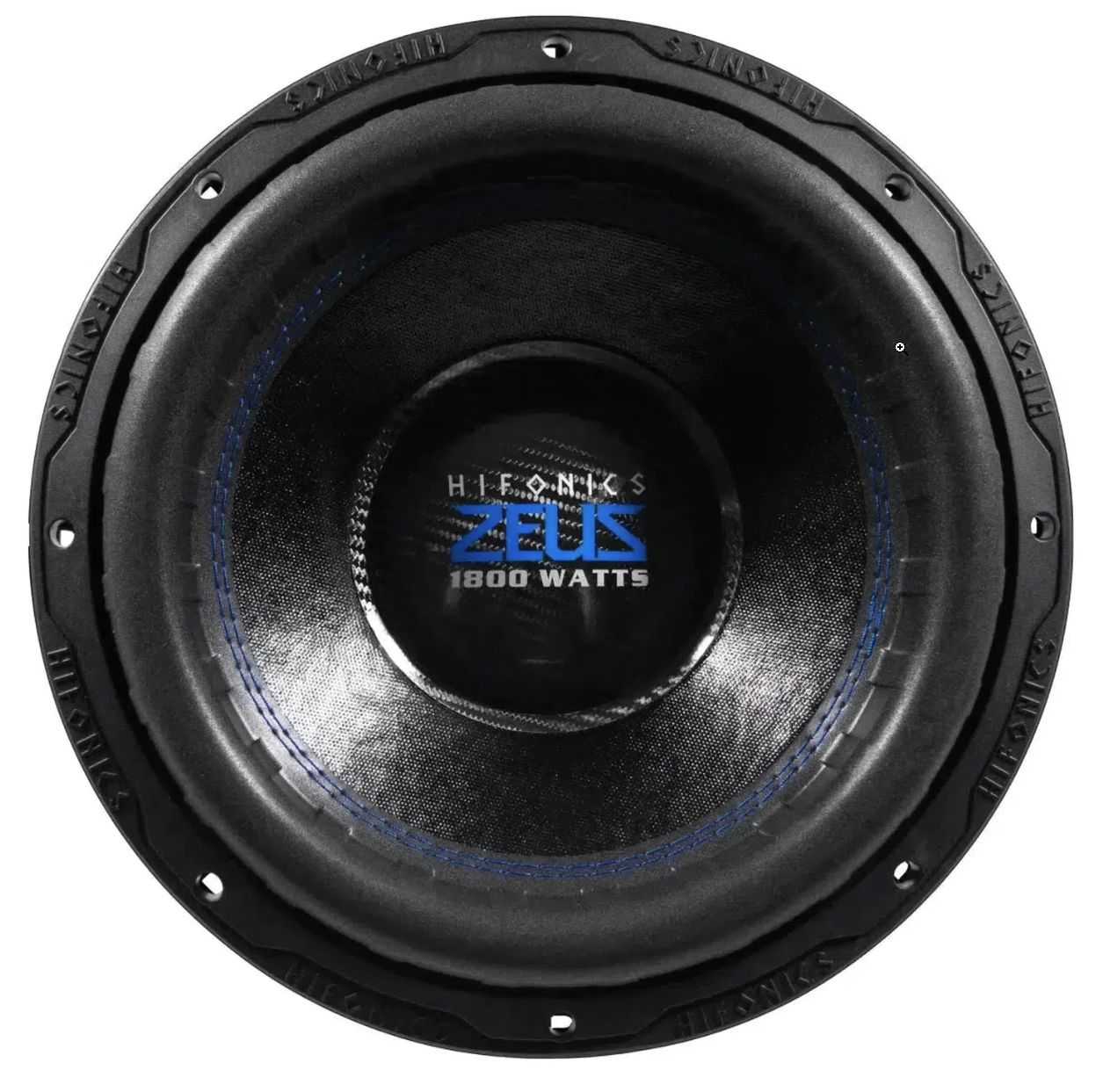

Subwoofer Hifonics Zeus ZSPL12D2

If you're looking for a powerful SPL subwoofer without spending a fortune, the new Hifonics ZEUS SPL subwoofer is the right choice. With a maximum load of 1200 W and short-term performance up to 1800 W Peak, the new ZSPL12D2 is no weakling. On the contrary, it sets new standards in its class.

The new 12" SPL woofer clearly shows its relation to the highly esteemed ZEUS ZXT EXTREME series. It uses a proven specially shaped suspension profile designed for extremely large diaphragm excursions. This ensures perfect guidance of the diaphragm while preventing unwanted "wobbling." Additional stability is provided by a cover dome made of very durable carbon composite. These features are crucial for SPL woofers as they must withstand extreme excursions and high air pressures. Ordinary plastic covers would be completely unsuitable here. The typical blue magnetic covers from the ZEUS series are also a given.

Thanks to a clever cooling system that ventilates the voice coil through the pole plate, this robust woofer can easily handle up to 1200 W of musical power. It manages short-term peaks up to 1800 W with ease. The above-average large 64mm dual voice coil with an impedance of 2 + 2 ohms has an impressive winding length of 38 mm and is driven by a massive double magnet weighing 120 ounces. With an excursion of +/- 26 mm, the new ZEUS moves a huge volume of air in front of the diaphragm, "pushing" so strongly that it literally takes your breath away.

The new ZEUS SPL Sub feels best in a bass-reflex enclosure. You can start with a volume of around 45 liters, but it delivers really perfect results in boxes with a volume of 55 - 60 liters, where it fully develops its brutal deep bass.

Main Features

Double magnetic drive with a weight of 3.4 kg.
64mm voice coil with a maximum excursion (X-Max) of +/- 26 mm.
Twice-stitched suspension.
Durable steel basket.
Carbon composite cover dome.
Extra stiff RSA suspension.
Hand-pressed and impregnated paper diaphragm.
Blue protective magnet cover.

About the Brand

Hifonics is one of the world's legends in car audio. Since its inception in the 1980s, it has defined standards in car sound systems and is a strong player in the amplifier, speaker, and subwoofer segment. The brand is known for its uncompromising philosophy - combining top performance with precise craftsmanship and an unmistakable design. Hifonics products appeal to all customers, from discerning audiophiles to enthusiasts who want to experience powerful bass and maximum dynamics in their car. Hifonics amplifiers are renowned for their high stability, clear sound, and enormous power potential. Speakers and subwoofers also excel in precise craftsmanship and long lifespan even under extreme loads. Hifonics continuously innovates its products. Modern technologies, such as hybrid puffer capacitors, extremely rigid carbon diaphragms, MICA composite diaphragms, or advanced cooling, push the boundaries of sound even further. Alongside top-notch amplifiers, you'll also find practical accessories in the portfolio, from remote bass controls to mounting accessories and designer protective grilles. If you're looking for a proven brand that combines a legendary name with modern technologies and top-quality sound, Hifonics is the right choice for your car. Treat yourself to exceptional performance that you can feel - with Hifonics, you'll always be one step ahead!

Catalog number	ZSPL12D2
Brand	Hifonics
Links	Official web presentation
RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer.	600 W
Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur, or to burn out the voice coil of the subwoofer.	1800 W
Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with 91 dB sensitivity needs only 150 Watts to reach the same efficiency.	89 dB
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm.	2 + 2 Ω
Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers.	300 mm (12")
Subwoofer mounting depthThe mounting depth of the subwoofer is measured from the bottom edge of the magnet to the bottom edge of the subwoofer's metal or cast basket.	166 mm
Fs - resonant frequencyFs - is the lower resonant frequency. This parameter is the de facto free air resonant frequency of the subwoofer. Simply put, it is the point at which the weight of the subwoofer's moving parts equals the force of the subwoofer's suspension while it is in motion. If you've ever seen a piece of string start to hum uncontrollably in the wind, you've seen the effect of reaching a resonant frequency. The weight of the moving parts and the stiffness of the suspension (surround and spider) are key elements that affect the resonant frequency. As a general rule, a lower Fs indicates a subwoofer that would be better at reproducing low frequencies than a subwoofer with a higher Fs. However, this is not always the case, as other important parameters of the subwoofer also enter the resulting sound.	34 Hz
Vas - equivalent volume of airVas - represents the volume of air that, when compressed per cubic meter, acts with the same force as compliance (CMS), suspension in a certain subwoofer. Vas is one of the most complicated parameters to measure, as changes in air pressure are affected by conditions of relative humidity and temperature. Another way to describe what VAS is: try using a subwoofer and find a baffle that is the right size to return the air with the same stiffness to the same resonance. The size of this box is equal to you. There are, of course, other parameters, but they are not so necessary for the exact calculation of the enclosure. Resonance frequency and Q-parameter values are also important when building enclosures.	42.7 l
Xmax + -Xmax - the maximum deflection of the subwoofer diaphragm in one direction – it is not a sum, or an abbreviation for the maximum linear deflection. The subwoofer output becomes non-linear as the voice coil begins to leave the magnetic gap.	26 mm
QesElectrical Q-factor of driver is the electrical quality factor (electrical damping). If the subwoofer coil moves in a magnetic field, it generates its own current that counteracts its movement. Qes is a dimensionless parameter and the lower the number, the higher the generated current and the more damped the coil movement, thus reducing the total current flowing through the coil, the deflection and the sensitivity around the fs resonance. It varies in values from 0.08 to 0.6, in the extremes, for ordinary universal converters, even 20. Subwoofers with too low a Qes value, a very damped system, are not suitable for certain types of enclosures.	0.61
QmsMechanical Q-factor of driver is a mechanical factor of quality (mechanical damping). These are mechanical losses affecting (damping) the movement of the subwoofer membrane. Qms is a dimensionless parameter and the higher the number, the smaller the losses, i.e. the deviation and sensitivity in the lower band is also higher, it ranges around 0.4 - 25.	4.24
QtsTotal Q-factor of driver is a total quality factor, it includes both parameters Qes and Qms (electrical Qes and mechanical Qms). It varies in values from approx. 0.08 to 0.6, exceptionally up to 3. The Qts of the subwoofer is calculated in the same way as, for example, a pair of parallel resistors, so the result is decisively influenced by a smaller value that cannot be exceeded, which is usually Qes.	0.53
Subwoofer voice coil diameterThe larger the diameter of the voice coil, the more load capacity the subwoofer has, in layman's terms.	64 mm
Subwoofer diaphragm materialThe specific material from which the subwoofer membrane is made.	Unlaminated reinforced paper
