Subwoofer Ground Zero GZW 12-30A

Subwoofer Ground Zero GZW 12-30A

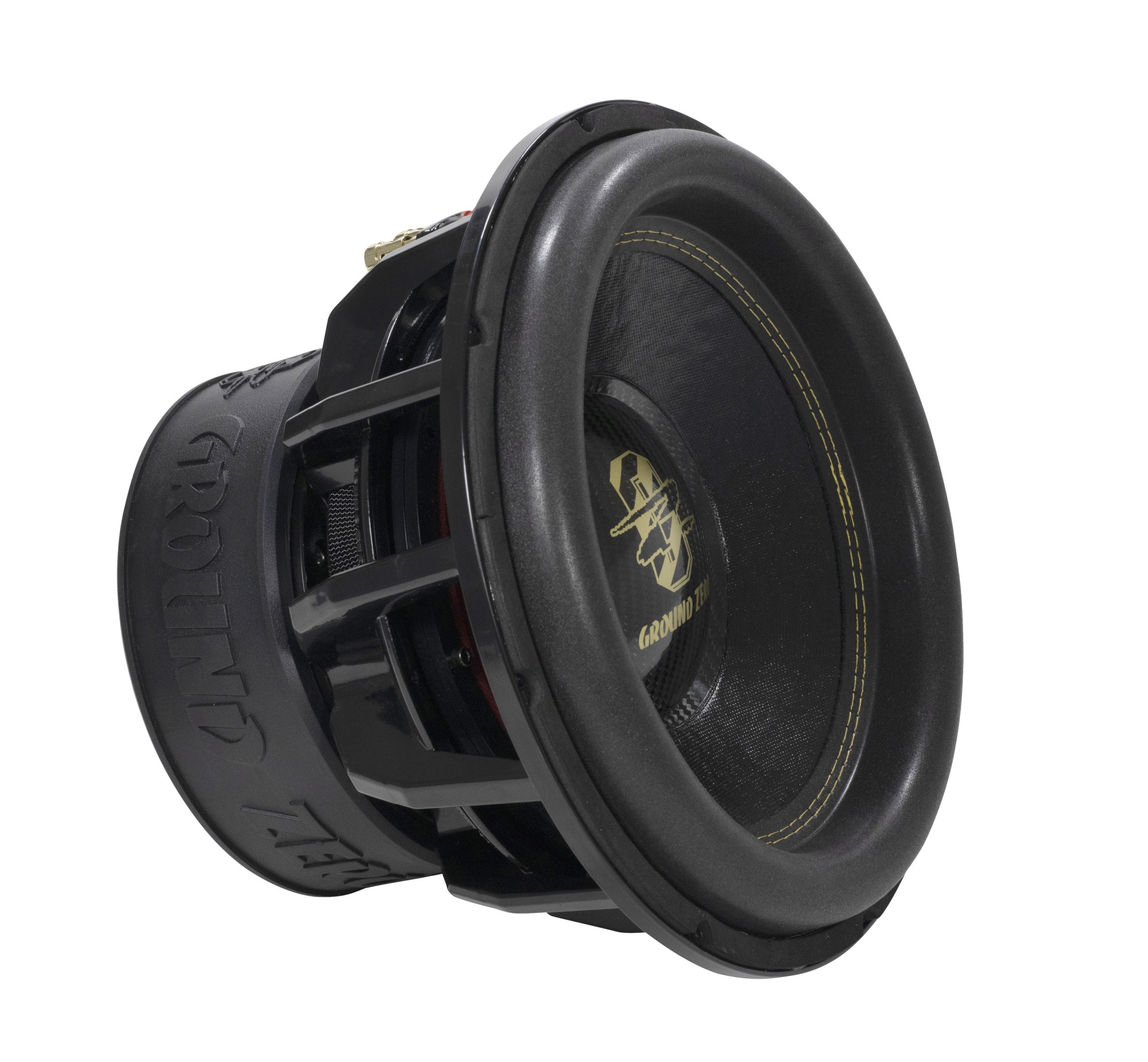

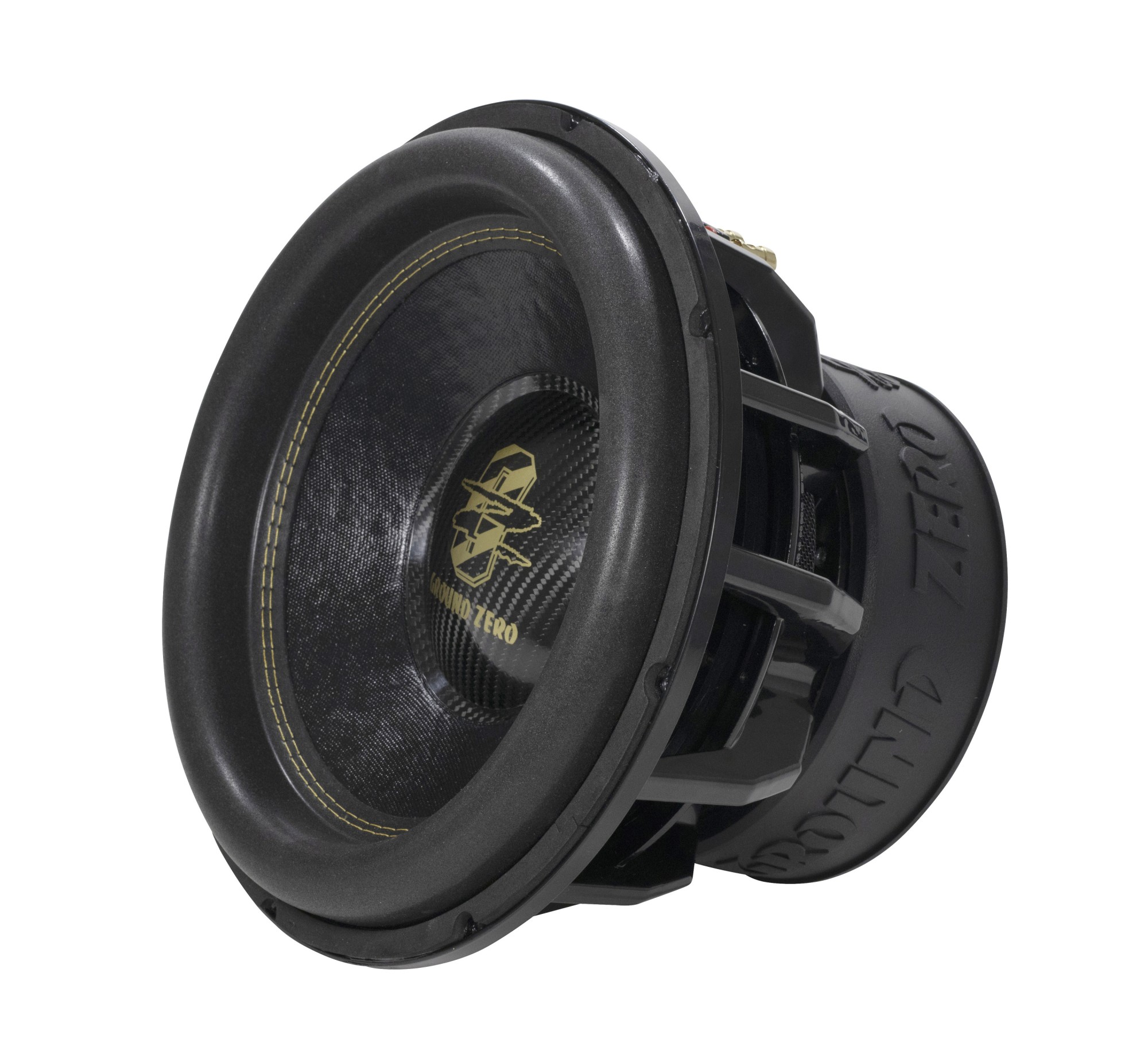

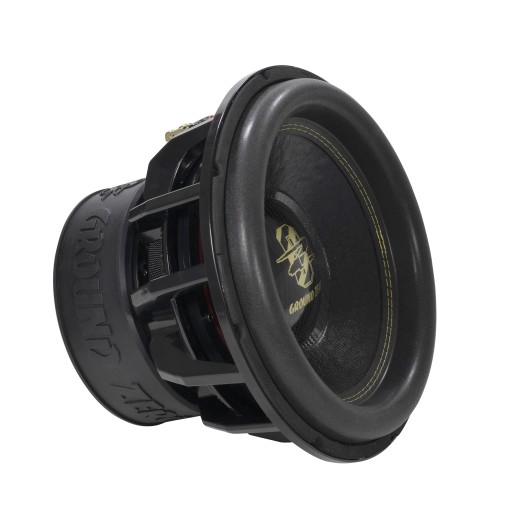

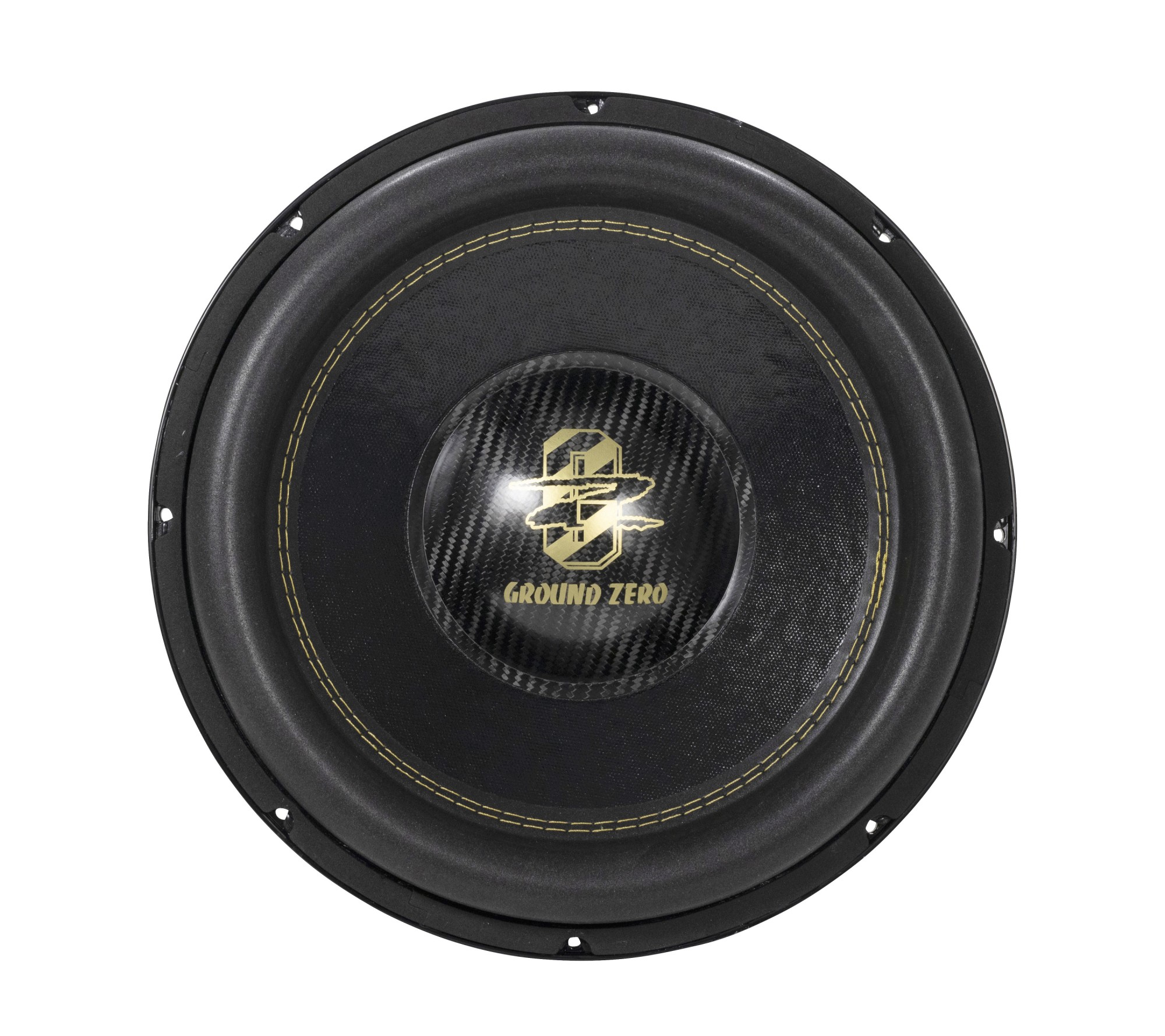

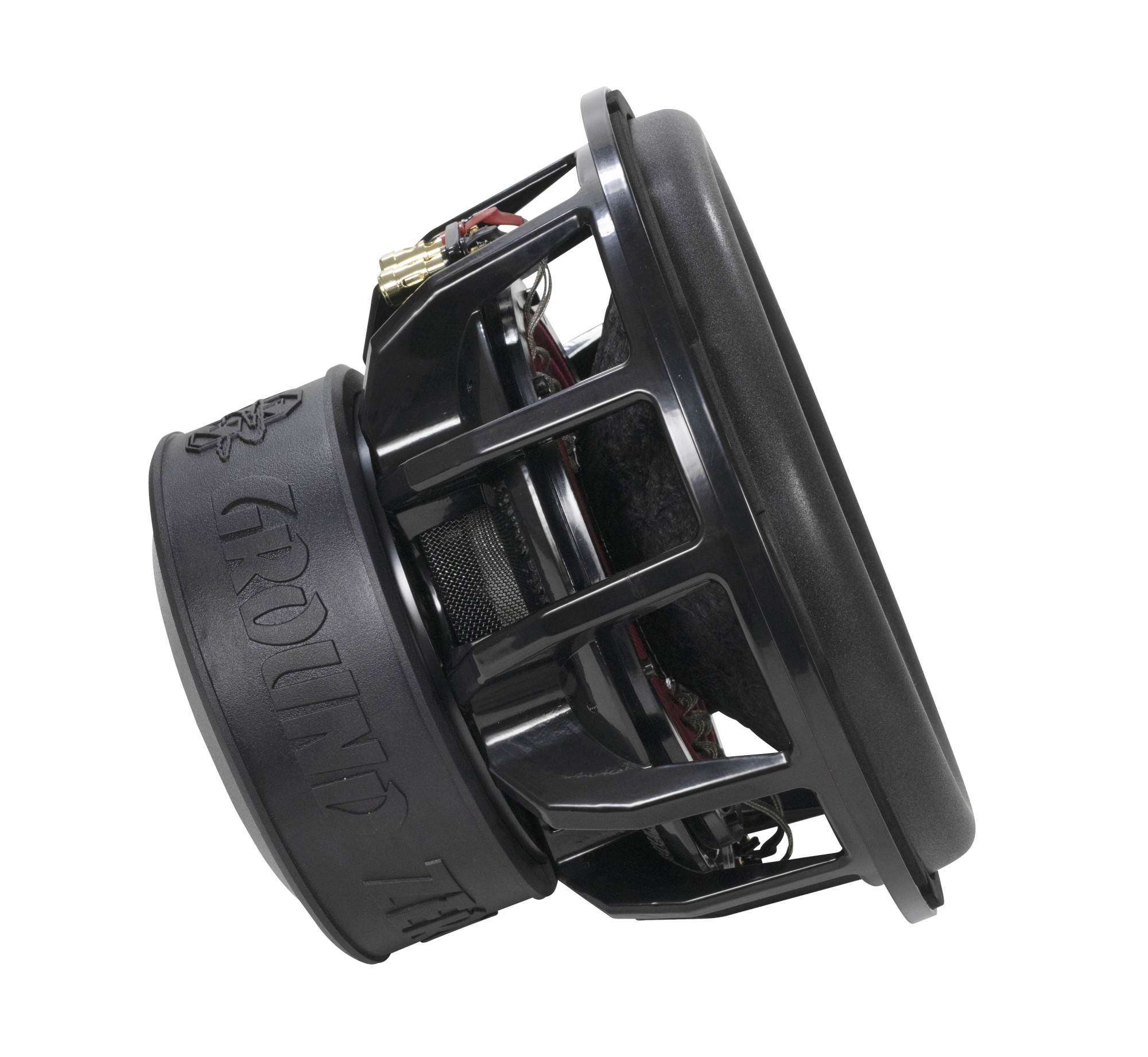

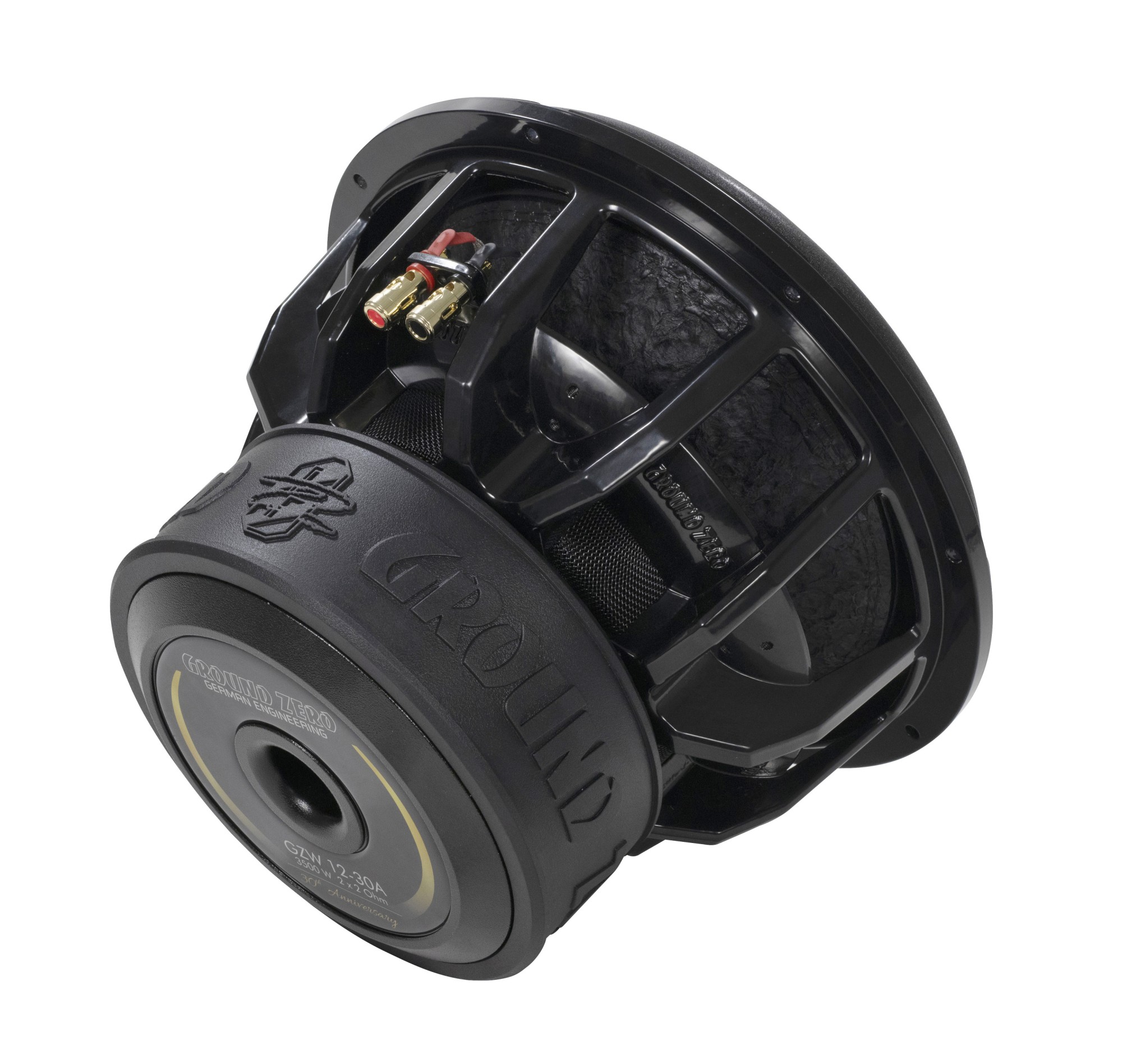

The Ground Zero GZW 12-30A subwoofer was created as a special edition for the 30th anniversary of the Ground Zero brand and is designed exclusively for SPL applications, where maximum sound pressure, power endurance, and extreme mechanical stability are priorities. The construction is based on a solid aluminum cast basket combined with a reinforced paper cone, finished with a carbon dust cap. This material mix ensures a perfect balance between rigidity, low weight, and resistance to deformation at high outputs. The cone is surrounded by a long stroke U-surround for extreme excursion and high acoustic performance. The precise mechanics are ensured by a dual-layer spider made of Polycot material, which, along with a 75 mm (3") copper coil, allows precise movement control and high power handling. The entire construction has been optimized using Klippel® technology, ensuring minimal distortion even at performance limits and maximum efficiency in SPL competitions. The GZW 12-30A is a tribute to the technical development of the Ground Zero brand and an ideal choice for extreme sound enthusiasts seeking exceptional performance and character.

Main Features

• Special edition for the 30th anniversary of the Ground Zero brand.
• Designed for SPL applications – extreme performance and sound pressure.
• Aluminum cast basket for maximum stability.
• Reinforced paper cone with low distortion.
• Carbon dust cap for higher rigidity and stylish appearance.
• 75 mm / 3″ copper voice coil with high power handling.
• Dual-layer spider made of Polycot material – precise cone movement control.
• Long stroke U-surround for extreme excursion.
• Klippel® optimization for maximum efficiency and minimal distortion.

About the Brand

Ground Zero Audio is a globally recognized brand in the car audio industry, founded in Germany in 1995. Since its inception, it has established a strong market position thanks to cutting-edge technologies, precise engineering, and a focus on sound quality. Ground Zero specializes in complete car audio solutions, ranging from top-quality car speakers and powerful subwoofers to amplifiers designed for either SPL or SQ. Ground Zero products are known for their durability, high performance, and faithful music reproduction, as confirmed by numerous awards from prestigious global competitions in the categories of Sound Quality (SQ) and Sound Pressure Level (SPL). The manufacturer uses the latest technologies, such as the KLIPPEL® measurement system and CEA 2006-A standards, to ensure maximum accuracy and reliability of each component. With the slogan "Respect The Music," Ground Zero Audio emphasizes its philosophy - to offer listeners an authentic musical experience that faithfully captures the emotions of every track. If you are looking for top-notch solutions, car speakers, or subwoofers that excel not only in performance but also in build quality, Ground Zero Audio is the right choice for demanding customers worldwide.

Catalog number	GZW 12-30A
Brand	Ground Zero
Links	Official web presentation
RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer.	1500 W
Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur, or to burn out the voice coil of the subwoofer.	3500 W
Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with 91 dB sensitivity needs only 150 Watts to reach the same efficiency.	88 dB
Sensitivity (SPL 1W/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 watts to produce a certain volume, then a 91 dB subwoofer needs only 150 watts to reach the same efficiency.	85 dB
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm.	2 + 2 Ω
Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers.	300 mm (12\")
Subwoofer mounting depthThe mounting depth of the subwoofer is measured from the bottom edge of the magnet to the bottom edge of the subwoofer's metal or cast basket.	198 mm
Fs - resonant frequencyFs - is the lower resonant frequency. This parameter is the de facto free air resonant frequency of the subwoofer. Simply put, it is the point at which the weight of the subwoofer's moving parts equals the force of the subwoofer's suspension while it is in motion. If you've ever seen a piece of string start to hum uncontrollably in the wind, you've seen the effect of reaching a resonant frequency. The weight of the moving parts and the stiffness of the suspension (surround and spider) are key elements that affect the resonant frequency. As a general rule, a lower Fs indicates a subwoofer that would be better at reproducing low frequencies than a subwoofer with a higher Fs. However, this is not always the case, as other important parameters of the subwoofer also enter the resulting sound.	26.5 Hz
Xmax + -Xmax - the maximum deflection of the subwoofer diaphragm in one direction – it is not a sum, or an abbreviation for the maximum linear deflection. The subwoofer output becomes non-linear as the voice coil begins to leave the magnetic gap.	45 mm
Subwoofer voice coil diameterThe larger the diameter of the voice coil, the more load capacity the subwoofer has, in layman's terms.	75 mm (3\")
Subwoofer diaphragm materialThe specific material from which the subwoofer membrane is made.	Reinforced paper
