Subwoofer Ground Zero GZUW 8CF
More about the product
- You can return the goods to us within 14 days

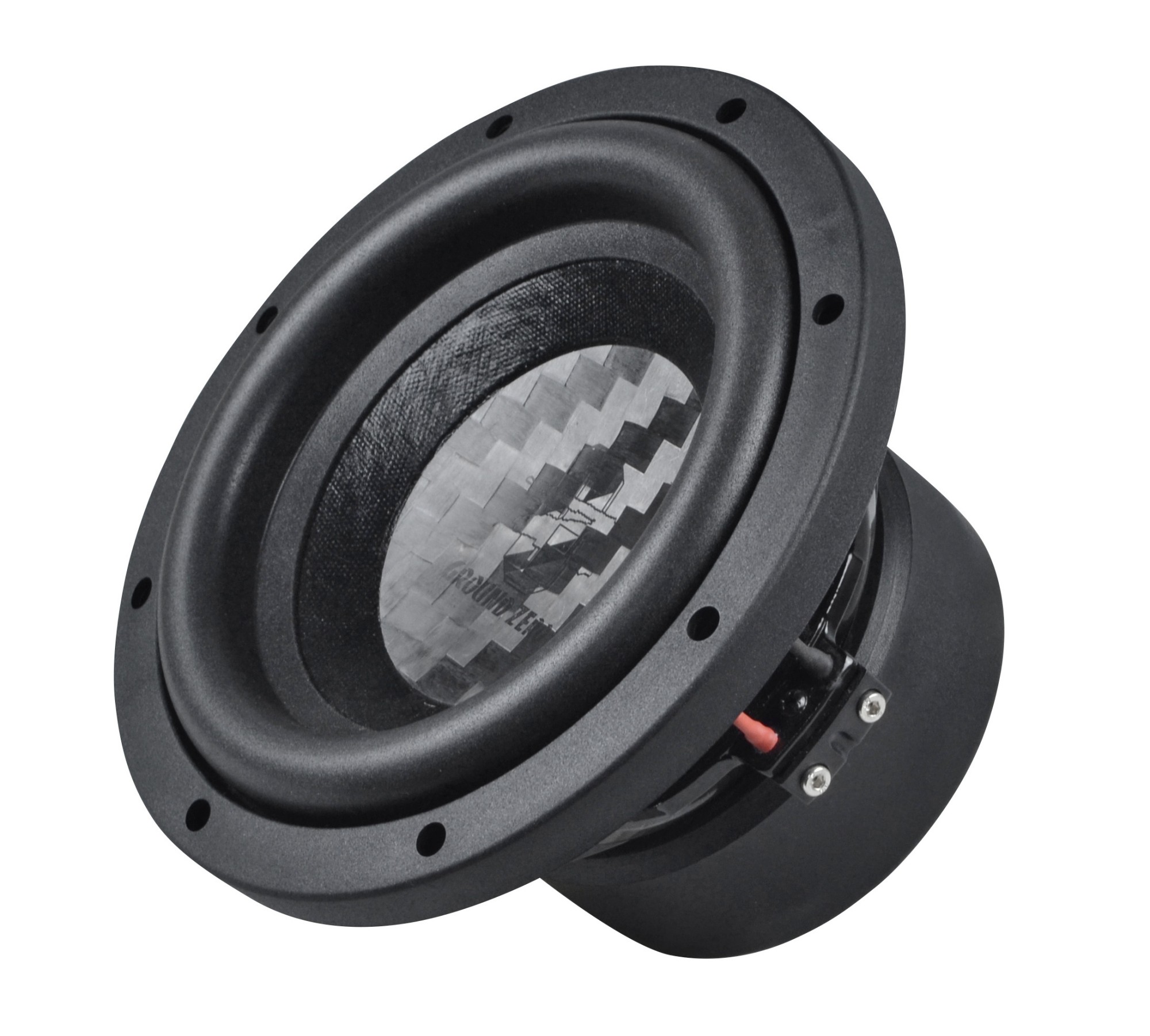

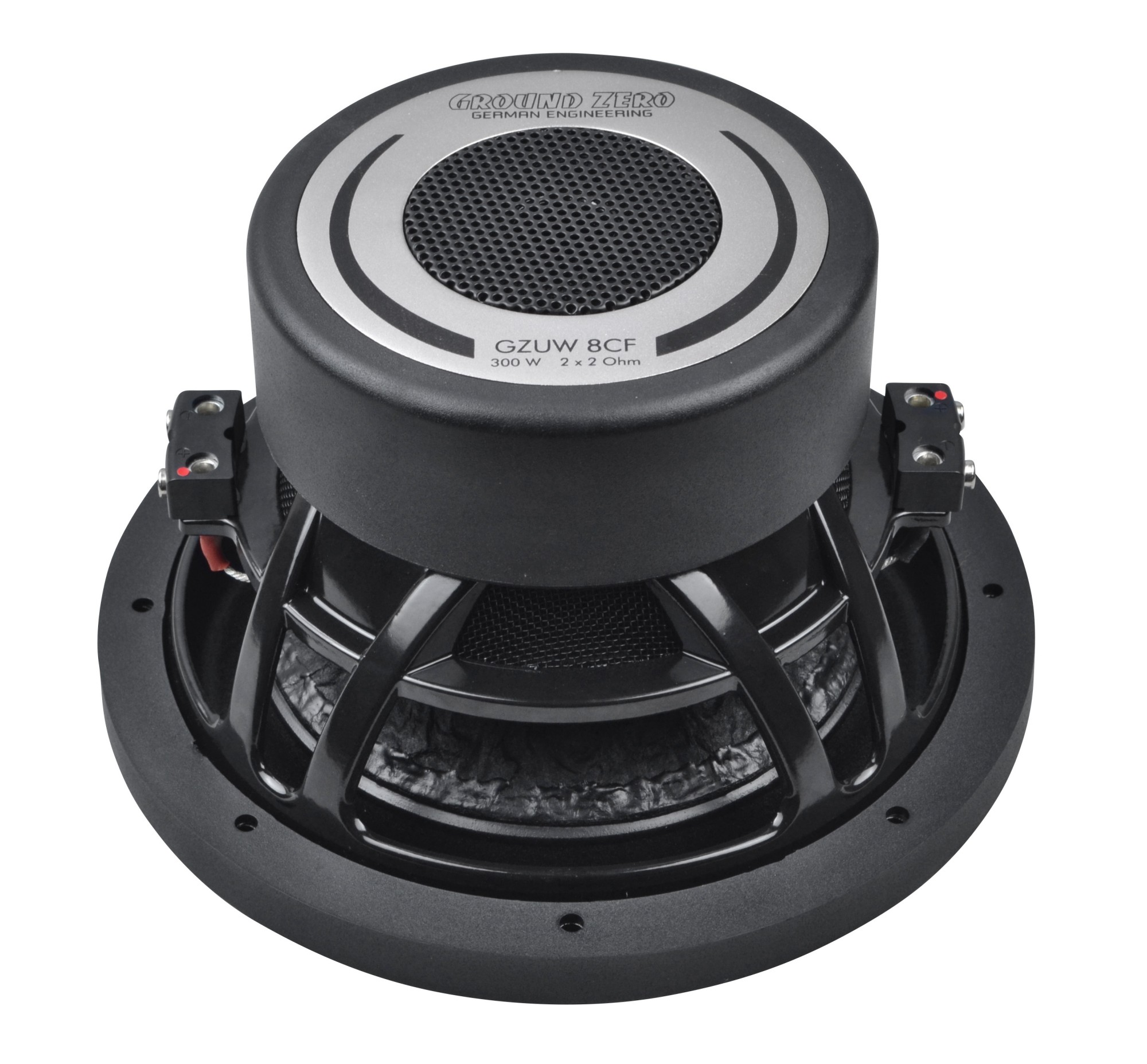

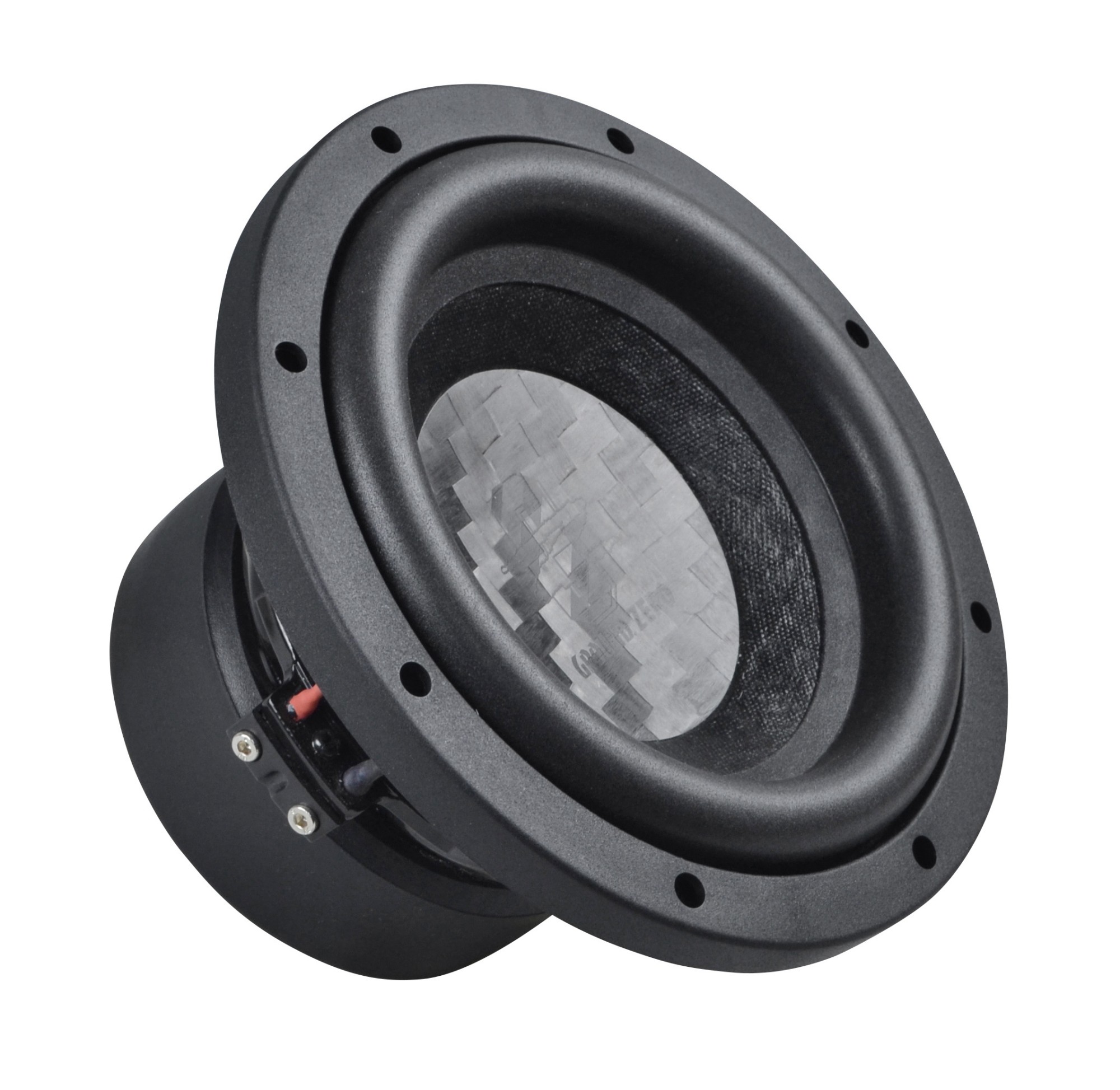

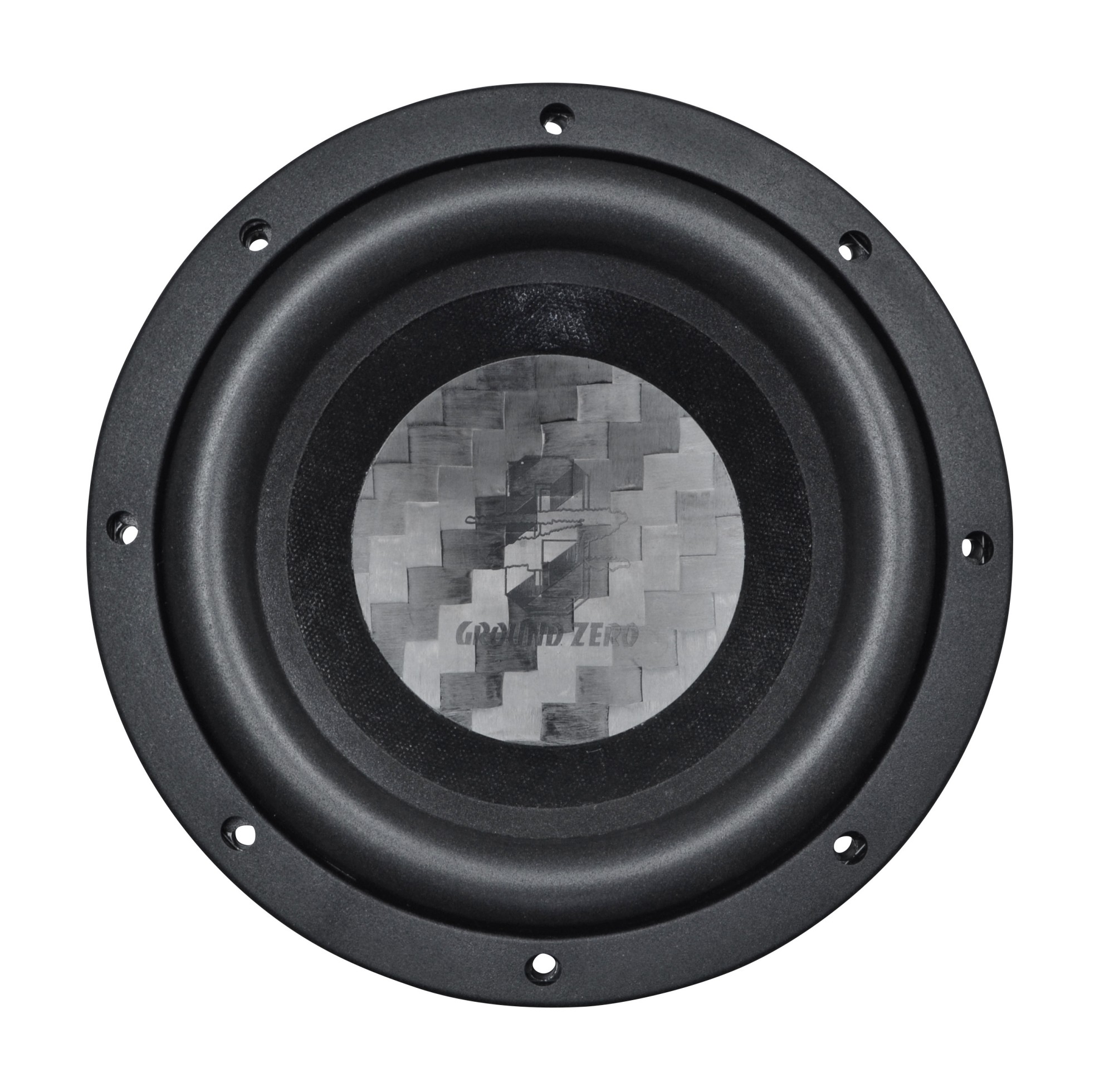

Subwoofer Ground Zero GZUW 8CF
Ground Zero GZUW 8CF is a subwoofer from the updated Uranium range, designed with a clear emphasis on sound quality and practical usability in modern installations where space is often a limiting factor. Uranium series subwoofers use a precisely engineered driver aimed at a controlled, fast and intelligible bass response. This is aided not only by a paper cone with a carbon dust cap, but also by a robust aluminum basket, a strong motor system with a large voice coil, and an audiophile Polycot spider. The design stems from optimization using Klippel® measurements, which translates into linear driver behavior even under higher load. The subwoofer is fundamentally conceived for smaller sealed enclosures, where it can offer precise and natural bass with excellent dynamics.
Paper cone with carbon dust cap
At the core of the subwoofer is a pressed and surface-treated paper cone, a long-proven solution in the sound quality field thanks to its tonal character and natural damping properties. Paper also offers a very good compromise between stiffness and mass, which positively affects response speed and overall bass control. The carbon dust cap here serves not only an aesthetic purpose but primarily reinforces the central part of the cone, which is mechanically most stressed. This contributes to better stability at larger excursions and reduces the risk of deformation. The U-shaped foam surround then allows linear cone movement across the entire excursion range and supports an overall calm and controlled performance.
Chassis and motor for exceptional performance
The massive die-cast aluminum basket provides high mechanical stability and eliminates unwanted resonances even under higher loads. It is paired with a thoughtfully engineered motor optimized via Klippel® analysis, resulting primarily in linear behavior across the full excursion range and minimal distortion. A dual 2-ohm, 50 mm copper voice coil ensures adequate thermal resistance even under prolonged load and also offers flexibility in wiring. Movement stability of the cone is supported by a quality Polycot spider centering element that keeps precise guidance of the voice coil within the magnetic system even at larger excursions. Overall, this is a design focused on control, reliability and consistent performance, which exactly matches the Uranium series' intent.
Uranium series philosophy
Every product in Ground Zero's URANIUM series is the result of long-term development focused on maximum sound quality for demanding listeners with high reproduction expectations. This series draws on the brand's competition experience in the sound quality (SQ) field, which is reflected in the emphasis on detailed tuning of individual components and an overall balanced, precise and natural sound presentation. The URANIUM product line is conceived as a pure SQ solution with no compromises toward effect or output at the expense of control. The quality of this series is confirmed not only by long-term popularity among users but also by recognition from experts, including EISA Awards. The naming of individual amplifiers in this series directly reflects their focus on top sound quality performance.
Main features
- 8" subwoofer from the updated Uranium range.
- Optimization via Klippel® for linear response and low distortion.
- Pressed and surface-treated paper cone.
- Carbon dust cap for increased stiffness of the cone's central section.
- U-shaped foam surround for linear excursion.
- 50 mm copper voice coil for high thermal resistance.
- Dual 2-ohm impedance for flexible wiring.
- Massive die-cast aluminum basket with high stiffness.
- Polycot spider for stable cone guidance.
- High 20 mm excursion for controlled bass even in small enclosures.
- Suitable for sealed enclosures from approx. 8 l.
About the brand
Ground Zero is a German brand active in car audio since 1995, maintaining a strong position thanks to its focus on technical development and build quality. The range includes complete vehicle audio solutions – from speakers and subwoofers to amplifiers – for both sound quality (SQ) and maximum acoustic pressure (SPL) applications. Ground Zero products are known for robust construction, high power handling and an emphasis on accurate reproduction, which is reflected in long-term results in international competitions. In development, the manufacturer uses modern measurement technologies including the Klippel® system and CEA standards, which help ensure consistent and verifiable parameters. The brand philosophy summarized by the slogan “Respect The Music” refers to the effort to reproduce music as faithfully as possible without unnecessary effects or distortion.
| Catalog number | GZUW 8CF |
| Brand | Ground Zero |
| Links | Official web presentation |
| Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers. | 200 mm (8") |
| RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer. | 300 W |
| Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with 91 dB sensitivity needs only 150 Watts to reach the same efficiency. | 86 dB |
| Sensitivity (SPL 1W/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 watts to produce a certain volume, then a 91 dB subwoofer needs only 150 watts to reach the same efficiency. | 83 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm. | 2 + 2 Ω |
| Subwoofer diaphragm materialThe specific material from which the subwoofer membrane is made. | Pressed paper/ carbon dust cap |
| Subwoofer mounting depthThe mounting depth of the subwoofer is measured from the bottom edge of the magnet to the bottom edge of the subwoofer's metal or cast basket. | 108 mm |
| Recommended enclosure volumeThe closed enclosure is characterized by a simple construction. Closed enclosures are usually smaller than bass-reflex enclosures, and a special damping fleece is used for their damping. A closed baffle has the advantage of preventing an acoustic short between the front and back radiation of the subwoofer diaphragm. The disadvantage is that the closed enclosure raises the natural resonance frequency of the used subwoofer and thereby also increases the lower limit frequency. This is because the back side of the diaphragm is forced to compress and dilute the air inside the enclosure when the subwoofer is radiating in a closed enclosure. This adds to the inherent stiffness of the subwoofer's oscillation system the stiffness of the air in the closed enclosure. This causes an increase in the stiffness of the oscillating system and thus an increase in the resonant frequency of the entire system: subwoofer -> loudspeaker. The increase in resonant frequency for a given subwoofer is greater, the smaller the volume of air in the closed enclosure. The relatively small volume of air in the closed enclosure acts on the subwoofer as an acoustic spring when radiating the back side of the membrane into the enclosed enclosure. USE: Mainly for quality bass listening in the entire band with an emphasis on detail and accurate reproduction in the lower band. Pros and cons: + pure reproduction + small closets + easier tuning - low level of efficiency in deep bass - loudness only at the cost of enormous deflection of the membrane - a significant acoustic pressure cannot be expected | 8 – 20 l |
| Recommended bass reflex speaker volumeA bass reflex enclosure is designed in the same way as a closed enclosure, but it also has a so-called bass reflex mouthpiece, or "bass reflex" or slot. Needle foam is used to dampen bass reflex enclosures. USE: The ideal use is in cases where the listener wants to achieve a high volume and a good sound pressure level. It is the best compromise between sound quality and performance and is also the most commonly used Pros and cons: + good efficiency in deep bass + a small deflection of the membrane is enough for a large volume - reproduction less accurate than with closed enclosures | 18 l |
| Subwoofer voice coil diameterThe larger the diameter of the voice coil, the more load capacity the subwoofer has, in layman's terms. | 50 mm (2\") |
| Fs - resonant frequencyFs - is the lower resonant frequency. This parameter is the de facto free air resonant frequency of the subwoofer. Simply put, it is the point at which the weight of the subwoofer's moving parts equals the force of the subwoofer's suspension while it is in motion. If you've ever seen a piece of string start to hum uncontrollably in the wind, you've seen the effect of reaching a resonant frequency. The weight of the moving parts and the stiffness of the suspension (surround and spider) are key elements that affect the resonant frequency. As a general rule, a lower Fs indicates a subwoofer that would be better at reproducing low frequencies than a subwoofer with a higher Fs. However, this is not always the case, as other important parameters of the subwoofer also enter the resulting sound. | 57 Hz |
| Xmax + -Xmax - the maximum deflection of the subwoofer diaphragm in one direction – it is not a sum, or an abbreviation for the maximum linear deflection. The subwoofer output becomes non-linear as the voice coil begins to leave the magnetic gap. | 20 mm |
