Subwoofer Ground Zero GZPW 15NEO-SPL

Subwoofer Ground Zero GZPW 15NEO-SPL

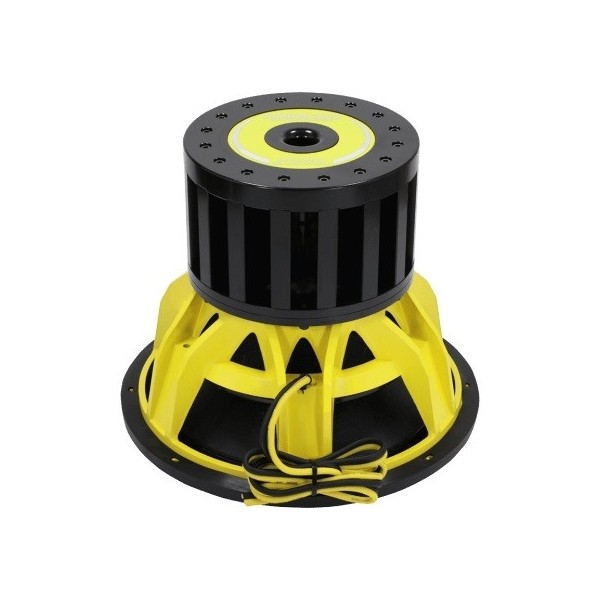

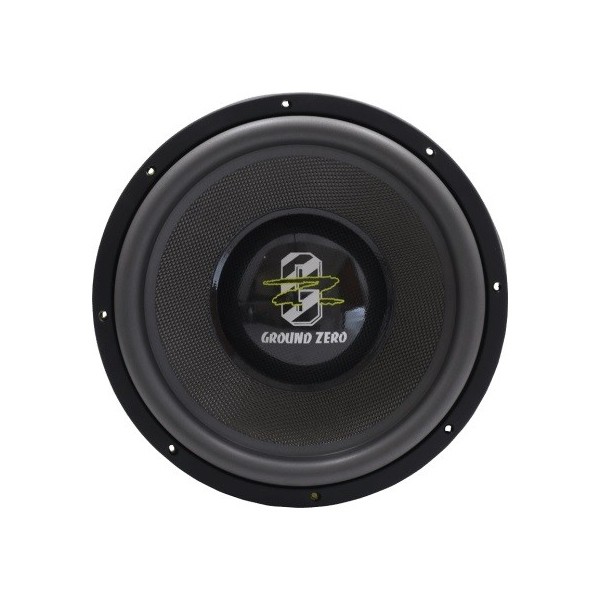

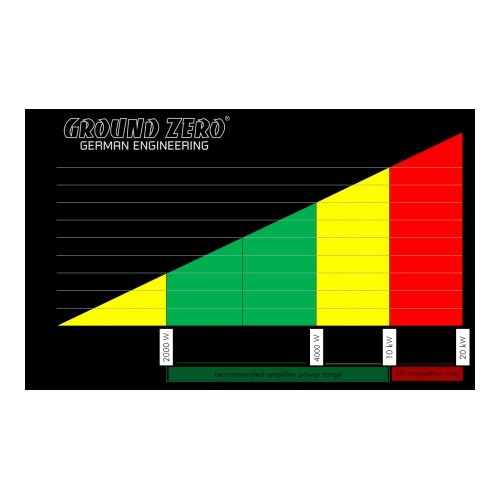

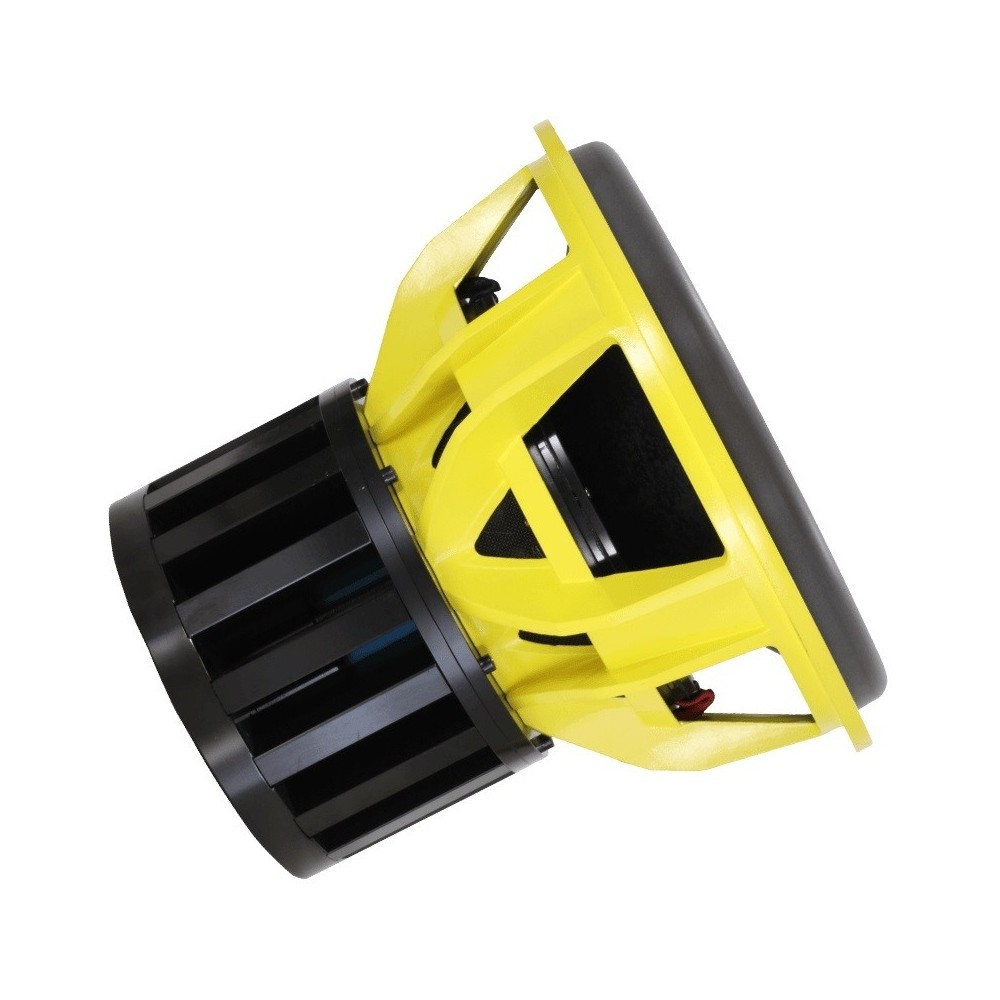

Discover the extremely powerful 15" (38 cm) Plutonium subwoofer GZPW 15NEO-SPL from Ground Zero. With a highly rigid carbon cone and dust cap, and optimized according to Klippel® standards, this subwoofer delivers truly extreme bass power. With an RMS power of 3000 W RMS this high-performance subwoofer delivers strong and crystal-clear sound that elevates your music experience to a new level. It also features an impressive impedance D1 (2 x 1 Ω) and a recommended amplifier power between 2500 - 6000 W. It's a subwoofer for demanding audio enthusiasts. This high-performance SPL subwoofer also features a massive aluminum die-cast basket.

Main specifics of the ultimate Ground Zero Plutonium series

Products in the Ground Zero Plutonium series are designed for maximum SPL levels or top-tier sound quality. To achieve either goal, exceptional materials and technologies are used in development. The technical, electrical and mechanical excellence of these products convinces not only during global SPL competitions but also high-end audio lovers with outstanding music reproduction capabilities. Since their introduction to the market, Plutonium series subwoofers have set standards in SPL competitions worldwide and are often praised for top performance in many prestigious magazines.

Main features

• 15" (38 cm) SPL subwoofer with an aluminum die-cast basket.
• Optimized with Klippel®.
• Carbon cone and dust cap.
• Multi-piece neodymium motor.
• 75 mm CCA round-wire voice coil.
• 4-layer Nomex centering.
• Carbon dust cap.

About the brand

Ground Zero Audio is a world-renowned car audio brand founded in 1995 in Germany. Since its inception it has built a strong market position thanks to cutting-edge technologies, precise engineering and a focus on sound quality. Ground Zero specializes in complete automotive audio solutions, from top-tier car speakers through powerful subwoofers to amplifiers aimed at either SPL or SQ. Ground Zero products are known for their durability, high performance and faithful music reproduction, as confirmed by numerous awards from prestigious international competitions in the Sound Quality (SQ) and Sound Pressure Level (SPL) categories. The manufacturer uses the latest technologies in development, such as the KLIPPEL® measurement system and CEA 2006-A standards, to ensure maximum accuracy and reliability of each component. With the slogan "Respect The Music" Ground Zero Audio emphasizes its philosophy - offering listeners an authentic musical experience that faithfully captures the emotion of every track. If you are looking for top solutions, car speakers or subwoofers that stand out not only in power but also in build quality, Ground Zero Audio is the right choice for demanding customers worldwide. Ahifi is the sole exclusive importer of the Ground Zero brand for the Czech and Slovak Republics.

Catalog number	GZPW 15NEO-SPL
Brand	Ground Zero
Links	Official web presentation
Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers.	380 mm (15\")
RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer.	3000 W
Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur, or to burn out the voice coil of the subwoofer.	10000 W
Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with 91 dB sensitivity needs only 150 Watts to reach the same efficiency.	91.4 dB
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm.	2 x 1 Ω
Subwoofer mounting depthThe mounting depth of the subwoofer is measured from the bottom edge of the magnet to the bottom edge of the subwoofer's metal or cast basket.	307 mm
Subwoofer voice coil diameterThe larger the diameter of the voice coil, the more load capacity the subwoofer has, in layman's terms.	100 mm
Fs - resonant frequencyFs - is the lower resonant frequency. This parameter is the de facto free air resonant frequency of the subwoofer. Simply put, it is the point at which the weight of the subwoofer's moving parts equals the force of the subwoofer's suspension while it is in motion. If you've ever seen a piece of string start to hum uncontrollably in the wind, you've seen the effect of reaching a resonant frequency. The weight of the moving parts and the stiffness of the suspension (surround and spider) are key elements that affect the resonant frequency. As a general rule, a lower Fs indicates a subwoofer that would be better at reproducing low frequencies than a subwoofer with a higher Fs. However, this is not always the case, as other important parameters of the subwoofer also enter the resulting sound.	41.2 Hz
Xmax + -Xmax - the maximum deflection of the subwoofer diaphragm in one direction – it is not a sum, or an abbreviation for the maximum linear deflection. The subwoofer output becomes non-linear as the voice coil begins to leave the magnetic gap.	30 mm / 1.18\"
MassSubwoofer weight in kilograms. The weight is usually given net, i.e. without packaging.	37.5 kg
Other	Multi-neodymium magnet
