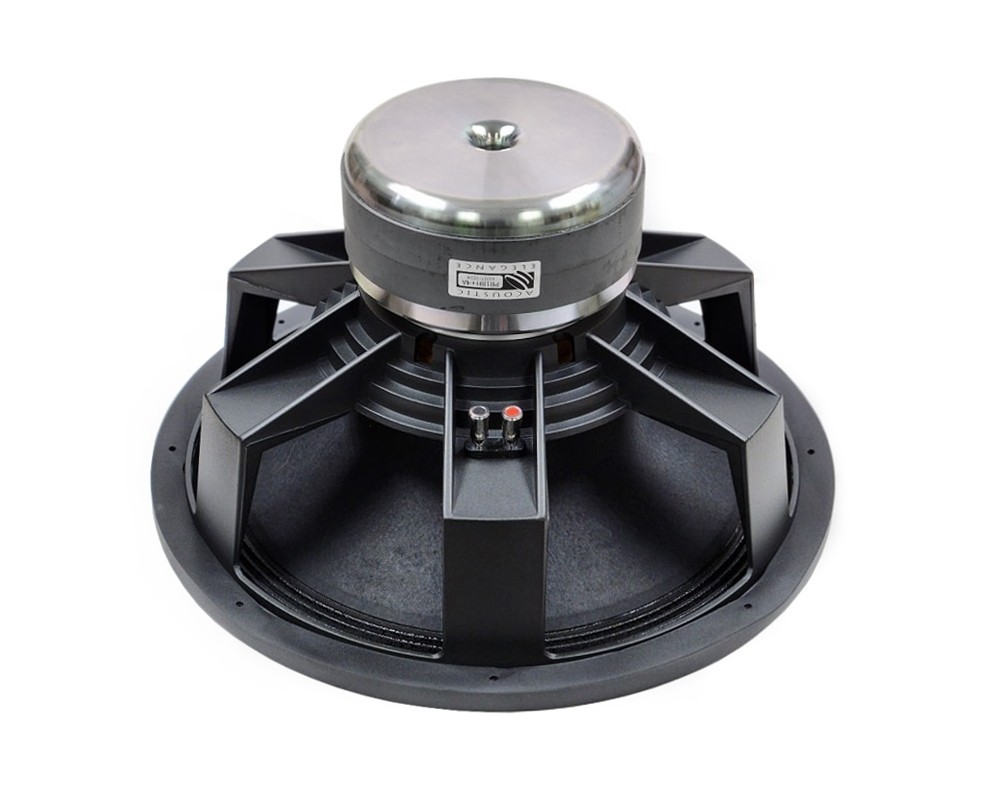

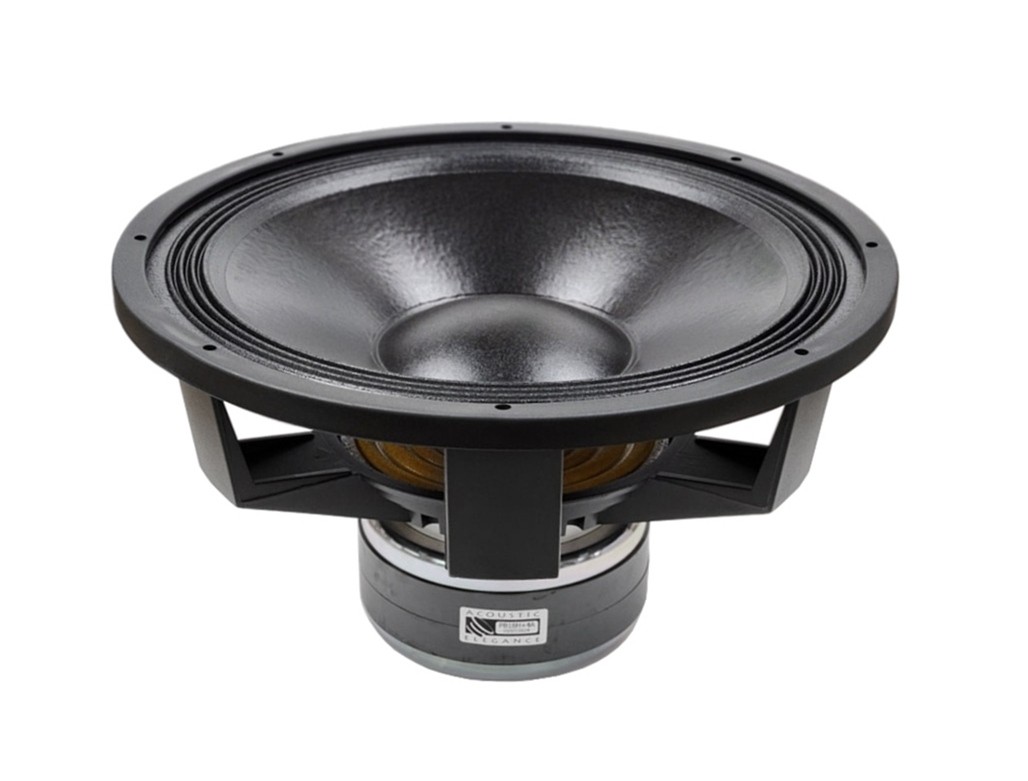

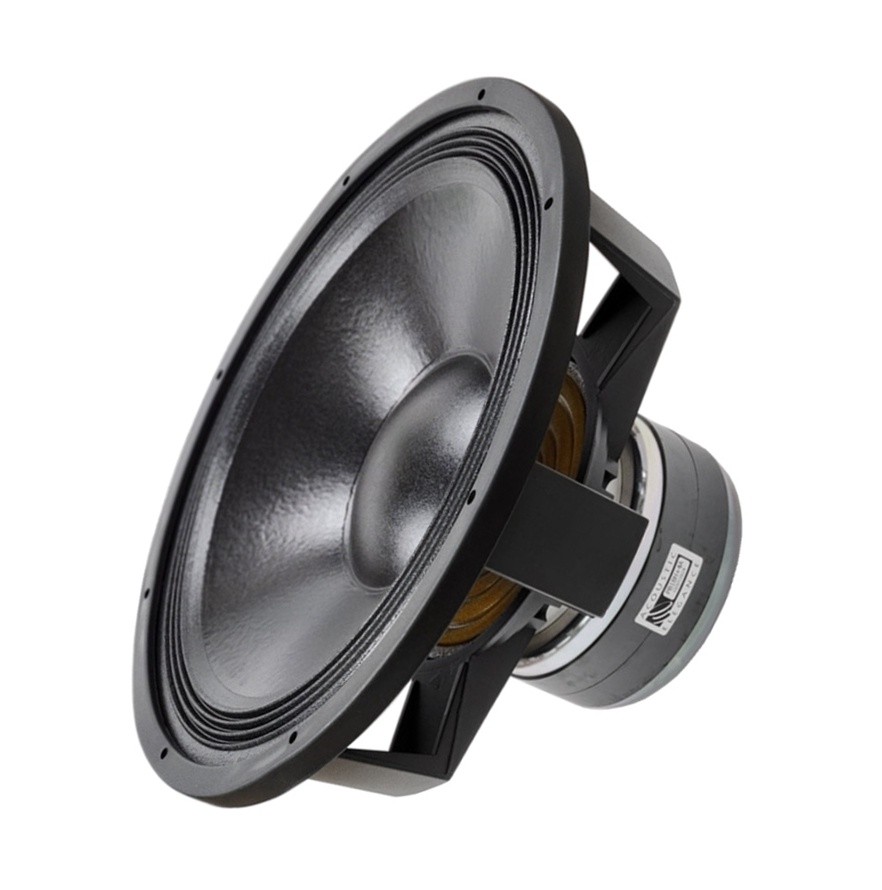

Subwoofer Acoustic Elegance IB18AU-4A

Subwoofer Acoustic Elegance IB18AU-4A

The Acoustic Elegance IB18AU-4A subwoofer represents the absolute pinnacle among subwoofers designed for demanding infinite baffle applications in an automotive environment. This type of installation places extreme demands on speaker performance, requiring high mechanical stability, accurate response across the entire range, and absolutely minimal distortion even with extreme cone excursion. These are precisely the areas where the IB18AU-4A excels. The subwoofer is specifically designed for use in automotive IB installations, where it stands out with its natural acoustic characteristics, high efficiency at low frequencies, and linear response in the low-frequency band. This makes system integration significantly easier and ensures a perfectly smooth transition between mid-bass drivers and the subwoofer. The cone has an extreme excursion (Xmax ±18 mm), and the entire motor system is designed for clean and fully controlled movement without distortion or transient phenomena that often plague cheaper designs. The subwoofer can thus effortlessly handle demanding dynamic music and uncompromising high-resolution recordings.

Designed for Infinite Baffle (IB) Applications

Infinite Baffle is an installation method for a subwoofer where a traditional enclosure is not used. Instead, the cone is acoustically separated from the rear by a large, virtually "infinite" space—in a car, this might be the trunk or, in some cases, the car body itself. The goal is to prevent mutual interference between the front and rear sides of the cone, which would otherwise lead to the loss of low frequencies. This allows the subwoofer to operate with complete freedom of movement, without acoustic pressure or enclosure resonances, resulting in exceptionally clean, natural, and linear bass. The result is sound that is extremely fast, precise, and detailed, comparable more to high-end home systems than typical car audio.

Lambda Motor with Full Copper Faraday Sleeve (FCFS)

The foundation of its success is the sophisticated Lambda-type motor, equipped along the entire length of the pole piece with a Full Copper Faraday Sleeve (FCFS). This design element reduces inductance, suppresses nonlinearities, increases the efficiency of heat dissipation from the coil, and extends the frequency range towards higher octaves. The result is significantly lower distortion compared to standard subwoofers—even at very low frequencies and high volumes.

Apollo Upgrade

Included with the subwoofer is the premium optional Apollo modification from Acoustic Elegance, which pushes performance to the highest possible level. This modification focuses on two key areas: reducing distortion and improving thermal management. A crucial component of this modification are two massive aluminum Faraday rings, which significantly reduce the coil's inductance across the entire range of cone movement. This allows the speaker to achieve extraordinary linearity, a wider frequency range, and a cleaner response, especially in the mid and upper bass band. The aluminum rings also function as an effective passive cooler, dissipating heat from the coil to the speaker frame, ensuring stable performance even under high load. The Apollo Upgrade is the ideal choice for those who demand maximum fidelity, precision, and stability without compromise.

Handcrafted in the USA

Acoustic Elegance places great emphasis on manufacturing quality. All parts are machined directly in their own facility in the USA with exceptional precision. Adhesives, materials, and components are selected for maximum longevity and performance. Each speaker is hand-assembled, individually tested, and thoroughly inspected before shipment. The result is a product that holds up not only on paper but also in real-world conditions—delivering what high-end car audio enthusiasts expect: absolute control over low frequencies, speed, authority, and musical fidelity.

Main Features

• 18" subwoofer for infinite baffle (IB) installations.
• High-efficiency cone capable of reproducing extremely deep frequencies.
• Lambda motor with Full Copper Faraday Sleeve (FCFS) for lower distortion and wider bandwidth.
• Large linear excursion of ±18 mm – high Xmax for controlled cone movement.
• Low inductance and high linearity, ideal for accurate low-frequency reproduction.
• Natural acoustic response tuned to the cabin's characteristics – easy system integration.
• Handcrafted in the USA, extremely precise machining, and 100% final inspection.
• Construction optimized even for the higher bass band – smooth integration with mid-bass.
• Suitable for the most demanding listeners seeking absolute fidelity and dynamics.
• Includes the optional Apollo upgrade, reducing inductance and distortion to a minimum.
• Excellent heat dissipation – increased thermal stability even under long-term load.
• Custom-made copper sheath for the magnetic system.

Catalog number	IB18AU-4A
Brand	Acoustic Elegance
RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer.	500 W
Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with 91 dB sensitivity needs only 150 Watts to reach the same efficiency.	97.83 dB
Sensitivity (SPL 1W/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 watts to produce a certain volume, then a 91 dB subwoofer needs only 150 watts to reach the same efficiency.	93.27 dB
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm.	4 Ω
Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers.	450 mm (18\")
Subwoofer mounting depthThe mounting depth of the subwoofer is measured from the bottom edge of the magnet to the bottom edge of the subwoofer's metal or cast basket.	231 mm
Fs - resonant frequencyFs - is the lower resonant frequency. This parameter is the de facto free air resonant frequency of the subwoofer. Simply put, it is the point at which the weight of the subwoofer's moving parts equals the force of the subwoofer's suspension while it is in motion. If you've ever seen a piece of string start to hum uncontrollably in the wind, you've seen the effect of reaching a resonant frequency. The weight of the moving parts and the stiffness of the suspension (surround and spider) are key elements that affect the resonant frequency. As a general rule, a lower Fs indicates a subwoofer that would be better at reproducing low frequencies than a subwoofer with a higher Fs. However, this is not always the case, as other important parameters of the subwoofer also enter the resulting sound.	28.38 Hz
Xmax + -Xmax - the maximum deflection of the subwoofer diaphragm in one direction – it is not a sum, or an abbreviation for the maximum linear deflection. The subwoofer output becomes non-linear as the voice coil begins to leave the magnetic gap.	18 mm
