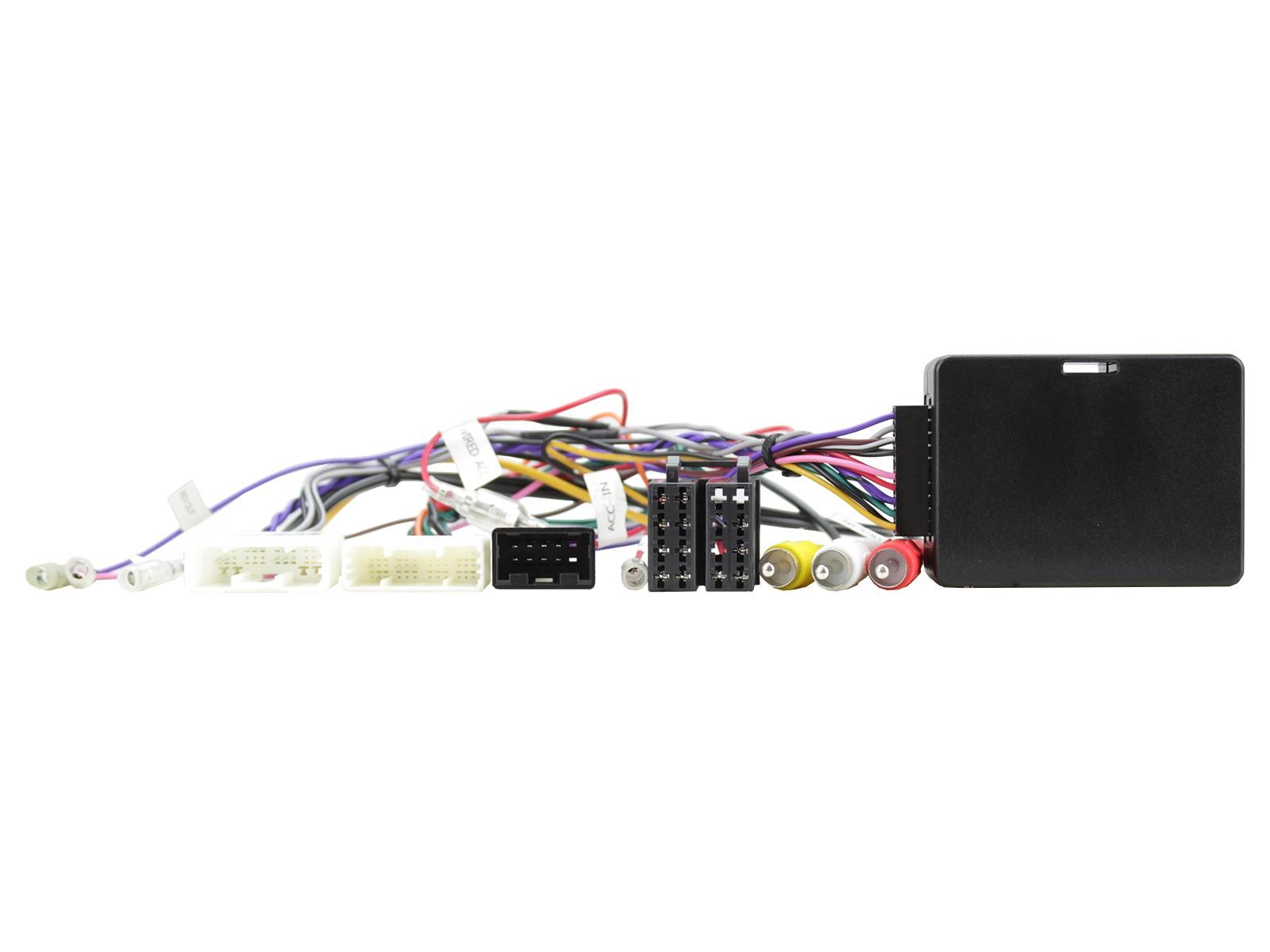

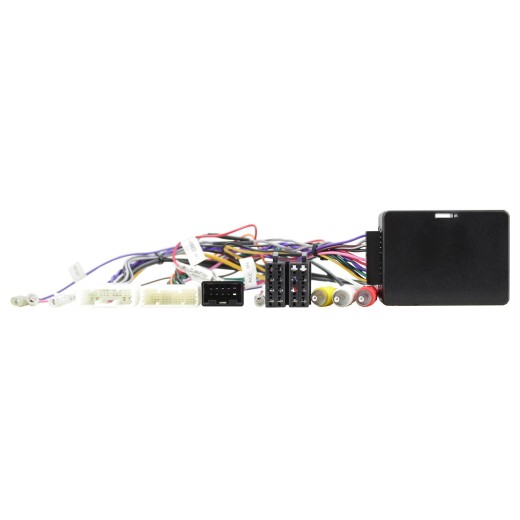

Steering Wheel Control Adapter for Toyota RAV4 Connects2 CTSTY020.2

The Connects2 CTSTY020.2 allows Toyota RAV4 owners to retain the use of factory multifunction steering wheel controls, including phone buttons, AUX input, and amplifier. This wiring harness also supports the retention of four factory reverse cameras, enabling the functionality of a 360-degree camera. The interface allows an aftermarket car stereo to interpret and interact with information from the factory camera as if it were the original system.

Designed for Car Model

• Toyota RAV4 (2019 -> 2020)

Main Features

• Steering wheel control adapter.
• Compatible with branded aftermarket car stereos including Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
• The interface allows connection of an aftermarket head unit while retaining the use of original steering wheel controls.
• Allows you to keep your hands on the wheel and eyes on the road.
• Plug & Play - no need to cut wires.
• Provides outputs for speed pulse and reverse gear.
• The vehicle language must be set before installation.
• This product does not support amplifier function.
• To fully activate the adapter, an interface cable for the specific brand of car stereo must be ordered!
• This product was developed based on carefully documented data and research.
• Connects2 Ltd. is not responsible for discrepancies/inconsistencies that may arise due to changes or additions in vehicle manufacturing, nor for any damage that may occur to the vehicle during component installation.
• All application data may change over time, and neither Ahifi nor the manufacturer is responsible for changes.
• Before installation, check that the vehicle's cable connection matches the adapter harness you are purchasing.

Additional Info for Analog Inputs

• The steering wheel adapter includes wires with analog signals.
• +12 V when the key is turned on (term. 15) - fitted in the ISO connector.
• +12 V when vehicle lights are turned on - fitted in the ISO connector.
• +12 V when reverse gear is engaged - free wire.
• Speed pulses - free wire.
• Ground (- pole) when the handbrake is engaged - free wire.
