Steering wheel button control adapter for Seat / Skoda / VW ACV SWC 42XVW002-0

Be the first to rate the product
steering wheel adapter for Seat Alhambra (7N) (10/10->04/15), Altea (5P) (06/04->03/09, 04/09->07/15), Ibiza (6J) (06/08->02/12, 03/12->06/15), Leon (1P) (09/05->03/09, 04/09->11/12), Mii (AA) (12/11->06/19), Toledo (5P) (01/05->10/09), Toledo (NH) (03/13->05/15), Škoda Citigo (AA) (06/12->05/17), Fabia (5J) (03/07->04/10, 06/10->06/14), Octavia (1Z) (06/04->05/09, 01/09->03/13), Rapid (NH) (10/12->04/15), Roomster (5J) (09/06->04/10, 06/10->02/15), Superb (3T) (07/08->05/13, 06/13->05/15), Yeti (5L) (08/09->10/13), VW Amarok (2H) (03/10->08/16), Beetle (16) (11/11->06/16), Caddy III (2K) (10/03->08/10, 09/10->04/15), Caddy IV (DU) (06/15->09/20), CC (3C/35) (06/08->08/16), Eos (1F) (05/06->10/10, 10/10->04/15), Fox (5Z) (04/05->08/11), Fusca (Brazil) (2005->2011), Golf V (1K) (11/03->09/08), Golf V (1KM) (06/07->10/09), Golf V Plus (1KP) (01/05->02/09), Golf VI (1K) (11/08->09/12), Golf VI (1KM) (11/09->04/13), Golf VI Plus (1KP) (03/09->01/14), Jetta III (1K5/1KM) (09/05->10/10), Jetta IV (162) (01/11->08/14), Magotan (Asia) (2005->2011), Passat B6 (3C2) (11/05->07/10), Passat B6 (3C5) (08/05->07/10), Passat B7 (3C/362) (11/10->10/14), Polo IV (9N) (03/05->03/09), Polo V (6R) (06/09->01/14), Scirocco III (13) (08/08->04/14), Sagitar (China) (2005->2011), Sharan II (7N) (08/10->04/15), Suran (2009->2015), Tiguan I (5N) (10/07->02/11, 06/11->04/16), Touran (1T) (01/03->09/06, 11/06->04/10, 08/10->04/15), UP! (AA) (12/11->06/16) a Vento (Mexico) (2005->2011)
More about the product
75,60 EUR
Catalog number: 42XVW002-0
In stock (1 pcs)
We will help you with your purchase
  • You can return the goods to us within 14 days

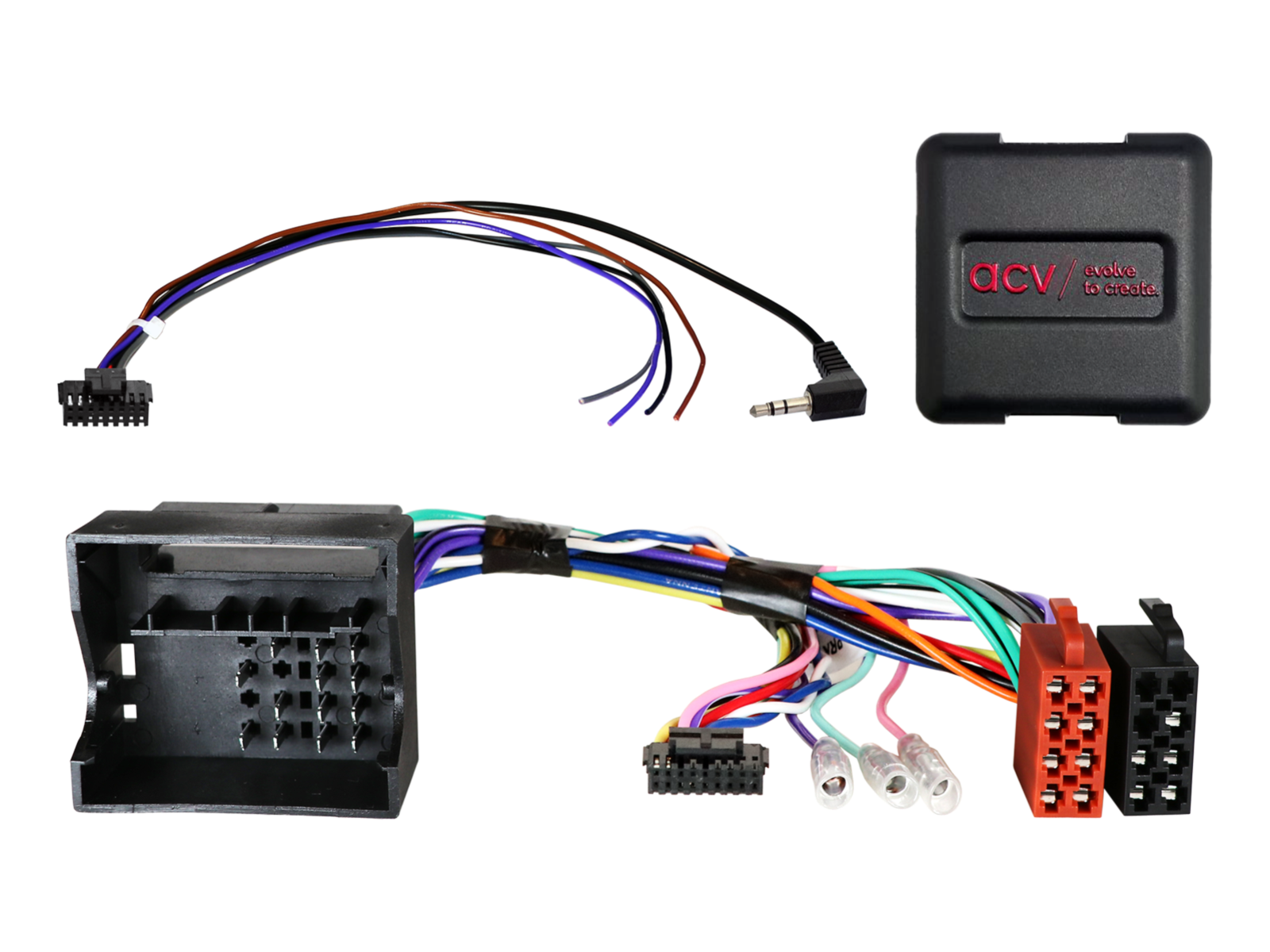

Steering wheel button control adapter for Seat / Skoda / VW ACV SWC 42XVW002-0

Steering wheel button control adapter for Seat / Skoda / VW ACV SWC 42XVW002-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

  • Seat Alhambra (7N) (10/2010 -> 04/2015) - original OEM head unit.
  • Seat Altea (5P) (06/2004 -> 03/2009) - original OEM head unit.
  • Seat Altea (5P) (04/2009 -> 07/2015) - original OEM head unit.
  • Seat Ibiza (6J) (06/2008 -> 02/2012) - original OEM head unit.
  • Seat Ibiza (6J) (03/2012 -> 06/2015) - original OEM head unit.
  • Seat Leon (1P) (09/2005 -> 03/2009) - original OEM head unit.
  • Seat Leon (1P) (04/2009 -> 11/2012) - original OEM head unit.
  • Seat Mii (AA) (12/2011 -> 06/2019) - original OEM head unit, vehicles without OEM amplifier.
  • Seat Toledo (5P) (01/2005 -> 10/2009) - original OEM head unit.
  • Seat Toledo (NH) (03/2013 -> 05/2015) - original OEM head unit.
  • Škoda Citigo (AA) (06/2012 -> 05/2017) - original OEM head unit, vehicles without OEM amplifier.
  • Škoda Fabia (5J) (03/2007 -> 04/2010) - original OEM head unit.
  • Škoda Fabia (5J) (06/2010 -> 06/2014) - original OEM head unit.
  • Škoda Octavia (1Z) (06/2004 -> 05/2009) - original OEM head unit.
  • Škoda Octavia (1Z) (01/2009 -> 03/2013) - original OEM head unit.
  • Škoda Rapid (NH) (10/2012 -> 04/2015) - original OEM head unit.
  • Škoda Roomster (5J) (09/2006 -> 04/2010) - original OEM head unit.
  • Škoda Roomster (5J) (06/2010 -> 02/2015) - original OEM head unit.
  • Škoda Superb (3T) (07/2008 -> 05/2013) - original OEM head unit.
  • Škoda Superb (3T) (06/2013 -> 05/2015) - original OEM head unit.
  • Škoda Yeti (5L) (08/2009 -> 10/2013) - original OEM head unit.
  • VW Amarok (2H) (03/2010 -> 08/2016) - original OEM head unit.
  • VW Beetle (16) (11/2011 -> 06/2016) - original OEM head unit.
  • VW Caddy III (2K) (10/2003 -> 08/2010) - original OEM head unit.
  • VW Caddy III (2K) (09/2010 -> 04/2015) - original OEM head unit.
  • VW Caddy IV (DU) (06/2015 -> 09/2020) - original OEM head unit, vehicles with Composition Audio MIB Entry HU with front AUX/SD/USB.
  • VW CC (3C/35) (06/2008 -> 08/2016) - original OEM head unit.
  • VW Eos (1F) (05/2006 -> 10/2010) - original OEM head unit.
  • VW Eos (1F) (10/2010 -> 04/2015) - original OEM head unit.
  • VW Fox (5Z) (04/2005 -> 08/2011) - original OEM head unit.
  • VW Fusca (Brazil) (2005 -> 2011) - original OEM head unit.
  • VW Golf V (1K) (11/2003 -> 09/2008) - original OEM head unit.
  • VW Golf V (1KM) (06/2007 -> 10/2009) - original OEM head unit.
  • VW Golf V Plus (1KP) (01/2005 -> 02/2009) - original OEM head unit.
  • VW Golf VI (1K) (11/2008 -> 09/2012) - original OEM head unit.
  • VW Golf VI (1KM) (11/2009 -> 04/2013) - original OEM head unit.
  • VW Golf VI Plus (1KP) (03/2009 -> 01/2014) - original OEM head unit.
  • VW Jetta III (1K5/1KM) (09/2005 -> 10/2010) - original OEM head unit.
  • VW Jetta IV (162) (01/2011 -> 08/2014) - original OEM head unit.
  • VW Magotan (Asia) (2005 -> 2011) - original OEM head unit.
  • VW Passat B6 (3C2) (11/2005 -> 07/2010) - original OEM head unit.
  • VW Passat B6 (3C5) (08/2005 -> 07/2010) - original OEM head unit.
  • VW Passat B7 (3C/362) (11/2010 -> 10/2014) - original OEM head unit.
  • VW Polo IV (9N) (03/2005 -> 03/2009) - original OEM head unit.
  • VW Polo V (6R) (06/2009 -> 01/2014) - original OEM head unit.
  • VW Scirocco III (13) (08/2008 -> 04/2014) - original OEM head unit.
  • VW Sagitar (China) (2005 -> 2011) - original OEM head unit.
  • VW Sharan II (7N) (08/2010 -> 04/2015) - original OEM head unit.
  • VW Suran (2009 -> 2015) - original OEM head unit.
  • VW Tiguan I (5N) (10/2007 -> 02/2011) - original OEM head unit.
  • VW Tiguan I (5N) (06/2011 -> 04/2016) - original OEM head unit.
  • VW Touran (1T) (01/2003 -> 09/2006) - original OEM head unit.
  • VW Touran (1T) (11/2006 -> 04/2010) - original OEM head unit.
  • VW Touran (1T) (08/2010 -> 04/2015) - original OEM head unit.
  • VW UP! (AA) (12/2011 -> 06/2016) - original OEM head unit, vehicles without OEM amplifier.
  • VW Vento (Mexico) (2005 -> 2011) - original OEM head unit.

CAN Bus Information

Connectors and Power Supply:

  • Connector: 40 Pin Quadlock VAG.
  • OEM steering wheel control connection: 3.5 mm jack or loose wire to the SWC input of the head unit.

Settings:

  • DIP switch settings according to the manufacturer of the aftermarket HU (see BDA).

Vehicle Compatibility:

  • Supported: Seat (except Exeo 3R), Škoda (Bolero / Stream, Amundsen / Columbus), VW (RCD200/210/300/310/500/510, RNS315/510).
  • Not supported: VW with RCD320 OEM HU (ISO connector).

Special Cases and Notes:

  • Re-imported vehicles or vehicles with different software versions may have limited functionality.
  • Vehicles with OEM amplified audio system require adapter LFB 42a-1324-001.

Important Additional Information

  • Compatible with aftermarket car radios with CAN Bus or analog SWC input.
  • To fully activate the adapter, a connection cable for the specific car radio brand must be ordered.

General Installation Instructions

Verification Before Installation:

  1. Check all control functions and vehicle settings using the OEM HU.
  2. Disconnect OEM HU in a voltage-free condition.
  3. Check all interface connections in a voltage-free condition.

Connection and Installation Sequence:

  1. Set the HW configuration of the interface in a voltage-free condition.
  2. Check the configuration of the HU cable in a voltage-free condition.
  3. Connect the cable to the HU according to the aftermarket unit manual.
  4. Connect the remaining wires according to the manual.
  5. Connect the complete installation to the vehicle – connect the main power supply last.
  6. Perform the software configuration of the interface according to the manual.
  7. Configure the aftermarket HU (SWC, camera, handsfree, antenna power supply etc.).
  8. Verify the functionality of SWC and the vehicle system.

Configuration Changes:

  • All changes must be carried out in a voltage-free condition.
  • After making changes repeat installation steps 5 to 8.

In Case of Failure:

  • Reinstall OEM HU.
  • Start OEM HU.
  • Initiate CAN Bus shutdown.
  • Check the HW configuration of the interface.
  • After CAN Bus shutdown repeat installation steps 5 and 6.

When Modifying Wiring:

  • Installation and modifications may only be carried out by qualified personnel.
  • All changes must be verified regarding manufacturer approval or impact on warranty.
  • All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
  • Modifications are carried out at your own responsibility without guarantee of functionality.
  • Modifications may cause damage to the vehicle, radio or interface.
  • Changes to the wiring may result in loss of product warranty.
Catalog number42XVW002-0
BrandACV
LinksOfficial web presentation
