Steering wheel button control adapter for Nissan / Opel / Renault ACV SWC 42XRN008-0

Be the first to rate the product
steering wheel adapter for Nissan NV400 (M) (07/14->07/20), NV400 (M) (07/20->12/21), Opel Movano B (X62) (06/13->09/19), Renault Capture (R) (06/13->12/19), Clio IV (X98) (11/12->06/16), Clio IV (X98) (06/16->12/20), Grand Scenic (04/12->09/16), Master III (M) (09/14->09/19), Megane III (Z/BZ) (04/12->12/13), Megane III (Z/BZ) (01/14->07/16), Scenic (JZ) (02/12->09/16), Trafic III (J/JL) (09/14->07/19), Traffic III (J/JL) (09/19->03/22), Twingo II (N) (01/12->07/14), Twingo III (AH) (09/14->04/19) and Wind (N) (08/10->08/13)
More about the product
75,81 EUR
Catalog number: 42XRN008-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days

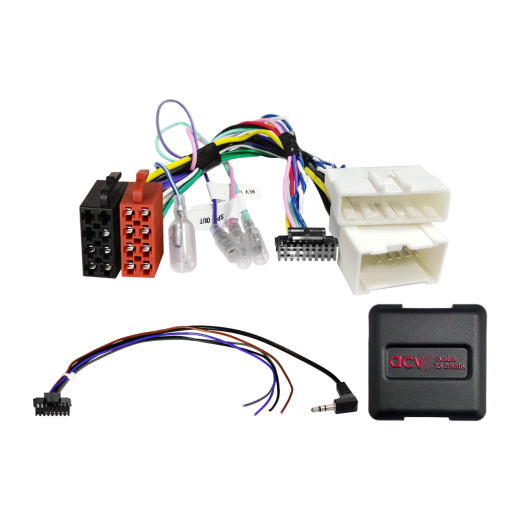

Steering wheel button control adapter for Nissan / Opel / Renault ACV SWC 42XRN008-0
New

Steering wheel button control adapter for Nissan / Opel / Renault ACV SWC 42XRN008-0

Preserve the original steering wheel radio controls when replacing the factory radio with an aftermarket head unit. Depending on the vehicle equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM radios was originally installed. Before final installation, verify vehicle functionality, system settings and correct operation of the steering wheel control (SWC).

Designed for vehicles

  • Nissan NV400 (M) (07/2014 -> 07/2020) - vehicles without OEM Sat Nav, 1-DIN OEM HU black with front AUX/USB.
  • Nissan NV400 (M) (07/2020 -> 12/2021) - vehicles without OEM Sat Nav, 1-DIN OEM HU black with front AUX/USB 2x rotary control.
  • Opel Movano B (X62) (06/2013 -> 09/2019) - vehicles without OEM Sat Nav, 1-DIN OEM HU black with front AUX/USB.
  • Renault Captur [R] (06/2013 -> 12/2019) - vehicles without OEM Sat Nav, 1-DIN OEM HU black with front AUX/USB.
  • Renault Clio IV [X98] (11/2012 -> 06/2016) - vehicles with R-Link OEM Sat Nav, OEM Sat Nav display with silverbox without front AUX/USB.
  • Renault Clio IV [X98] (06/2016 -> 12/2020) - vehicles with R-Link OEM Sat Nav, OEM Sat Nav display with silverbox without front AUX/USB.
  • Renault Grand Scenic (04/2012 -> 09/2016) - vehicles with 1-DIN OEM HU silver with front USB.
  • Renault Master III (M) (09/2014 -> 09/2019) - vehicles without OEM Sat Nav, 1-DIN OEM HU black with front AUX/USB.
  • Renault Mégane III [Z/BZ] (04/2012 -> 12/2013) - original OEM radio.
  • Renault Mégane III [Z/BZ] (01/2014 -> 07/2016) - vehicles with Radio+ Continental OEM HU.
  • Renault Scenic [JZ] (02/2012 -> 09/2016) - vehicles with 1-DIN OEM HU silver with front USB.
  • Renault Trafic III [J/JL] (09/2014 -> 07/2019) - vehicles with 1-DIN OEM HU silver with front USB, 1-DIN OEM HU black with front USB, R-Link OEM HU.
  • Renault Trafic III [J/JL] (09/2019 -> 03/2022) - vehicles with R-Link OEM HU, 1-DIN OEM HU silver with front USB, 1-DIN OEM HU black with front USB.
  • Renault Twingo II [N] (01/2012 -> 07/2014) - vehicles with 1-DIN OEM HU silver with front USB.
  • Renault Twingo III [AH] (09/2014 -> 04/2019) - vehicles with R-Link OEM HU.
  • Renault Wind [N] (08/2010 -> 08/2013) - vehicles with 1-DIN OEM HU silver with front USB.

CAN Bus information

Connectors and interfaces:

  • Connector: 12 Pin / 32 Pin Dacia / Nissan.
  • OEM steering wheel control connection: 3.5 mm jack or free wire.

Settings:

  • Set DIP switches according to the aftermarket head unit manufacturer (see user manual).

Vehicle compatibility:

  • Date/time setting supported.

Important additional information

  • Compatible with aftermarket head units with an analog steering wheel control input (e.g. Sony, Kenwood, JVC, Pioneer, Alpine, Blaupunkt, Clarion, Zenec, etc.).
  • To fully activate the adapter, it is necessary to order the specific connection cable for the radio brand.

General installation instructions

Checks before installation:

  1. Check all steering wheel control functions and vehicle settings with the original OEM head unit.
  2. Disconnect the original radio (OEM HU) from power.
  3. Check all interface connections to ensure they are correctly connected, with power off.

Connections and wiring sequence:

  1. Set and check the hardware configuration of the interface with power off.
  2. Check the configuration of the connection cable to the HU with power off.
  3. Connect the cable to the HU according to the aftermarket device manual.
  4. Connect other wires according to the device manual.
  5. Connect the entire installation to the vehicle, connecting the main power last.
  6. Perform software configuration of the interface according to the product description or manual.
  7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power, etc.).
  8. Perform a functional test of the steering wheel control and communication with the vehicle.

Changing interface configuration and HU cable:

  • Make all changes with power off.
  • After changes, repeat steps 5 to 8 above.

If the interface or vehicle system malfunctions:

  • Reinstall the original OEM HU.
  • Start the original unit.
  • Trigger CAN Bus system shutdown.
  • Check the hardware configuration of the interface.
  • After CAN Bus shutdown, repeat steps 5 and 6 above.

If wiring or harness modifications are made:

  • Wiring and modifications must only be performed by professionally trained personnel.
  • All changes must be verified for manufacturer approval or impact on the vehicle warranty before connection.
  • All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
  • Modifications are made at your own risk, without guarantee of functionality.
  • Modifications are carried out at your own risk, without guarantee of avoiding damage to the vehicle, device or interface.
  • Pre-modified harnesses may result in loss of product warranty.
Catalog number42XRN008-0
BrandACV
LinksOfficial web presentation
