Steering wheel button control adapter for Mazda ACV SWC 42XMZ005-0

Steering wheel button control adapter for Mazda ACV SWC 42XMZ005-0

Preserve the original radio control functions from the steering wheel when replacing the factory radio with an aftermarket unit. Depending on vehicle equipment, available functions and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Verify whether one of the listed OEM head units was originally installed. Before final installation, verify vehicle functionality, system settings and correct operation of the steering wheel control (SWC).

Intended for vehicles

• Mazda 3 (BL) (05/2009 -> 09/2011) vehicles with Panasonic OEM head unit and BOSE OEM amplifier system; vehicles without BOSE OEM amplifier: installation without OEM amplifier ISO(m) > ISO(f) connector; vehicles with Sanyo TomTom OEM Sat Nav: Mazda > Sanyo connection behind the OEM radio
• Mazda 3 (BL) (09/2011 -> 09/2013) vehicles with Panasonic OEM head unit and BOSE OEM amplifier system; vehicles without BOSE OEM amplifier: installation without OEM amplifier ISO(m) > ISO(f) connector; vehicles with Sanyo TomTom OEM Sat Nav: Mazda > Sanyo connection behind the OEM radio
• Mazda 5 (CW) (10/2010 -> 02/2013) vehicles with Panasonic OEM head unit and BOSE OEM amplifier system; vehicles without BOSE OEM amplifier: installation without OEM amplifier ISO(m) > ISO(f) connector; vehicles with Sanyo TomTom OEM Sat Nav: Mazda > Sanyo connection behind the passenger glovebox
• Mazda 5 (CW) (02/2013 -> 08/2015) vehicles with Panasonic OEM head unit and BOSE OEM amplifier system; vehicles without BOSE OEM amplifier: installation without OEM amplifier ISO(m) > ISO(f) connector; vehicles with Sanyo TomTom OEM Sat Nav: Mazda > Sanyo connection behind the passenger glovebox
• Mazda 6 (GH) (05/2010 -> 02/2013) vehicles with Panasonic OEM head unit and BOSE OEM amplifier system; vehicles without BOSE OEM amplifier: installation without OEM amplifier ISO(m) > ISO(f) connector

CAN Bus information

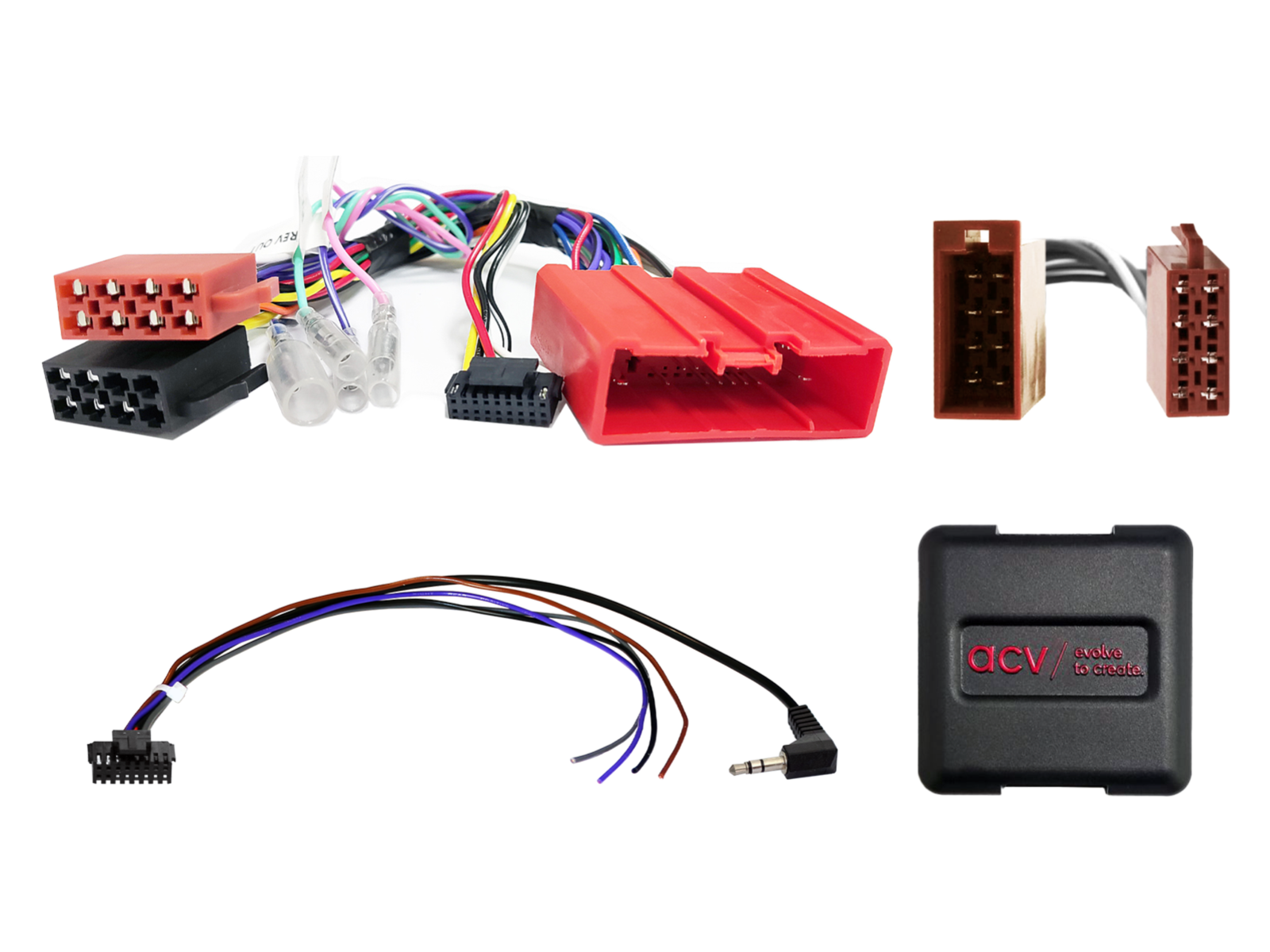

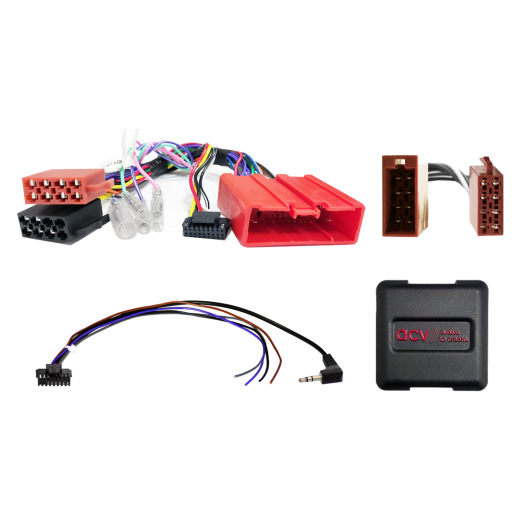

Connectors and power:

• Connector: 24‑pin Mazda.
• Connector: OEM SWC > 3.5 mm jack / free wire.
• Connector: OEM amplifier ISO(m) > ISO(f).
• Blue/white: +12V amp remote.

Compatibility:

• Vehicles with Panasonic OEM head unit.
• Vehicles with BOSE OEM amplifier system.
• Vehicles without BOSE OEM amplifier: installation without OEM amplifier using ISO(m) > ISO(f) connector.
• Mazda 3 and Mazda 6 with Sanyo TomTom OEM Sat Nav: Mazda > Sanyo connector behind the OEM radio.
• Mazda 5 with Sanyo TomTom OEM Sat Nav: Mazda > Sanyo connector behind the passenger glovebox.

Important additional information

• To fully activate the adapter, a brand-specific connection cable for the radio must be ordered.

General installation instructions

Checks before installation:

1. Verify all steering control functions and vehicle settings with the original OEM head unit installed.
2. Disconnect the original radio (OEM head unit) with power off.
3. Check all interface connections to ensure they are correctly connected – with power off.

Connections and wiring sequence:

1. Check the interface settings and hardware configuration – with power off.
2. Check the configuration of the radio connection cable – with power off.
3. Connect the cable to the radio according to the aftermarket unit manual.
4. Connect the remaining wires according to the device instructions.
5. Connect the entire installation to the vehicle – connect the main power last.
6. Perform software configuration of the interface following the product description or manual.
7. Configure the aftermarket head unit (steering wheel control, camera, handsfree, antenna power and others).
8. Perform a functional test of the steering wheel controls and vehicle communication.

Changing the interface configuration and head unit cable:

• Make all changes with power off.
• After changes, repeat steps 5 to 8 listed above.

If the interface or vehicle system malfunctions:

• Reinstall the original OEM head unit.
• Start the original unit.
• Trigger a CAN Bus shutdown.
• Check the hardware configuration of the interface.
• After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When modifying wiring or cable routing:

• Wiring and modifications must be performed only by professionally trained personnel.
• All changes must be verified for manufacturer approval or warranty impact before connection.
• All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
• Modifications are made at your own risk, without warranty of functionality.
• Modifications are undertaken at your own risk, without guarantee against damage to the vehicle, device or interface.
• Pre‑modified wiring may result in loss of product warranty.
