Steering wheel button control adapter for Lexus / Toyota ACV SWC 42XTY001-0

steering wheel adapter for Lexus IS (XE1) (10/01->11/05), IS (XE2) (12/05->11/08), IS (XE2) (11/08->11/10), IS Cabriolet (XE2) (07/09->11/10, 11/10->10/13), Toyota 4Runner (2002->2009), Auris (E150) (07/07->03/10), Avanza (2003->2011), Avensis (T25) (01/03->06/06, 06/06->01/09), Avensis (T27) (01/09->12/11), Camry (2007->2011), Celica (T23) (10/99->01/06), Corolla (E120) (01/02->07/04, 07/04->02/07), Corolla Verso (R1) (05/04->06/07, 07/07->04/09), Estima (2006->2016), FJ Cruiser (2001->2007), Hiace (H1) (11/06->10/10), Hilux (N25) (10/05->11/08, 11/08->12/11), Innova (2006->2015), Landcruiser (J12) (01/03->01/09), Matrix (2003->2014), MR2 (W3) (04/00->03/03), Prado (2003->2009), Previa (2006->2019), Prius ZVW30/ZVW35 (XW3) (06/09->04/12), RAV4 (XA2) (10/00->12/03, 12/03->01/06), RAV4 (XA3) (03/06->04/09, 04/09->05/10), Yaris (XP9) (01/06->01/09, 01/09->10/11) and Vios (2003->2007)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for Lexus / Toyota ACV SWC 42XTY001-0

New

Description and parameters
Comments0
Evaluation0
Category

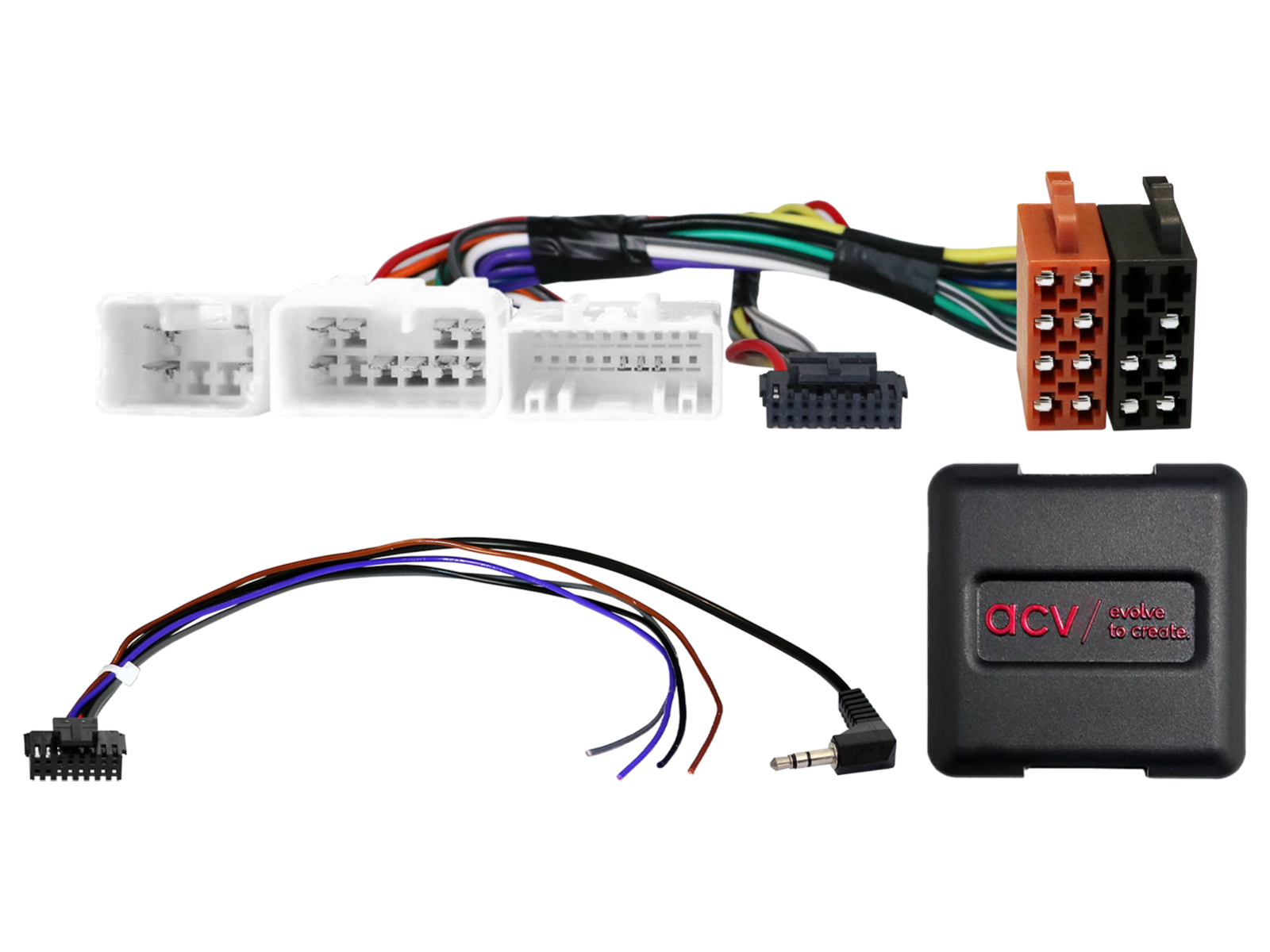

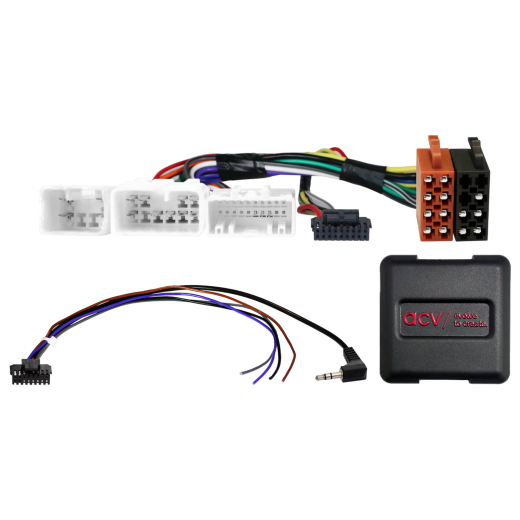

Steering Wheel Button Control Adapter for Lexus / Toyota ACV SWC 42XTY001-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on vehicle equipment, feature set and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the shown wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation verify vehicle functionality, system settings and correct operation of the steering wheel control (SWC).

Intended for vehicles

Lexus IS (XE1) (10/2001 -> 11/2005) - original OEM head unit.
Lexus IS (XE2) (12/2005 -> 11/2008) - original OEM head unit.
Lexus IS Cabriolet (XE2) (07/2009 -> 11/2010) - original OEM head unit.
Lexus IS (XE2) (11/2008 -> 11/2010) - original OEM head unit.
Lexus IS Cabriolet (XE2) (11/2010 -> 10/2013) - original OEM head unit.

Toyota 4Runner (2002 -> 2009) - original OEM head unit.
Toyota Auris (E150) (07/2007 -> 03/2010) - original OEM head unit.
Toyota Avanza (2003 -> 2011) - original OEM head unit.
Toyota Avensis (T25) (01/2003 -> 06/2006) - original OEM head unit.
Toyota Avensis (T25) (06/2006 -> 01/2009) - original OEM head unit.
Toyota Avensis (T27) (01/2009 -> 12/2011) - original OEM head unit.
Toyota Camry (2007 -> 2011) - original OEM head unit.
Toyota Celica (T23) (10/1999 -> 01/2006) - original OEM head unit.
Toyota Corolla (E120) (01/2002 -> 07/2004) - original OEM head unit.
Toyota Corolla (E120) (07/2004 -> 02/2007) - original OEM head unit.
Toyota Corolla Verso (R1) (05/2004 -> 06/2007) - original OEM head unit.
Toyota Corolla Verso (R1) (07/2007 -> 04/2009) - original OEM head unit.
Toyota Estima (2006 -> 2016) - original OEM head unit.
Toyota FJ Cruiser (2001 -> 2007) - original OEM head unit.
Toyota Hiace (H1) (11/2006 -> 10/2010) - original OEM head unit.
Toyota Hilux (N25) (10/2005 -> 11/2008) - original OEM head unit.
Toyota Hilux (N25) (11/2008 -> 12/2011) - original OEM head unit.
Toyota Innova (2006 -> 2015) - original OEM head unit.
Toyota Landcruiser (J12) (01/2003 -> 01/2009) - original OEM head unit.
Toyota Matrix (2003 -> 2014) - original OEM head unit.
Toyota MR2 (W3) (04/2000 -> 03/2003) - original OEM head unit.
Toyota Prado (2003 -> 2009) - original OEM head unit.
Toyota Previa (2006 -> 2019) - original OEM head unit.
Toyota Prius (ZVW30/ZVW35/XW3) (06/2009 -> 04/2012) - original OEM head unit.
Toyota RAV4 (XA2) (10/2000 -> 12/2003) - original OEM head unit.
Toyota RAV4 (XA2) (12/2003 -> 01/2006) - original OEM head unit.
Toyota RAV4 (XA3) (03/2006 -> 04/2009) - original OEM head unit.
Toyota RAV4 (XA3) (04/2009 -> 05/2010) - original OEM head unit.
Toyota Yaris (XP9) (01/2006 -> 01/2009) - original OEM head unit.
Toyota Yaris (XP9) (01/2009 -> 10/2011) - original OEM head unit.
Toyota Vios (2003 -> 2007) - original OEM head unit.

CAN Bus information

Connectors and power:

Connectors: Toyota 10-pin / 6-pin / 20-pin.
OEM steering wheel control connection: 3.5 mm jack or spare wire to the SWC input of the head unit.
Vehicles with 18-pin CN700 LAN connector: steering wheel control on 8-pin CN800 connector (Pin 6: SWC GND, Pin 7: SWC 1, Pin 8: SWC 2) – must be measured before connection.

Settings:

Set DIP switches according to the aftermarket head unit manufacturer (see BDA).

Vehicle compatibility:

Vehicles with OEM units by Matsushita / Fujitsu Ten.
Vehicles without OEM amplifiers JBL / JBL Synthesis / Mark Levinson.
Vehicles without the 18-pin CN700 LAN connector (otherwise see above).

Special cases and warnings:

Vehicles on the model year boundary require a wiring harness 20-pin + 28-pin (item: 42xty00c).
Re-imported vehicles or vehicles with different software may have limited functionality.

Important additional information

Compatible with aftermarket head units that have an analog input for steering wheel control.
For full activation of the adapter it is necessary to order a connector cable for the specific head unit brand.

General installation instructions

Verification before installation:

Check all steering wheel control functions and vehicle settings with the original OEM head unit installed.
Disconnect the original radio (OEM HU) with power off.
Check all interface connections to ensure they are correctly connected – with power off.

Connection and wiring order:

Set and check the hardware configuration of the interface – with power off.
Check the configuration of the cable connected to the head unit – with power off.
Connect the cable to the head unit according to the aftermarket device manual.
Connect the remaining wires according to the device manual.
Connect the entire installation to the vehicle – connect the main power last.
Perform the software configuration of the interface according to the product description or manual.
Configure the aftermarket head unit (steering wheel control, camera, handsfree, antenna power, etc.).
Perform a functional test of the steering wheel control and communication with the vehicle.

Changing the configuration of the interface and head unit cable:

Make all changes with power off.
After changes repeat steps 5 to 8 listed above.

In case of interface or vehicle system malfunction:

Reinstall the original OEM head unit.
Start the original unit.
Initiate CAN Bus shutdown.
Check the hardware configuration of the interface.
After CAN Bus shutdown repeat steps 5 and 6 listed above.

When modifying wiring or cable routing:

Wiring and modifications must be performed only by professionally trained personnel.
All changes must be verified in terms of manufacturer approval or impact on the vehicle warranty before connection.
All modifications must be verified by measurement and comparison with the vehicle wiring diagram before connection.
Modifications are performed at your own risk, without guarantee of functionality.
Modifications are performed at your own risk, without guarantee against damage to the vehicle, device or interface.
Pre-modified harnesses may result in loss of product warranty.

Catalog number	42XTY001-0
