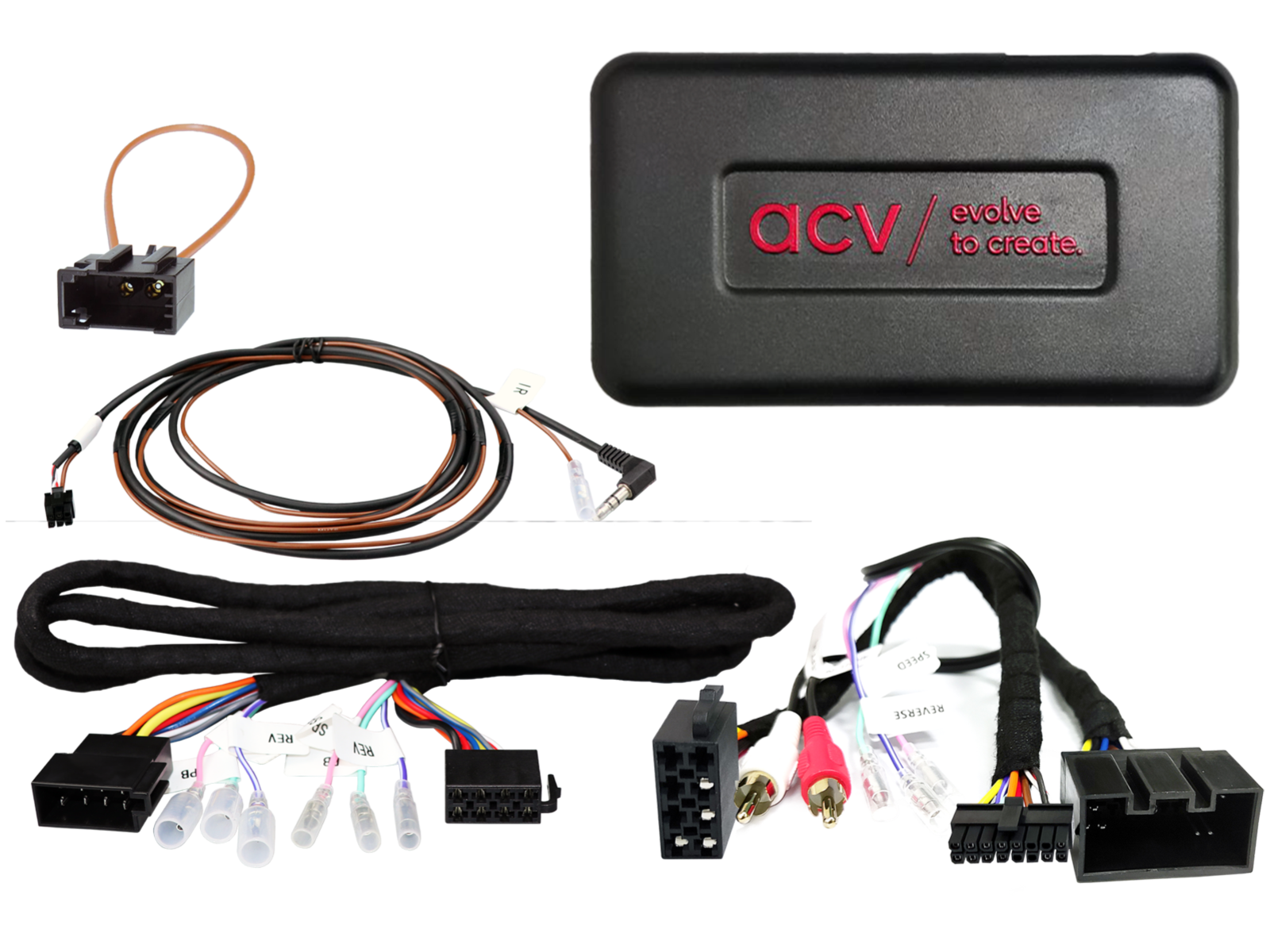

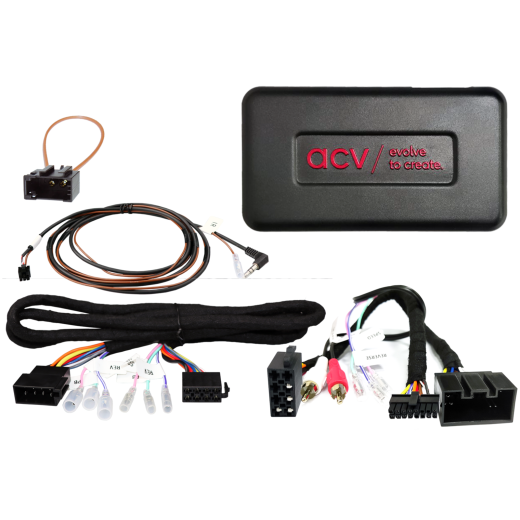

Steering wheel button control adapter for Land Rover ACV SWC 42XLR013-0

Steering wheel button control adapter for Land Rover ACV SWC 42XLR013-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle equipment, range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation verify the vehicle functionality, system settings and correct operation of the steering wheel control (SWC).

Intended for vehicles

• Land Rover Range Rover [LM/Vogue] (09/2009 -> 12/2012) - vehicles with OEM MOST amplified system, without Alpine Touch Screen HU, vehicle settings and date/time are not supported, fader function is not supported.

CAN Bus information

Connectors and power:

• Connector: 20-pin Land Rover.
• OEM steering wheel control (SWC) connection: 3.5 mm jack or free wire.
• OEM amplified system connection: RCA (male) red/white – front pre-out from aftermarket HU; fader is not supported.
• Fibre optic loop (f) MOST ring > OEM display.

Settings:

• Set DIP switches according to the aftermarket unit manufacturer (see device manual).

Compatibility and limitations:

• Vehicles with CAN Bus.
• Vehicles with OEM MOST amplified system.
• Without Alpine Touch Screen HU.
• Vehicle settings and date/time settings are not supported.
• OEM display is not supported; only the Land Rover startup logo will appear.

Signals and output load capacity:

• Red: +12 V ignition supply (terminal 15).
• Orange: +12 V illumination (terminal 58).
• Purple/white: +12 V reverse signal.
• Pink: speed pulse.
• Green: GND handbrake signal.
• Max. output load: 250 mA. For higher current use relays – 1 relay with coil resistance min. 75 Ω, 2 relays with coil resistances min. 150 Ω.

Important additional information

• Analog steering wheel control (SWC). Reimported vehicles or vehicles with different software may have function incompatibilities.
• To fully activate the adapter, it is necessary to order the connecting cable for the specific head unit brand.

General installation instructions

Checks before installation:

1. Check all steering controls and vehicle settings with the original OEM head unit.
2. Disconnect the original radio (OEM HU) with power off.
3. Check all interface connections to ensure they are correctly connected – with power off.

Connection and wiring sequence:

1. Check the interface settings and HW configuration – with power off.
2. Check the configuration of the connection cable to the HU – with power off.
3. Connect the cable to the HU according to the aftermarket device manual.
4. Connect the other wires according to the device manual.
5. Connect the whole installation to the vehicle – connect the main power supply last.
6. Perform the software configuration of the interface according to the product description or manual.
7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power and others).
8. Perform a functionality test of the steering wheel control and communication with the vehicle.

Changing interface configuration and HU cable:

• Make all changes with power off.
• After changes repeat steps 5 to 8 listed above.

If the interface or vehicle system malfunctions:

• Reinstall the original OEM HU.
• Start the original unit.
• Trigger CAN Bus shutdown.
• Check the HW configuration of the interface.
• After CAN Bus shutdown repeat steps 5 and 6 listed above.

When modifying wiring or cable harnesses:

• Wiring and modifications should only be performed by professionally trained personnel.
• All changes must be verified before connection with regard to manufacturer approval or impact on the vehicle warranty.
• All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
• Modifications are performed at your own risk, without guarantee of functionality.
• Modifications are at your own risk, with no guarantee against damage to the vehicle, device or interface.
• Pre-modified harnesses may lead to loss of product warranty.
